Specification
ModelWTP-9E66-24
Main System
CPU / Chipset FCBGA1356 6th/7th generation Intel® Core i7/i5 processor 15W max. / Soc
Graphic Intel® integrated HD Graphics
RAM Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
OS Support Win 7, Win 7 pro,  Win 8 , Win10
Storage 2.5” SATA  drive bay x 1
Expansion Mini PCIe x 1, M.2 Type E x 1
Display Size 23.8” TFT-Color LCD (16:9)
Display 1920 x 1080(Full HD),  178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ)
Touch Screen Full Flat P-cap touch /  Light Transmission: >=85% / Hardness: >=7H

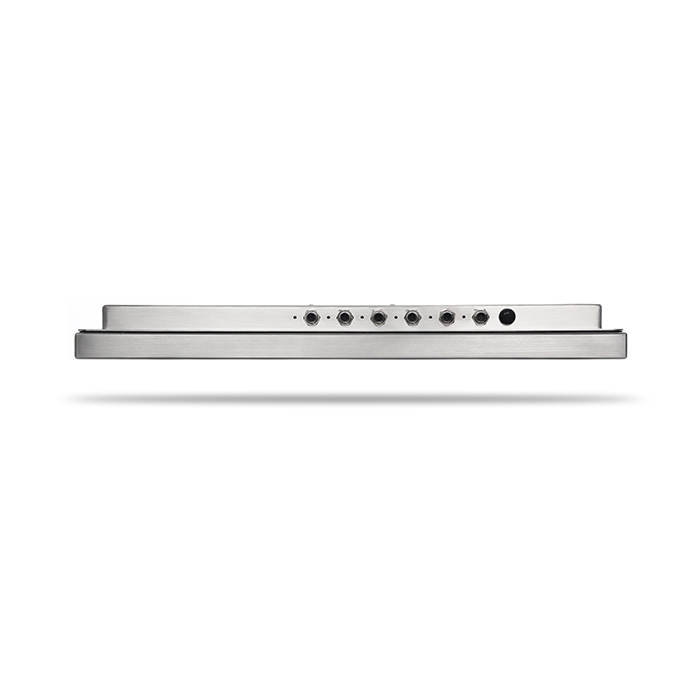

I.O. Ports
USB 1 x M12 8pin for USB 1/2, 1 x M12 8pin for USB 3/4
COM
1 X M12 8pin for COM 1/RS-232,
1 X M12 8pin for COM 2/RS-232/422/485
LAN 1 x M12 8pin for LAN x 1 ( i219LM for Vpro )
Control Key  Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC 9V~32V / 62.4 W
Power Adapter AC100~277V/ 47 ~ 63 Hz / DC output 24V, IP67
Temperature
Operating Temperature        0~40℃(12VDC)
Storage Temperature           -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X , IP69K/ SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 626.6 mm (H) x 396.1 mm (V) x 64.0 mm (T)
Weights (Net) 14.8 kg (w/o power adapter/battery pack)
Mounting VESA 100, side mount (M6*2)
Certification FCC-B/ CE(EMC)/ VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Add On Parts

1. Wireless LAN or Wireless and BT kit  (Easy Clean and Robust Antenna  or 2 ant),
2. SSD,
3 External LAN x 2,
4. Waterproof USB 3.0,
5. Stainless M12 connector,
6. TPM2.0,
7. IP67,
8. SUS316 Enclosure
9. Cable Gland for External I.O.

Power Cable

1. Waterproof M12 to 1 x COM cable,
2. Waterproof M12 to 1 x USB cable,
3. Waterproof M12 to 1 x LAN cable
4. Maximum length is 7.2 meters by 3x2m DC cables

Optional kits

1. Wall mount / Table mount bracket

Customized

1. Sunlight readable optical bonding,
2. 1000 nit high brightness LCD ,
3. LCD Auto dimming,
4. LCD Super dimming (Low brightness) ,
5. 5W/2WSpeaker,
6. Second HD,
7. COM+power 5V or 12V,
8. Barcode reader
