Rugged Ready Solutions

Wincomm Rugged Ready Solutions
Wide Temp & Sunlight Readable Product Series

Target Applications

The operation stations which need a panel PC working under Outdoor / Semi-outdoor environment, such as KIOSK/ way finder / signage / HMI

Pain Points for Outdoor Semi-outdoor Environments

The operation stations which need a touch panel PC working
under Outdoor or Semi-outdoor environment and system
owner may face some pain points such as :

UV light within sunlight damages touch screen
System shut down due to high temperature from sunlight
System cannot be turned on due to cold temperature
Strong sunlight makes LCD screen hard to read
LCD is too bright at night
High humidity, dust around leads to chassis erosion
Ambient temp. change causes water condensing to damage
System cannot run 24/7/365

Solutions for Outdoor Semi-outdoor HMI Panel PC

Sunlight readable design to make LCD picture clear under sunlight
Auto-dimming design to make LCD picture easily read in the dark
Anti UV design to keep touch screen & LCD from sunlight damage
Smart cooling keeps PC from burned down under direct sunlight
Smart heating wakes up PC under low temp.
Robust enclosure meets full IP proof
Smart ventilation avoids water condensation
Options for information exchange
External I/O by cable gland for easy installation
Vandal proof touch screen available
Warranty and longevity supporting

Why Wincomm Rugged Ready Solutions ?

Under extreme climate changes environment and rapid temperature changes, Wincomm RD team have developed the advanced technologies on HMI controller touch panel PC solutions designed toward outdoor to semi-outdoor environment requirement, size ranging from 10" to 23.8" to enlarge the use at rugged IIoT solutions. Designed for applications of rapid changed outdoor environment, Wincomm comes up with wide range of operation temperature, sunlight readable, smart thermal management, light dymanic control, anti-water condensation, water-proof, dust-proof and anti-acid corrosion products, making it ideals to any type of rugged semi-outdoor or outdoor environment. Contact for more information.

Selection Guide Brief

Product Features Brief

CE, VCCI, FCC Class B Certification

100% Waterproof Dustproof IP66/IP69K, NEMA4X

Resistive Touch On/Off for Easy Hygienic Clean

Easy Installation I.O. w/Optional Waterproof Connector

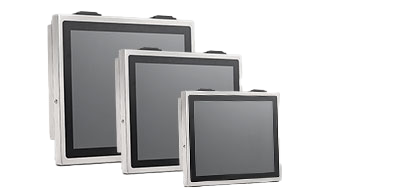

Full Range of LCD Size from 10", 15", 19", 22", to 23.8"

Intel® Core™, Atom® Various Platform for Selection

Fanless Design Withstand of Wide Temp -20~60°C Environments

Sunlight Readable Solution Ready

Smart Ventilation Avoid Water Condensation

Downward IO for Easy Installation and Space Saving

Key Successful Solutions

Semi-outdoor Solutions

Intelligent Public Transportation

i-Government Service

Outdoor Solutions

i-Oil Drill Solution

Smart Parking

Panel Mount Flat Res. Touch Panel PC

Rugged Wide Temp High Brightness Touch Panel PC
WLP-7H20-22H

22"LCD, Alder Lake-P, Wide Temp High Brightness, Panel Mount Touch Panel PC, CE/FCC/VCCI Class B

Rugged Wide Temp High Brightness Touch Panel PC
WLP-7J20-15H

15"LCD, Elkhart Lake x6413E, Wide Temp High Brightness, Panel Mount Touch Panel PC, CE/FCC/VCCI Class B

Full IP Wide Temp Stainless Steel Panel PC
TP-8J66-15W

15"LCD, Elkhart Lake x6413E, Six Side IP66/IP69K, Wide Temp, Stainless Panel PC, CE/FCC/VCCI Class B

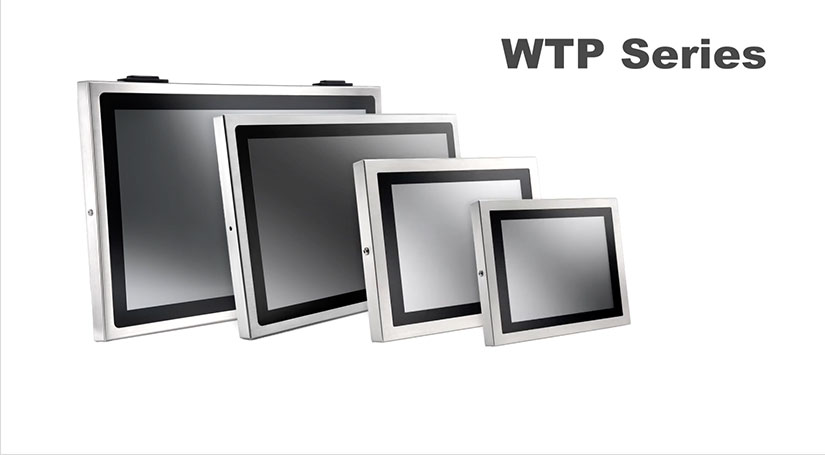

Full IP Wide Temp Stainless Steel Panel PC
WTP-9H66-22W

22" LCD, Alder Lake-P, Skylake/Kaby Lake Core i, Six Side IP66/IP69K, Wide Temp, Stainless Panel PC, CE/FCC/VCCI Class B

ATEX C1D2 Explosion Proof Panel PC
WTPE-9E66-15W/19W/22W

15"/19"/22" LCD, Skylake Core i, Six Side IP66/IP69K, Wide Temp, Stainless Steel Panel PC, C1D2/ATEX Zone II/IECEx, 2 x Hot Swappable COM/USB Ports

Full IP - Wide Temp 1000 nits Panel PC
WTP-8B66-15O
