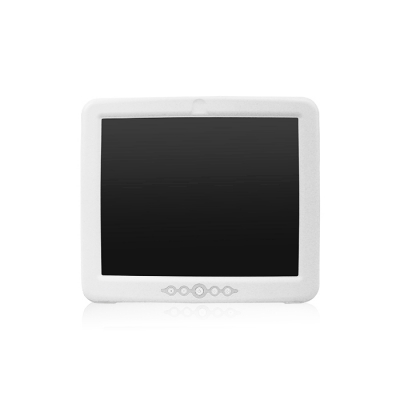

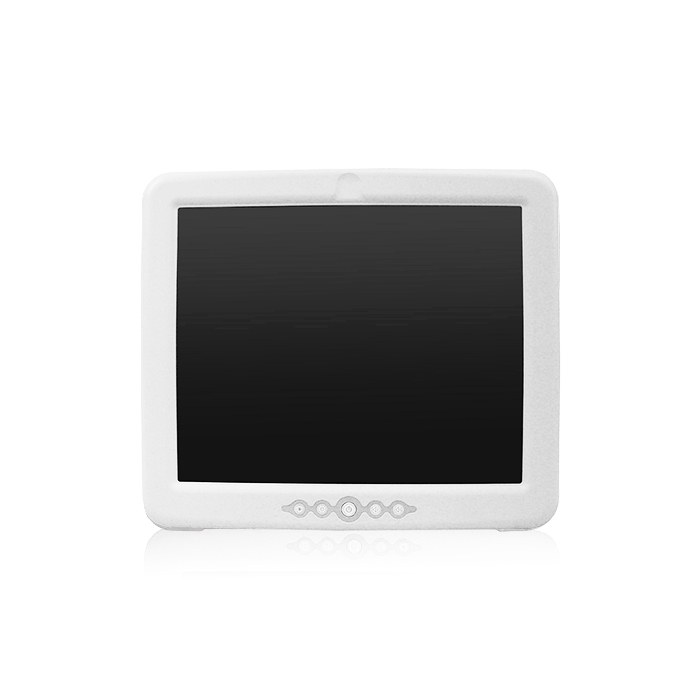

Product Name : WMP-17F Skylake/Kaby Lake 17"
Product Description
  • Intel® Skylake/Kaby Lake Core i7/i5 Medical Panel PC
  • 17" 1280x1024 LCD panel
  • Highest Level EMC 4.0/ Safety 3.1 Certification Ready
  • Support Intel® vPro by Optional i7/i5 CPU
  • Anti-Bacteria Plastic Housing
  • Friendly Design of Front Function Hot-Keys
  • Front IP65, IPX1 for Whole System
  • Optional PCI-E x16 Expansion Slot
  • Optional Built-In Battery Pack
  • Optional 4KV LAN/COM/USB Isolated I/O
  • Support RADI 0,1
See: Medical Fanless All In One Touch Panel PC WMP-15C

eNews: 6th generation Skylake platform Medical grade touch Panel PC WMP-24F/22F/19F
Product Introduction
Medical AIO Panel PC with Powerful Skylake / Kaby Lake CPU

Integrated with Built-in battery, Non-Stop Operation

These medical all in one panel pc are designed to fulfill versatile clinical applications, incouding EMR, anesthesia applications, operating room environments, and patient charting. One of our most powerful computers for hospitals that want the best in medical hardware.

  • Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and an IPX1 back cover making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 6th/7th Gen Intel Core CPU
    Our medical panel pcs offer the Skylake 6th / Kaby Lake 7th generation Intel® Core i3/i5/i7 processor series.
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. Webcam & TPM 2.0 & Display interface for up to 2

Operate your medical device computer application with more power under the hood

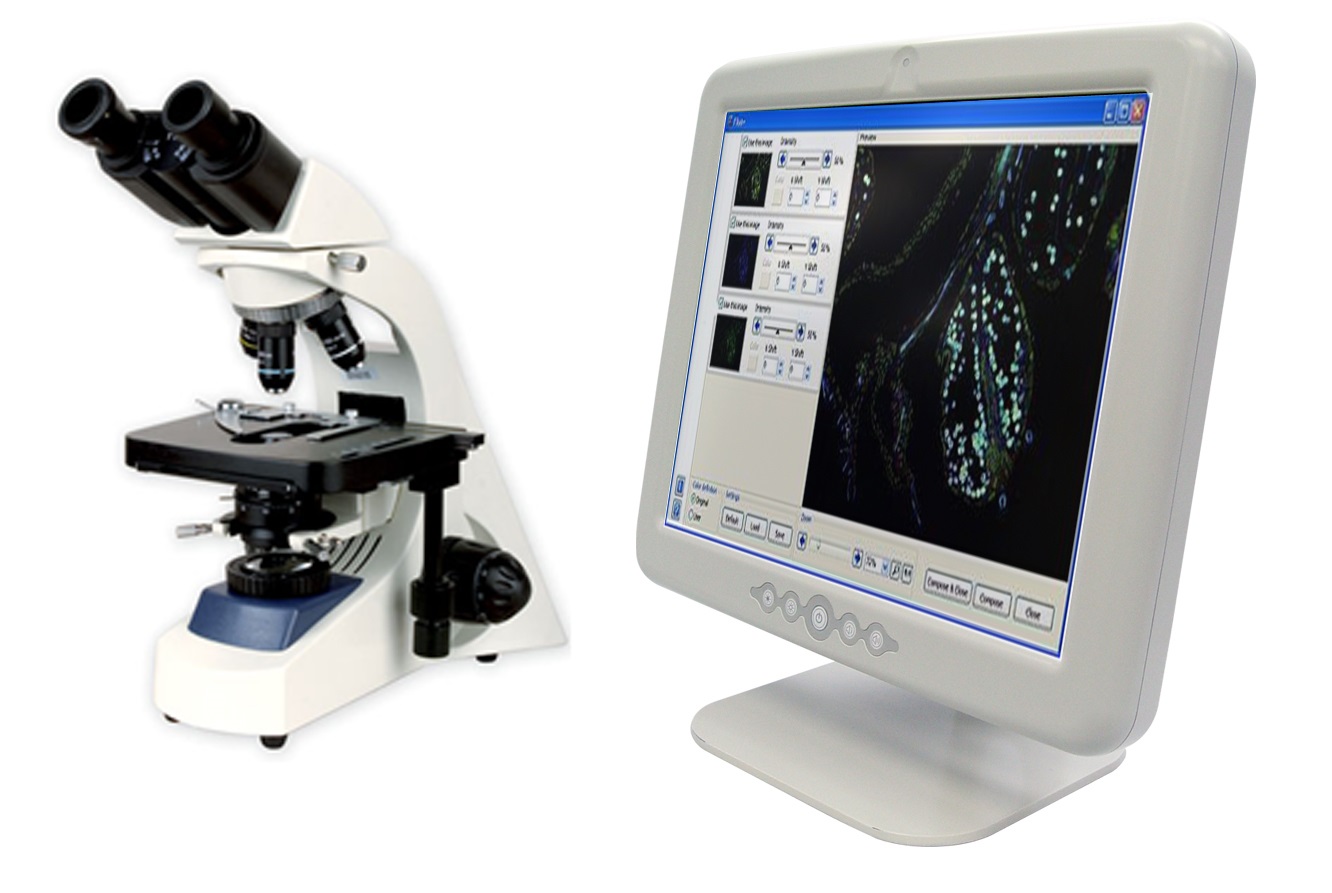

The WMP-17F is ideal for a range of different medical devices and machines in the hospital setting. Not only does this 17-inch all-in-one medical PC save space, but it can be mounted on a wall or used on powered medical carts to move computing where it is needed: patient rooms, operating rooms, or labs. Intel® Core™ i3, i5, & i7 series Skylake CPUs and up to 32GB of DDR4 RAM give this medical computer sufficient power to operate hardware.

proimages/seefeature/WMP-172-Imaging_System.jpg
proimages/seefeature/pic-06.jpg

Optional ISO –COM/LAN/USB to avoid expensive equipment damage

4KV Isolated Interface:

  • Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.
Specification
ModelWMP 17F  IP0A (STD)WMP 17F  IP0B (ISO)
Main System
CPU / Chipset LGA1151 package 6th/7th generation Intel Core i7/i5/i3/Celeron processor (35W max.)
Graphic Intel® integrated HD Graphics
RAM DDR4 Dual-2133 SODIMMl, non-ECC, 4GB to 32GB
OS Support Windows 7 embedded, Windows 7 pro, Windows 8 embedded, Windows 8 industrial, Windows 10 IoT Enterprise LTSC
Storage 2.5” SATA HDD drive bay x 1 ,mSATA via mini PCI-E x 1
Expansion PCI-E (x16) x1, Mini PCIe x2
Display Size 17” TFT-Color LCD (5:4)
Display 1280 x 1024(SXGA), 16.2M colors (RGB 6 bit + HiFRC Data), 170(H) / 160(V), 350 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen 5 Wire Resistive Touch Panel /  Light Transmission: 80% ± 3% / Hardness: 3H pencil / Life: 35M times

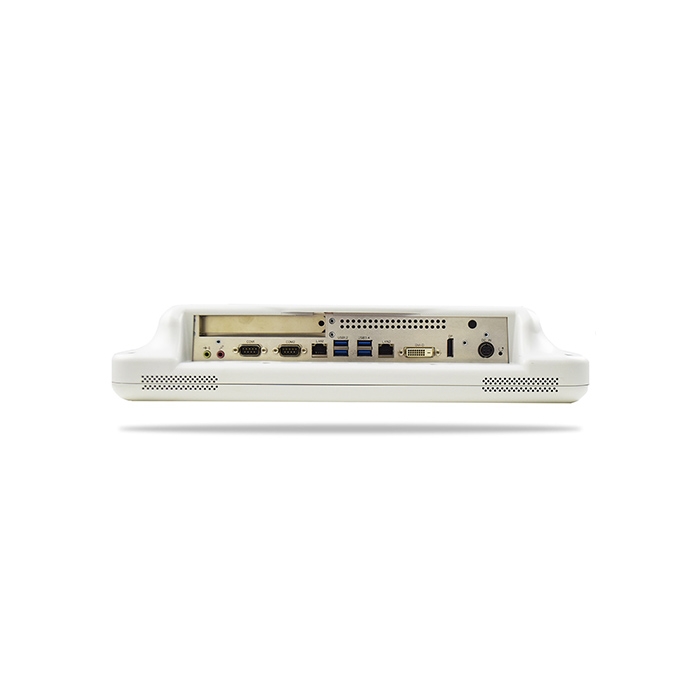

I.O. Ports
USB USB3.0 x 4 ISO USB2.0 x 2
COM RS232/422/485 x 1:Support RS485 Auto flow control function, RS232 x 1 ISO RS232/422/485 x 1, ISO RS232 x 1
LAN Giga LAN RJ45 X 2 ISO RJ45 x 1
Audio Built-in Speaker 2W x 2; Optional Microphone on I/O cover; 3.5mm phone jack connector * 2 (Line-out, Mic-In);
Video Out DVI-D x 1 + DP x 1
Control Hot Key (R to L) Brightness down/Brightness up // Power // Volume down/Volume up
Mechanical and Environmental
Cooling Fan
Power Input  DC-In x 1, DC 7~32V input (9~28V with battery pack)
Power Adapter AC input 100 ~ 240V/ 47~63 Hz/ DC output 12V/ 100W
Temperature Operating Temperature: 0~40℃ (chamber) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 whole system / Front: Full flat design/ Touch (standard)/ Glass (customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing
Dimensions (Net) 420 mm (H) x 360 mm (V) x 83 mm (T)
Weights (Net) 7.0 kg (w/o power adapter/battery pack)

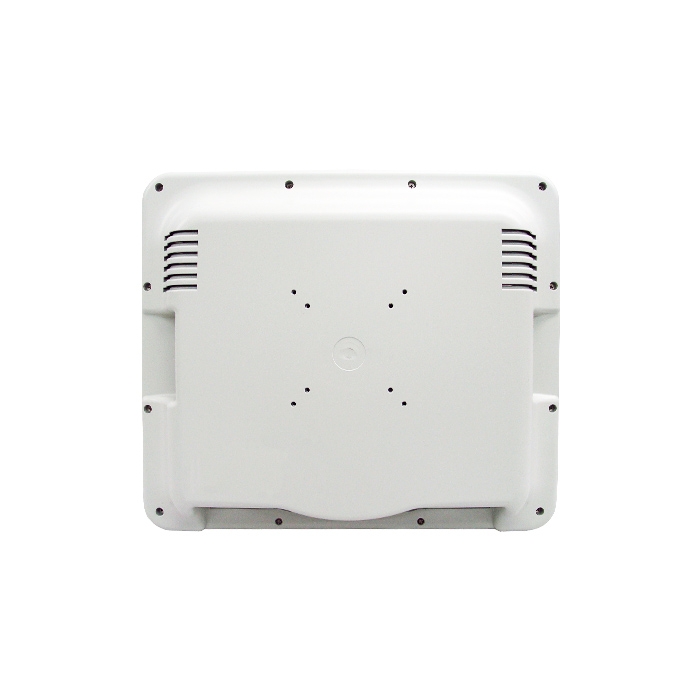

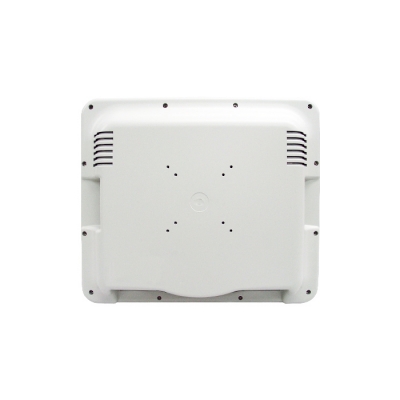

Mounting Optional Stand, VESA 75/100
Certification CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance
VCCI: 2016-11, Class B (PSU with PSE), FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
ISO 14971 / IEC62133
Options & Customized

Major Options

Add On Parts

1. 3M AF Webcam(USB)
2. TPM 2.0 module
3. Wireless or Wireless + BT kit
4. PCI-E [x16] riser card
5. Equipotential Terminal Pin
6. Battery pack (100W max.) Support add-on card 18W max
7. Full HD Capture Card
8. mSATA module
9. 2.5” SSD
10. 4KV Isolation Card x 1 (Isolation COM x 2, Isolation LAN x 1, Isolation USB x 1)

Power Cable

1. Power adaptor w/ extended 2m DC cable,
2. Power plug holder
3. Microphone on I/O cover

Optional kits

1. Anti-bacteria Stand,
2. VESA Wall Mount

Customized

1. Extra USB x 2 or COM x 2,
2. Tempered glass
3. RFID (13.56MHz)

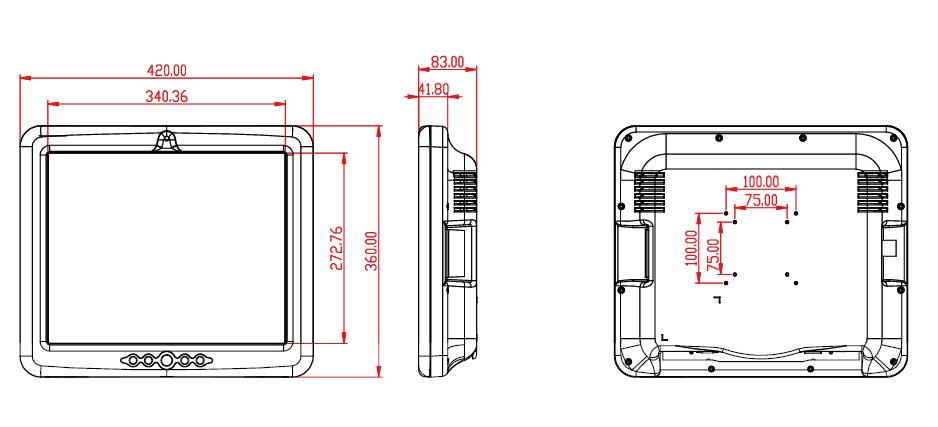

Drawing
proimages/products/WMP-17F/2016WMP-17F_Drawing_pic9.jpg
