Product Name : WLPM-V24 AMD Ryzen™ V1605B 24"
Product Description
  • Intel® Coffee Lake-S Core™ Processors
  • Modular Design with Panel Size 23.8”

  • Front IP66 Waterproof and Dustproof, Panel Mount
  • Fanless with Smart Thermal Control
  • Full Flat Design with Resistive or P-cap Touch
  • CE, FCC, VCCI Class B Passed
  • Optional Expansion Slot PCIex8
eNews: Wincomm White Paper : How to Bring Differentiated AIoT Solutions to Rugged Industries
Product Introduction

Modular Panel PC Professionals

  • High Computing Power
  • Modular Design
  • Fanless w/ Smart Thermal Control
  • Flexible Configuration for Easy Control
Specification
ModelWLPM-V24
Main System
CPU / Chipset AMD Ryzen CPU, V1605B, QC, 2GHz, 12-25W / SoC
Graphic AMD Radeon™ Vega 8 Graphics
RAM Dual Channel DDR4 2400 MHz (V1605B/ V1202B) , 32 GB
OS Support Win 10 (64 bit)

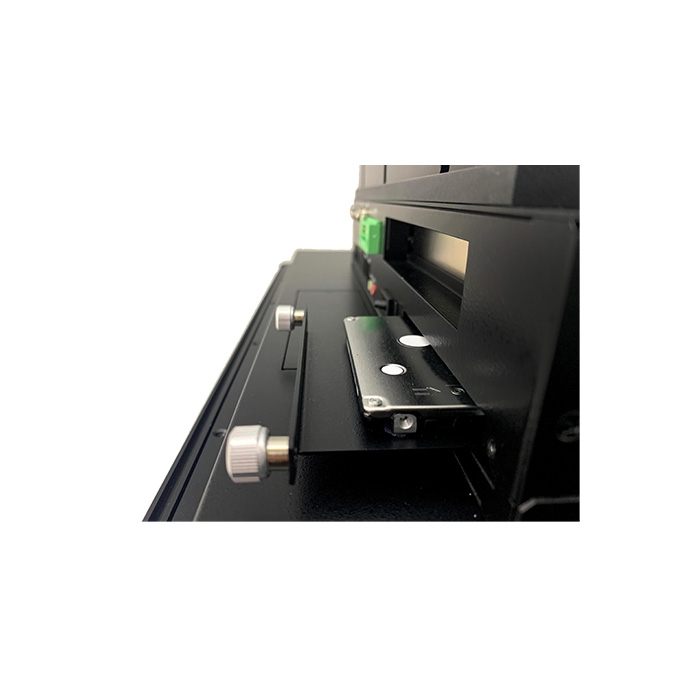

Storage 1 x 2.5” SATA SSD
1 x M.2 M.Key 2242/2260/2280 PCIex2 and SATA for SSD
Expansion
1 x M.2 Key E 2230 w/ PCIex1, share USB2.0 for Wireless
1  x mini-PCIe for Full/Half w/ PCIex1
1 x PCIex8 (25W max.)
Display Size 23.8” 16:9
Display 1920 x 1080 (FHD),  178(H) / 178(V), 250 nits (Typ. Center point), CR: 3000 : 1 (Typ)
Touch Screen Full Flat Projective Capacitive Touch Panel / Light Transmission: >=85% / Hardness: >=7H pencil / Life: 100M times
I.O. Ports
USB 2 x USB 3.2 GenII, 2 x USB 2.0
COM 2 x RS232/RS422/RS485
LAN 2 x RJ-45
Audio 2 x 3.5mm phone jack connector (Line-out,  Mic-in)
Video 3 x DP1.2a
Control Keys  Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input  1 x DC-in(Jack with locker), DC19V~28V
Power Adapter 150W (PSU with PSE)
Temperature Operating Temperature: 19V DC Input 0~50℃ (air flow cooling)
Storage Temperature: -20~60℃
Humidity Operating & Storage:10% ~ 90%, non-condensing
IP & IK Rating / Housing IP66 at front, IK05 / Front bezel is Aluminum, others are SECC with black coating
Dimensions (Net) 653.7 mm (H) x 412 mm (V) x 121.4 mm (T)
Weights (Net) TBD kg (w/o power adapter)
Mounting Panel mount (by clamp), VESA (75x75)
Certification FCC/CE/VCCI Class B
Options & Customized

Major Options

Add On Parts

1. Wireless and BT kit (2 ant)
2. Projected capacitive touch screen
3. Stainless front bezel
4. Silver front bezel
5. TPM 2.0
6. Windows 10(2019-LTSC) (64bit) value
7. Chassis type housing
8. Openframe housing
9. Cable tie bracket
10. USB 2.0 X 2(By Cable)
11. PCIe Riser Card(X8)
12. RS232 x 3(By Cable)

Customization

1. 2.5” HDD
2. 2nd 2.5” SSD / HDD for RAID 0,1
proimages/products/WLPM/WLPM-V24_DW.PNG
