Product Name : WMP-15P Raptor Lake 15"
Product Description
  • High performance intel 13th generation Core i CPU
  • Anti-bacteria (MRSA) plastic housing
  • 15.6"(1366x768), 400nits Diagnostic panel or 15.6"(1920 x1080), 500nits FHD panel
  • Support Intel Vpro technology by CPU
  • Supports Dual Channel DDR5 SODIMM up to 96GB
  • Fanless solution
  • Optional 1 x UPS Battery (100 Watt Max)
  • Optional 2.5” SATA3 SSD up to 2TB
  • Optional Full HD/4K capture card
  • Supports PCI-E x4 riser card (option)
  • USB/LAN/COM 4KV isolated module (optional order configuration)

 Wincomm Unveils Intel 13th Gen POC All-in-One PC Series with Enhanced Features for Medical Environments

 Wincomm Upgraded Medical Cart Panel PC WMP-22(24)P-PIS Series to Unique Power Solution

 Wincomm Announced Whiskey Lake Fanless Hot Swappable Batteries Medical Panel PC with 22 to 24 inch Touch Panel Series

eNews: Compact 10.1” HMI Panel PC for Healthcare Information Solutions
ModelWMP 15P  IP0A (STD)WMP 15P  IP0B (ISO)
Main System
CPU / Chipset
FCBGA1744 Intel® 13th Gen. Core i7/i5/i3 & Celeron Processor (15W Max.) / SoC
Graphic Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU)
RAM Two 5200 MHz DDR5 SODIMM Socket Support Dual Channel, non-ECC, up to 96GB
OS Support Optional Windows 10 IoT Enterprise LTSC / WIN 11 IoT Enterprise GAC
Storage 1 x M.2 (M Key 2280) with PCIex4 & SATA3 for SSD, 1 x 2.5” SATA3 SSD/HDD drive bay
Expansion 1 x PCIex4 (40W max.), 1 x M.2 E Key
Display Size 15.6” wide TFT-Color LCD (16:9)
Option 1: 1366 x 768, 16.7M colors, 170(H) / 160(V), 400 nits, CR:500: 1 (Typ)
Option 2: 1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 500 nits, CR:1000: 1 (Typ)
Touch Screen Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 84% / Hardness: 7H pencil, pressure 765g/45° / Life: 50000
I.O. Ports
USB 4 x USB3.2 gen. II 4 x USB3.2 gen. II, 1 x ISO USB2.0
1 x RS232/422/485, 1 x RS232
1 x RS232/422/485, 1 x RS232
1 x ISO RS232/RS422/RS485, 1 x ISO RS-232
LAN 2 x RJ45 2 x RJ45, 1 x ISO RJ45
Audio/Video 1 x Line-out & 1 x Microphone-in (3.5mm phone jack) / 1 x DP1.4a, 1 x HDMI 2.0
Speakers & Mic. 2 x 2-watt Speakers & Integrated Microphone (at Housing Bottom Side)
Control Hot Key
(R to L)
Battery LED Indicator, Power On/Off, Mute, Volume +/-, Brightness +/-, LCD Backlight On/Off, Clean Me, webcam On/Off, Function Key
Mechanical and Environmental

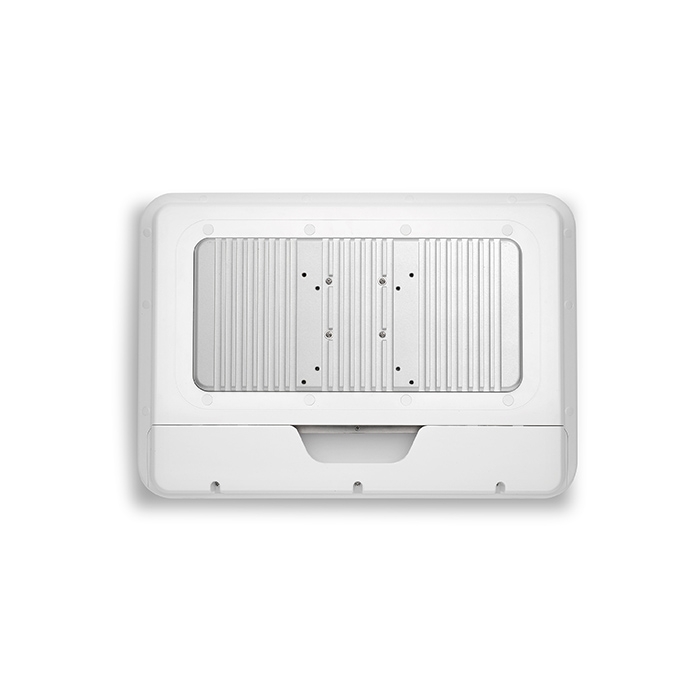

Cooling Fanless Design with External Heatsink
Power Input DC 14~24V input
Power Adapter AC input 100~240V / 47 ~ 63 Hz / DC output 12V, 100W
Temperature Operating Temperature: 0~40℃ (IEC60068-2-78) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 whole system / Front: Full flat design/ Touch (standard)/ Glass (customized); Rear: Plastic White w/Anti-bacteria (MRSA) Housing
Dimensions (Net) 430 mm (H) x 300 mm (V) x 88.4 mm (T)
Weights (Net) 5 kg (w/o power adapter/battery pack)
Mounting VESA 75/100
CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1)
EN 60601-1: 2006/A2:2021; IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020
VCCI: 2016-11, Class B (PSU/Battery with PSE)
FCC: Part 18 Class B
UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project
cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project
ISO 14971 / IEC62133
Options & Customization

Major Options


① Wifi 802.11 ac/a/b/g/n WLAN + Bluetooth module
② Wifi 802.11 ax/a/b/g/n WLAN + Bluetooth module (Wifi-6)
③ 5MP Auto Focus Webcam
④ RFID reader (13.56MHz)
⑤ TPM 2.0(SPI) module
⑥ 2.5” SSD module
⑦ M.2 SSD 2280
⑧ Battery pack (100W max.)
⑨ COM3,4
⑩ USB5,6
⑪ AC DC Power adapter 18V 100W (EU Only) (optional order configuration)
⑫ Equipotential Terminal Pin
⑬ AG Film
⑭ PCIex4 riser card
⑮ Full HD/4D capture card
⑯ Isolated 4KV module (optional order configuration)
    4KV Isolated USB 2.0 (High speed ) connector x 1
    4KV Isolated gigaLAN connector x 1
    4KV Isolated COM connector x 2 (one is RS-232/422/485, one is RS-232)
⑰ FHD panel(optional order configuration)
⑱ GPIO capture card control solution


① Tempered glass
② Touch panel with anti-glare coating
③ Light sensor for LCD auto-brightness control (can’t co-exist with webcam)
④ COM5,6 (New I/O bracket, remove USB5,6)
