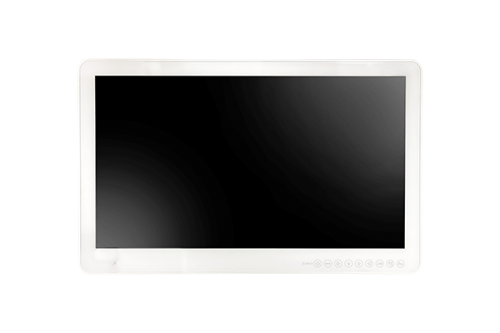

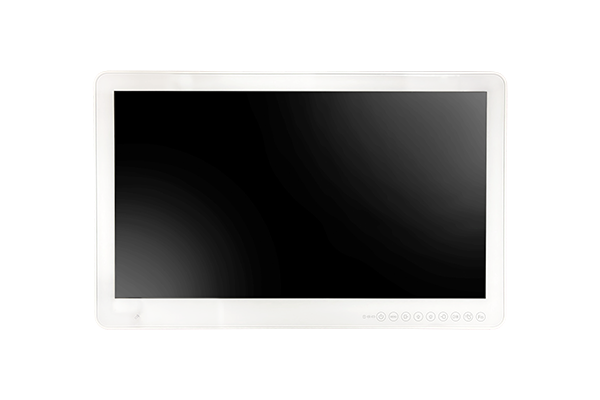

WMP-22T-PIS-L Raptor Lake 22" Fanless Power Inside
Product Introduction
Medical OR All In One PC
Integrated with Built-in Power Supply, Secure Operation Procedure
Medical OR All In One PC series is designed for operating room applications, such as endoscopic surgery, robotic surgery, and so on. With anti-bacteria elegant aluminum housing, it supports full sealed waterproof for IP65 front and IP54 rear for the system, and two display port output, one unique video-input function to receive medical capture devices for all types of minimally invasive surgery. The special power adapter inside design is featuring at clean and easy installation to secure operating safety.
. - Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and six side IP65 with I.O. cover making it easy to clean and disinfect. - Global Latest UL/cUL 60601-1 (MDR) and IEC60601-1 Medical Certifications
Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards. - 13th Gen Intel Core CPU
Our medical panel pcs offer the13th generation Intel® Core i3/i5/i7 processor series. Other features listed below: - Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
- FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
- 21.5" FHD MVA/AHVA Diagnostic Panel
- Optional Full HD Capture Card & HDMI Video-In
- LAN/COM 4KV Isolated Module
- Power Supply Inside
- Optional DICOM Part 14 Compliance Solution
- Support Windows 11
- Light Weight
Specification
| Model | WMP-22T-PIS-L IP0N (STD) | WMP-22T-PIS-L IP0N (ISO) |
|---|---|---|
| Main System | ||
| CPU / Chipset |
FCBGA1744 13th generation Intel® Core i7/i5/i3 and Celeron processor (15W max.)/ Soc
|
|
| Graphic | Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU) | |
| RAM | Two 4800 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 64GB | |
| OS Support | Optional Win 10 IoT Enterprise LTSC 64 bit, Windows 11 IoT Enterprise LTSC 64 bit | |
| Storage | 1 x M.2 (M Key, 2280) with PCIe x4 for SSD | |
| Expansion | 1x M.2 E key 2230, | |

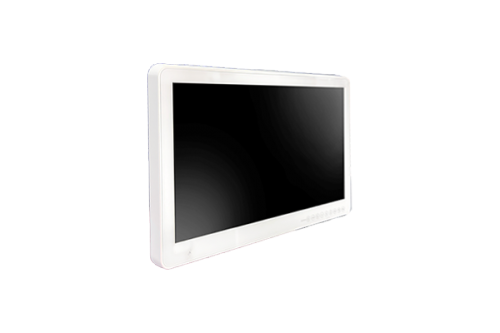

| Display Size | 21.5” 16:9 | |
| Display | 1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000: 1 (Typ) |
|
| Touch Screen | Full flat projective capacitive touch panel / Light Transmission: >88% / Hardness: 6H pencil, pressure 750g/45° / Life: ≥50,000 times | |

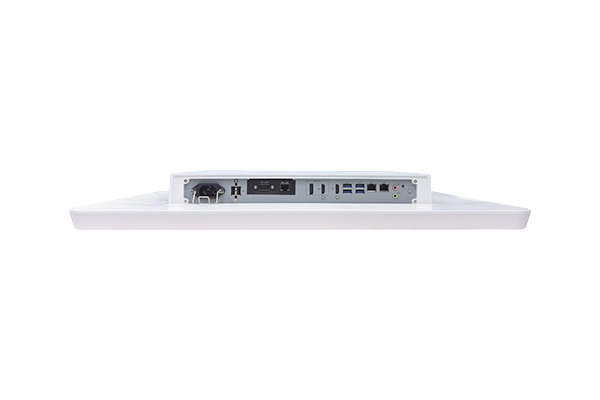

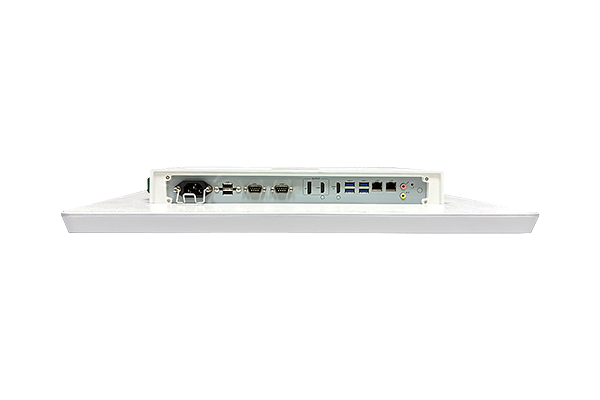

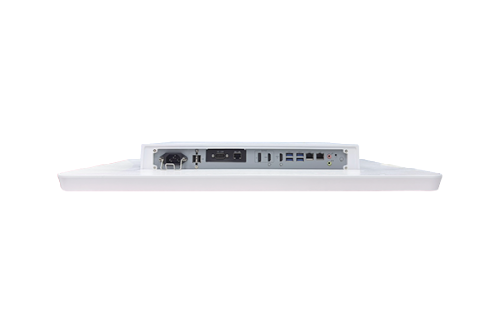

| I.O. Ports | ||
| USB | 4 x USB 3.2 2 x USB 2.0 |
4 x USB 3.2 2 x USB 2.0 |
| COM |
1 x RS232, 1 x RS232/RS422/RS485
|
1 x ISO RS232/RS422/RS485 |
| LAN | 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro) 1 x RJ45 2.5Gbps Intel® I226V |
1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro) 1 x RJ45 2.5Gbps Intel® I226V, 1 x ISO RJ45 1Gbps |
| Audio | 2 x 3.5mm phone jack connector (Line-out, Mic-In), 2 x Waterproof 2W speaker | |
| Video Out | 1 x DP 1.4a/DP++, 1 x HDMI 2.0b | |
| Video In | 1 x HDMI-in (without audio); Support in S5 Mode | |
| Control Hot Key (L to R) |
Battery LED Indicator; Power; Menu/Exit; Brightness; Video-In
LCD On/Off; Clean Me; Programmable Function |
|
| Mechanical and Environmental | ||
| Cooling | Fanless | |
| Power Adapter | AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 250W | |
| Temperature | Operating Temperature: 0~35℃ (IEC60068-2-78) Storage Temperature: -20~60℃ |
|
| Humidity | Operating & Storage:10 ~ 90%, non-condensing | |

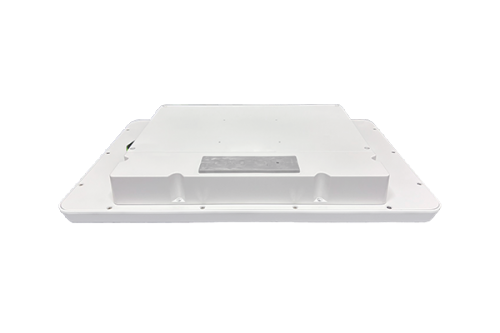

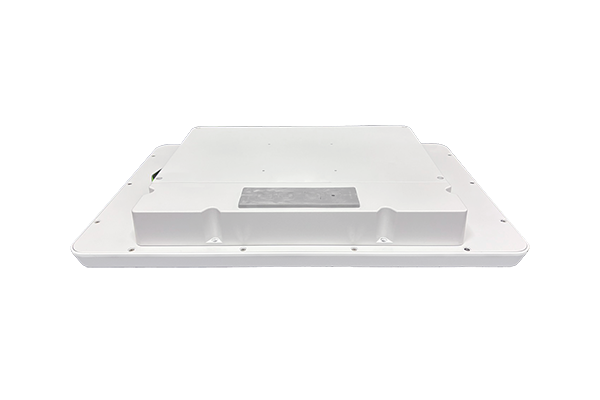

| IP Rating | Front: IP65, Rear: IP54 with optional cable cover attached | |
| Housing | Rear: Aluminum Alloy Body / White (Touch) / Bacteria resistant | |

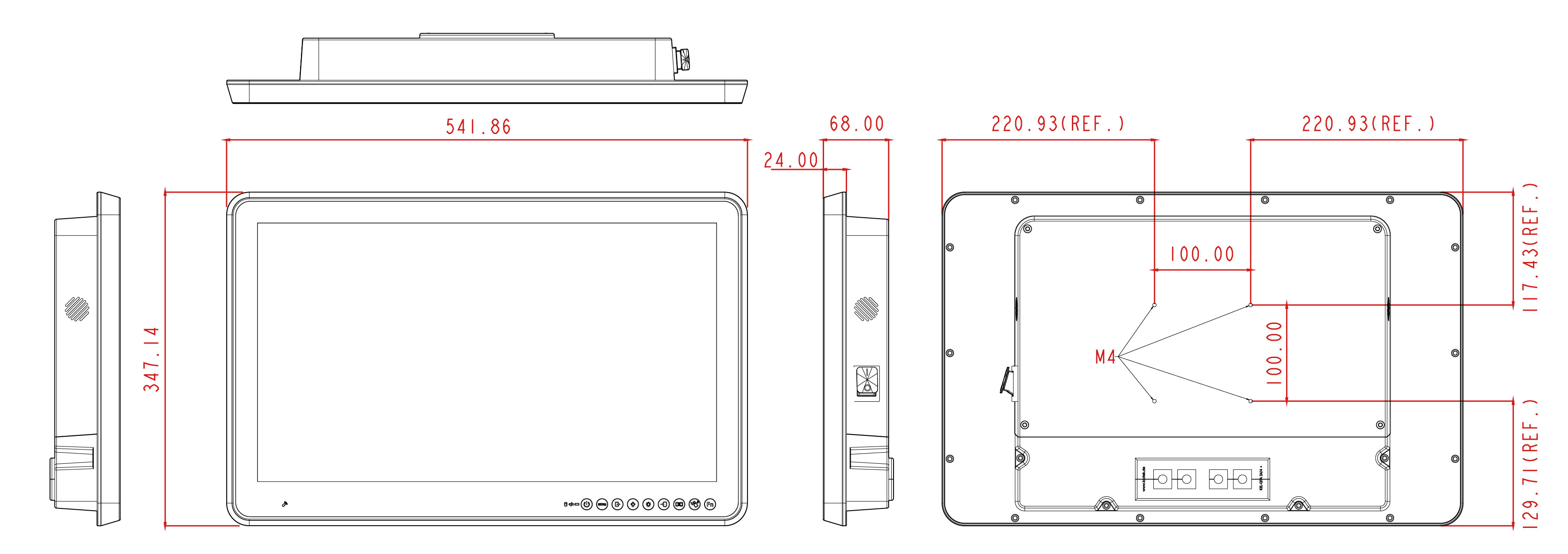

| Dimensions (Net) | 541.9 mm (H) x 347.1 mm (V) x 68 mm (T) | |
| Weights (Net) | 7.8 kg | |

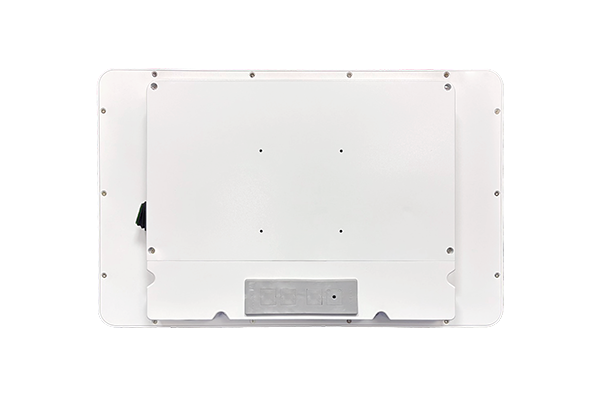

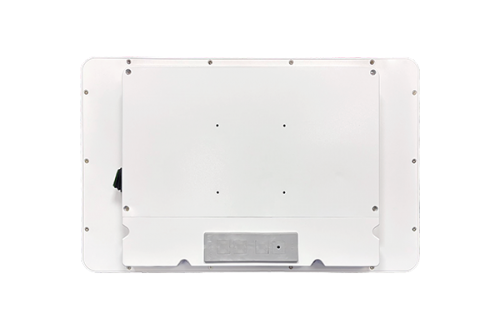

| Mounting | VESA 100 x 100 | |
| Certification | CE: EN 60601-1-2:2015 (V4.1) EN 60601-1: 2006/A2:2021; IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B FCC: Part 18 Class B / ISO 14971 UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021) (By project) cUL: CAN/CSA-C22.2 No. 60601-1:14) (By project) |
|
