Product Name : WMP-24MD Comet Lake 24"
Product Introduction
Medical AIO Panel PC with Powerful Comet Lake CPU

Integrated with Built-in battery, Non-Stop Operation

These medical all in one panel pc are designed to fulfill versatile clinical applications, incouding EMR, anesthesia applications, operating room environments, and patient charting. One of our most powerful computers for hospitals that want the best in medical hardware.

  • Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and an IPX1 back cover making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 10th  Gen Intel Core CPU
    Our medical panel pcs offer the Comet Lake generation Intel® Core i3/i5/i7 processor series.
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. Webcam & RFID antenna & TPM 2.0 & Display interface for up to 2
proimages/1-1/WMP-24F.jpgproimages/seefeature/WMP-226奧地利醫院.png

FHD, MVA panel, True 8 bit-Visual Clearance to Secure Medical Image Safety

proimages/seefeature/pic-03.jpg

FHD MVA Panel Featured:

Consistently Clear and Precise Images

  • Wide view angle: 178(H)/178(V)
  • High CR, 3000:1
  • Up to 16.7M Colors w/RGB 8 bit
  • 16:9, LED Backlight

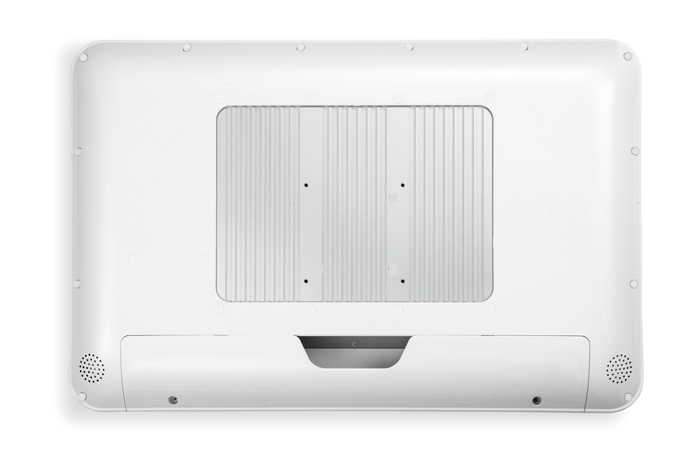

Product Outlook & Friendly Hot-Key Design

proimages/seefeature/pic-04.jpg
proimages/seefeature/pic-06.jpg

Optional ISO –COM/LAN/USB to avoid expansive equipment damage

4KV Isolated Interface:

  • Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.
Specification
ModelWMP 24MD  IP0A (STD)WMP 24MD  IP0B (ISO)
Main System
CPU / Chipset Intel® 10th Gen. Core i7/i5/i3/Pentium/Celeron Processor (35W Max.) / Q470E Chipset
Graphic Intel® integrated HD Graphics
RAM Two 260-pin SODIMM Dual Channel DDR4 2933/2666/2400 MHz, non-ECC, up to 64GB
OS Support Optional Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Storage 1 X M.2 (M Key, 2280) w/PCIex4 & SATA3 for SSD, 1 X 2.5” SATA3 HDD/SSD drive bay
Expansion 1 X M.2 E Key 2230, 1 x M.2 (B/M Key 2242/2260/2280) w/PCIe, 1 x PCIex16 (20W Max.)
Display Size 23.8” wide MVA Diagnostic LCD (16:9)
Display 1920 x 1080 (Full HD), 16.7M colors (MVA, 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ)
Touch Screen Full Flat P-Cap Touch Panel / Light Transmission: ≥ 84% / Hardness: ≥ 7H pencil, Pressure 765g/45° / Life: 50000
I.O. Ports
USB 4 x USB3.2 Gen II  4 x USB3.2 Gen II, 1 x 4KV ISO USB2.0
COM 1 x RS232, 1 x RS232/RS422/RS485 1 x 4KV ISO RS232, 1 X 4KV ISO RS232/RS422/RS485
LAN 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro), 1 x RJ45 2.5Gbps Intel® I225V 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro), 1 x RJ45 2.5Gbps Intel® I225V, 1 x ISO RJ45 1Gbps
Audio 3.5mm phone jack connector x 2 (Line-out, Mic-In)
Speaker output 5W x 2, Microphone built in x 1
Video  1 x DP1.2/DP++ output, 1 x HDMI 1.4a output, 1 x HDMI-video input
Reading light Light bar x 2
Control Hot Key (R to L) Power // Audio adjustment // brightness // Reading Light // Video input selection // LCD on/off // Clean me(auto release after 1 minute) // Fn
Mechanical and Environmental
Cooling Fanless
Power Input  DC-In x 1,  DC 9~32V input
Power Adapter AC input 100 ~ 240V /47 ~ 63 Hz /DC output 24V/ 180W
Temperature Operating Temperature: 0~35℃ (IEC60068-2-78) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 whole system / Plastic White w/Anti-bacteria (MRSA), Housing
Dimensions (Net) 606.0mm (H) x 398.mm (V) x 65.6mm (T)
Weights (Net) 9.7 KG (w/o power adapter/battery pack)
Mounting Optional Stand, VESA 100 x 100
Certification
CE: EN 60601-1-2:2015(V4.0)
ISO 14971 / IEC62133 (By project)
EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance
VCCI: 2016-11, Class B
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1) (By project)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) (By project)
Options & Customized

Major Options

Add On Parts

1. WLAN + Bluetooth Module (Wi-Fi 5 / Wi-Fi 6)
2. Auto Focus 5M Pixel Webcam Module
3. M.2 2280 Module
4. RFID (13.56MHz)
5. TPM 2.0 Module or fTPM
6. Full HD Capture Card or 4K SC710N1 12G SDI Capture Card
7. Smart Card Reader at Side or CAC / PIV Reader (FIPS-201) / or DVD Drive
8. Rear IP54
9. 2.5” SSD(can’t co-exist with DVD and smart card reader)
10. Equipotential Terminal Pin
11. AG Film (Can’t Co-exist with DICOM Module)
12. DICOM Part 14 Compliance (Max. Error Ratio Less than 20%, Optional Order Configuration)
13. Integrated battery 28Wh x 1 (100W max.)
14. COM 3/4
15. USB 5/6 (USB 2.0)

Power Cable

1. 2M DC Extension Cable
2. Cable Clean IO Cover

Optional kits

1. Anti-bacteria Stand
2. VESA Wall Mount

Customized

1. Tempered Glass
2. 4K2K UHD Display
Drawing
proimages/products/WMP-24MD/WMP-24MD_Drawing.jpg
