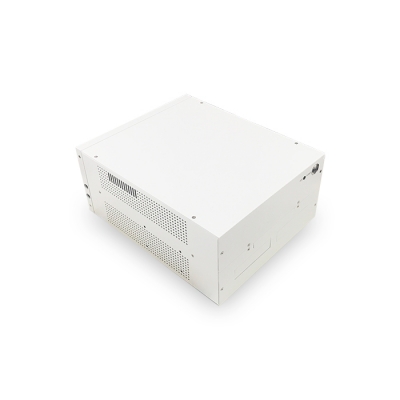

Product Name : WPC-767F Medical Edge AI Fan
Product Description
  • Medical Grade 4th UL/EN 60601-1-2 Certified
  • Powerful 8th/9th Gen. Intel Core i7/i5, 65W Max.
  • Supports Dual Channel DDR4 SODIMM up to 32GB
  • 1 X PCIex16 (75W), 1 X PCIex1, 1 X Mini-PCIe
  • Smart Fan w/Hospital White Housing
  • w/Doorway 2nd Storage
  • HDD Anti-vibration mechanism
  • Rich I.O., Up to 6 X USB, 1 X VGA/DVI-D/DP, 2 LAN & 2 COM
See: Medical Fanless Box PC WPC-766

Specification
ModelWPC-767F
Main System
CPU / Chipset Intel® 8th/9th Generation Intel® Core i7/i5/i3, Pentium and Celeron Processor /Intel® H310 Express Chipset
Graphic Intel® HD Graphics
RAM Two 2666/2400 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
OS Support Windows 10 (2019-LTSC) (64bit), Windows 11 (64bit)
Storage
1 x 2.5” SATA HDD w/Optional Easy Removable Drive Bay
1 x 2.5” SATA HDD
1 x  M.2 M.Key 2280 SSD (Can’t Co-exist with Easy Removable Drive Bay)
Expansion
1 x M.2 (Key E, 2230) for Wireless,  1 x mini-PCIe (Full Size)
1 x PCI-Ex16 (75W max), 1 x PCI-Ex1(10W max), Total PCIe max. 75W
I.O. Ports
USB 4 x USB 3.0(S5 support 5V 1A output); 2 x USB 2.0
COM 2 x RS232/RS422/RS485 (RI/5V/12V)
LAN RJ-45 x 2 (LAN 1 : Intel® i219V ; LAN 2 : Intel® i211AT)
Audio 3.5mm phone jack  (Line in, Line out, Mic in)
Video Out 1 x DP1.2, 1 x DVI-D, 1 x VGA
Control Hot Key (R to L) Power on/ off
Mechanical and Environmental
Cooling Smart Fan
Power Input / Consumption DC 12~24V input / TBD
Power Adapter AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 180W
Temperature Operating Temperature : 0~40℃(0~50℃ By Project)  / Storage Temperature : -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
Housing Sliver Aluminum Heatsink and SECC w/ Hospital White Painting
Dimensions (Net) 301 (H) x 242.6 (V) x 130 (T)
Weights (Net)
TBD kg
Certification
CE: EN 60601-1-2:2015(V4.0),
MDR (2017/745) (By Project)
VCCI: 2016-11, Class B (Power adapter with PSE)
FCC: Part 18 Class B, Canada, ICES-003
UL: ANSI/AAMI ES60601-1:2012 (V3.1) (By Project)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) (By Project)
ISO 14971 / IEC62133 (By Project)
Options & Customized

Major Options

Options

① 802.11 ac/a/b/g/n WLAN + BT module
② Equipotential terminal pin
③ 2.5” Easy Removable Bay for Second 2.5” HDD
④ Windows 10(2019-LTSC) (64bit), Windows 11 (64bit)
⑤ PCIe x16 AI Core XP4/ XP8 (Intel Movidius 2 x AI Core XM 2280 / 4 x AI Core XM 2280)
⑥ Power Adapter w/ 2 Meter DC Extension Cable

Customizations

① M.2 M.Key 2280 (can’t Coexist with Easy Removable 2.5” HDD Drive Bay)
② TPM 2.0 module or fTPM
proimages/products/WPC-767F/WPC-767F_ID_V1.0.png
