Product Name : WTC-8J0 Elkhart Lake Stainless Steel Box PC
Product Description
  • Intel® Elkhart Lake J6412
  • Low Power Fanless Waterproof Box PC
  • IP66/69K Full Sealed with Anti-Corrosion Stainless Steel Enclosure
  • Wide Range DC Input 12~28V
  • Optional M12 Stainless/Metal Connectors
  • Optional Cable Gland for External I.O.
  • Optional WLAN w/ External Antenna
  • CE, FCC, VCCI Class A Certified
I.O. Ports
Main System
CPU / Chipset Intel® Elkhart Lake SoC J6412, QC, 2.0~2.60 GHz, 10W
Graphic Intel® Gen 11 Graphics
RAM Dual channel support 3200MHz DDR4 SODIMM socketx2, up to 32GB
OS Support Windows 10 (64 bit) / Windows 11 (64 bit)
Storage 1 x 2.5” SATA HDD (Anti-vibration)
1 x M.2 (M Key 2242/2260/2280) for SSD
Expansion 1 x M.2 (E key 2230) w/PCIe x1 and shared USB2.0 for wireless
1 x M.2 (B key,3042/3052) with PCIe x1/USB 3.2/USB2.0 SIM for 4G/5G
Configuration STD. (M12 Connector) Optional Cable Gland (Max. 5 external I/O by proper grommet)
USB 1 x M12 8pin for USB 1/2 (USB2.0)
1 x M12 8pin for USB 3/4 (USB2.0)
2 x USB 3.2 (Gen1)
2 x USB2.0
2 x M12 8pin/ RS-232/422/485
2 x RS232/RS422/RS485
LAN 1 x M12 8pin for LAN (1 Gigabit) 1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
Audio N.A. 2 x 3.5mm phone jack connector (Line-out, and Mic-in)
Video 1 x HDMI (IP65) 1 x HDMI 2.0b, 1 x VGA
DC in (Power Cable) 1 x M12 5pin DC, DC 12~28V 1 X M12 5pin DC-In, DC 12~28V
Control Key  Rear bottom: Power on /off (Light Indicator)
Mechanical and Environmental
Cooling Fanless
Power input DC 12V~28V
Power Adapter AC 100~277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68
Power Consumption 35.3 Watt
Temperature Operating Temperature
0~40℃ (24V DC, IEC60068-2-56, air flow cooling, SSD)

Storage Temperature
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66 / NEMA4X / IP69K whole set, Stainless steel SU304 / Chassis type

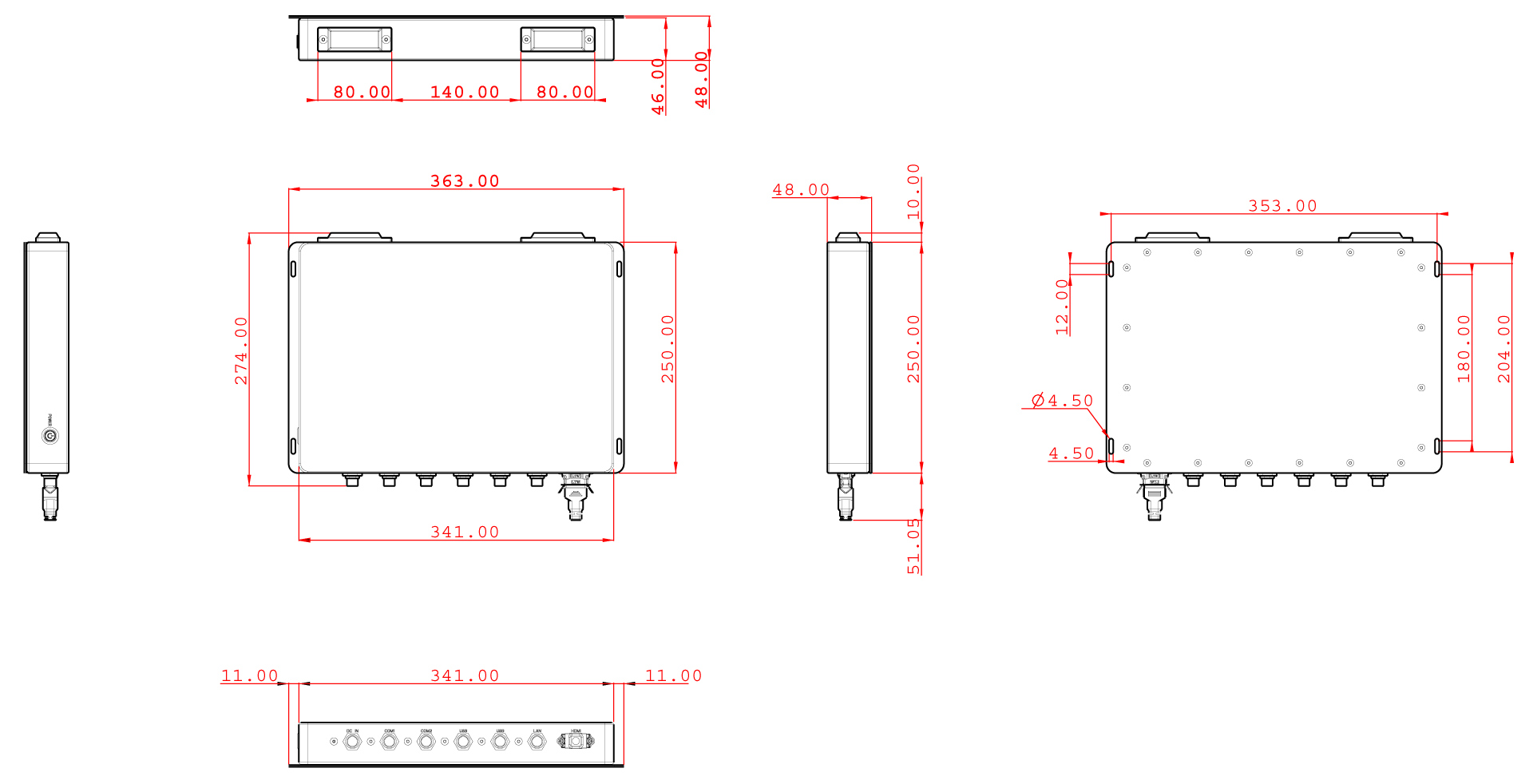

Dimensions (Net) 363 mm (H) x 274 mm (V) x 48 mm (T) (M12 type)
342 mm (H) x 310.7 mm (V) x 81 mm (T) (Cable Gland Type)
Weights (Net) 6Kg (M12 type)
6.5Kg (Cable Gland Type)
Mounting By screw hole X 4
M12 Type: FCC-A, CE (EMC), VCCI-A, Canada ICES-003
Cable Gland Type: FCC-B, CE (EMC), VCCI-B, Canada ICES-003
Options & Customized

Major Options


1. IP67
2. SUS316 Enclosure
3. Wireless or Wireless and BT kit (Easy Clean and Robust Antenna)
4. 2 x External LAN (Configuration: USBx2, LANx2, COMx1)
5. Windows 10 (64bit) or Windows 11 (64bit)
6. M12 (Female) to M12 (Male) DC Power Extension Cable (2 Meters Length)
7. M12 (Female) to Stripped and Tinned Wires DC Extension Cable (1.2 Meter Length)


1. Waterproof COM cable, cable length is 2 meters
2. Waterproof USB cable, cable length is 2 meters
3. Waterproof LAN cable, cable length is 2 meters
4. DC input cable


1. Watch Dog Timer AP/API
2. Stainless Steel M12 Connector
3. 5G Module
4. M.2 SSD
5. Barcode Reader
6. COM + Power 5V or 12V
7. TPM2.0
