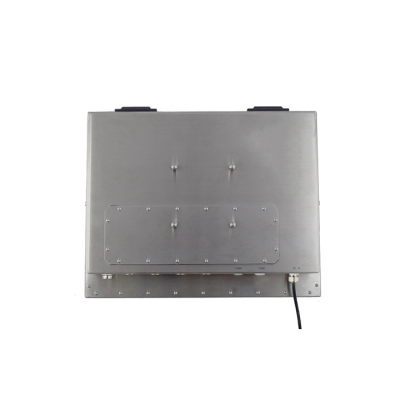

Product Name : WTPE-9E66 Skylake 15"
Product Description
  • Class 1 Division 2, ATEX Zone 2, IECEx & EMC Class B Certified
  • Intel® 6th Gen. Core i5 Processor
  • 15” Fanless Panel PC for Wide Temp -20 ~ 60°C Environments
  • LAN USB COM M16 (EX Ec) I.O. Up to 4 & Waterproof M12 USB COM (EX ic) I.S. Output
  • Connector Panel for Easy Cable Installation
  • Totally Sealed IP66 / NEMA 4X Enclosure
  • 100% Water/Dust Proof Guarantee
Specification
ModelWTPE-9E66-15W
Main System
CPU / Chipset FCBGA1356 6th generation Intel® Core i5 processor (15W max.) / Soc
Graphic Intel® integrated HD Graphics 520 by CPU
RAM Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
OS Support Win10 Embedded 64-bit / Windows 10 Professional 64-bit
Storage 2.5” SATA  drive bay x 1
Expansion Mini PCIe x 1, M.2 Type E x 1
Display Size 15” TFT-Color LCD (5:4)
Display 1024 x 768 (XGA),  160(H) / 160(V), 450 nits (Typ. Center point), CR:600 : 1 (Typ)
Touch Screen Full Flat Resistive touch /  Light Transmission: 80 ± 5% / Hardness: 4H
I.O. Ports
Configuration A B/C* D
Swappable M12, 8pin
(I.S. Output, Support EX ic,
Extension Cable to Ex ic Devices)
COM X 2 for RS232
USB2.0 X 1
COM X 1 for RS232
USB 2.0 X 2
Cable Gland M16
(Max. Output x 4, Must be Installed by User)
USB 2.0 X 2 (EX ec)
LAN X 2 (EX ec, i219LM for Vpro)
COM X 1 for RS232/422/485 (EX ec)
Optional Mini-PICe Module for Cable Connection X 1 (EX ec)
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC 24V Input, M16 (EX ec, Must Be Installed by User) / 46.7 Watts
Power Adapter 100W AC-DC power adapter with 24V DC output, 1.2M cable, PSE
Temperature Operating Temperature: -20~60℃ (IEC60068-2-56, air flow cooling)
Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X / SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 435 mm (H) x 350 mm (V) x 84 mm (T)
Weights (Net) 11 kg (w/o power adapter/battery pack)
Mounting VESA 100, side mount (M6*2)
Certification
EMC: FCC, CE (EMC), VCCI Class B, Canada ICES-003,
Safety: IEC-62368 CCC, IECEx, C2D2 Group F, G;
C1D2 Group A, B, C, D T4 ATEX Zone2 EX II 3G Ex ic ec IIC T4 Gc IP66,
TS Mark (Taiwan) Ex ic ec
*Remark: Configuration B/C is defined/verified as different interface combination connected in certificate report.
Options & Customization

Major Options

Options

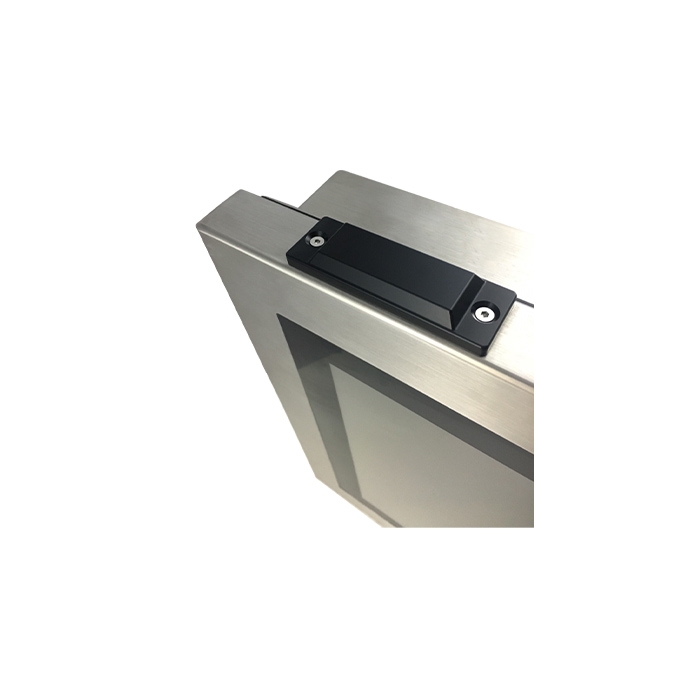

① Wifi、IEEE802.11ac/b/g/n, Bluetooth Class1.0、2.0 (included in explosion proof certification, not co-existed with other mini-PCIe module)

Accessory

①COM extension cable kit through M16 cable gland (2 meter length, external 9pin male type) (cable kit must be installed by user)
②USB2.0 extension cable through M16 cable gland (2 meter length, external female type A) (cable kit must be installed by user)
③LAN extension cable through M16 cable gland (2 meter length, external female RJ45 type) (cable kit must be installed by user)
④Swappable M12 COM extension cable (2 meter length, M12 to PPC, external 9pin male type) (for configuration A,B/C)
⑤Swappable M12 USB2.0 port extension cable (0.3 meter length, M12 to PPC, external female type A connectors) (for configuration B/C, D)
⑥Swappable M12 DC power extension cable (1.2 meter length, M12, stripped and tinned wires on opposite end to DC 24V output power supply)

Customization

①Kit to support over 100 meter power supply length,
②Power on/off switch
③EtherNet/ IP (Industrial Protocol) Interface (temperature code condition is T4, not co-existed with other    mini-PCIe module)
④PROFIBUS DP (process field bus decentralized peripherals)-slave Network Interface (temperature code condition is T4, not co-existed with other mini-PCIe module)
⑤DeviceNet-slave Interface (temperature code condition is T4, not co-existed with other mini-PCIe module)
⑥CC-Link (control & communication link)-slave interface (temperature code condition is T4,  not co-existed with other mini-PCIe module)
⑦Panel mounting by bezel kit (not co-exist with wireless function)
⑧50 meter DC cable to support 50 meter power length
⑨100 meter DC cable to support 100 meter power length
⑩Wall mount/ Table mount bracket
Drawing
proimages/products/WTPE/WTPE-9E66-15W_DW.PNG
