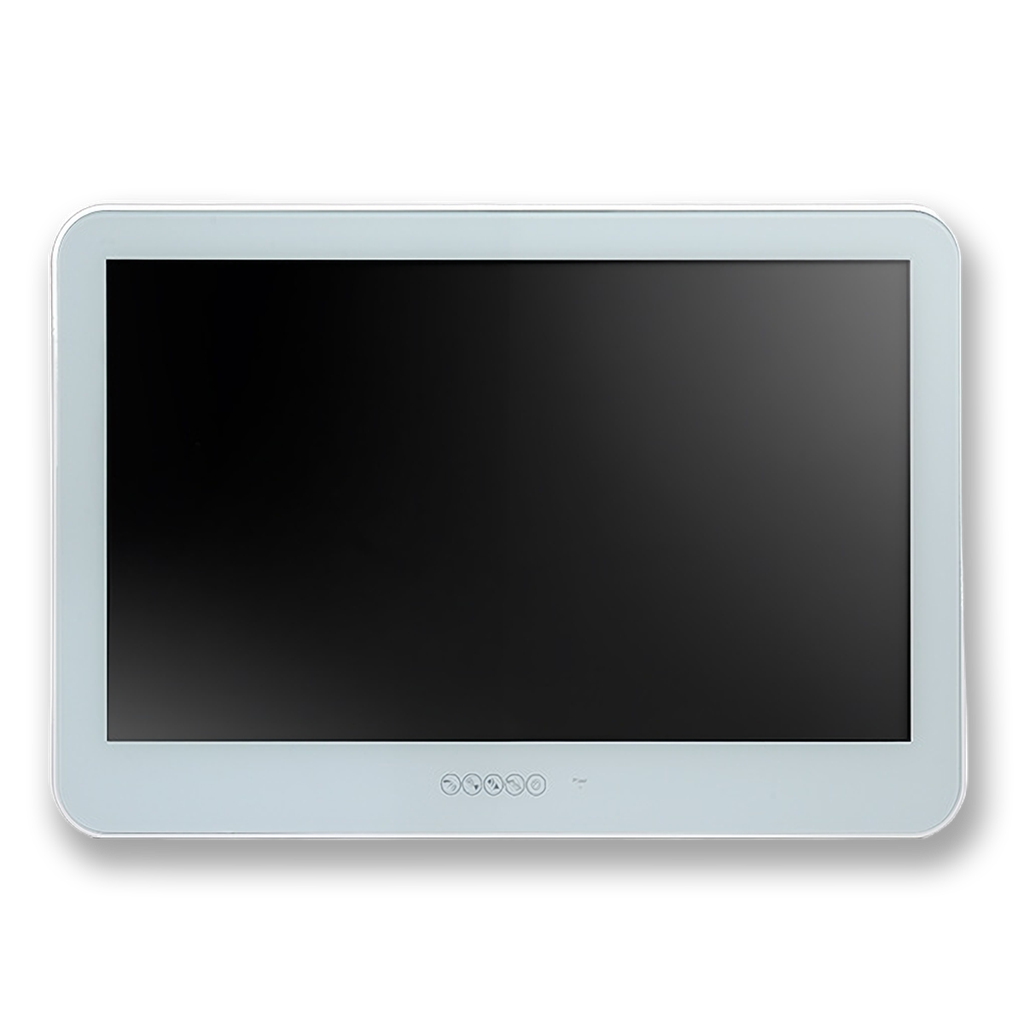

Medical Monitor 22"

WMD-223
https://www.wincommusa.com/web/image/product.template/53/image_1920?unique=92ef8fb
  • 21.5" True Color Diagnostic Panel
  • Anti-bacteria (MRSA) Plastic Housing
  • IP65 at Front Side, IPx1 for Whole System
  • Built-in a Pair of 5W Stereo Speakers
  • Support HDMI, DP, DVI-D, Audio-in
  • Support Optional Desktop Stand, and VESA 100
  • RoHS2 compliance

This combination does not exist.

SpecificationOptions & Customized DownloadDrawingSolutionsNewsOthers will also look at

Specification

Options & Customized

Major Options

Add On Parts

1. AG Film

Power Cable

1. HDMI cable

Customized

1. DICOM compatible

Download

Product Data Sheet

Product Selection Guide

Drawing


Solutions

Smart Operation System

Wincomm's medical-grade touch panel PCs, including the WMP OR AIO series, and Powerful AI Ready AIO series, are specifically designed for operating room, such as endoscopic systems, and have been successfully deployed in hospitals across Europe, the U.S., and Asia.

Medical Examination System

Wincomm Medical Panel PC series are applied to various medical examination equipment, such as Automated Ultrasound, MRI, OCT, ECG and so on.

Medical Imaging System

Wincomm Medical Panel PC series are enhanced design on processing medical image via our real-time video process with high computing power on excellent thermal design management.

Smart EMR System

Toward Medical 4.0 IoT trend, it will be featured in mobility, cable-less, and high value performance. WMP-22J/24J is designed to be used in medical environment, featuring the anti-bacterial, fanless, and intelligent i-control management system

Intelligent OCT Solution

OCT Angiography (OCTA) is often the subject of scientific presentations and clinical research, and Wincomm provided our technology integrated with powerful computing on efficiency system management to support our clients on OCTA applications.

Smart Disease Control Solutions

Integrated with deep learning on video analytics by Gorilla technology, utilizing Intel OpenVino tool kits, it could detect facial mask plus additional body temperature detection versus identity verification with privacy protection

News

Others will also look at

Specifications

Specification
Model WMD-223
Main System
Display Size 21.5” wide TFT-Color LCD (16:9)
Display 1920 x 1080 (Full HD), 16.7M colors (RGB 8 bit ), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ.)
Touch Screen Full flat projective capacitive touch panel / Light Transmission: 90% ± 3% / Hardness: 7H pencil / Life: 100M times
I.O. Ports
USB USB2.0 x 1
Audio 3.5mm phone jack connector * 1 (Line-in)
Video DVI-D x 1, DP x 1, HDMI 1.4a (input) x 1
Control Hot Key (R to L) Menu / Enter // Down / Mute // Up / Speaker adjust // Auto / OSD OFF // Power On / Off
Mechanical and Environmental
Power Input DC12V, 60W MAX
Power Adapter AC input 100 ~ 264V / 47 ~ 63 Hz / DC output 12V
Temperature Operating Temperature: 0~45℃ (chamber)
Storage Temperature: -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP65 at Front Side, IPx1 for Whole System / Plastic /Hospital white
Dimensions (Net) 540 mm (H) x 375 mm (V) x 78 mm (T)
Weights (Net) 6.4 kg (w/o power adapter/battery pack)
Mounting Optional Stand, VESA 75/100
Certification CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1),
VCCI: 2016-11, Class B (PSU with PSE),
FCC: Part 18 Class B
ISO 14971
