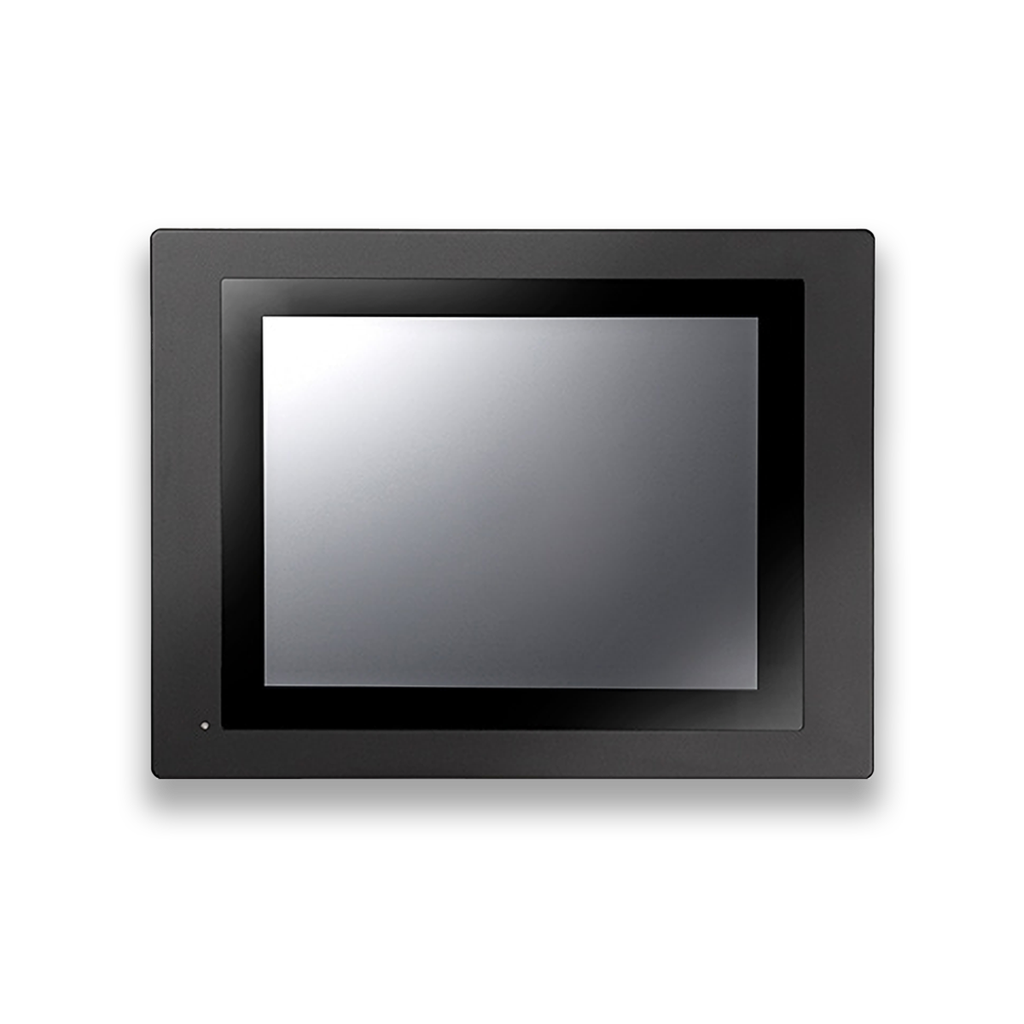

Atom® 10" Wide Temp 1000 nits
WLP-7B20-10H
- Fanless High Brightness Panel PC
- Intel® Quad Core E3845 CPU
- 10" 1000nits Sunlight Readable LCD
- Wide Temp. -20~65°C Operation Capability
- Special Thermal Module & MB Pre-Heating Design
- Front Full Flat Resistive Touch
- IP66 Water/Dust Proof Front Bezel
- CE, FCC, VCCI Class B Certified
Specification
Specifications
| Specification | |
|---|---|
| Model | WLP-7B20-10H |
| Main System | |
|---|---|
| CPU / Chipset | Intel® Atom E3845 processor 10W/ SoC |
| Graphic | Intel® integrated HD Graphics |
| RAM | Two DDR3 SODIMM socket support up to 8GB DDR3L-1333 |
| OS Support | Win 7 pro, Win 7 embedded, Win 8 embedded, Win 8 industrial, Win10 |
| Storage | WT 128GB 2.5" SATA SSD 3MG2-P x 1 |
| Expansion | Mini PCIe x 2 |
| Display Size | 10” 4:3 |
| Display | 800 x 600(SVGA), 130(H) / 120(V), 1000 nits (Typ. Center point), CR:400 : 1 (Typ) |
| Touch Screen | Full Flat 5-wire resistive / Light Transmission: 80±5% / 4H / 35M times |
| I.O. Ports | |
|---|---|
| USB | USB 3.0 x 1, USB 2.0 x 3 |
| COM | RS232 x 2, RS232/RS422/RS485 x 1 |
| LAN | RJ-45 X 2 |
| Audio | 3.5mm phone jack connector x 2 |
| Control Keys | Rear bottom: Power on/off |
| Mechanical and Environmental | |
|---|---|
| Cooling | Fanless |
| Power Adapter | AC 90 ~ 264V / 47 ~ 63 Hz / DC output 12V |
| Temperature |
Operating Temperature: 12V DC Input -20~65℃ Storage Temperature: -20~65℃ |
| Humidity | Operating & Storage: 10 ~ 90%, non-condensing |
| IP Rating / Housing | IP66 at front / Front bezel is Aluminum, others are SECC |
| Dimensions (Net) | 313 mm (H) x 240 mm (V) x 72 mm (T) |
| Weights (Net) | 3.9 kg (w/o power adapter/battery pack) |
| Mounting | Panel mount (by clamp), VESA (75x75) |
| Power Input / Consumption | DC-in x 1, 7V~32V / 28.3 W |
| Certification | CE/ FCC/ VCCI Class B, Canada ICES-003 |
