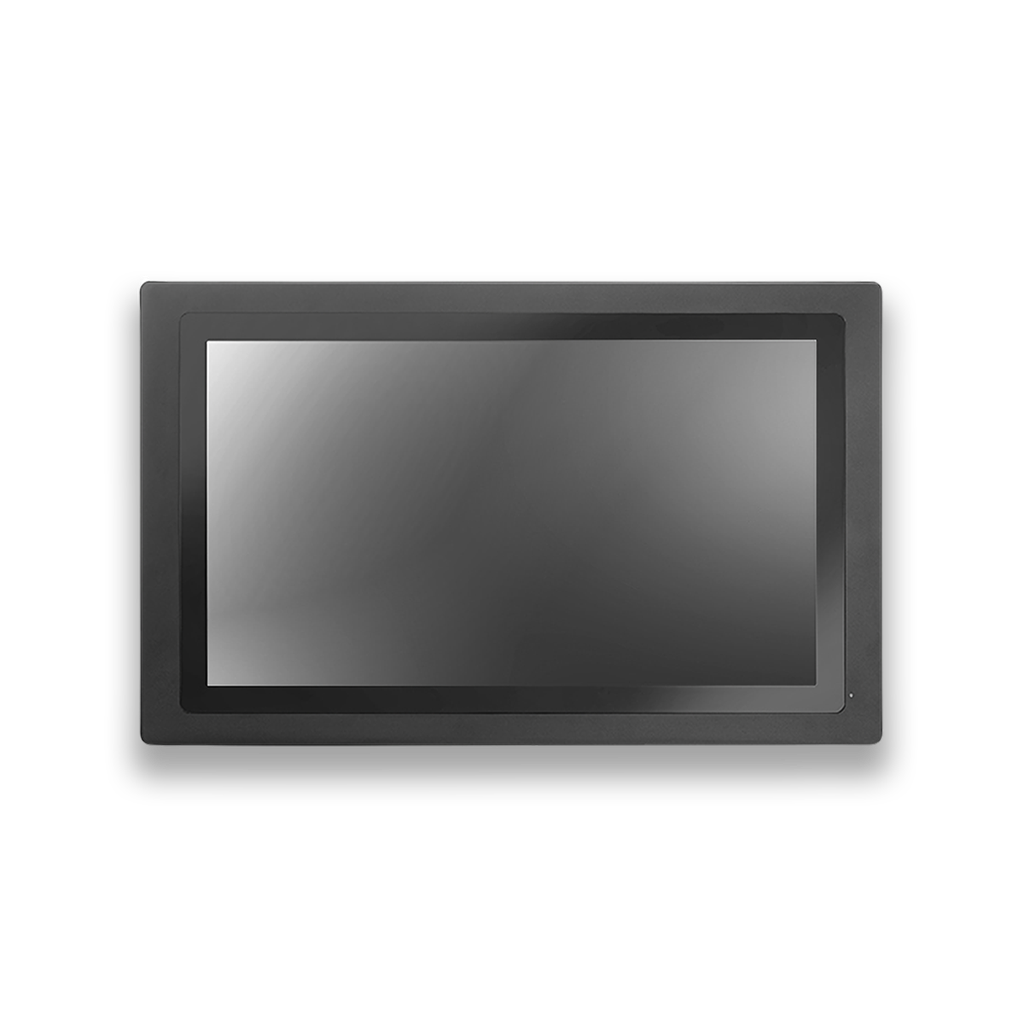

Whiskey Lake 22"

WLP-7G20-22
https://www.wincommusa.com/web/image/product.template/82/image_1920?unique=92ef8fb
  • Intel® 8th Generation Core i7/i5/i3 CPU
  • 21.5" 1920 x1080 LCD Panel
  • Panel Mount w/Full Flat Res. or P-Cap Touch
  • Full Flat Design Easy Clean & Front IP66
  • Support Intel® vPro by Optional i7/i5 CPU
  • Wide Range DC Input
  • Optional WLAN with External Antenna
  • Optional Second HDD for RAID 0,1

This combination does not exist.

Feature SpecificationOptions & Customized DownloadDrawingSolutionsNewsOthers will also look at

Feature

  • 24/7 operation under 0~50°C & high ambient light without limitation
  • Water/dust proof guarantee
  • No corrosion after long-term usage

Specification

Options & Customized

Major Options

Add On Parts

1. Wireless and BT kit
2. 2.5” SSD
3. Stainless steel front bezel
4. Silver front bezel
5. TPM 2.0 or FTPM
6. Second HDD for RAID 0,1

Add On Cable

1. Maximum length is 7.2 meters by 3x2m DC cables

Customization

1. Storage door Solution
2. Chassis type housing
3. Open frame housing
4. Sunlight readable by 1000 nit LCD + optical bonding (Impact protection level: IK08)
5. M.2 NVMe SSD
6. 4G wireless

Download

Product Data Sheet

Product Selection Guide

Drawing


Solutions

Intelligent Public Transportation

With an abundance of experience in design capability, Wincomm has advantages in vehicle hardware, certification and design capability, and the ability to provide a reliable rolling stock factor solution in three major systems.

Smart Bus Station

Outdoor panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various

i-Entrance Solution

Outdoor panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various smart retail applications

News

Others will also look at

Specifications

Specification
Model WLP-7G20-22
Main System
CPU / Chipset Intel® 8th Gen. Whiskey lake Core™ i7/i5/i3 MCP Processor, 15 W
Graphic Intel® integrated HD 620 Graphics
RAM Dual Channel Support 2400MHz DDR3L SODIMM X2, up to 32GB
OS Support Win 10 (64 bit) / Win 11 (64bit)
Storage 2.5” SATA HDD up to 500GB w/Anti-Vibration Kit, Optional M.2 (KEY M, 2242/2260) SSD X 1
Expansion M.2 (Key E, 2230) for Wireless x 1, Optional M.2 (Key B, 3042) with USB2.0 and SIM for 4G x 1
Display Size 21.5” 16:9
Display 1920 x 1080(FHD), 170(H) / 160(V), 250 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen (USB) Full flat projective capacitive touch panel / Light Transmission: >= 86% / Hardness: 7H pencil / Life: 100M times
5 Wire Full Flat Res. Touch / Light Transmission: 80% ± 5% / Hardness: 3H pencil / Life: 35M times
I.O. Ports
USB USB 3.1 x 4
COM RS232 x 1, RS232/RS422/RS485 x 2
LAN RJ-45 X 2
Audio 3.5mm phone jack connector x 2 ( Line-out, and Mic-in)
Video HDMI 2.0a(output) x 1, DP x 1
Control Keys Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Adapter External, 100 watts, universal 100 ~240V AC in, 19V DC out, 5.26A
Temperature Operating Temperature: 0~50℃ (12V DC, air flow cooling)
Storage Temperature: -20~65℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66 at front / Front bezel is Aluminum, others are SECC with black coating
Dimensions (Net) 584.2 mm (H) x 364.6 mm (V) x 91.5 mm (T)
Weights (Net) 9.6 kg (w/o power adapter)
Mounting Panel mount, VESA (75x75)
Power Input / Consumption DC-in x 1 (Jack with locker), DC19V~28V / TBD W
Certification FCC/CE/VCCI Class B, Canada ICES-003
