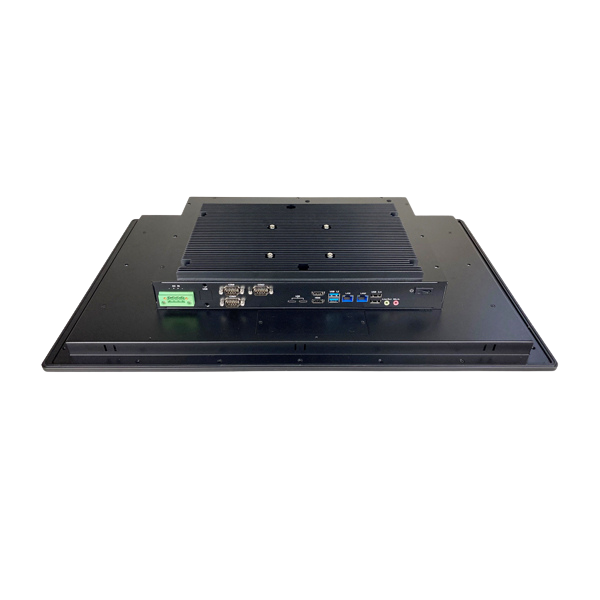

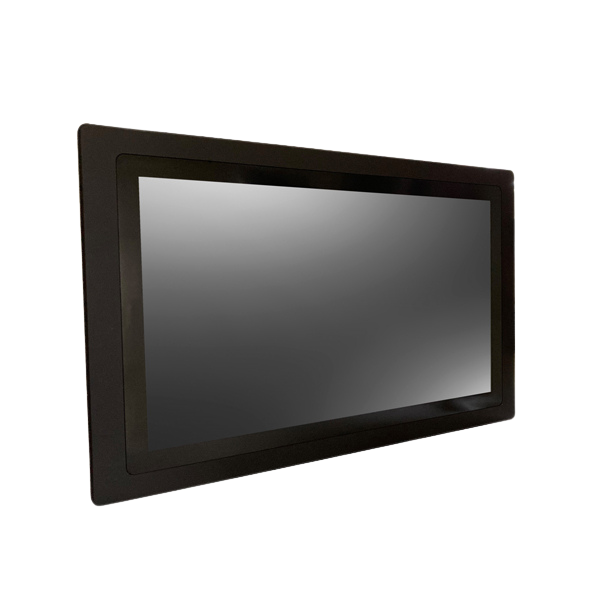

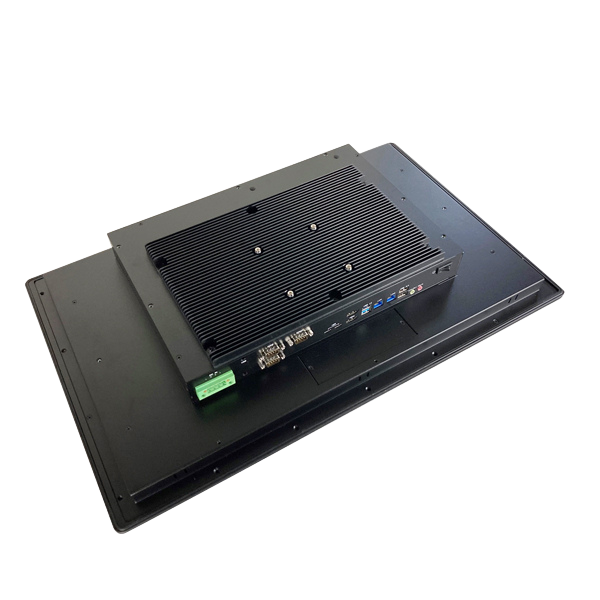

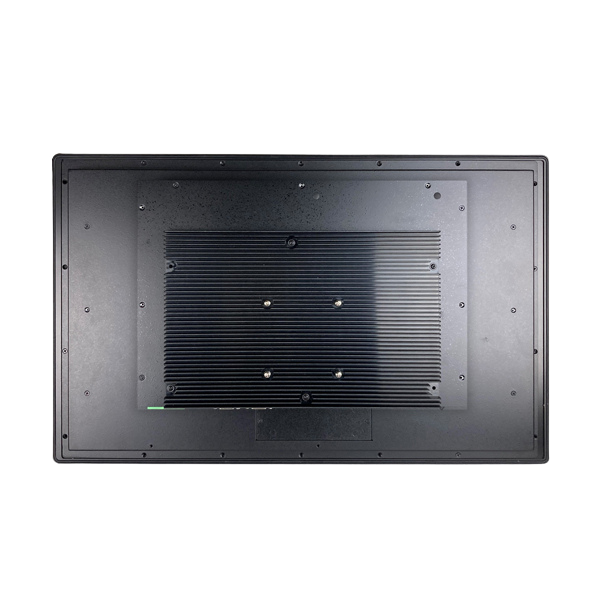

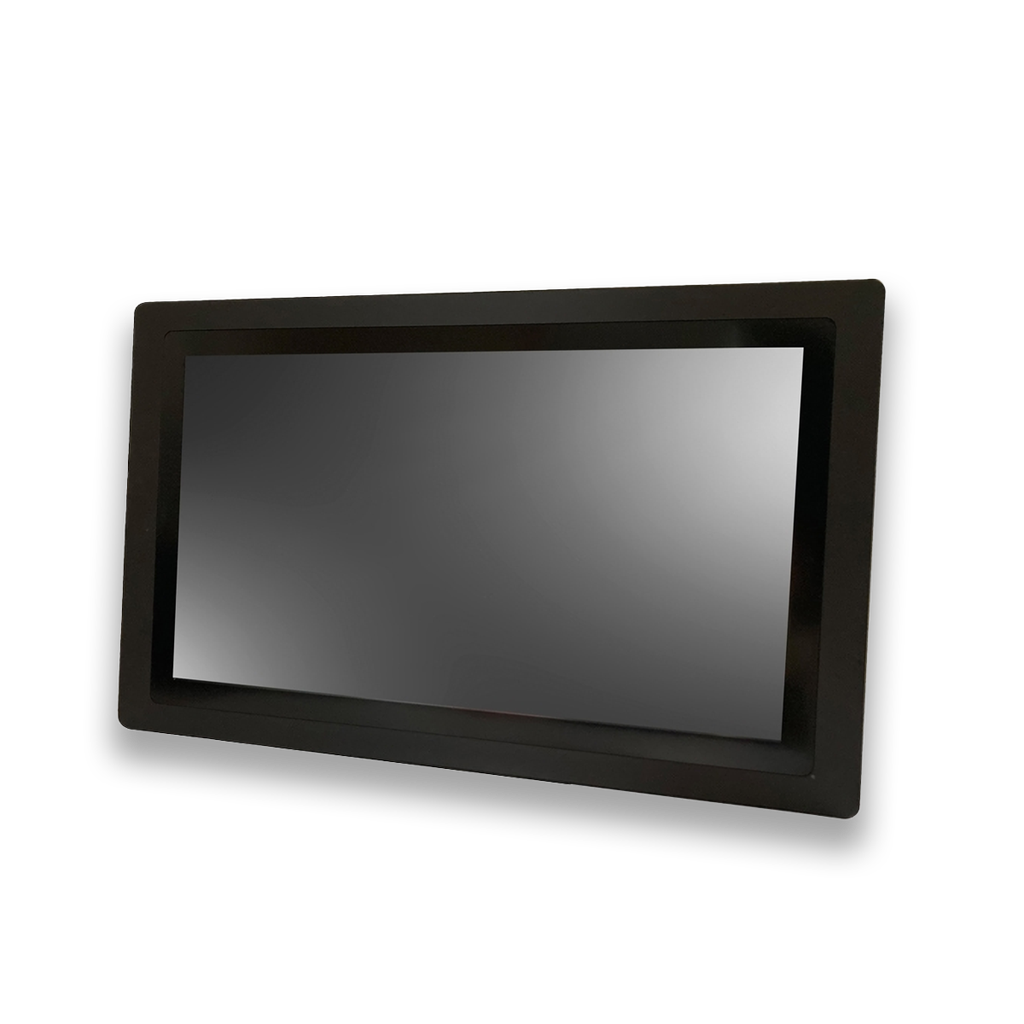

Alder Lake 21.5" Wide Temp 1000 nits

WLP-7H20-22H
https://www.wincommusa.com/web/image/product.template/99/image_1920?unique=92ef8fb
  • Intel® Alder Lake-P MCP Processors, 15W
  • 21.5" FHD 1000nits Sunlight Readable LCD
  • Full Res or P-Cap Touch with Front IP66
  • Fanless Solution
  • IP66 Panel Mount Housing
  • Wide Range DC Input
  • Up to 3 Extended Displays
  • CE, FCC, VCCI Class B Passed
  • Wide Temp. -20~60°C Operation Capability

This combination does not exist.

SpecificationOptions & Customized DownloadDrawingSolutionsNewsOthers will also look at

Specification

Options & Customized

Major Options

Options

1. Wireless and BT kit (2 ant)
2. Projected capacitive touch screen
3. Stainless front bezel
4. Silver front bezel
5. Windows 10(2019-LTSC) (64bit)
6. M.2 NVMe SSD
7. USB 2.0 X 1(By Cable)
8. Chassis type housing
9. Windows 11(64bit)
10. 2 X 2.5” Storage for Raid 0,1

Customization

1. Open frame housing
2. Sunlight Readable by 1000 nits LCD + Optical Bonding (Impact protection level: IK08)
3. Storage door Solution
4. 5G Module
5. WDT AP/API
6. Intel i3-1215UE / i7-1265UE, DC

Download

Product Data Sheet

Product User Manual

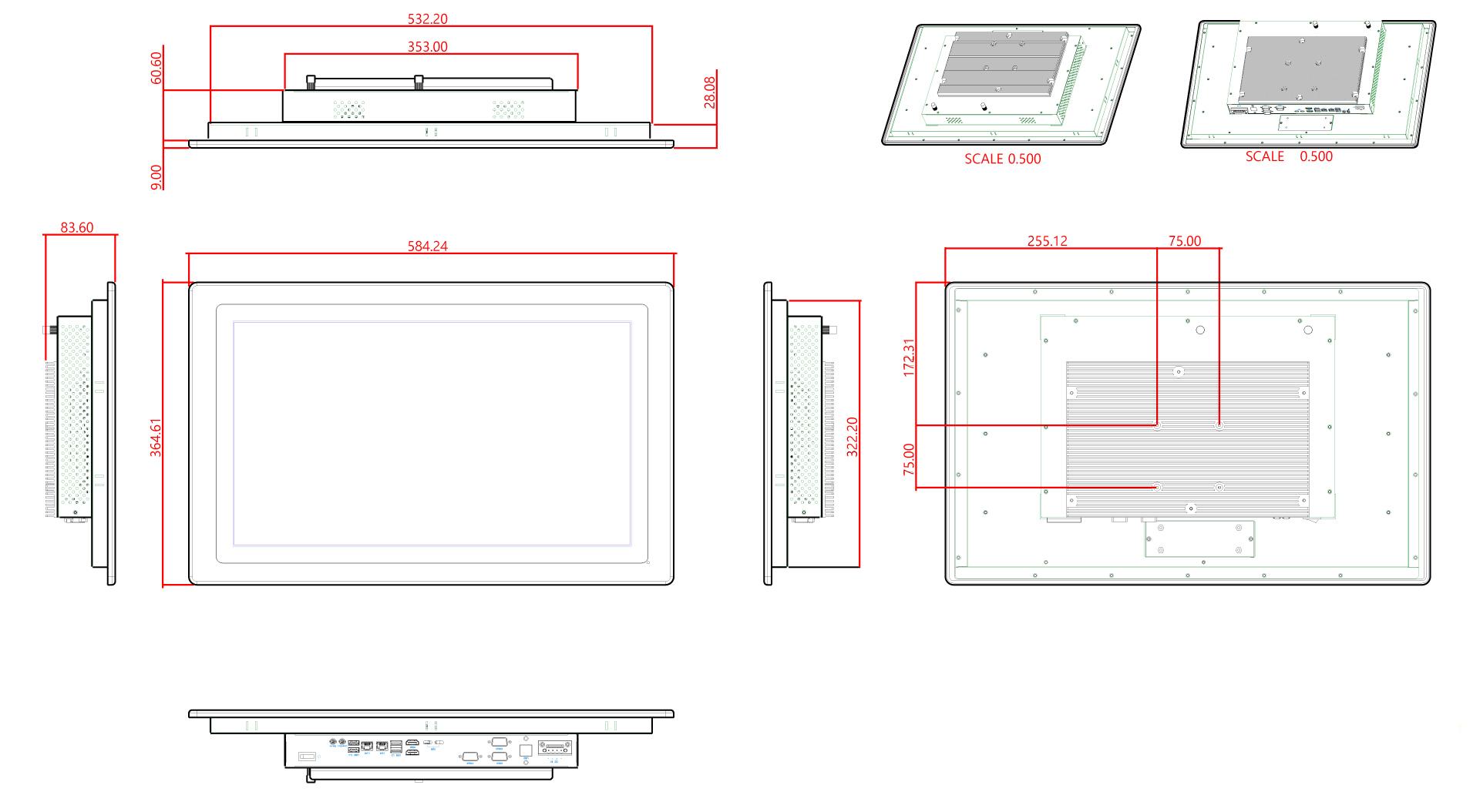

Drawing


Solutions

Industrial Automation

Wincomm industrial grade panel PCs and monitors go with elegant, rugged construction, powerful performance, and flexible mounting options

Food Process Solutions

Featuring at full flat resistive touch, chassis mount with downward I.O to save installation space, Wincomm stainless steel panel PCs and display

Pharmaceutical & Hygienic

Featuring at full flat resistive touch, chassis mount with downward I.O to save installation space, Wincomm stainless steel panel PCs and display

i-Oil Drill Solution

Featuring at full flat resistive touch, chassis mount with downward I.O to save installation space, robust antenna, full IP and C1D2 explosion proof design

News

Others will also look at

Specifications

Specification
Model WLP-7H20-22H
Main System
CPU / Chipset Intel® Alder Lake-P MCP Processors, 15W
Graphic Intel® Gen 12 Graphics
Memory Dual Channel DDR4 3200 MHz ,2 x 260 SO-DIMM, up to 64GB (32GB per DIMM)
TPM TPM2.0 (On Board IC)
OS Support Optional Windows 10(2019-LTSC) (64bit), Windows 11 (64bit)
Storage 1 x 2.5” SATA HDD drive bay (with anti-vibration mechanism)
1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
Expansion 1 x M.2 (Key B, 3042/3052) with PCIex1, USB3.2, USB2.0 and SIM for 4G/5G,
1 x SIM socket connected to M.2 key B
1 x M.2 (Key E, 2230) with PCIe, USB2.0 and CNVi for Wireless
Display Size 21.5”, 16:9
Display 1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 1000 nits, CR: 1000 : 1
Touch Screen Full flat resistive touch panel / Light Transmission: 80 ± 5% / Hardness: >=3H / Life: 35M times
Full Flat Projective Capacitive Touch Panel / Light Transmission: >=86% / Hardness: >=7H / Life: 100M times

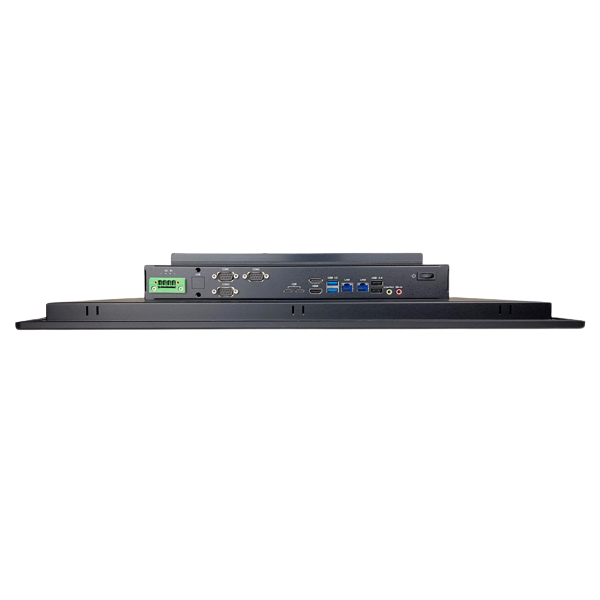

I.O. Ports
USB 2 x USB 2.0, 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen2 Type-C (Support DP1.4a display output, power output 5V/3A)
COM 2 x RS-232/422/485 (COM1, COM2), 1 x RS-232 (COM3)
LAN 2 x RJ-45 2.5 Gbps
Audio 2 x 3.5mm phone jack connector (Line-out, Mic-in)
Video 2 x HDMI 2.0b (DP & HDMI ports, total can support up to 3 screens)
Control Keys Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Adapter External, 150 watts, 100 ~240V AC in, 19V DC out, 7.89A (PSU with PSE)
Temperature Operating Temperature: -20~60℃ (IEC60068-2-56, air flow cooling)
Storage Temperature: -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66 at front, IK05
Dimensions (Net) TBD
Weights (Net) TBD kg
Mounting Panel mount / VESA (75x75)
Power Input / Consumption DC12~28V input
Certification CE (EMC) / FCC-B / VCCI / ICES-003
