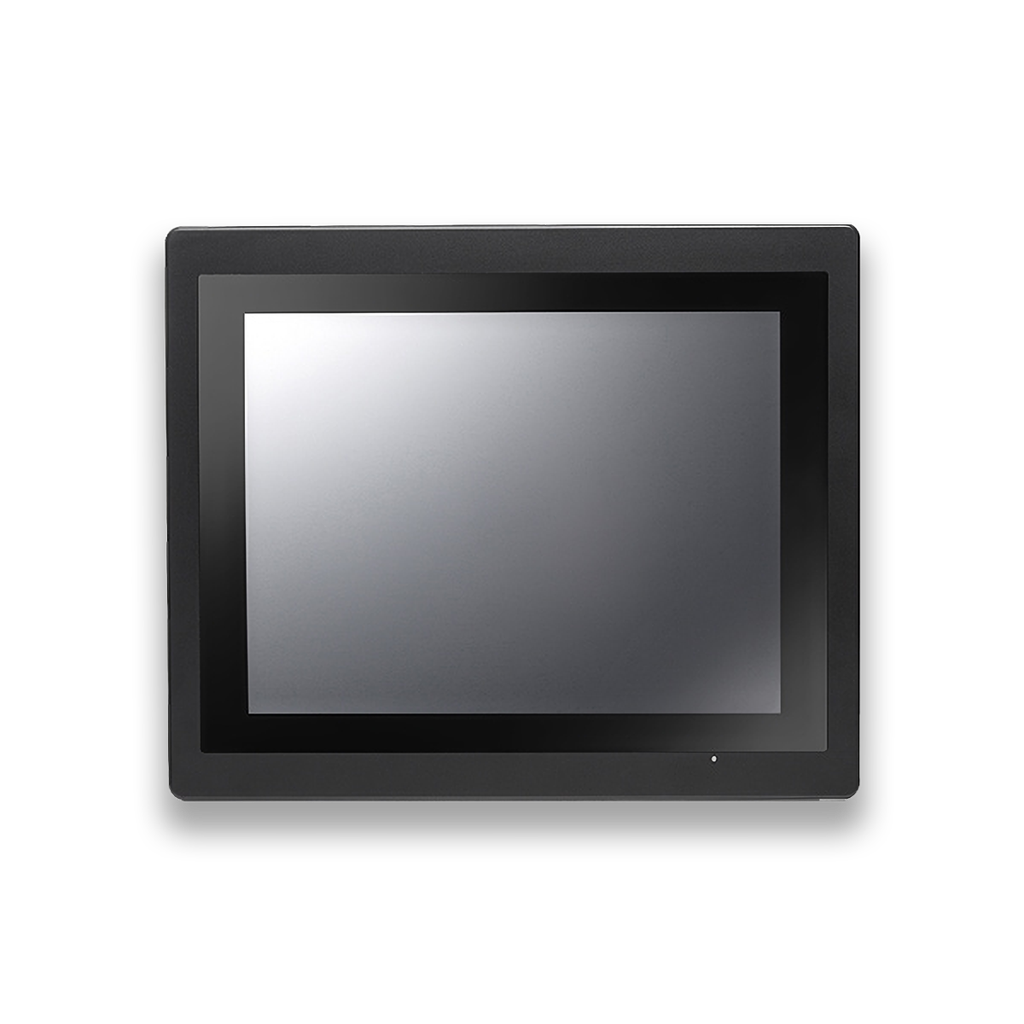

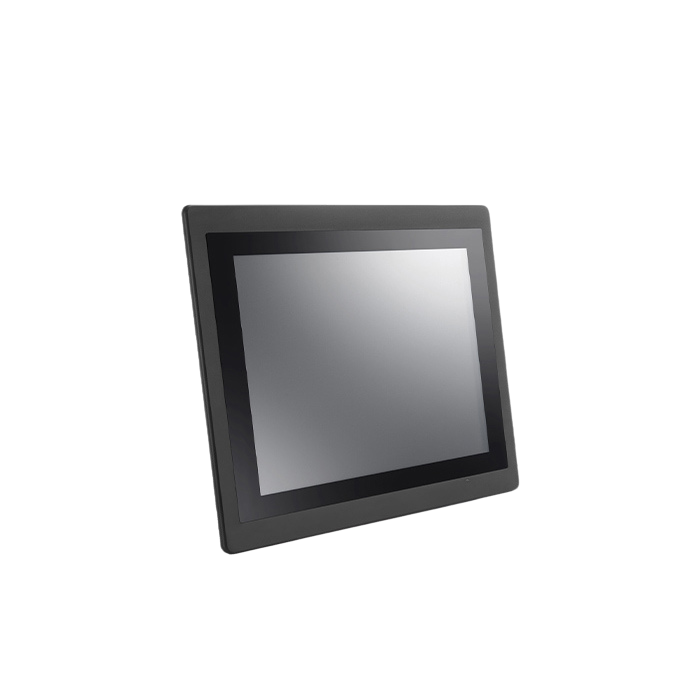

Coffee Lake-S 15"

WLPM-915
https://www.wincommusa.com/web/image/product.template/97/image_1920?unique=92ef8fb
  • Intel® Coffee Lake-S Core™ Processors
  • Modular Design with Panel Size 15”
  • Front IP66 Waterproof and Dustproof, Panel Mount
  • Fanless with Smart Thermal Control
  • Full Flat Design with Resistive or P-cap Touch
  • CE, FCC, VCCI Class B Passed
  • Optional Expansion Slot PCIe x16
  • Optional AI Vision Accelerator Card Ready
  • TPM 2.0 onboard IC

This combination does not exist.

Feature SpecificationOptions & Customized DownloadDrawingSolutionsNewsOthers will also look at

Feature

  • High Computing Power

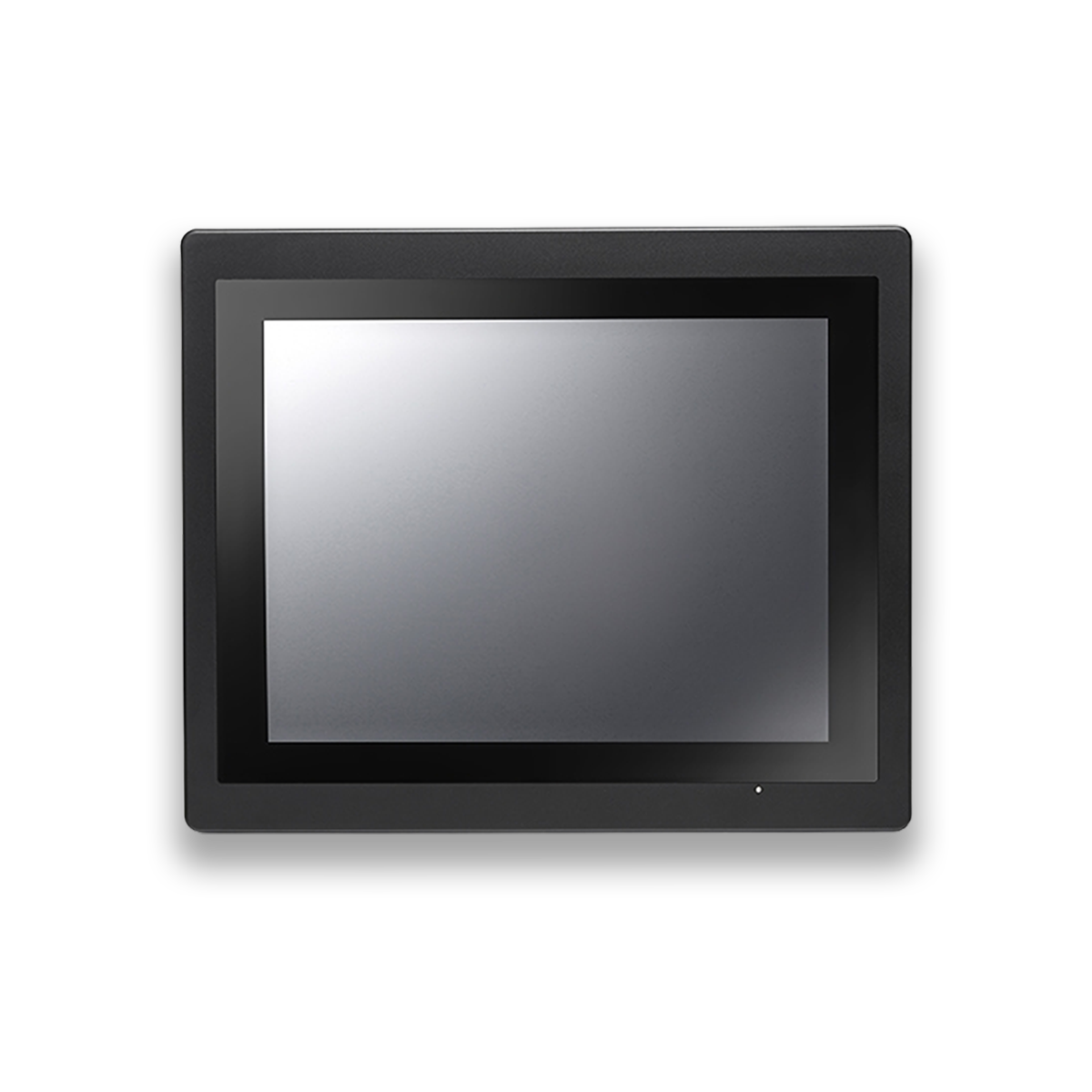

  • Modular Design

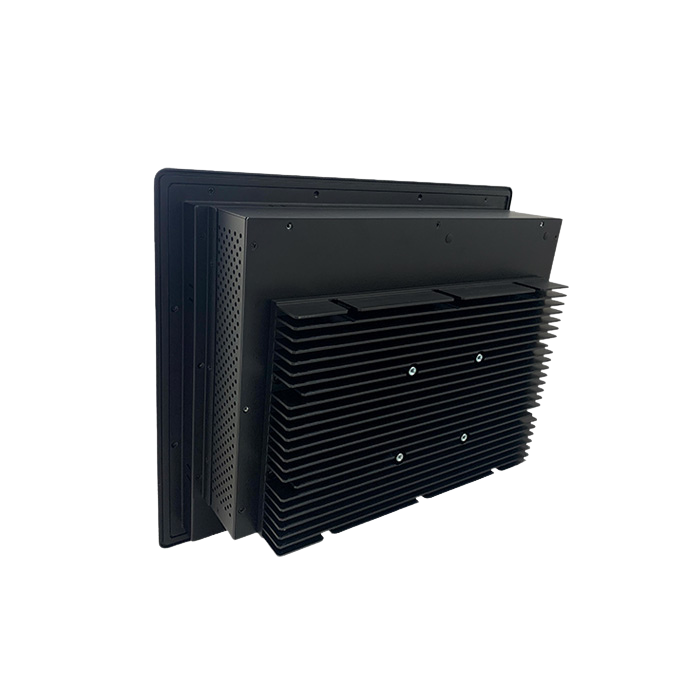

  • Fanless w/ Smart Thermal Control
  • Flexible Configuration for Easy Control

Specification

Options & Customized

Major Options

Options

1. Wireless and BT kit (2 ant)
2. Projected Capacitive Touch screen (15”, 17”, 22”)
3. Stainless Front Bezel
4. Silver front bezel
5. Chassis Type Housing
6. Open Frame Housing
7. M.2 NVMe SSD
8. Cable Tie Bracket
9. mPCIe AI Core X (VPU *1, Intel Movidius Myriad x 2485)
10. PCIe x4 AI CORE XP4/ XP8 ( Intel Movidius 2 x AI Core XM 2280 / 4 x AI Core XM 2280)
11. USB 2.0 X 2
12. PCIE Riser Card (X16)

Customization

1. 2.5” HDD
2. 2nd 2.5” SSD for RAID 0,1
3. WDT AP/API

Download

Product Data Sheet

Product User Manual

Drawing


Solutions

Intelligent Public Transportation

With an abundance of experience in design capability, Wincomm has advantages in vehicle hardware, certification and design capability, and the ability to provide a reliable rolling stock factor solution in three major systems.

Smart Bus Station

Outdoor panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various

i-Entrance Solution

Outdoor panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various smart retail applications

News

Others will also look at

Specifications

Specification
Model WLPM-915
Main System
CPU / Chipset Intel® 9th Gen Coffee Lake-S Core™ i7/i5/i3 MCP Processor, 2.2~3.6GHz, 35W
Graphic Intel® UHD 630 Graphics
RAM Dual Channel Support 2666MHz DDR4 SODIMM X2, up to 32GB
OS Support Win 10 (64 bit) / Win 11 (64bit)

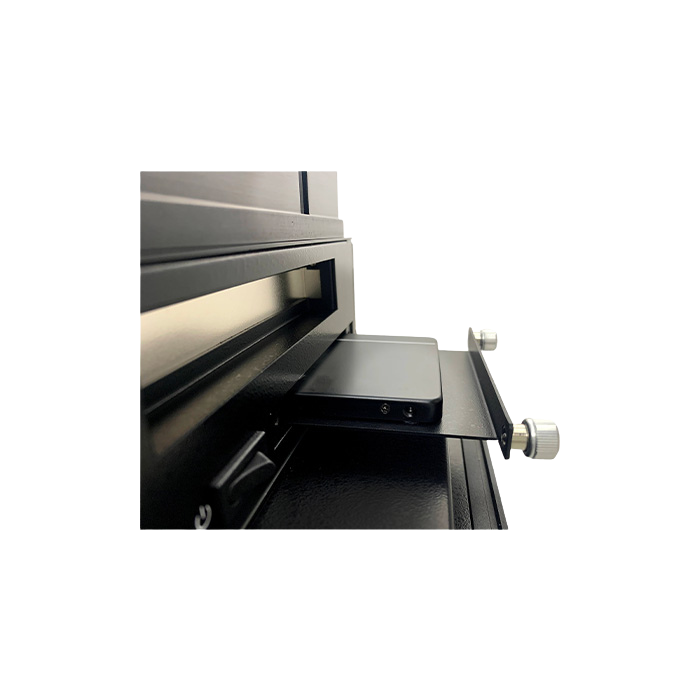

Storage 1 x 2.5” SATA HDD drive bay x 1 , Optional 1 x M.2 M Key 2280 for NVMe SSD
Expansion 1 x M.2 Key E 2230 w/ PCIex1, USB2.0 and CNVI for Wireless
1 x mini-PCIe for Full/Half w/ PCIex1 and USB2.0
1 x PCIex16 (30W max.)
Display Size 15” 4:3
Display 1024 x 768 (XGA), 160(H) / 160(V), 350 nits (Typ. Center point), CR: 800 : 1 (Typ)
Touch Screen Full Flat Projective Capacitive Touch Panel / Light Transmission: >=86% / Hardness: 7H pencil / Life: 100M times
5 Wire Full Flat Res. Touch / Light Transmission: 80% ± 5% / Hardness: >=3H pencil / Life: 35M times

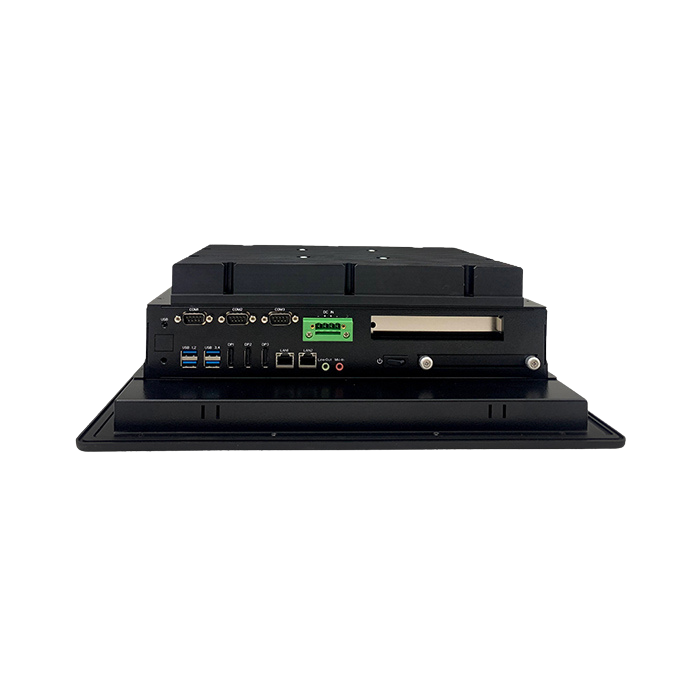

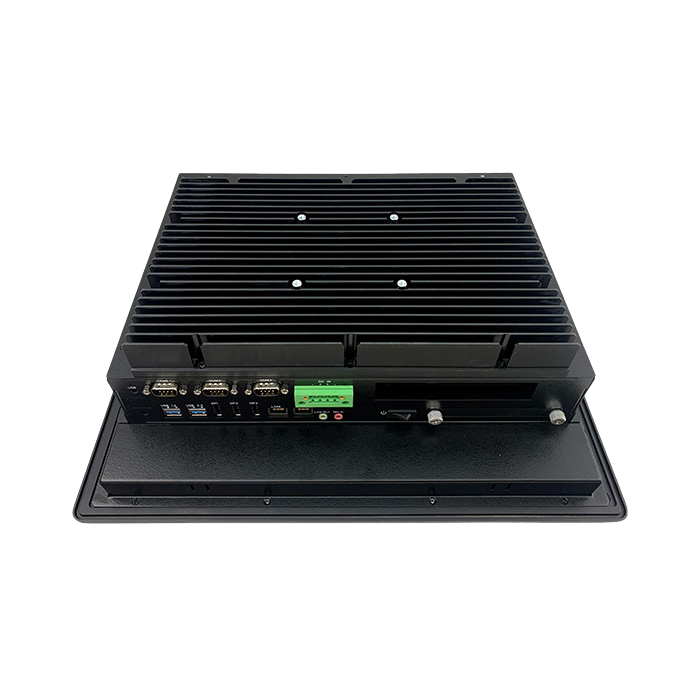

I.O. Ports
USB 4 x USB 3.1
COM 2x RS232, 1 x RS232/RS422/RS485
LAN 2 x RJ-45
Audio 2 x 3.5mm phone jack connector (Line-out, Mic-in)
Video 3 x DP1.2
Control Keys Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input DC-in x 1 (Jack with locker), DC19V~28V
Power Adapter 150W (PSU with PSE)
Temperature Operating Temperature: 19V DC Input 0~50℃ (air flow cooling)
Storage Temperature: -20~65℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP & IK Rating / Housing IP66 at front, IK05 / Front bezel is Aluminum, others are SECC with black coating
Dimensions (Net) 398 mm (H) x 330 mm (V) x 123.9 mm (T)
Weights (Net) TBD kg (w/o power adapter)
Mounting Panel mount (by clamp), VESA (75x75)
Certification FCC/CE/VCCI Class B, Canada ICES-003
