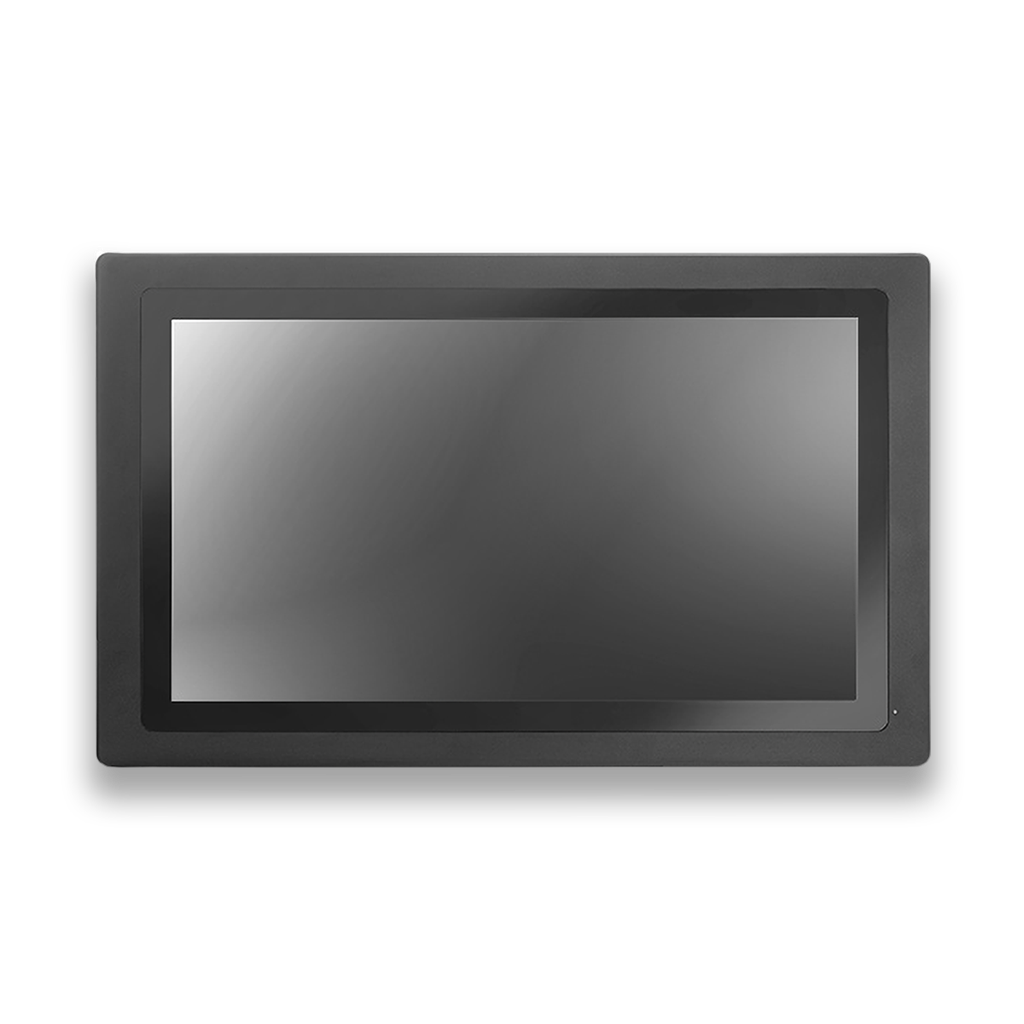

AMD Ryzen™ V1605B 24"

WLPM-V24
https://www.wincommusa.com/web/image/product.template/89/image_1920?unique=92ef8fb
  • AMD Ryzen CPU, V1605B, QC, 2GHz, 12-25W
  • Modular Design with Panel Size 23.8”
  • Front IP66 Waterproof and Dustproof, Panel Mount
  • Fanless with Smart Thermal Control
  • Full Flat Design with P-cap Touch
  • CE, FCC, VCCI Class B Passed
  • Optional Expansion Slot PCIex8
  • TPM 2.0 onboard IC

This combination does not exist.

Feature SpecificationOptions & Customized DownloadDrawingSolutionsNewsOthers will also look at

Feature

  • High Computing Power
  • Modular Design
  • Fanless w/ Smart Thermal Control
  • Flexible Configuration for Easy Control

Specification

Options & Customized

Major Options

Options

1. Wireless and BT kit (2 ant)
2. Projected capacitive touch screen
3. Stainless front bezel
4. Silver front bezel
5. Windows 10(2019-LTSC) (64bit) value
6. Chassis type housing
7. Openframe housing
8. Cable tie bracket
9. USB 2.0 X 2(By Cable)
10. PCIe Riser Card(X8)
11. RS232 x 3(By Cable)

Customization

1. 2.5” HDD
2. 2nd 2.5” SSD

Download

Product Data Sheet

Product User Manual

Drawing


Solutions

Intelligent Public Transportation

With an abundance of experience in design capability, Wincomm has advantages in vehicle hardware, certification and design capability, and the ability to provide a reliable rolling stock factor solution in three major systems.

Smart Bus Station

Outdoor panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various

i-Entrance Solution

Outdoor panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various smart retail applications

News

Others will also look at

Specifications

Specification
Model WLPM-V24
Main System
CPU / Chipset AMD Ryzen CPU, V1605B, QC, 2GHz, 12-25W / SoC
Graphic AMD Radeon™ Vega 8 Graphics
RAM Dual Channel DDR4 2400 MHz (V1605B/ V1202B) , 32 GB
OS Support Win 10 (64 bit)
Storage 1 x 2.5” SATA SSD
1 x M.2 M.Key 2242/2260/2280 PCIex2 and SATA for SSD
Expansion 1 x M.2 Key E 2230 w/ PCIex1, share USB2.0 for Wireless
1 x mini-PCIe for Full/Half w/ PCIex1
1 x PCIex8 (25W max.)
Display Size 23.8” 16:9
Display 1920 x 1080 (FHD), 178(H) / 178(V), 250 nits (Typ. Center point), CR: 3000 : 1 (Typ)
Touch Screen Full Flat Projective Capacitive Touch Panel / Light Transmission: >=85% / Hardness: >=7H pencil / Life: 100M times
I.O. Ports
USB 2 x USB 3.2 GenII, 2 x USB 2.0
COM 2 x RS232/RS422/RS485
LAN 2 x RJ-45
Audio 2 x 3.5mm phone jack connector (Line-out, Mic-in)
Video 3 x DP1.2a
Control Keys Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input 1 x DC-in(Jack with locker), DC19V~28V
Power Adapter 150W (PSU with PSE)
Temperature Operating Temperature: 19V DC Input 0~50℃ (air flow cooling)
Storage Temperature: -20~60℃
Humidity Operating & Storage: 10% ~ 90%, non-condensing
IP & IK Rating / Housing IP66 at front, IK05 / Front bezel is Aluminum, others are SECC with black coating
Dimensions (Net) 653.7 mm (H) x 412 mm (V) x 121.4 mm (T)
Weights (Net) TBD kg (w/o power adapter)
Mounting Panel mount (by clamp), VESA (75x75)
Certification FCC/CE/VCCI Class B, Canada ICES-003
