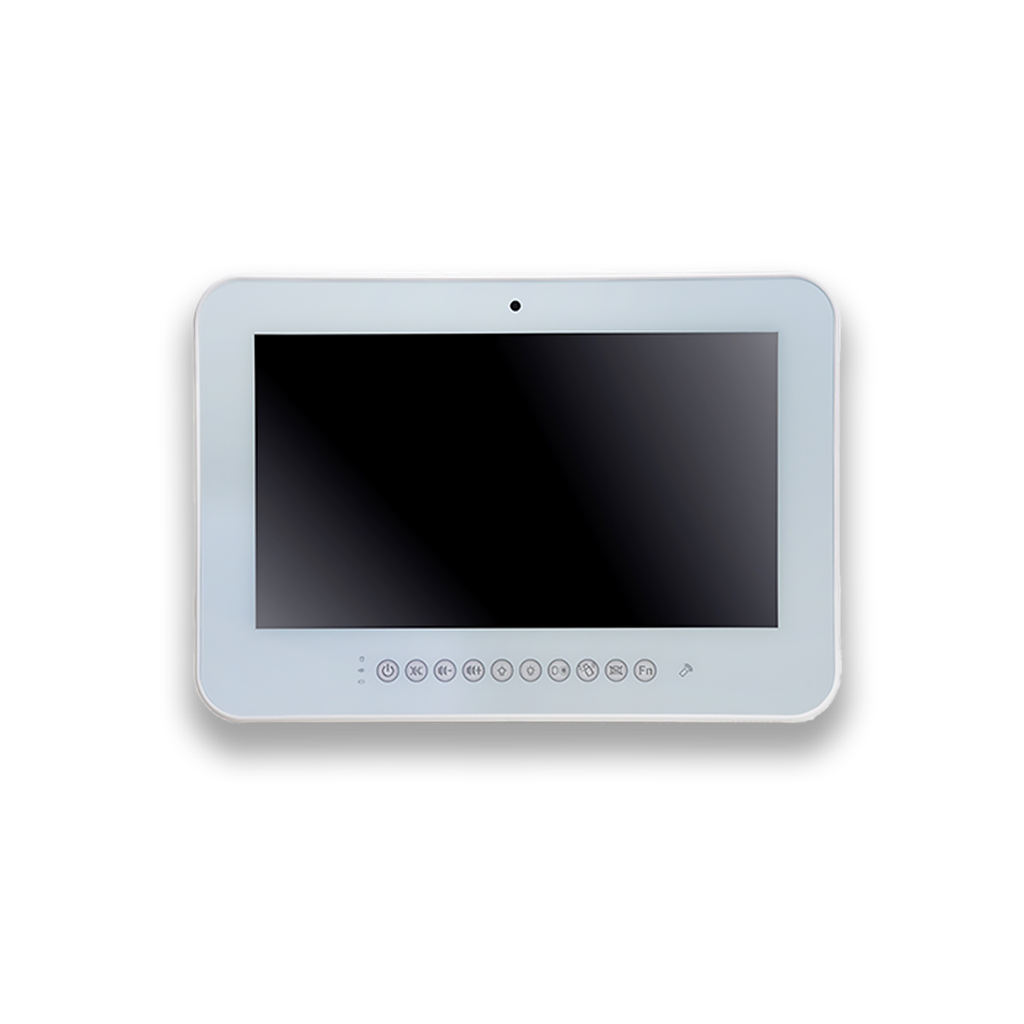

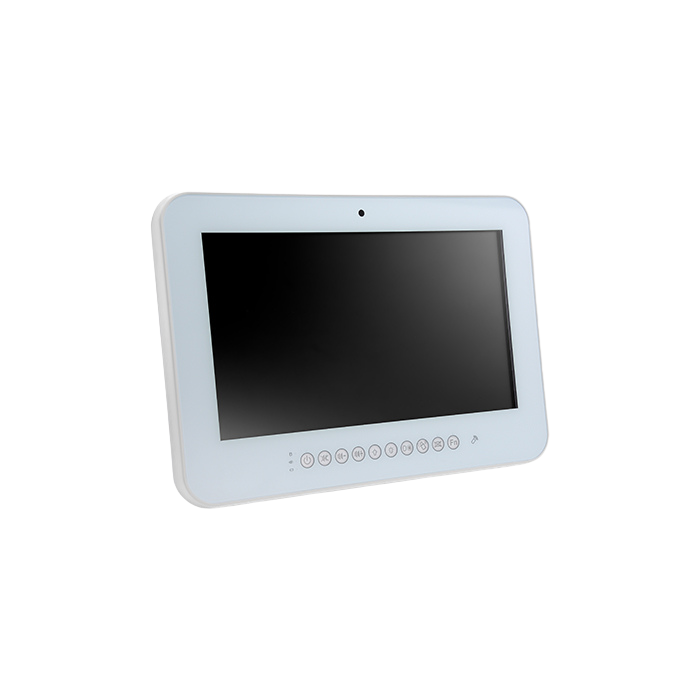

Raptor Lake 15"

WMP-15P
https://www.wincommusa.com/web/image/product.template/38/image_1920?unique=92ef8fb
  • High performance intel 13th generation Core i CPU
  • Anti-bacteria (MRSA) plastic housing
  • 15.6"(1366x768), 400nits Diagnostic panel or 15.6"(1920 x1080), 500nits FHD panel
  • Support Intel Vpro technology by CPU
  • Supports Dual Channel DDR5 SODIMM up to 96GB
  • Fanless solution
  • Optional Built-In UPS Battery
  • Optional 2.5” SATA3 SSD up to 2TB
  • Optional Full HD/4K capture card
  • Supports PCI-E x4 riser card (option)
  • USB/LAN/COM 4KV isolated module (optional order configuration)
  • Support MECM & Autopilot
  • Model
  • USB
  • COM
  • LAN

This combination does not exist.

SpecificationOptions & Customized DownloadDrawingVideoSolutionsNewsOthers will also look at

Specification

Options & Customized

Major Options

Options

1. GPIO capture card control solution
2. Wifi 802.11 be WLAN + Bluetooth module (Wifi-7)
3. 5MP Auto Focus Webcam
4. RFID reader (13.56MHz)
5. TPM 2.0(SPI) module
6. 2.5” SSD module
7. M.2 SSD 2280
8. Battery pack (Battery Energy: Typical 28Wh)
9. COM3,4
10. USB5,6
11. AC DC Power adapter 18V 100W (EU Only) (optional order configuration)
12. Equipotential Terminal Pin
13. AG Film
14. PCIex4 riser card
15. Full HD/4D capture card
16. Isolated 4KV module (optional order configuration)
- 4KV Isolated USB 2.0 (High speed ) connector x 1
- 4KV Isolated gigaLAN connector x 1
- 4KV Isolated COM connector x 2 (one is RS-232/422/485, one is RS-232)
17. FHD panel(optional order configuration)

Customization

1. Tempered glass
2. Touch panel with anti-glare coating
3. Light sensor for LCD auto-brightness control (can’t co-exist with webcam)
4. COM5,6 (New I/O bracket, remove USB5,6)

Download

Product Data Sheet

Product Selection Guide

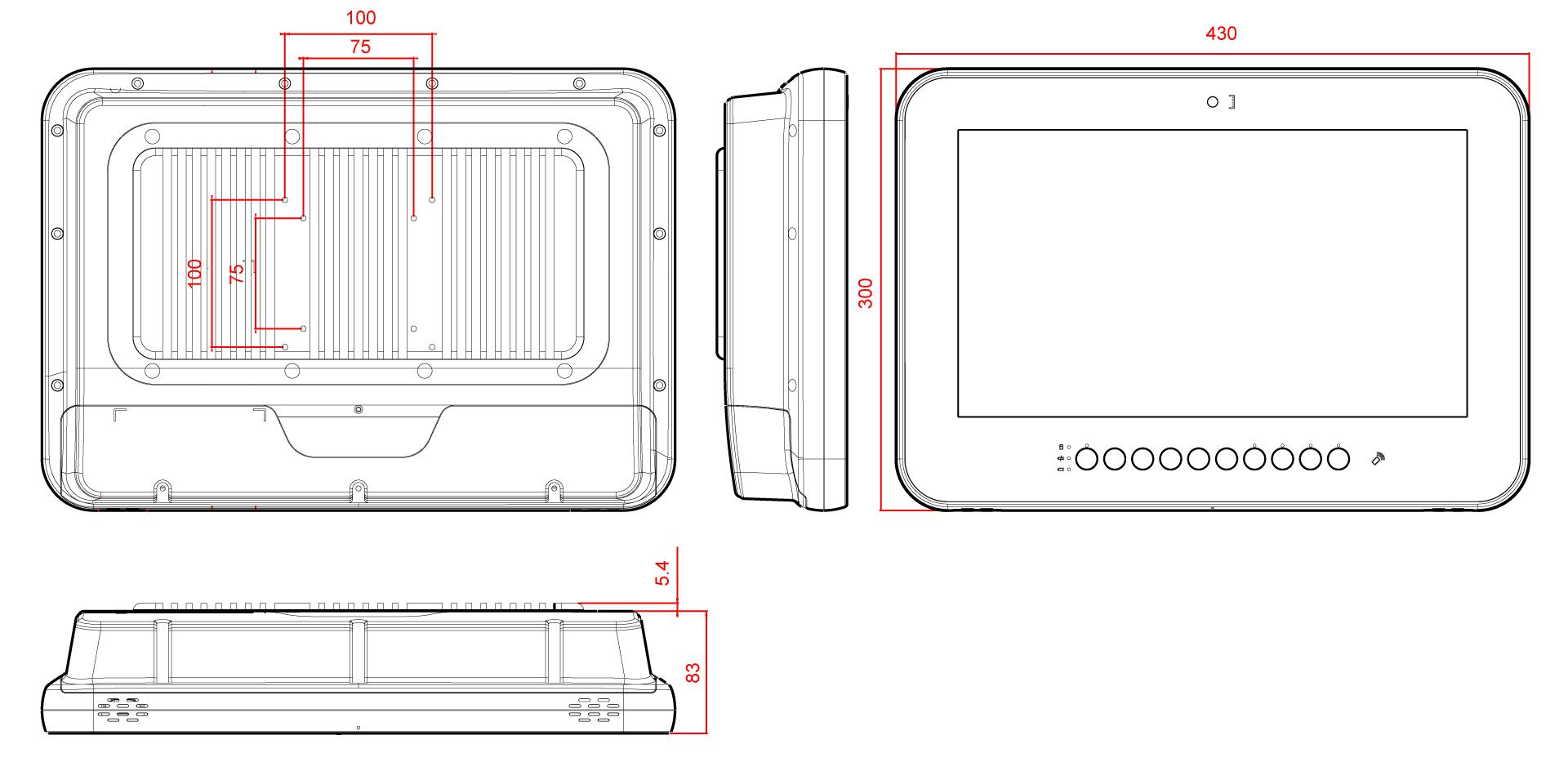

Drawing


Video






Solutions

Smart Operation System

Wincomm's medical-grade touch panel PCs, including the WMP OR AIO series, and Powerful AI Ready AIO series, are specifically designed for operating room, such as endoscopic systems, and have been successfully deployed in hospitals across Europe, the U.S., and Asia.

Medical Examination System

Wincomm Medical Panel PC series are applied to various medical examination equipment, such as Automated Ultrasound, MRI, OCT, ECG and so on.

Medical Imaging System

Wincomm Medical Panel PC series are enhanced design on processing medical image via our real-time video process with high computing power on excellent thermal design management.

Smart EMR System

Toward Medical 4.0 IoT trend, it will be featured in mobility, cable-less, and high value performance. WMP-22J/24J is designed to be used in medical environment, featuring the anti-bacterial, fanless, and intelligent i-control management system

Intelligent OCT Solution

OCT Angiography (OCTA) is often the subject of scientific presentations and clinical research, and Wincomm provided our technology integrated with powerful computing on efficiency system management to support our clients on OCTA applications.

Smart Disease Control Solutions

Integrated with deep learning on video analytics by Gorilla technology, utilizing Intel OpenVino tool kits, it could detect facial mask plus additional body temperature detection versus identity verification with privacy protection

News

Others will also look at

Specifications

Specification
Model WMP 15P IP0A (STD) | WMP 15P IP0B (ISO)
Main System
CPU / Chipset FCBGA1744 Intel® 13th Gen. Core i7/i5/i3 & Celeron Processor (15W Max.) / SoC
Graphic Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU)
RAM Two 5200 MHz DDR5 SODIMM Socket Support Dual Channel, non-ECC, up to 96GB
OS Support Optional Windows 10 IoT Enterprise LTSC / WIN 11 IoT Enterprise GAC
Storage 1 x M.2 (M Key 2280) with PCIex4, 1 x 2.5” SATA3 SSD/HDD drive bay
Expansion 1 x PCIex4 (40W max.), 1 x M.2 E Key
Display Size 15.6” wide TFT-Color LCD (16:9)
Display Option 1: 1366 x 768, 16.7M colors, 170(H) / 160(V), 400 nits, CR:500: 1 (Typ)
Option 2: 1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 500 nits, CR:1000: 1 (Typ)
Touch Screen Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 84% / Hardness: 7H pencil, pressure 765g/45° / Life: 50000

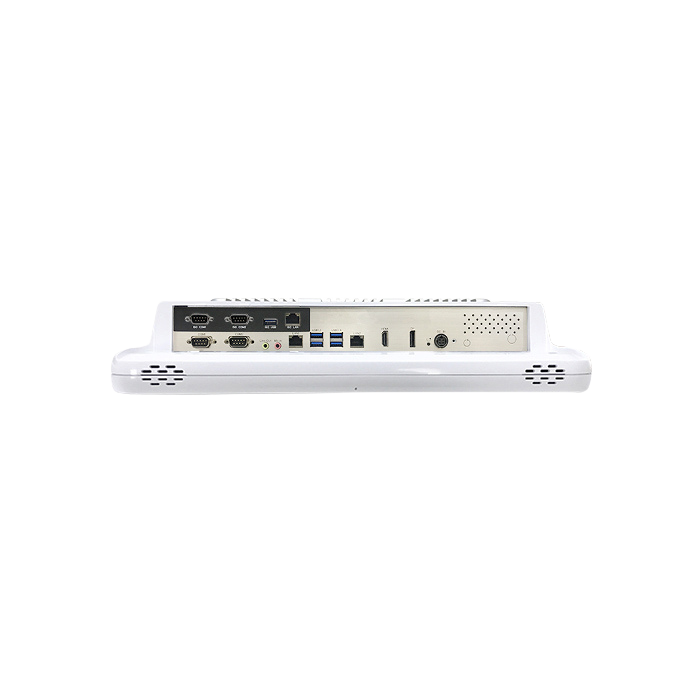

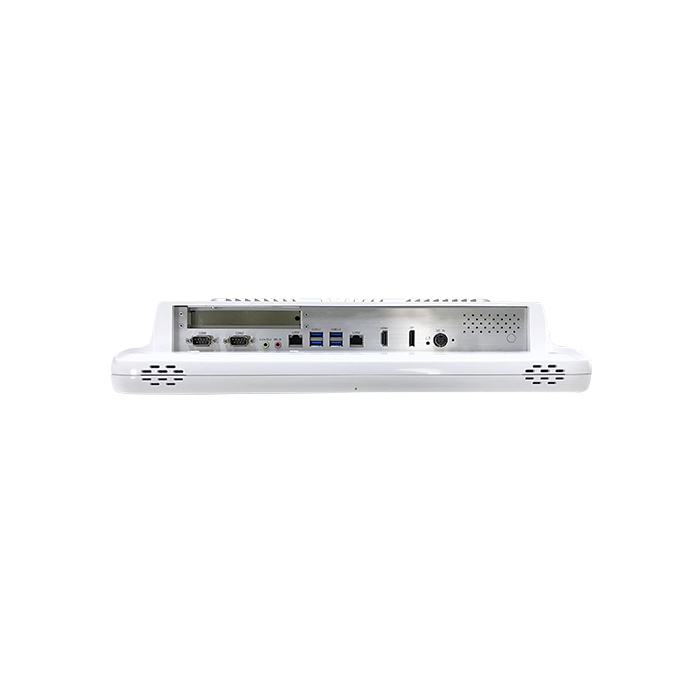

I.O. Ports
USB 4 x USB3.2 gen II | 4 x USB3.2 gen II, 1 x ISO USB 2.0
COM 1 x RS232/422/485
1 x RS232 | 1 x RS232/422/485, 1 x RS232
1 x ISO RS232/RS422/RS485, 1 x ISO RS-232
LAN 2 x RJ45 | 2 x RJ45, 1 x ISO RJ45
Audio/Video 1 x Line-out & 1 x Microphone-in (3.5mm phone jack) / 1 x DP1.4a, 1 x HDMI 2.0
Speakers & Mic. 2 x 2-watt Speakers & Integrated Microphone (at Housing Bottom Side)
Control Hot Key (R to L) Battery LED Indicator, Power On/Off, Mute, Volume +/-, Brightness +/-, LCD Backlight On/Off, Clean Me, webcam On/Off, Function Key
Mechanical and Environmental
Cooling Fanless Design with External Heatsink
Power Input DC 14~24V input
Power Adapter AC input 100~240V / 47 ~ 63 Hz / DC output 12V, 100W
Temperature Operating Temperature: 0~40℃ (IEC60068-2-78)
Storage Temperature: -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 whole system / Front: Full flat design/ Touch (standard)/ Glass (customized); Rear: Plastic White w/Anti-bacteria (MRSA) Housing
Dimensions (Net) 430 mm (H) x 300 mm (V) x 88.4 mm (T)
Weights (Net) 5 kg (w/o power adapter/battery pack)

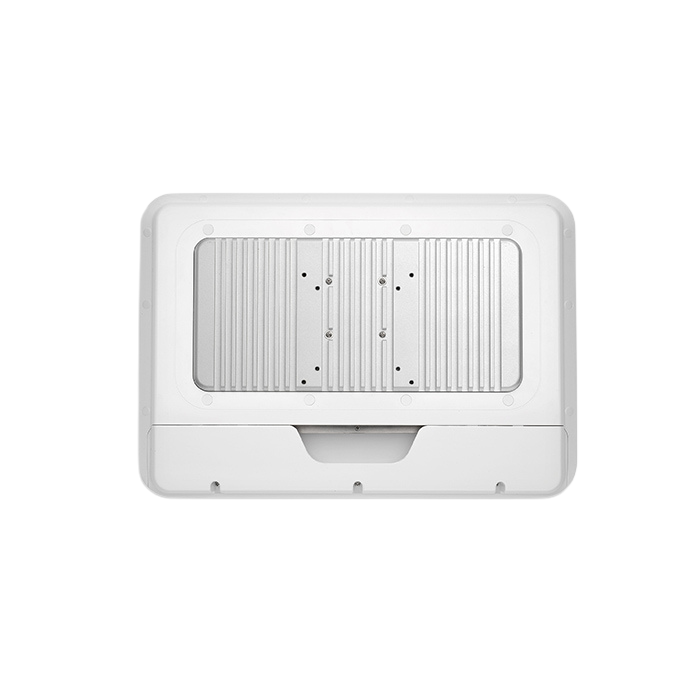

Mounting VESA 75/100
Certification CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1)
EN 60601-1: 2006/A2:2021;IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020
VCCI: 2016-11, Class B (PSU/Battery with PSE)
FCC: Part 18 Class B
UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project
cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project
ISO 14971 / IEC62133
