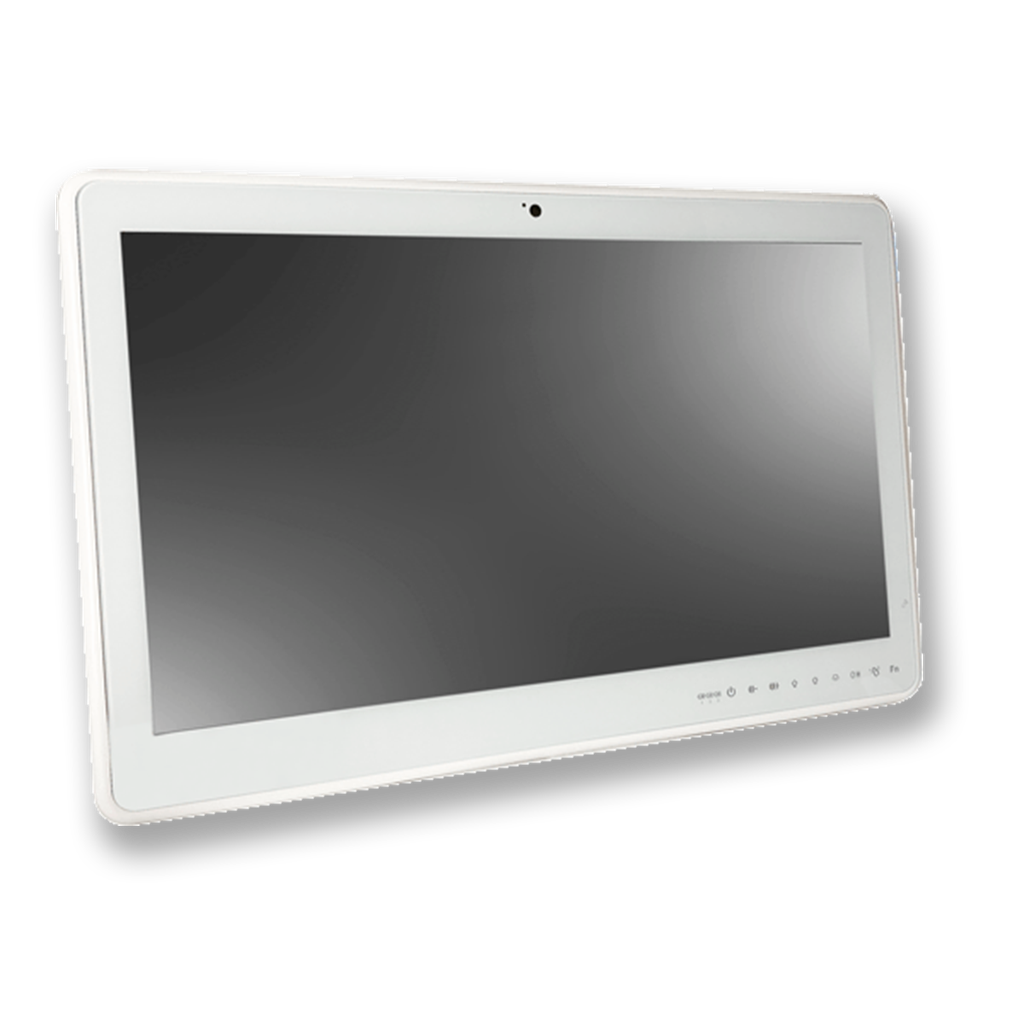

Medical AI Raptor Lake 22"

WMP-22S
https://www.wincommusa.com/web/image/product.template/65/image_1920?unique=92ef8fb
  • Anti-Bacteria (MRSA) Plastic Housing & Touch
  • 21.5" Full HD (1920 x 1080) AHVA Diagnostic Panel
  • High performance intel 12th /13th generation Core i CPU
  • Supports Dual Channel DDR5 up to 96GB
  • Projective Capacitive Multi-touch screen (10 fingers)
  • Optional Independent Nvidia A4500 graphic with 16GB dedicated video memory
  • Video in port with RGB Color adjustment function
  • Support MECM, DFCI & Autopilot


  • Model
  • COM
  • LAN

This combination does not exist.

SpecificationOptions & Customized DownloadDrawingSolutionsNewsOthers will also look at

Specification

Options & Customized

Major Options

Options

1. WLAN + Bluetooth module (Wifi-7)
2. Auto focus 5M pixel webcam module
3. RFID (13.56Hz); RFID with single sign on
4. TPM 2.0 module
5. PCI-E x4 Riser card
6. Full HD capture card / 4K SC710N1 M2 12G SDI capture card / SC710N1-L HDMI2.0
7. Battery pack (100W max) (DR-202 series) (100min battery life by PCmark test condition)
8. Equipotential terminal pin
9. AG film(Can’t co-exist with DICOM)
10. USB 2.0 (Type A) x 2 at side
11. Smart card reader at side or CAC / PIV Reader (FIPS-201)
12. USB 2.0 x 2 (USB 5,6)
13. RS-232 x 2 (COM 3,4)-only for Standard type configuration
14. DICOM part 14 compliance module Max. Error Ratio less than 20% (optional order configuration)
15. Independent Nvidia MXM A4500/A2000/A1000 graphic
16. GPIO capture card control solution

Accessory

1. Cable clean IO cover
2. WMP series stand, VESA 75/100

Customization

1. Tempered glass

Download

Product Data Sheet

Product Selection Guide

Drawing


Solutions

Smart Operation System

Wincomm's medical-grade touch panel PCs, including the WMP OR AIO series, and Powerful AI Ready AIO series, are specifically designed for operating room, such as endoscopic systems, and have been successfully deployed in hospitals across Europe, the U.S., and Asia.

Medical Examination System

Wincomm Medical Panel PC series are applied to various medical examination equipment, such as Automated Ultrasound, MRI, OCT, ECG and so on.

Medical Imaging System

Wincomm Medical Panel PC series are enhanced design on processing medical image via our real-time video process with high computing power on excellent thermal design management.

Smart EMR System

Toward Medical 4.0 IoT trend, it will be featured in mobility, cable-less, and high value performance. WMP-22J/24J is designed to be used in medical environment, featuring the anti-bacterial, fanless, and intelligent i-control management system

Intelligent OCT Solution

OCT Angiography (OCTA) is often the subject of scientific presentations and clinical research, and Wincomm provided our technology integrated with powerful computing on efficiency system management to support our clients on OCTA applications.

Smart Disease Control Solutions

Integrated with deep learning on video analytics by Gorilla technology, utilizing Intel OpenVino tool kits, it could detect facial mask plus additional body temperature detection versus identity verification with privacy protection

News

Others will also look at

Specifications

Specification
Model WMP 22S IP0A (STD) | WMP 22S IP0B (ISO)
Main System
CPU / Chipset LGA1700 package 12th /13th generation Intel® Core i7/i5/i3/Pentium/Celeron processor (35W max.)
Graphic Intel® integrated UHD Graphics 770 by CPU
RAM Two 5600 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 96GB
OS Support Windows 10 IoT LTSC 2021 (64bit) / Windows 11 IoT GAC (64bit)
Storage M.2 M.Key 2280 PCIe X 4 SSD (Support NVMe SSD up to 1TB) M.2 B/M Key, (2280) with PCIe x1 PCIe/SATA/USB
Expansion M.2 E key 2230 x 1 M.2 B/M Key, (2280) with PCIe x1 PCIe/SATA/USB PCI-E x 4 expansion slot x 1 (40W max)
Display Size 21.5” LED Backlight
Display 1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 250 nits (Typ.), CR: 1000 : 1 (Typ)
Touch Screen Projected Capacitive Multi-Touch Panel (10 fingers) / Light Transmission: ≥ 87% / Hardness: 7H pencil, pressure 765g/45° / Life: 50000
I.O. Ports
USB 4 x USB 3.2 Gen II (Type A) 1 x USB 3.2 II (Type C, Support DP 1.4a display output; 5V/3A power output)
COM 1 x RS232/RS422/RS485
1 x RS232 | 1 x ISO RS232/RS422/RS485
LAN 1 x Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro 1 x Intel® I226V with 10/100/1000/2500 Mbps | 1 x Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro 1 x Intel® I226V with 10/100/1000/2500 Mbps, 1 x ISO RJ45
Audio 3.5mm phone jack connector * 2 (Line-out, Mic-In)
Video Out DP 1.4a/DP++ x1, HDMI 2.0b x 1, HDMI-in x 1 (Without Audio)
Control Hot Key (R to L) Power Button// Audio adjustment // brightness // Reading Light // LCD on/off // Clean me // Programming Function Key
Mechanical and Environmental
Cooling Fan
Power Input DC 14~19V input
Power Adapter AC input 100 ~240V / 47 ~ 63 Hz / DC output 19V / 250W (MPU250A-107 W/PSE)
Temperature Operating Temperature: 0~40℃ (IEC60068-2-78)
Storage Temperature: -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side) IPX1 for whole system / Plastic White w/Anti-bacteria (MRSA)
Dimensions (Net) 541 mm (H) x 352.9 mm (V) x 74.7 mm (T)
Weights (Net) 8.0 KG (w/o power adapter)
Mounting Optional Stand, VESA 100
Certification (Including GeForce GTX 1060 & 4K Capture Card) CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1) EN 60601-1: 2006/A2:2021;IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B (PSU/Battery with PSE) FCC: Part 18 Class B UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project ISO 14971 / IEC62133 (All regulation with CPU i7-13700TE and Nvidia A4500 graphic MXM module)
