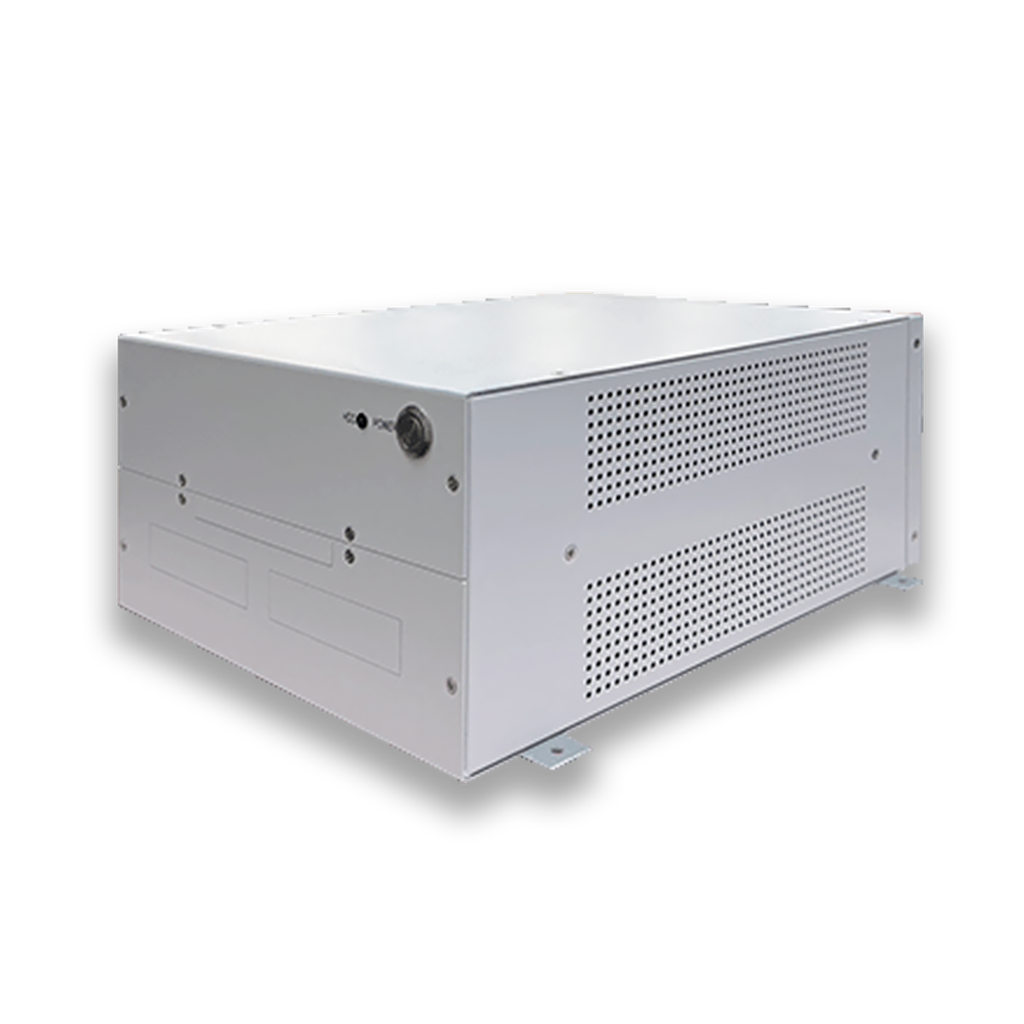

Medical Edge AI Fanless

WPC-76BF
https://www.wincommusa.com/web/image/product.template/150/image_1920?unique=92ef8fb
  • Medical Grade 4th UL/EN 60601-1-2 Certified
  • Powerful 14th Gen. Intel Core i7/i5, 45W Max.
  • Supports Dual Channel DDR4 SODIMM up to 64GB
  • 1 X PCIex16 (130W), 1 X PCIex4, 1 X Mini-PCIe, 1 X M.2 (Key M, 2280)
  • Smart Fan w/Hospital White Housing
  • w/2nd Storage SSD
  • w/Anti-vibration mechanism for SSD
  • Rich I.O., Up to 8 X USB, 1 X VGA/DVI-D/DP, 2 X LAN & 2 X COM

This combination does not exist.

SpecificationOptions & Customized DownloadDrawingSolutionsNewsOthers will also look at

Specification

Options & Customized

Major Options

Accessory

1. WiFi 7 + Bluetooth Module
2. Equipotential Terminal Pin
3. 2.5” SSD
4. Windows 10 (IoT LTSC) & Window 11 (IoT LTSC)
5. TPM 2.0 module

Customizations

1. Easy Removable Bay
2. Remote Power Control Button (DB9)

Download

Product Data Sheet

Product Selection Guide

Drawing


Solutions

Smart Operation System

Wincomm's medical-grade touch panel PCs, including the WMP OR AIO series, and Powerful AI Ready AIO series, are specifically designed for operating room, such as endoscopic systems, and have been successfully deployed in hospitals across Europe, the U.S., and Asia.

Medical Examination System

Wincomm Medical Panel PC series are applied to various medical examination equipment, such as Automated Ultrasound, MRI, OCT, ECG and so on.

Medical Imaging System

Wincomm Medical Panel PC series are enhanced design on processing medical image via our real-time video process with high computing power on excellent thermal design management.

Smart EMR System

Toward Medical 4.0 IoT trend, it will be featured in mobility, cable-less, and high value performance. WMP-22J/24J is designed to be used in medical environment, featuring the anti-bacterial, fanless, and intelligent i-control management system

Intelligent OCT Solution

OCT Angiography (OCTA) is often the subject of scientific presentations and clinical research, and Wincomm provided our technology integrated with powerful computing on efficiency system management to support our clients on OCTA applications.

Smart Disease Control Solutions

Integrated with deep learning on video analytics by Gorilla technology, utilizing Intel OpenVino tool kits, it could detect facial mask plus additional body temperature detection versus identity verification with privacy protection

News

Others will also look at

Specifications

Specification
Model WPC-76BF
Main System
CPU / Chipset Intel® 12th / 13th / 14th Generation Intel® Core i9/i7/i5/i3, Pentium and Celeron Processor, 45W max. /Intel® Q670E Express Chipset
Graphic Intel® HD Graphics
RAM Two 3200 MHz DDR4 SODIMM socket support dual Channel, up to 64GB
OS Support Windows 10 (IoT LTSC), Windows 11 (IoT LTSC)
Storage 1 x M.2 M.Key 2280 SSD (NVMe)
1 x 2.5” SATA SSD w/anti-vibration
Expansion 1 x M.2 (Key M, 2280)
1 x M.2 (Key E, 2230) for Wireless
1 x mini-PCIe (Full Size)
1 x PCI-Ex16 (130W max)
1 x PCI-Ex4(10W max), Total max. 140W
I.O. Ports
USB 4 x USB 3.2 (S5 support 5V1A output); 4 x USB 2.0
COM 2 x RS232/RS422/RS485 (RI/5V/12V)
LAN RJ-45 x 2 (LAN 1 :1GB Intel® i219LM; LAN 2 : 2.5GB Intel® i226V)
Audio 3.5mm phone jack (Line in, Line out, Mic in)
Video Out 1 x DP1.2, 1 x DVI-D, 1 x VGA
Power Switch Power on/ off at front site, reset button at back side
Mechanical and Environmental
Cooling Smart Fan
Power Adapter AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 300W
Temperature Operating Temperature:0~40℃(0~50℃ By Project)
Storage Temperature:-20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
Housing Sliver Aluminum Heatsink and SECC w/ Hospital White Painting
Dimensions (Net) 301 (L) x 242.6 (W) x 130 (D) mm
Weights (Net) 5 kg
Power Input / Consumption DC 12~24V input
Certification CE: EN 60601-1-2:2015 (V4.1)
VCCI: 2016-11, Class B (Power adapter with PSE)
FCC: Part 18 Class B, Canada, ICES-003
UL: ANSI/AAMI ES60601-1:2012 (V3.2) by project
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.2) by project
ISO 14971 / EN-60601-1;2006/A1:2013 (V3.2) by project
