WS - Battery Monitoring Management for Server and Client (Medical AIO w/Swappable Battery Series)
WS-BMM
- Client support all WMP-XXJ/XXP w/Swappable Battery Series
- Remote Battery Management Solution for Server and Client
- Optimize Battery Capacity Monitoring
- Alarm Setting to Secure Live System
- Report by History Log and Excel Output
- Support Windows 10/11
Introduction

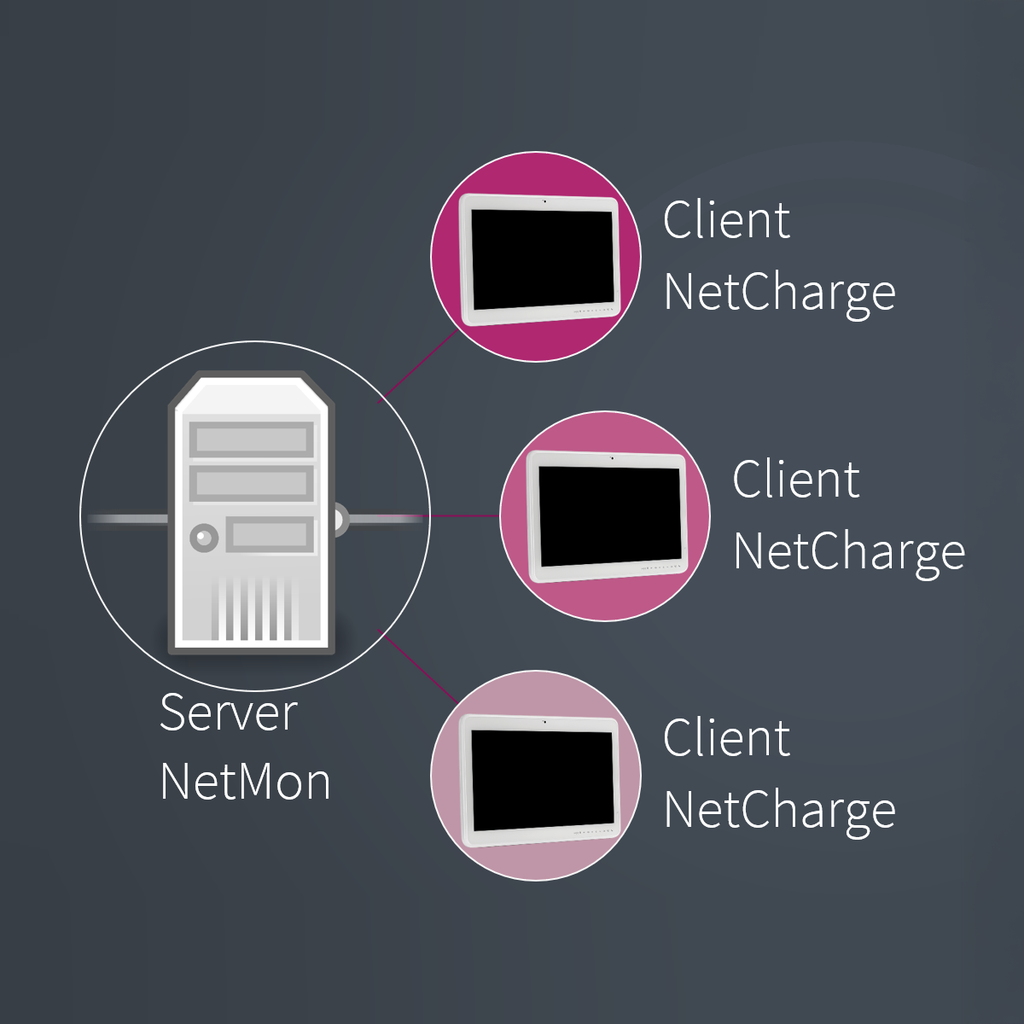

WS Battery Monitoring Management is designed to remote management the status of battery and to secure medical cart PC power condition. NetMon is for remote device management system at server, and it provides battery management for devices installed Netcharge system. Netcharge is a battery management AP for devices at client, and it allows to provide status of battery to system information remotely to NetMon system at server for monitoring.
Specifications
| Specification | |
|---|---|
| SW Model | NetCharge (Client) | NetMon (Server) |
| Main System | |
|---|---|
| OS Support | Win 10, Win 11 |
| Server Management System | |
|---|---|
| Utility Bar | － | Filter the displayed devices by NetCharge Device Name: Only the devices whose name contains the letters entered will be displayed. Filter the devices displayed by status: It hides / displays the devices that are not in an alarm status. |
| Device List | － | Area for displaying the list of devices detected on the network that are running NetCharge |
| Client Management | |
|---|---|
| Main Page | NetCharge Main Page | NetMon Device Monitoring Main Page |
| Report |
The part of visualization of the Data History allows to verify the recording of the data occurred over time, including chart or graphics format. The historical data must be manually "downloaded" from the device. Export the data collected in the table to an Excel file. |
| Battery Alarm Setting |
Enabling the alarm status in case one of the batteries is missing. Minimum percentage threshold below which the device goes into alarm status. Indicates whether the indicated threshold refers to the value of a single battery or to the average of the values of all the available batteries. |
| Battery Level |
Charge status icon Percentage of remaining charge |
| Battery Number | Associated battery number (Max. 3 x DR-202 series batteries per device). |
| Battery Status |
Battery Status: i. MISSING ii. INSERTED iii. CHARGING (e) iv. IN USE (f) During the "CHARGING" status, a flashing icon appears indicating charging in progress. During the "IN USE" status, a flashing icon appears indicating the current use of that battery. |
| History Log |
Enable or disable data History. Number of Days of History Log. History Interval (in minutes). |
| Hardware Requirement | |
|---|---|
| CPU / Model | Only Support WMP-22J / 24J / 22P(-PIS) / 24P-(PIS) | Intel® Gen. 9th or above CPU PC, recommended WPC-767 / WPC-789 |
| I.O. Ports | |
|---|---|
| LAN | Depends on the device | Support 2 x Giga LAN |
