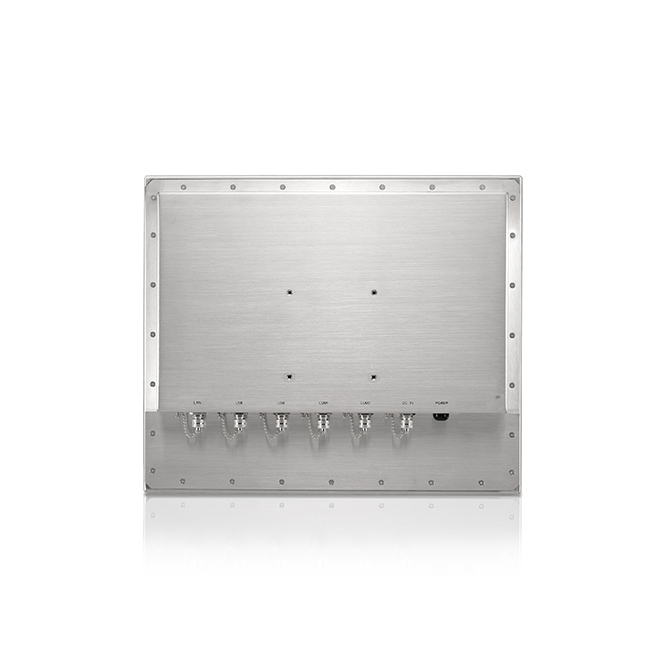

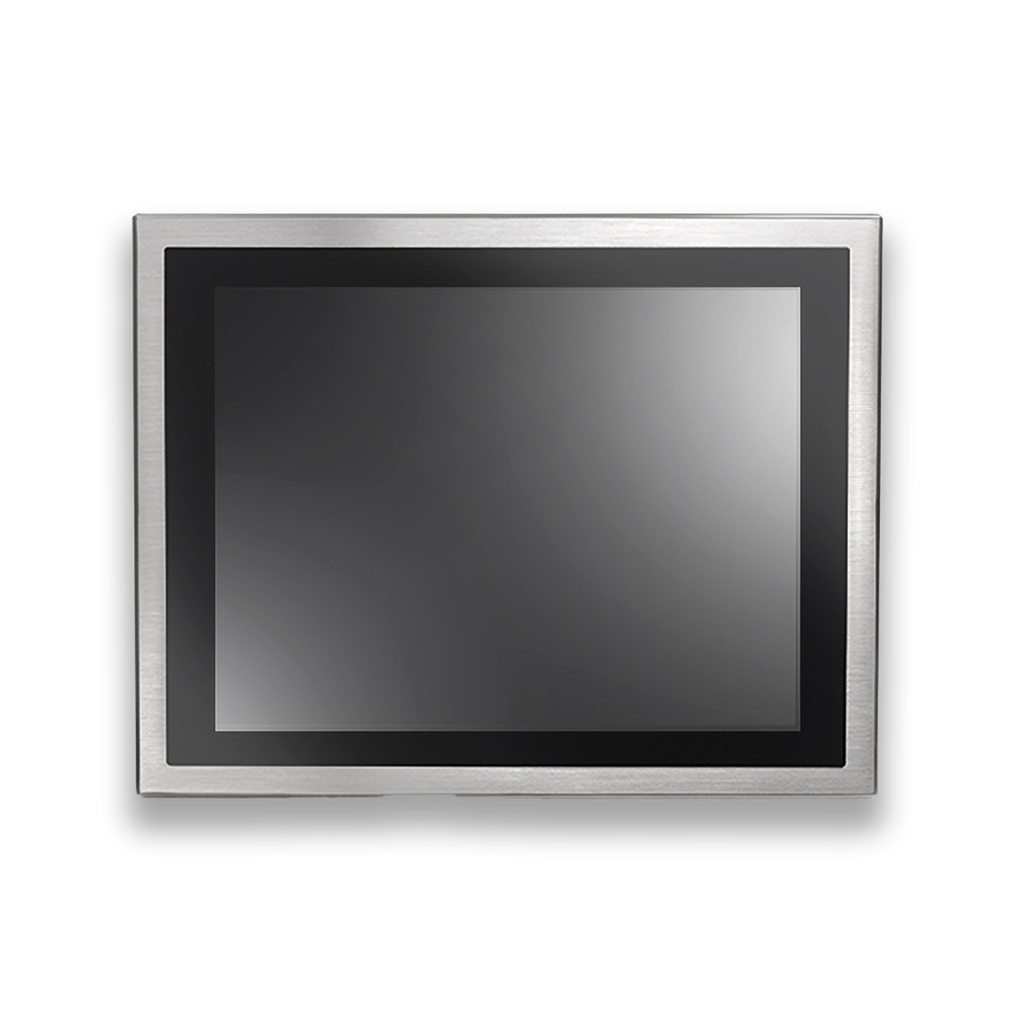

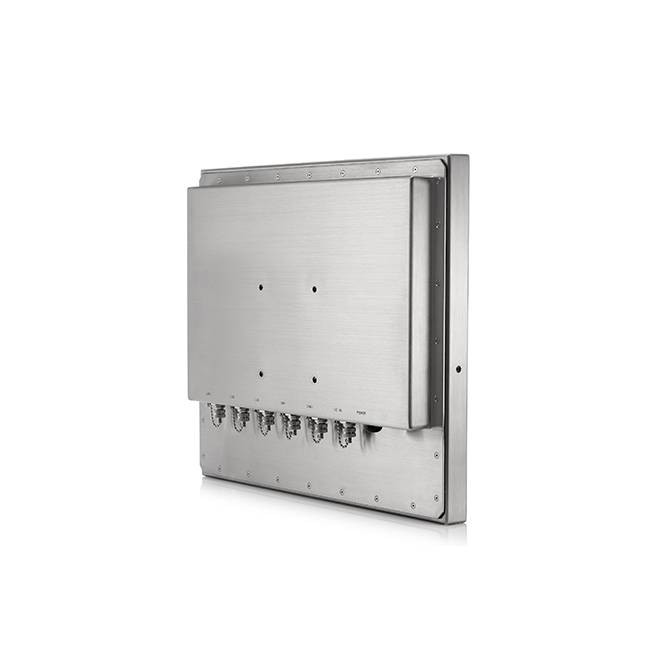

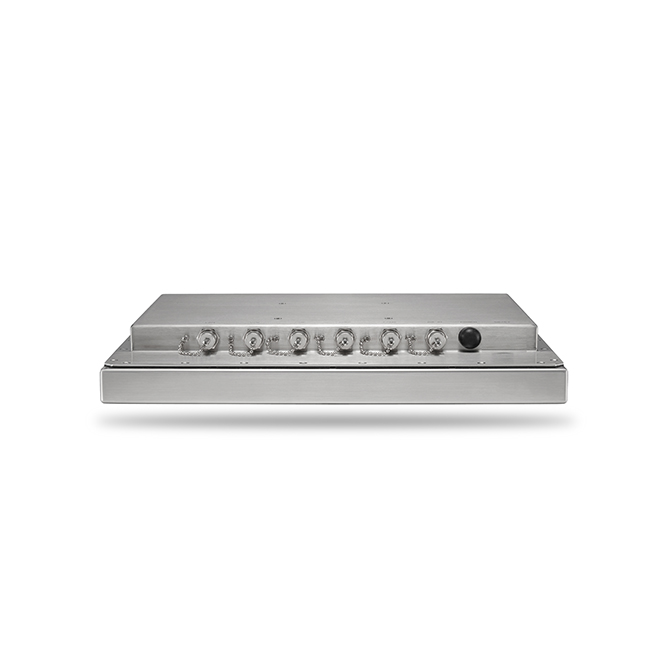

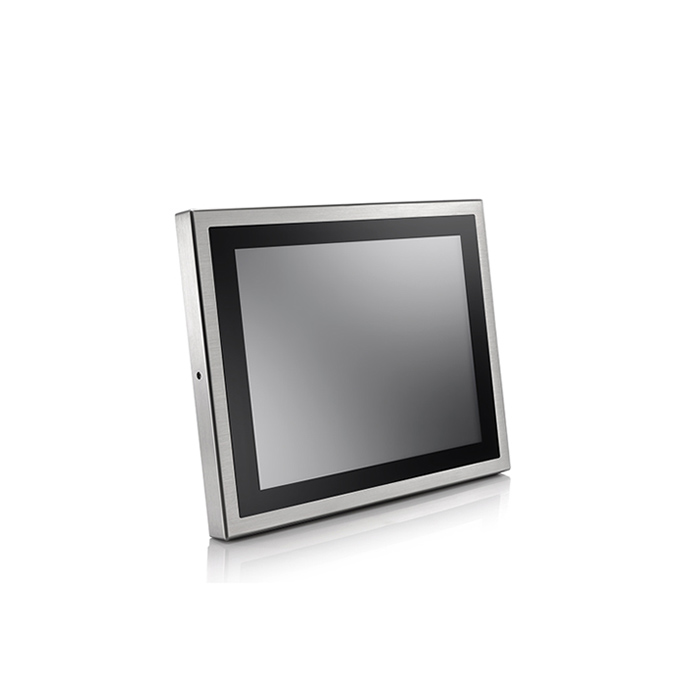

Celeron J1900 15"

WTP-8B66-15
https://www.wincommusa.com/web/image/product.template/119/image_1920?unique=92ef8fb
  • 15" Intel® Celeron J1900 Fanless Stainless Panel PC
  • IP66/69K Full Sealed with Anti-corrosion Enclosure
  • Option IP67 M12 Stainless connectors
  • Optional Cable Gland for External I.O.
  • Special Inspection of 100% Waterproof Guarantee
  • Lock Screen Touch Function
  • CE, FCC, VCCI Class B Certified

This combination does not exist.

SpecificationOptions & Customized DownloadDrawingVideoSolutionsNewsOthers will also look at

Specification

Options & Customized

Major Options

Add On Parts

1. Wireless LAN or Wireless and BT kit (Easy Clean and Robust Antenna or 2 ant)
2. SSD
3. External LAN x 2
4. Waterproof USB 3.0
5. Stainless M12 connector
6. TPM2.0
7. IP67
8. Cable Gland for External I.O.
9. SUS316 Enclosure

Power Cable

1. Waterproof M12 to 1 x COM cable
2. Waterproof M12 to 1 x USB cable
3. Waterproof M12 to 1 x LAN cable
4. Maximum length is 5.2 meters by 2x2m DC cables

Optional kits

1. Wall mount / Table mount bracket

Customized

1. Sunlight readable optical bonding
2. 1000 nit high brightness LCD
3. LCD Auto dimming
4. LCD Super dimming (Low brightness)
5. 5W/2WSpeaker
6. Second HD
7. COM + power 5V or 12V
8. Barcode reader

Download

Product Data Sheet

Product User Manual

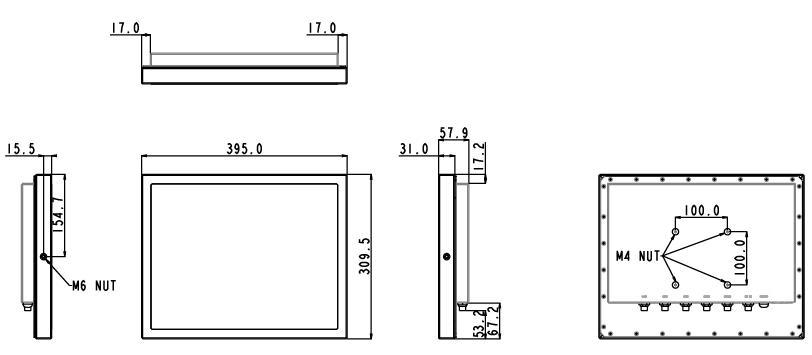

Drawing


Video






Solutions

Industrial Automation

Wincomm industrial grade panel PCs and monitors go with elegant, rugged construction, powerful performance, and flexible mounting options

Food Process Solutions

Featuring at full flat resistive touch, chassis mount with downward I.O to save installation space, Wincomm stainless steel panel PCs and display

Pharmaceutical & Hygienic

Featuring at full flat resistive touch, chassis mount with downward I.O to save installation space, Wincomm stainless steel panel PCs and display

i-Oil Drill Solution

Featuring at full flat resistive touch, chassis mount with downward I.O to save installation space, robust antenna, full IP and C1D2 explosion proof design

News

Others will also look at

Specifications

Specification
Model WTP-8B66-15
Main System
CPU / Chipset Intel® Celeron® J1900 processor 10W / SoC
Graphic Intel® integrated HD Graphics
RAM Two DDR3 SODIMM socket support up to 8GB DDR3L-1333
OS Support Win 7, Win 7 Pro, Win8.1, Win 10
Storage 2.5” SATA HDD drive bay x 1, SATA DOM 2nd SATA connector
Expansion Mini PCIe x 2 (half/full size)
Display Size 15” 4:3
Display 1024 x 768(XGA), 160(H) / 160(V), 350 nits (Typ. Center point), CR:800 : 1 (Typ)
Touch Screen Full Flat Resistive Touch / Light Transmission: 80 ± 5% / Hardness: 4H
I.O. Ports
USB 1 x M12 8pin for USB 1/2,
1 x M12 8pin for USB 3/4
COM 1 x M12 8pin for COM 1/RS-232/422/485 ,
1 x M12 8pin for COM 2/RS-232
LAN 1 x M12 8pin LAN
Control Key Rear bottom: Power on /off
Mechanical and Environmental
Cooling Fanless
Power Adapter AC 90~264V / 47 ~ 63 Hz / DC output 12V, IP67, 60W
Temperature Operating Temperature: 0~40℃ (12V DC)
Storage Temperature: -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X/ SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 395 mm (H) x 309.5 mm (V) x 58 mm (T)
Weights (Net) 7.6 kg (w/o power adapter/battery pack)
Mounting VESA 100, Side mount (M6*2)
Power Input / Consumption DC 7V~32V / 30.1 W
Certification FCC/CE/VCCI Class B, Canada ICES-003
