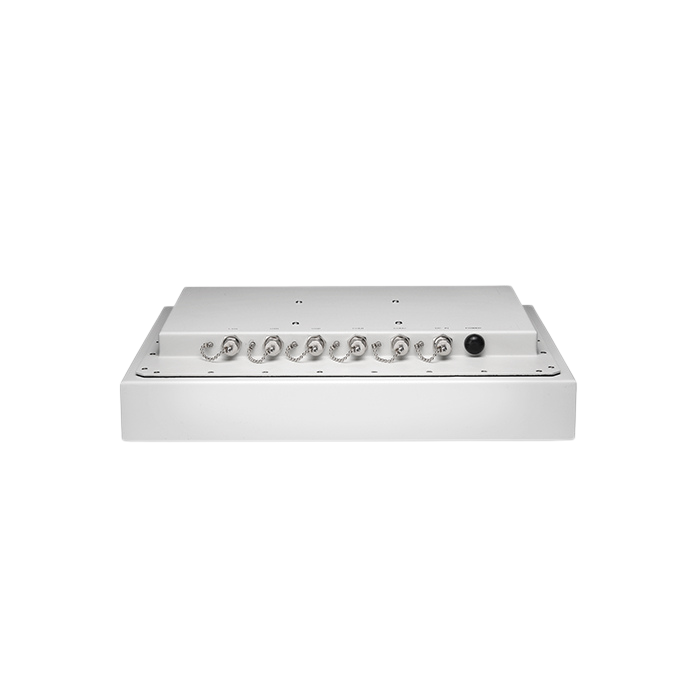

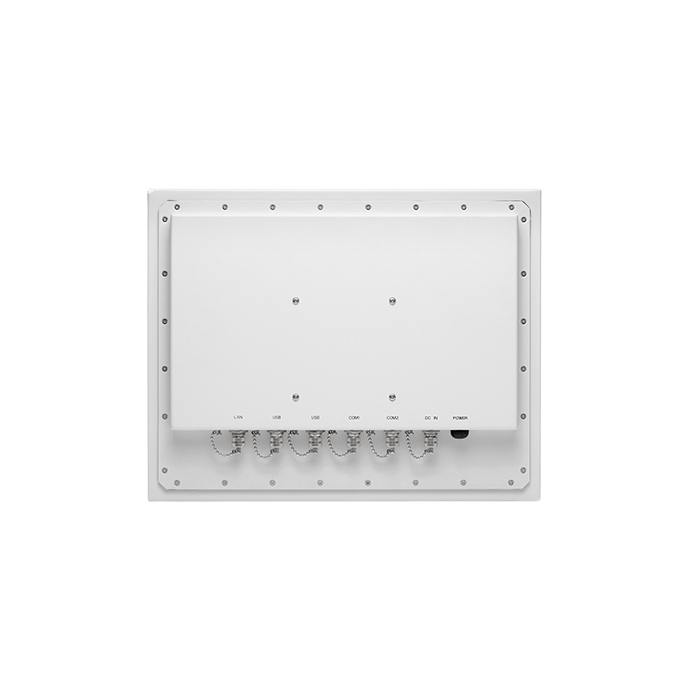

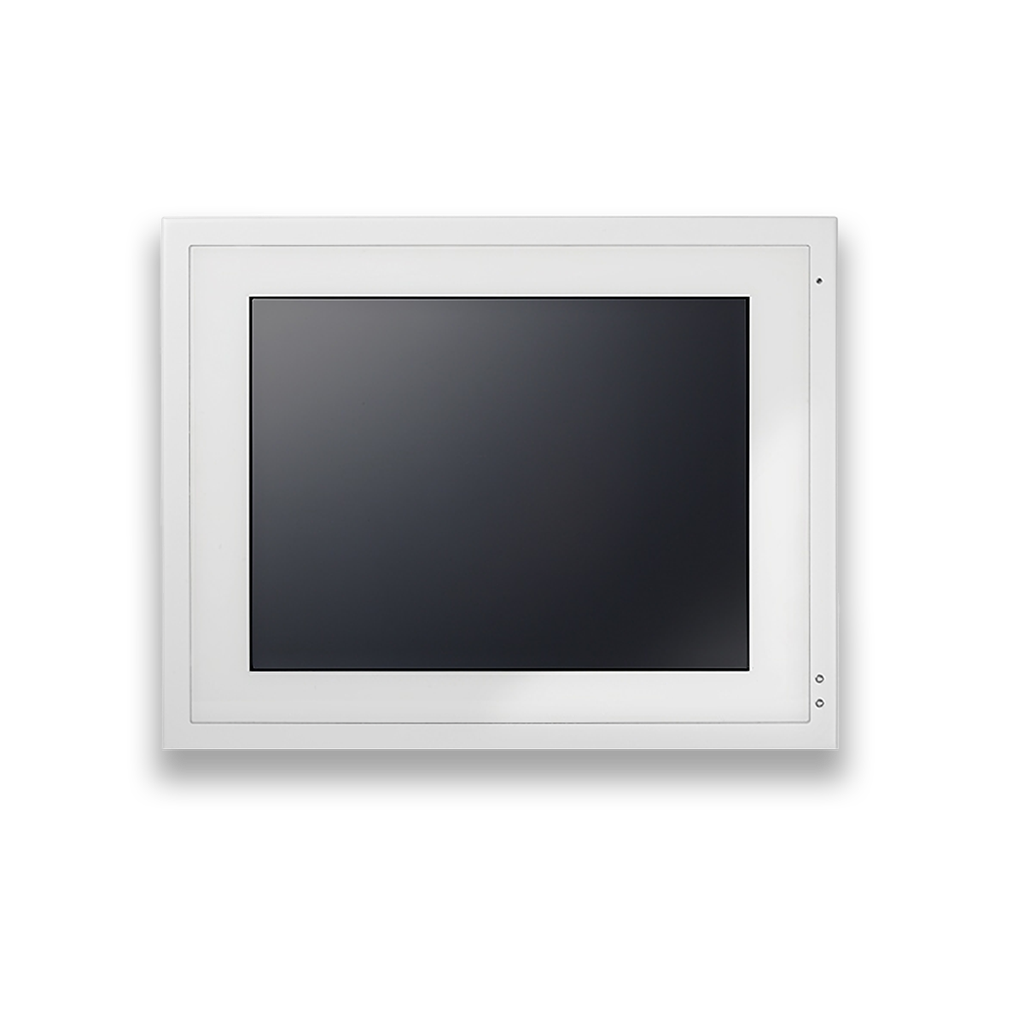

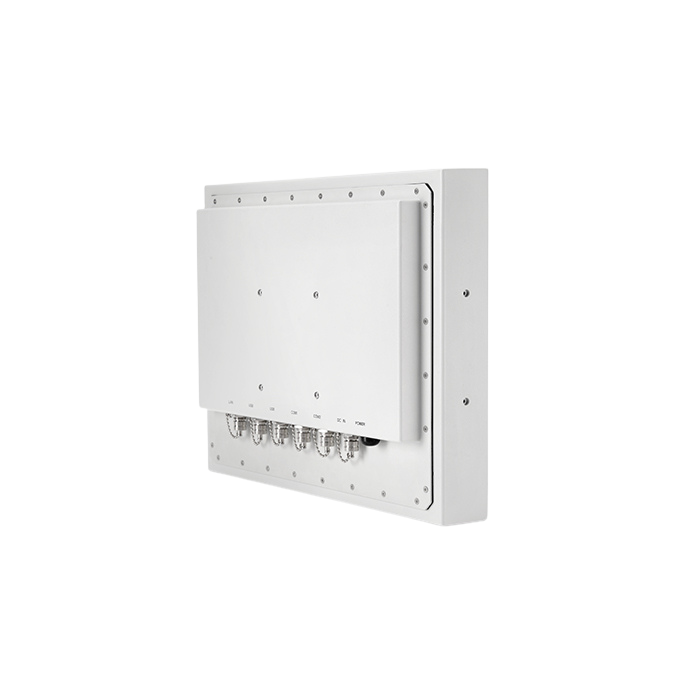

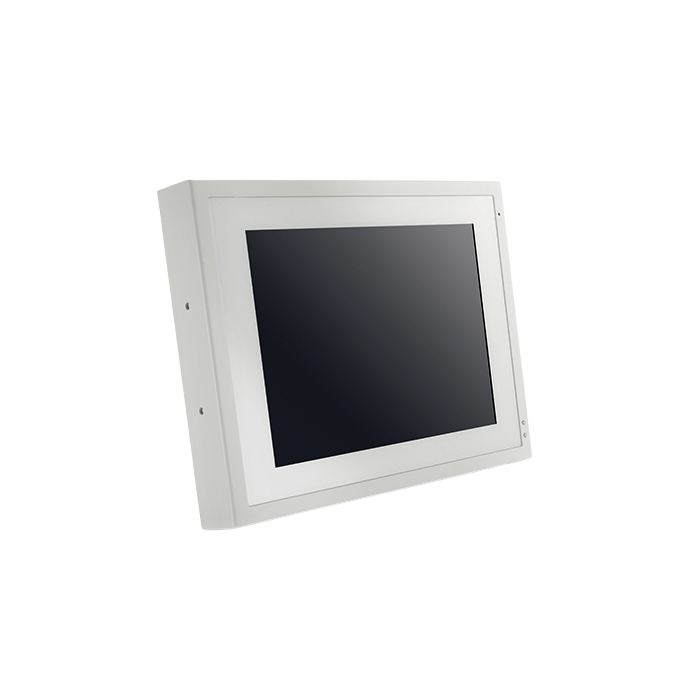

Atom® 15" Outdoor

WTP-8B66-15O
https://www.wincommusa.com/web/image/product.template/131/image_1920?unique=92ef8fb
  • Smart Fan OUTDOOR Panel PC
  • Intel® Quad Core E3845 Wide Temp. CPU
  • IP69K Full Sealed SECC Enclosure
  • 15" 1000nits Sunlight Readable LCD
  • Optical Bonding with Anti-UV Treatment
  • P-cap Touch with AR Glass Coating
  • Wide Temp. -20~60°C Operation Capability
  • M12 IP67 Connectors
  • CE, FCC, VCCI Class B Certified

This combination does not exist.

SpecificationOptions & Customized DownloadDrawingVideoSolutionsNewsOthers will also look at

Specification

Options & Customized

Major Options

Add On Parts

1. Wireless or Wireless + BT kit (Robust Antenna)
2. LAN x 2 (COM x1, LAN x 2, USB x2)
3. TPM 2.0

Add On Cable

1. Waterproof M12 COM cable x 1, 2M
2. Waterproof M12 USB cable x 1, 2M
3. Waterproof M12 LAN cable x 1, 2M
4. Maximum length is 5.2 meters by 2x2m DC cables

Customized

1. COM + Power 5V / 12V
2. Stainless Steel M12 Connector
3. Barcode Reader
4. 5W/2W Speaker
5. USB3.0

Download

Product Data Sheet

Product User Manual

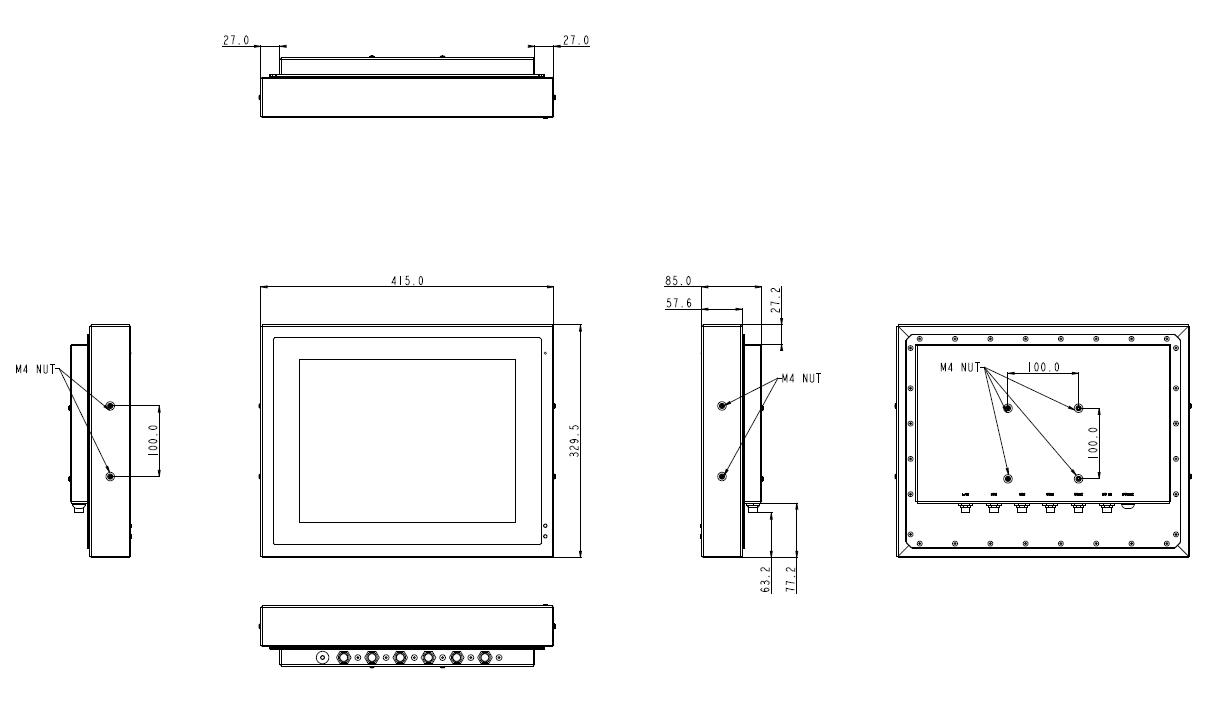

Drawing


Video




Solutions

Smart Operation System

Wincomm's medical-grade touch panel PCs, including the WMP OR AIO series, and Powerful AI Ready AIO series, are specifically designed for operating room, such as endoscopic systems, and have been successfully deployed in hospitals across Europe, the U.S., and Asia.

Medical Examination System

Wincomm Medical Panel PC series are applied to various medical examination equipment, such as Automated Ultrasound, MRI, OCT, ECG and so on.

Medical Imaging System

Wincomm Medical Panel PC series are enhanced design on processing medical image via our real-time video process with high computing power on excellent thermal design management.

Smart EMR System

Toward Medical 4.0 IoT trend, it will be featured in mobility, cable-less, and high value performance. WMP-22J/24J is designed to be used in medical environment, featuring the anti-bacterial, fanless, and intelligent i-control management system

Intelligent OCT Solution

OCT Angiography (OCTA) is often the subject of scientific presentations and clinical research, and Wincomm provided our technology integrated with powerful computing on efficiency system management to support our clients on OCTA applications.

Smart Disease Control Solutions

Integrated with deep learning on video analytics by Gorilla technology, utilizing Intel OpenVino tool kits, it could detect facial mask plus additional body temperature detection versus identity verification with privacy protection

News

Others will also look at

Specifications

Specification
Model WTP-8B66-15O
Main System
CPU / Chipset Intel Atom E3845 processor 10W
Graphic Intel® integrated HD Graphics
RAM Two DDR3 SODIMM socket support up to 8GB
OS Support Win 7 pro, Win 7 embedded, Win 8 embedded, Win 8 industrial, Win10
Storage WT 128GB 2.5" SATA SSD x 1
Expansion Mini PCIe x 2
Display Size 15” TFT-Color LCD (4:3)
Display 1024 x 768(XGA), 160(H) / 140(V), 1000 nits (Typ. Center point), CR:700 : 1 (Typ)
Touch Screen Full Flat P-cap touch / Light Transmission: 91%
I.O. Ports
USB 1 x M12 8 pin USB1/2, 1 x M12 8 pin USB3/4
COM 1 x M12 8 pin COM RS232/422/485, 1 x M12 8 pin COM RS232
LAN 1 x M12 8pin LAN
Control Hot Key (R to L) Rear Bottom: Power on /off
Mechanical and Environmental
Cooling Smart Fan
Power Adapter AC 100~277V / 47 ~ 63 Hz / DC output 24V / IP68
Temperature Operating Temperature: -20~60℃ (chamber)
Storage Temperature: -20~65℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP69K whole set, IP67 M12 metal connectors / SECC powder coating, light color, full flat chassis type
Dimensions (Net) 415 mm (H) x 329.5 mm (V) x 85 mm (T)
Weights (Net) 10.2 kg (w/o power adapter)
Mounting Optional Stand, VESA 100
Power Input / Consumption 1 x M12 5pin DC power connector, DC7V~32V / 40.9 W (Full loading without Power Adapter)
Certification FCC/CE/VCCI Class B, Canada ICES-003
