Medical AI Coffee Lake 19"

WMP-19K
https://www.wincommusa.com/web/image/product.template/52/image_1920?unique=92ef8fb
  • Anti-Bacteria (MRSA) Plastic Housing & Touch
  • 19" 1280x1024 LCD Diagnostic Panel
  • Intel® 8th/9th Generation Core i5/i7 CPU
  • Supports Dual Channel DDR4 up to 64GB
  • EN/UL 60601-1 Safety & EMC Latest Version & MDR Certification Ready
  • Independent NVIDIA A2000 graphic with 8GB dedicated video memory; NVIDIA T1000 graphic with 4GB dedicated video memory
  • Support PCIe Expansion for Intel® Movidius™ Vision AI Card


  • Model
  • USB
  • COM
  • LAN

此組合不存在。

FeatureSpecificationOptions & Customized DownloadDrawingVideoSolutionsNewsOthers will also look at

Feature

Product Outlook & Friendly Hot-Key Design


Operate Your Medical Device Computer Application with More Power under the Hood
The WMP-19K is ideal for a range of different medical devices and machines in the hospital setting. Featuring at 8th to 9th generation Intel® Core i5/i7 processors and 3D medical imaging-capable MXM graphics cards, it could take medical imaging to the next level, and also allow for the integration of peripherals like webcams for live streaming of lab tests or surgical operations. Moreover, equipped up to 64GB of DDR4 RAM has given this medical computer highly sufficient power to work well for AIoMT at hospitals .This 19-inch medical AI Panel PC savde space by either to be fixed on a wall or used on powered medical carts to move computing to patient rooms, operating rooms, or labs.


Specification

Options & Customized

Major Options

Add On Parts

1. Independent NVIDIA A2000 graphic with 8GB dedicated video memory;NVIDIA T1000 graphic with 4GB dedicated video memory
2. WLAN + Bluetooth module (Wifi-7)
3. Auto Focus 5M Pixel Webcam Module
3. M.2 type 2280 storage module
4. 2.5” HDD driver bay kit
5. PCI-E x4 Riser Card
6. Full HD Capture Card
7. Battery Pack (100W max, PSE) (DR-202W2) (100min battery Hours by PCmark 8 test condition)
8. TPM 2.0 Module
9. RFID (13.56Hz)
10. Equipotential Terminal Pin
11. AG Film (Can’t co-exist with DICOM Part 14)

Optional kits

1. Anti-bacteria Table Stand
2. VESA Wall Mount

Customization

1. Tempered glass
2. Touch with AG coating

Download

Product Data Sheet

Product Selection Guide

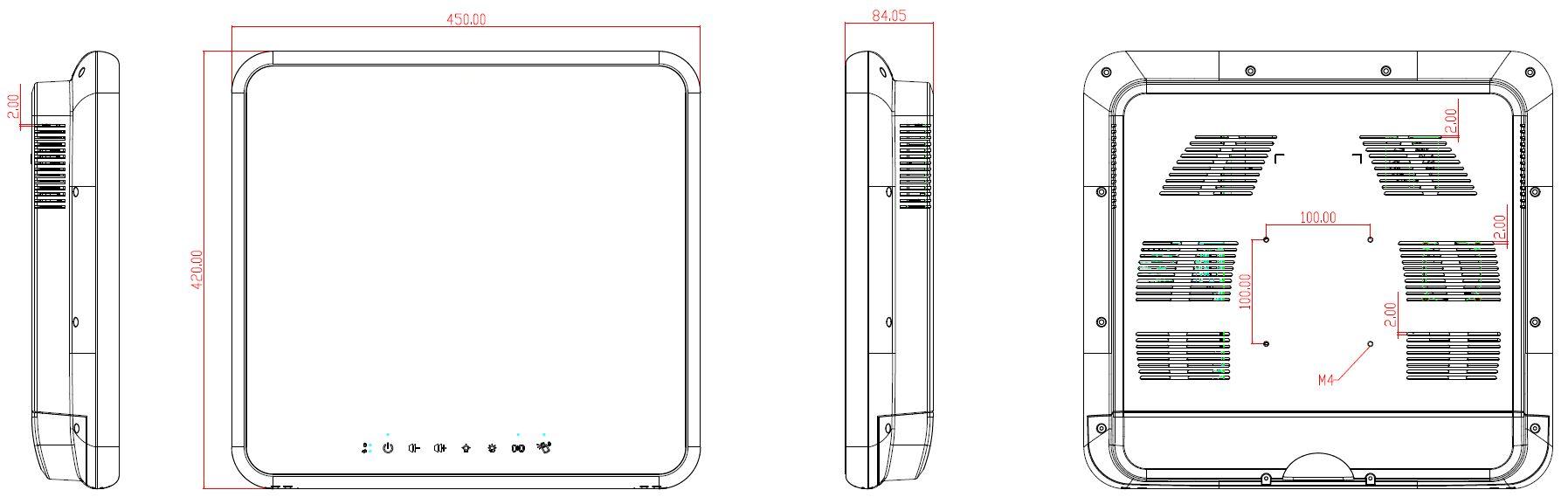

Drawing


Video




Solutions

Smart Operation System

Wincomm's medical-grade touch panel PCs, including the WMP OR AIO series, and Powerful AI Ready AIO series, are specifically designed for operating room, such as endoscopic systems, and have been successfully deployed in hospitals across Europe, the U.S., and Asia.

Medical Examination System

Wincomm Medical Panel PC series are applied to various medical examination equipment, such as Automated Ultrasound, MRI, OCT, ECG and so on.

Medical Imaging System

Wincomm Medical Panel PC series are enhanced design on processing medical image via our real-time video process with high computing power on excellent thermal design management.

Smart EMR System

Toward Medical 4.0 IoT trend, it will be featured in mobility, cable-less, and high value performance. WMP-22J/24J is designed to be used in medical environment, featuring the anti-bacterial, fanless, and intelligent i-control management system

Intelligent OCT Solution

OCT Angiography (OCTA) is often the subject of scientific presentations and clinical research, and Wincomm provided our technology integrated with powerful computing on efficiency system management to support our clients on OCTA applications.

Smart Disease Control Solutions

Integrated with deep learning on video analytics by Gorilla technology, utilizing Intel OpenVino tool kits, it could detect facial mask plus additional body temperature detection versus identity verification with privacy protection

News

Others will also look at

Specifications

Specification
Model WMP 19K IP0A (STD) | WMP 19K IP0B (ISO)
Main System
CPU / Chipset Intel® 8th / 9th generation Core i7/i5 /Pentium/Celeron Processor (35W Max.)
Graphic Intel® integrated HD Graphics
RAM Two 2666/2400/2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 64GB
OS Support Windows 10
Storage M.2 M.Key 2280 SSD Up to 1TB Optional 2.5” SATA III HDD drive bay x 1
Expansion PCI-E (x4) x1 (25W Max.), M.2 E Key 2230 x1, Optional Network Interface: WLAN + Bluetooth module
Display Size 19” LED Backlight
Display 1280 x 1024 (SXGA), 16.7M colors, 170(H) / 160(V), 350 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel / Light Transmission: 90% ± 3% / Hardness: 7H pencil, pressure 750g/45° / Life: 100M times
I.O. Ports
USB USB3.1 Gen II x 4 | USB3.1 Gen II x 4, ISO USB2.0 x 1
COM RS232/RS422/RS485 X 1 RS-232 x 1 | ISO RS232/RS422/RS485 x 1 ISO RS-232 x 1
LAN RJ45 X 2 | RJ45 X 2, ISO RJ45 x 1
Audio 3.5mm phone jack connector * 2 (Line-out, Mic-In)
Video Out DP x 2
Control Hot Key (R to L) Power Button// Audio adjustment // brightness // LCD on/off // Clean me
Mechanical and Environmental
Cooling Fan
Power Input DC-In x 1, DC 14~19V input
Temperature Operating Temperature: 0~40℃ (110-240V), 0~30℃ (100-110V)
Storage Temperature: -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side) IPX1 for whole system / Plastic White w/Anti-bacteria (MRSA), Housing & Touch Screen
Dimensions (Net) 450 mm (H) x 420 mm (V) x 84.1 mm (T)
Weights (Net) 7.5 KG (approximate, w/o power adapter)
Mounting Optional Stand, VESA 100
Power Adapter / Battery AC input 100 ~ 240V/ 47~63 Hz/ DC output 19V/ 250W // DR-202W2
Certification (Including GeForce GTX 1060 & 4K Capture Card) CE: EN 60601-1-2:2015/A1:2021(V4.1),IEC 60601-1-2:2014+AMD1:2020, EN 60601-1:2006/A2:2021; IEC 60601-1:2005/AMD1:2012, ; IEC 60601-1:2005/AMD2:2020 Compliance VCCI: 2016-11, Class B (PSU/Battery with PSE), FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) ISO 14971 / IEC62133
