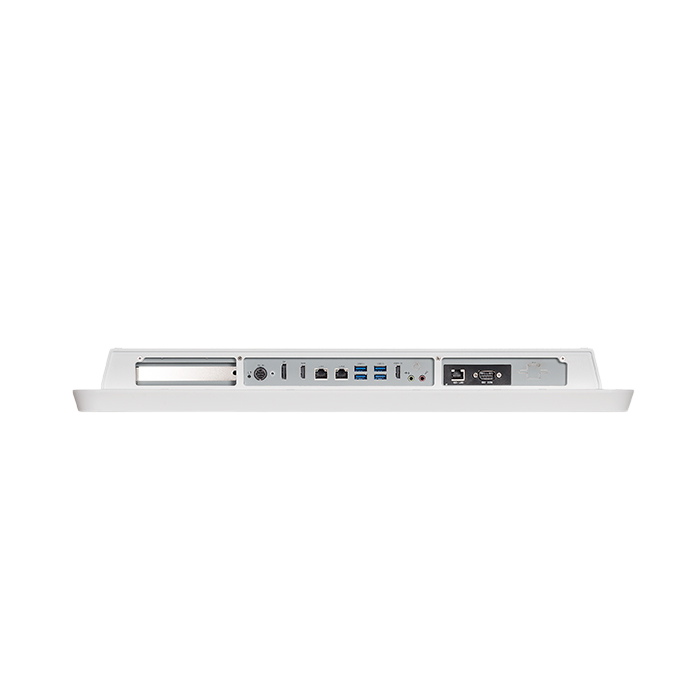

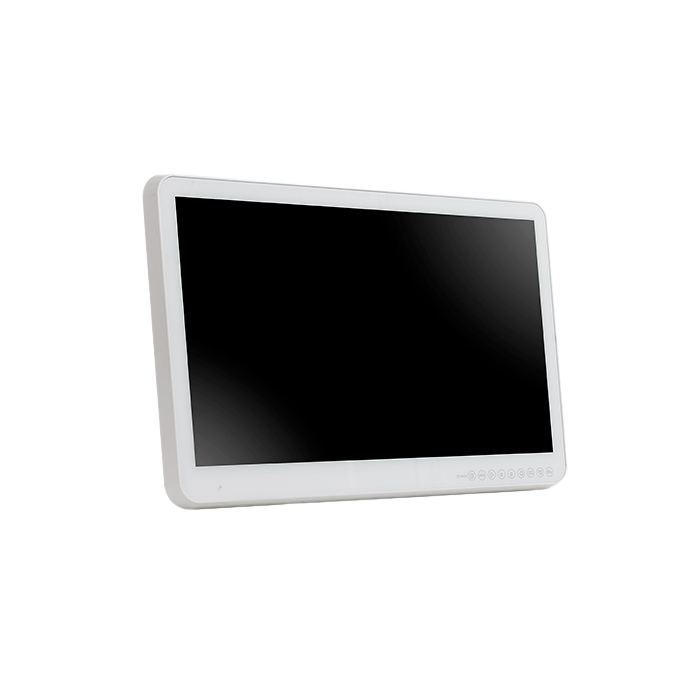

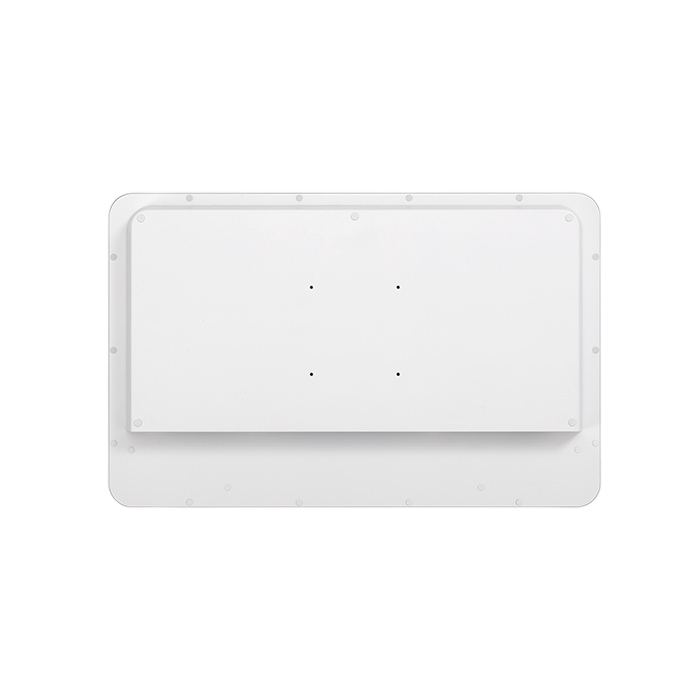

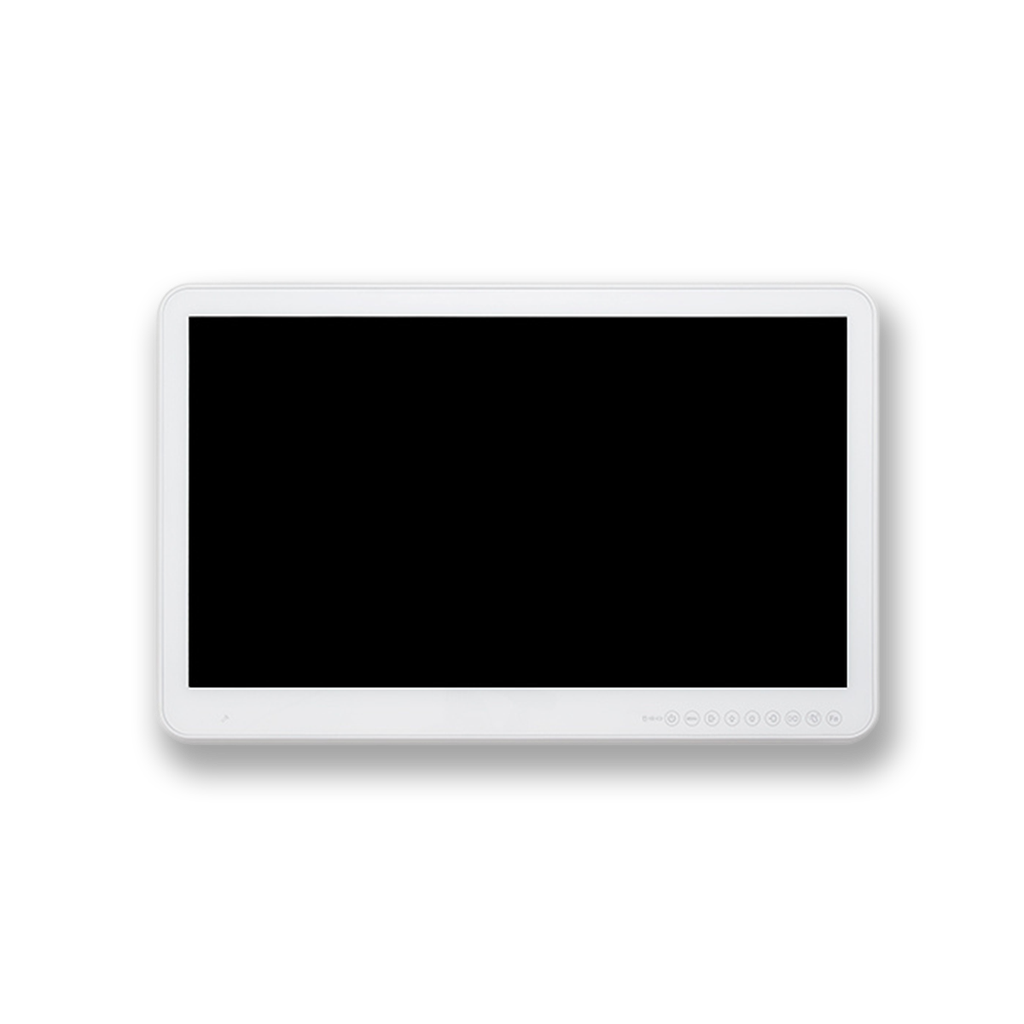

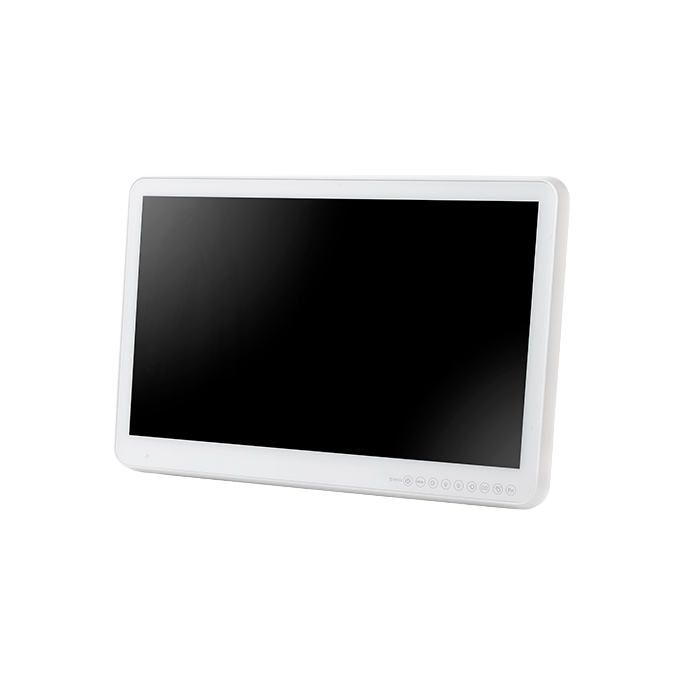

Comet Lake 24"

WMP-24MD
https://www.wincommusa.com/web/image/product.template/33/image_1920?unique=92ef8fb
  • Intel® 10th Gen Core™ 35W Max.
  • 23.8" FHD 1920x1080 MVA LCD panel
  • Anti-Bacteria (MRSA) Plastic Housing
  • P-Cap Multi-Touch Panel
  • PCIex16 Expansion Card Up to 20W
  • Friendly Design of Front Function Hot-Keys
  • Support Rear IP54 Solution
  • Optional ISO 4KV LAN/COM/USB Module
  • Opional DICOM Part 14 Compliance Module
  • Watch Dog Timer (WDT)
  • Defaulted OS Recovery
  • Model
  • USB
  • COM
  • LAN

此組合不存在。

Medical AIO Panel PC with Powerful Comet Lake CPU

Integrated with Built-in battery, Non-Stop Operation

These medical all in one panel pc are designed to fulfill versatile clinical applications, incouding EMR, anesthesia applications, operating room environments, and patient charting. One of our most powerful computers for hospitals that want the best in medical hardware.

Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection

These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and an IPX1 back cover making it easy to clean and disinfect.

Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications

Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.

10th  Gen Intel Core CPU

Our medical panel pcs offer the Comet Lake generation Intel® Core i3/i5/i7 processor series.

  • Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
  • FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
  • Webcam & RFID antenna & TPM 2.0 & Display interface for up to 2
FeatureSpecificationOptions & Customized DownloadDrawingVideoSolutionsNewsOthers will also look at

Feature

FHD, MVA panel, True 8 bit-Visual Clearance to Secure Medical Image Safety
FHD MVA Panel Featured:
Consistently Clear and Precise Images
  • Wide view angle: 178(H)/178(V)
  • High CR, 3000:1
  • Up to 16.7M Colors w/RGB 8 bit
  • 16:9, LED Backlight

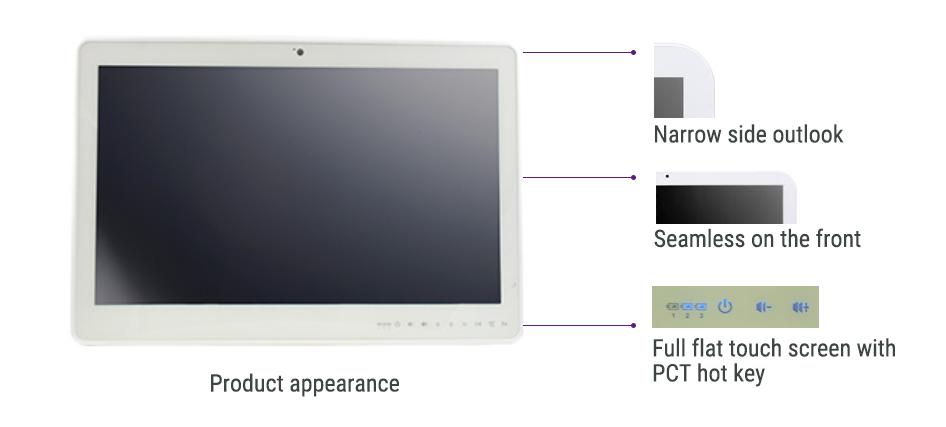

Product Outlook & Friendly Hot-Key Design

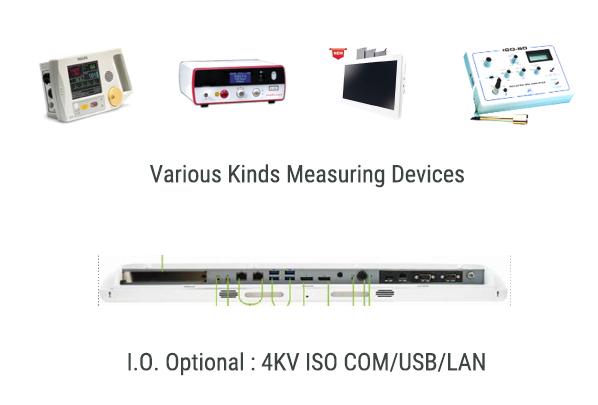

Optional ISO –COM/LAN/USB to avoid expansive equipment damage
4KV Isolated Interface:
Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.


Specification

Options & Customized

Major Options

Add On Parts

1. WLAN + Bluetooth Module (Wi-Fi 7)
2. Auto Focus 5M Pixel Webcam Module
3. M.2 2280 Module
4. RFID (13.56MHz)
5. TPM 2.0 Module or fTPM
6. Full HD Capture Card or 4K SC710N1 12G SDI Capture Card
7. Smart Card Reader at Side or CAC / PIV Reader (FIPS-201) / or DVD Drive
8. Rear IP54
9. 2.5” SSD(can’t co-exist with DVD and smart card reader)
10. Equipotential Terminal Pin
11. AG Film (Can’t Co-exist with DICOM Module)
12. DICOM Part 14 Compliance (Max. Error Ratio Less than 20%, Optional Order Configuration)
13. Integrated battery 28Wh x 1 (100W max.)
14. COM 3/4
15. USB 5/6 (USB 2.0)

Power Cable

1. 2M DC Extension Cable
2. Cable Clean IO Cover

Optional kits

1. Anti-bacteria Stand
2. VESA Wall Mount

Customized

1. Tempered Glass
2. 4K2K UHD Display

Download

Product Data Sheet

Product Selection Guide

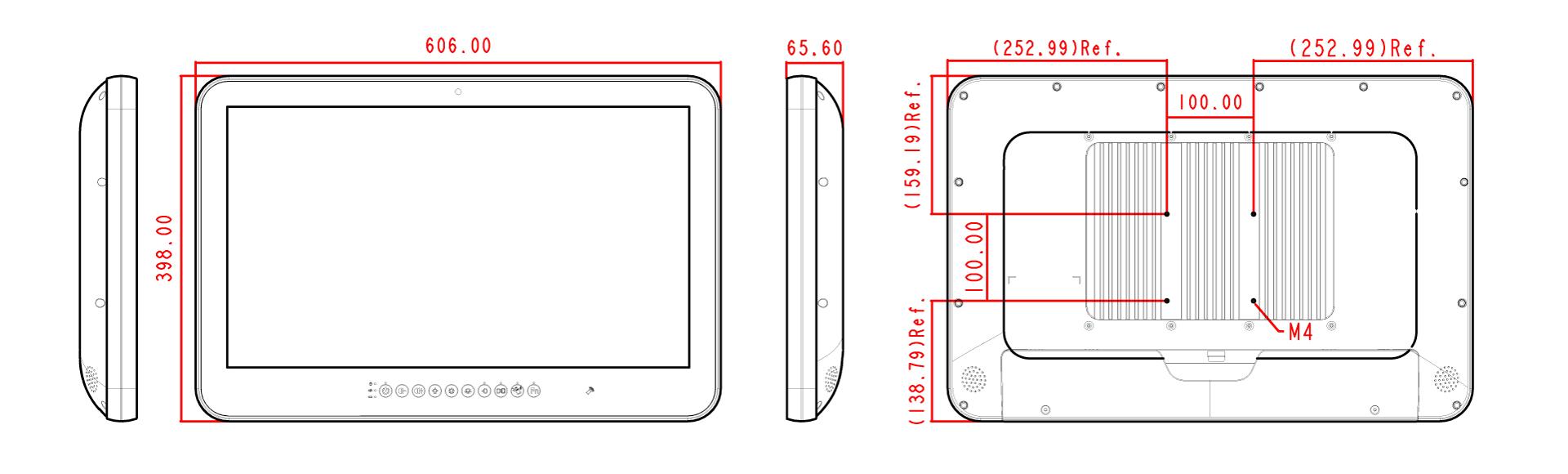

Drawing


Video




Solutions

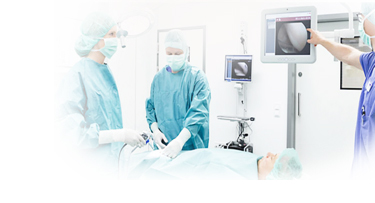

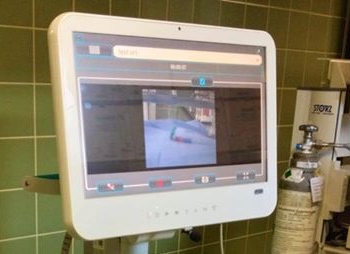

Smart Operation System

Wincomm's medical-grade touch panel PCs, including the WMP OR AIO series, and Powerful AI Ready AIO series, are specifically designed for operating room, such as endoscopic systems, and have been successfully deployed in hospitals across Europe, the U.S., and Asia.

Medical Examination System

Wincomm Medical Panel PC series are applied to various medical examination equipment, such as Automated Ultrasound, MRI, OCT, ECG and so on.

Medical Imaging System

Wincomm Medical Panel PC series are enhanced design on processing medical image via our real-time video process with high computing power on excellent thermal design management.

Smart EMR System

Toward Medical 4.0 IoT trend, it will be featured in mobility, cable-less, and high value performance. WMP-22J/24J is designed to be used in medical environment, featuring the anti-bacterial, fanless, and intelligent i-control management system

Intelligent OCT Solution

OCT Angiography (OCTA) is often the subject of scientific presentations and clinical research, and Wincomm provided our technology integrated with powerful computing on efficiency system management to support our clients on OCTA applications.

Smart Disease Control Solutions

Integrated with deep learning on video analytics by Gorilla technology, utilizing Intel OpenVino tool kits, it could detect facial mask plus additional body temperature detection versus identity verification with privacy protection

News

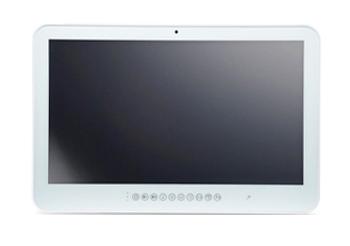

Others will also look at

Specifications

Specification
Model WMP 24MD IP0A (STD) | WMP 24MD IP0B (ISO)
Main System
CPU / Chipset Intel® 10th Gen. Core i7/i5/i3/Pentium/Celeron Processor (35W Max.) / Q470E Chipset
Graphic Intel® integrated HD Graphics
RAM Two 260-pin SODIMM Dual Channel DDR4 2933/2666/2400 MHz, non-ECC, up to 64GB
OS Support Optional Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Storage 1 X M.2 (M Key, 2280) w/PCIex4 & SATA3 for SSD, 1 X 2.5” SATA3 HDD/SSD drive bay
Expansion 1 X M.2 E Key 2230, 1 x M.2 (B/M Key 2242/2260/2280) w/PCIe, 1 x PCIex16 (20W Max.)
Display Size 23.8” wide MVA Diagnostic LCD (16:9)
Display 1920 x 1080 (Full HD), 16.7M colors (MVA, 8 bit), 178(H) / 178(V)
250 nits (Typ. Center point), CR:3000 : 1 (Typ)
Touch Screen Full Flat P-Cap Touch Panel / Light Transmission: ≥ 84% / Hardness: ≥ 7H pencil, Pressure 765g/45° / Life: 50000
I.O. Ports
USB 4 x USB3.2 Gen II | 4 x USB3.2 Gen II, 1 x 4KV ISO USB2.0
COM 1 x RS232
1 x RS232/RS422/RS485 | 1 x 4KV ISO RS232
1 X 4KV ISO RS232/RS422/RS485
LAN 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro)
1 x RJ45 2.5Gbps Intel® I225V | 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro)
1 x RJ45 2.5Gbps Intel® I225V
1 x ISO RJ45 1Gbps
Audio 3.5mm phone jack connector x 2 (Line-out, Mic-In)
Speaker output 5W x 2, Microphone built in x 1
Video 1 x DP1.2/DP++ output, 1 x HDMI 1.4a output, 1 x HDMI-video input
Reading Light Light bar x 2
Control Hot Key (R to L) Power // Audio adjustment // brightness // Reading Light // Video input selection // LCD on/off // Clean me(auto release after 1 minute) // Fn
Mechanical and Environmental
Cooling Fanless
Power Input DC-In x 1, DC 9~32V input
Power Adapter AC input 100 ~ 240V /47 ~ 63 Hz /DC output 24V/ 180W
Temperature Operating Temperature: 0~35℃ (IEC60068-2-78)
Storage Temperature: -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 whole system / Plastic White w/Anti-bacteria (MRSA), Housing
Dimensions (Net) 606 mm (H) x 398 mm (V) x 65.6 mm (T)
Weights (Net) 9.7 KG (w/o power adapter/battery pack)
Mounting Optional Stand, VESA 100 x 100
Certification CE: EN 60601-1-2:2015/A1:2021(V4.1),IEC 60601-1-2:2014+AMD1:2020
EN 60601-1:2006/A2:2021; IEC 60601-1:2005/AMD1:2012, ; IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B / FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1) (By project)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) (By project)
ISO 14971 / IEC62133 (By project)
