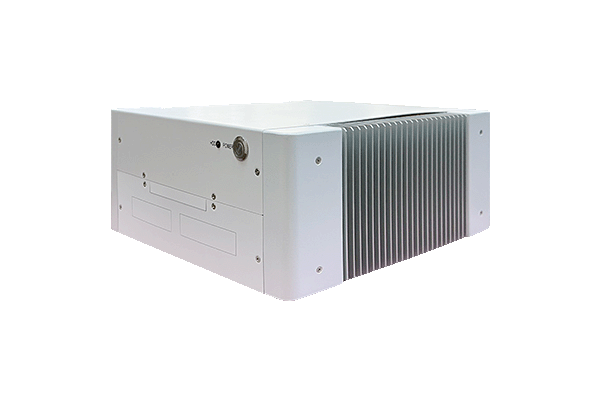

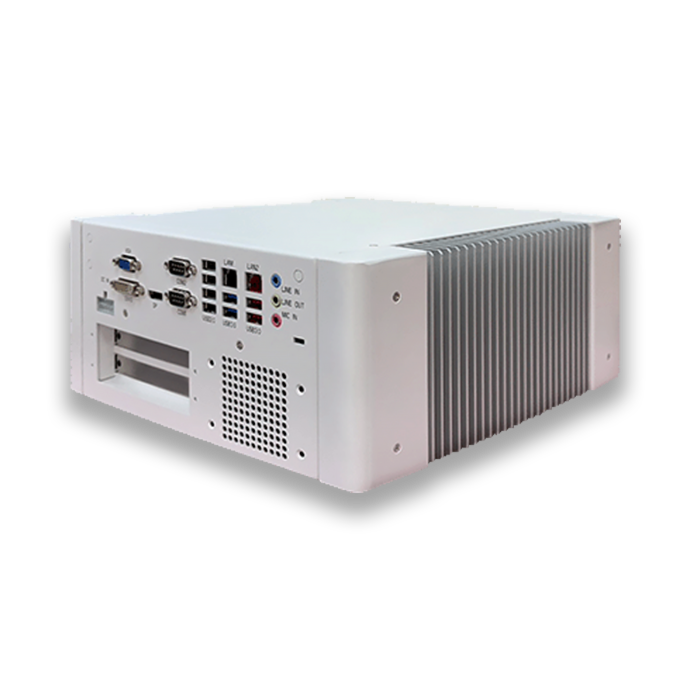

Medical Edge AI Fanless
WPC-76B
- Medical Grade 4th UL/EN 60601-1-2 Certified
- Powerful 14th Gen. Intel Core i7/i5, 35W Max.
- Supports Dual Channel DDR4 SODIMM up to 64GB
- 1 X PCIex16 (Max.25W), 1 X PCIex4, 1 X Mini-PCIe
- Fanless w/Hospital White Housing
- w/2nd Storage SSD
- w/Anti-vibration mechanism for SSD
- Rich I.O., Up to 8 X USB, 1 X VGA/DVI-D/DP, 2 X LAN & 2 X COM
Medical White / Fanless / AI Application Ready / Expansion Slot / Medical Certification
Specification
Specifications
| Specification | |
|---|---|
| Model | WPC-76B |
| Main System | |
|---|---|
| CPU / Chipset | Intel® 12th / 13th / 14th Generation Intel® Core i7/i5/i3, Pentium and Celeron Processor, 35W Max. /Intel® Q670E Express Chipset |
| Graphic | Intel® HD Graphics |
| RAM | Two 3200 MHz DDR4 SODIMM socket support dual Channel, up to 64GB |
| OS Support | Windows 10 (IoT LTSC), Windows 11 (IoT LTSC) |
| Storage |
1 x M.2 M.Key 2280 SSD (NVMe) 1 x 2.5” SATA SSD w/anti-vibration |
| Expansion |
1 x M.2 (Key E, 2230) for Wireless 1 x Mini-PCIe (Full Size) 1 x PCI-Ex16 (25W max), 1 x PCI-Ex4 (10W max), Total PCIe max. 25W |

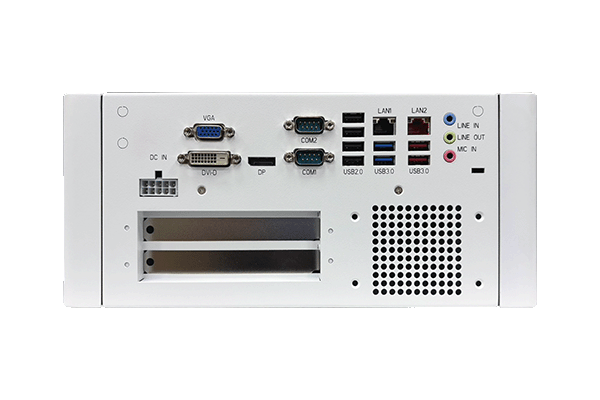

| I.O. Ports | |
|---|---|
| USB | 4 x USB 3.2(S5 support 5V 1A output); 4 x USB 2.0 |
| COM | 2 x RS232/RS422/RS485 (RI/5V/12V) |
| LAN | 2 X RJ-45 (LAN 1 :1GB Intel® i219LM; LAN 2 : 2.5GB Intel® i226V) |
| Audio | 3.5mm phone jack (Line in, Line out, Mic in) |
| Video Out | 1 x DP1.2, 1 x DVI-D, 1 x VGA |
| Power Switch | Power On / Off at front side, reset button at back side |
| Mechanical and Environmental | |
|---|---|
| Cooling | Fanless |
| Power Adapter | AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 300W |
| Temperature |
Operating Temperature : 0 ~ 35℃(IEC60068-2-78) Storage Temperature : -20~60℃ |
| Humidity | Operating & Storage: 10 ~ 90%, non-condensing |
| Housing | Sliver Aluminum Heatsink and SECC w/ Hospital White Painting |

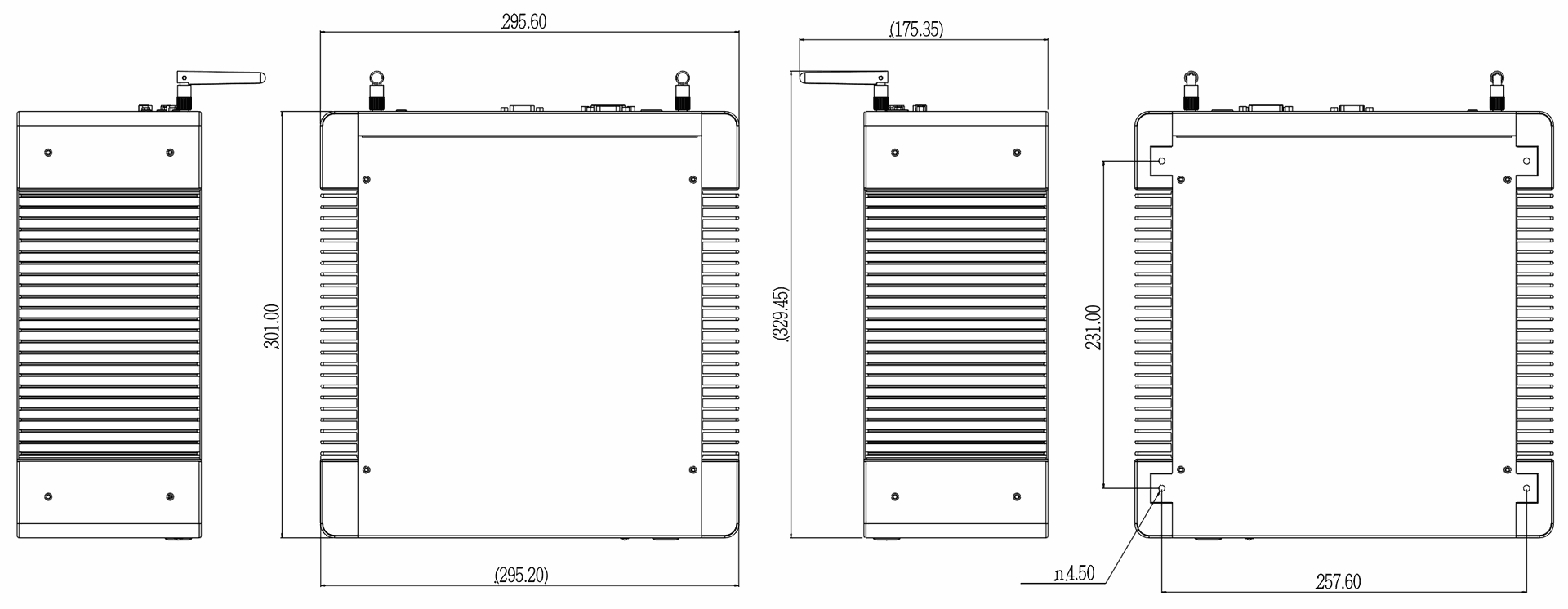

| Dimensions (Net) | 301 (L) x 295.6 (W) x 130 (D) mm |
| Weights (Net) | 7 kg |
| Power Input / Consumption | DC 12~24V input / TBD |
| Certification |
CE: EN 60601-1-2:2015 (V4.1) VCCI: 2016-11, Class B (Power adapter with PSE) FCC: Part 18 Class B, Canada, ICES-003 UL: ANSI/AAMI ES60601-1:2012 (V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.2) ISO 14971 / EN 60601-1:2006/A1:2013 |
