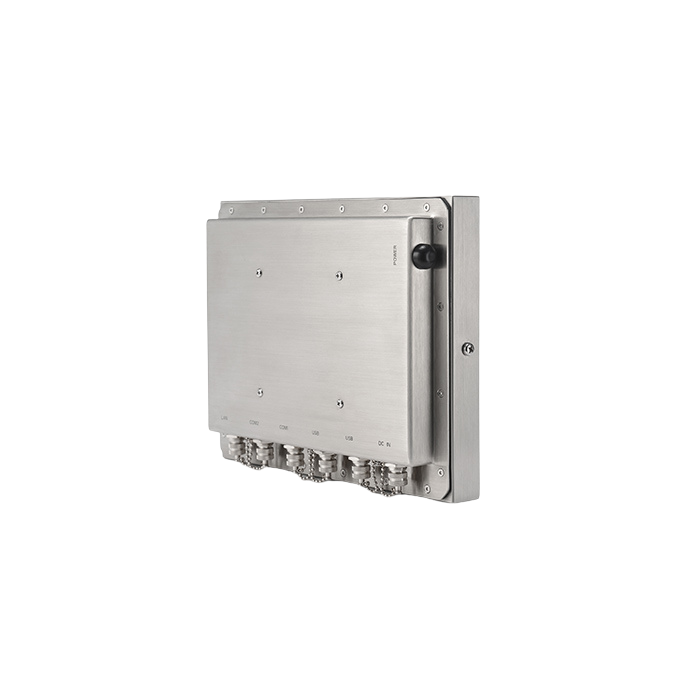

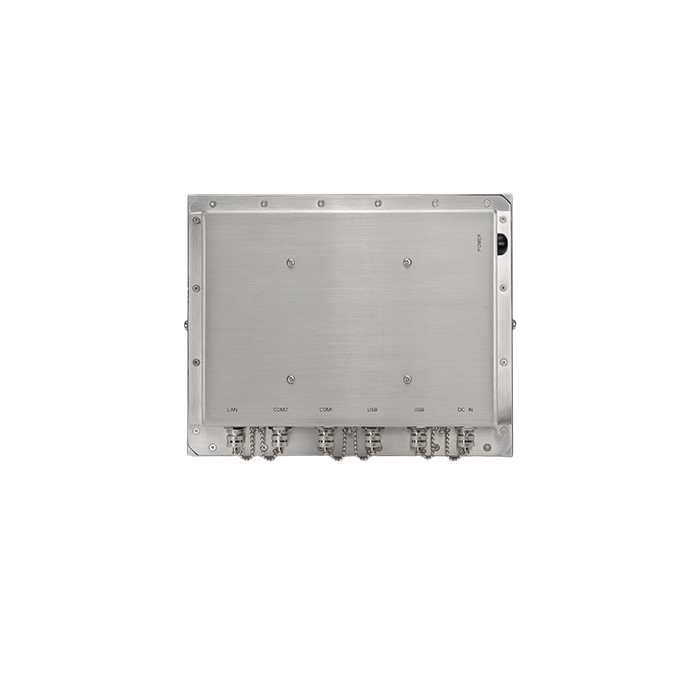

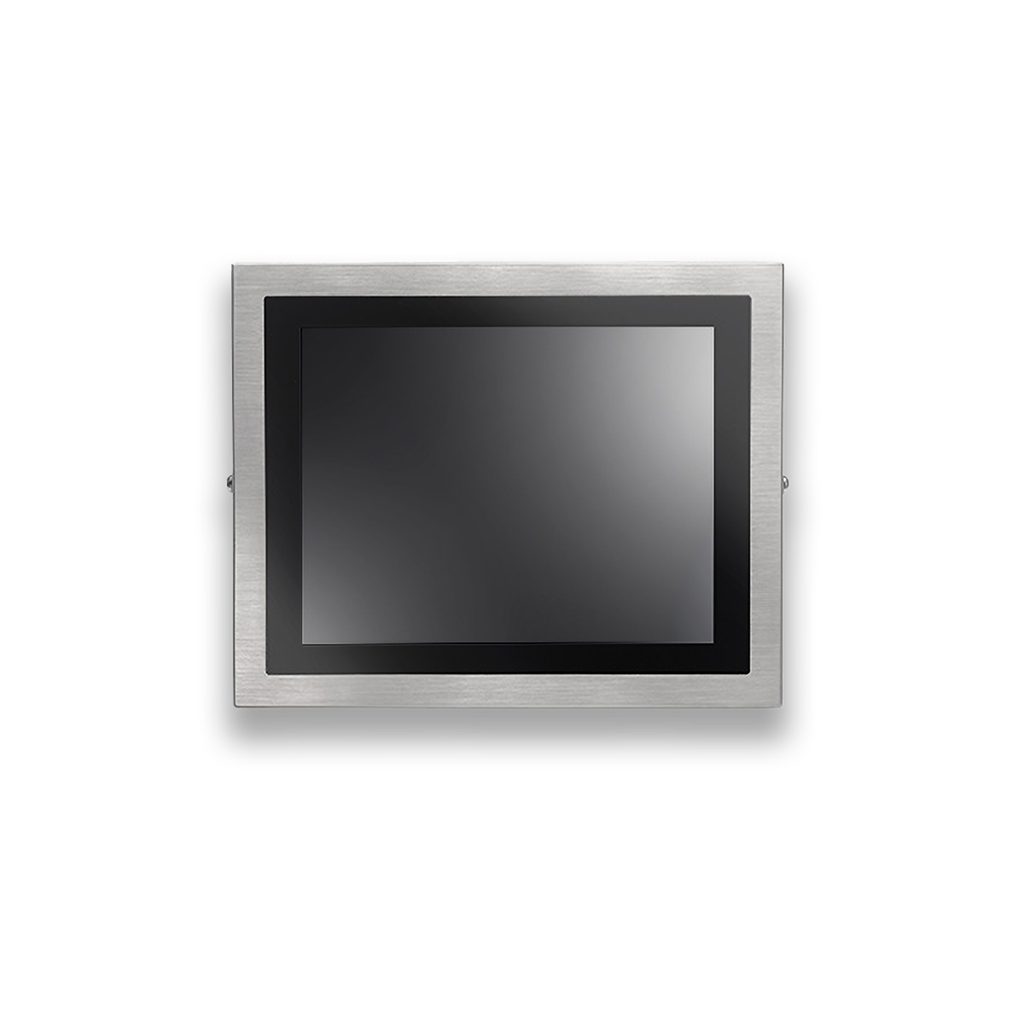

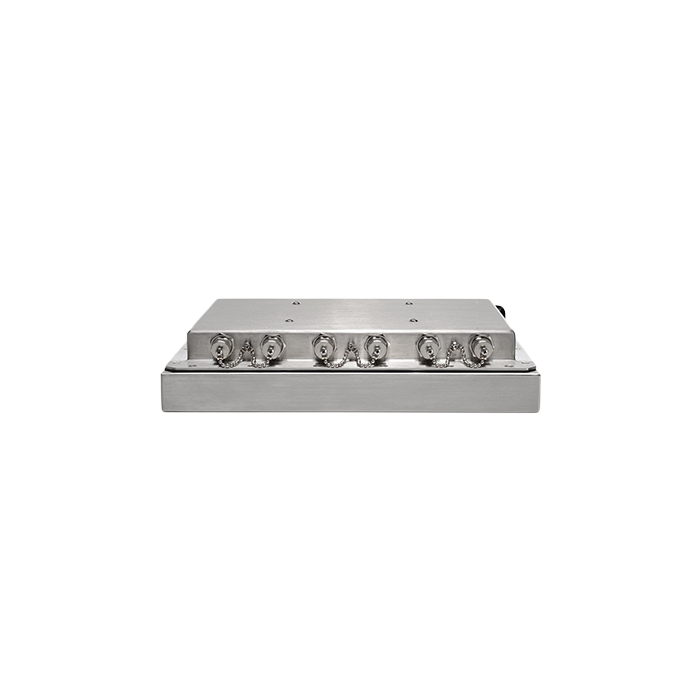

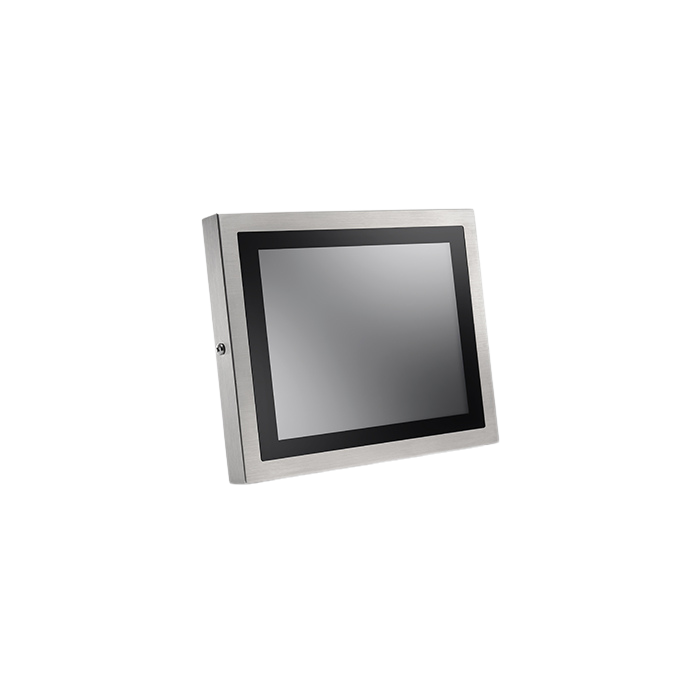

Atom E3845 10" Wide Temp

WTP-8B66-10W
https://www.wincommusa.com/web/image/product.template/124/image_1920?unique=92ef8fb
  • 10" Intel® Atom E3845 Fanless Stainless Panel PC
  • IP66/67/69K Full Sealed with Anti-Corrosion Enclosure
  • Optional IP67 M12 Stainless Connectors
  • Special Inspection of 100% Waterproof Guarantee
  • Wide Temp. -20~50°C Operation Capability
  • CE, FCC, VCCI Class B Certified

此組合不存在。

SpecificationOptions & Customized DownloadDrawingVideoSolutionsNewsOthers will also look at

Specification

Options & Customized

Major Options

Add On Parts

1. Wireless or Wireless and BT kit (2 ant)
2. Robust Antenna
3. Full flat PCT touch screen IP69K
4. Stainless M12 connector
5. 2 x External LAN
6. SUS316 enclosure
7. IP67

Add On Cable

1. Waterproof COM cable x 1
2. Waterproof USB cable x 1
3. Waterproof LAN cable x1

Optional kits

1. Wall mount/ Table mount bracket

Customization

1. Sunlight readable optical bonding
2. COM + power 5V / 12V
3.TPM Module
4.1000 nits high brightness LCD
5. LCD auto dimming
6. Super dimming
7. Barcode reader
8. XGA LCD panel
9. USB 3.0

Download

Product Data Sheet

Product User Manual

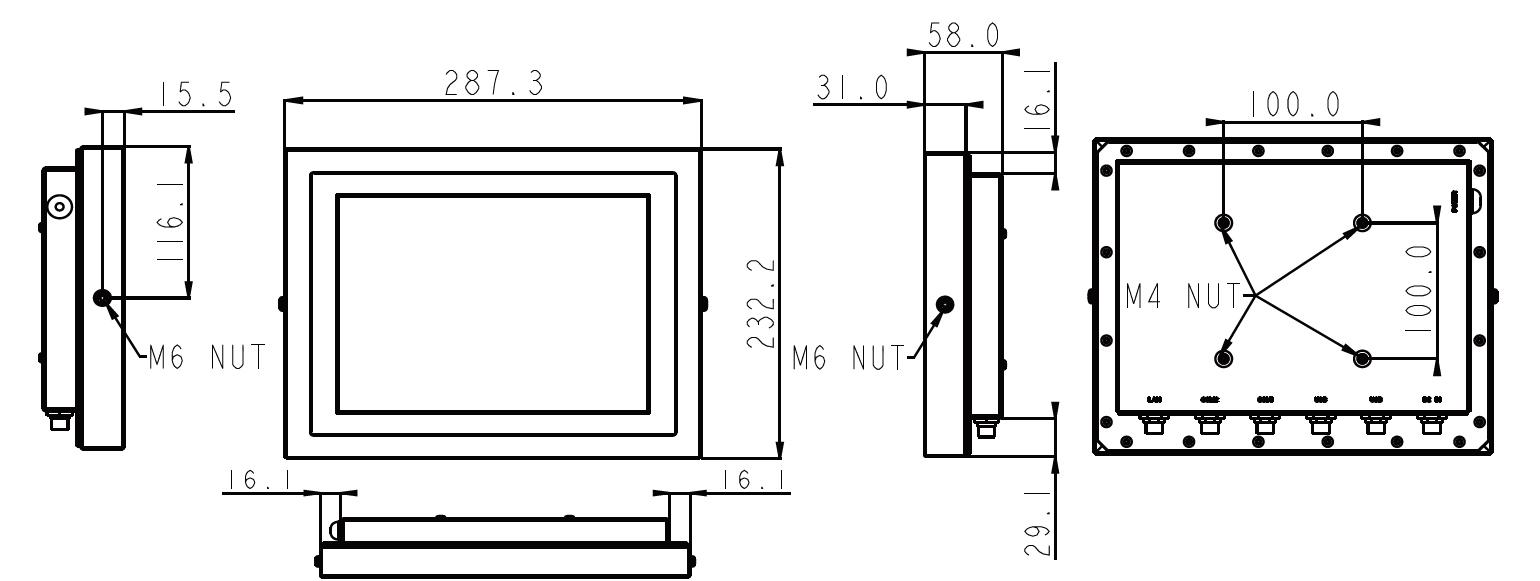

Drawing


Video




Solutions

Industrial Automation

Wincomm industrial grade panel PCs and monitors go with elegant, rugged construction, powerful performance, and flexible mounting options

Food Process Solutions

Featuring at full flat resistive touch, chassis mount with downward I.O to save installation space, Wincomm stainless steel panel PCs and display

Pharmaceutical & Hygienic

Featuring at full flat resistive touch, chassis mount with downward I.O to save installation space, Wincomm stainless steel panel PCs and display

i-Oil Drill Solution

Featuring at full flat resistive touch, chassis mount with downward I.O to save installation space, robust antenna, full IP and C1D2 explosion proof design

News

Others will also look at

Specifications

Specification
Model WTP-8B66-10W
Main System
CPU / Chipset Intel Atom E3845 processor 10W / SoC
Graphic Intel® Gen7 Graphics DX11
RAM Single Channel DDR3L 1600 MHz SDRAM Max 8GB
OS Support Win 7, Win 7 Pro, Win8.1, Win 10
Storage WT 128GB 2.5” SATA SSD
Expansion Mini PCIe 52 pin card-edge type x 2 support half/full size
Display Size 10” 4:3
Display 800 x 600 (SVGA), 160(H) / 130(V), 230 nits (Typ. Center point), CR: 500 : 1 (Typ)
Touch Screen Full Flat Resistive Touch / Light Transmission: 80 ± 5% / Hardness: 4H
I.O. Ports
USB 1 x M12 8pin for USB 1/2,
1 x M12 8pin for USB 3/4
COM 1 X M12 8pin/ RS-232
1 X M12 8pin/ RS-232/422/485(Default RS-232)
LAN 1 x M12 8pin for LAN
Control Key Rear bottom: Power on /off
Mechanical and Environmental
Cooling Fanless
Power Adapter AC 100~240V / 47 ~ 63 Hz / DC output 12V, IP67, 60W
Temperature Operating Temperature: -20~50℃
Storage Temperature: -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X / IP69K SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 288 mm (H) x 232 mm (V) x 58 mm (T)
Weights (Net) 6.5 kg (w/o power adapter/battery pack)
Mounting VESA 100, Side mount (M6*2)
Power Input / Consumption DC 9V~36V / 30.4 W
Certification FCC/CE/VCCI Class B, Canada ICES-003
