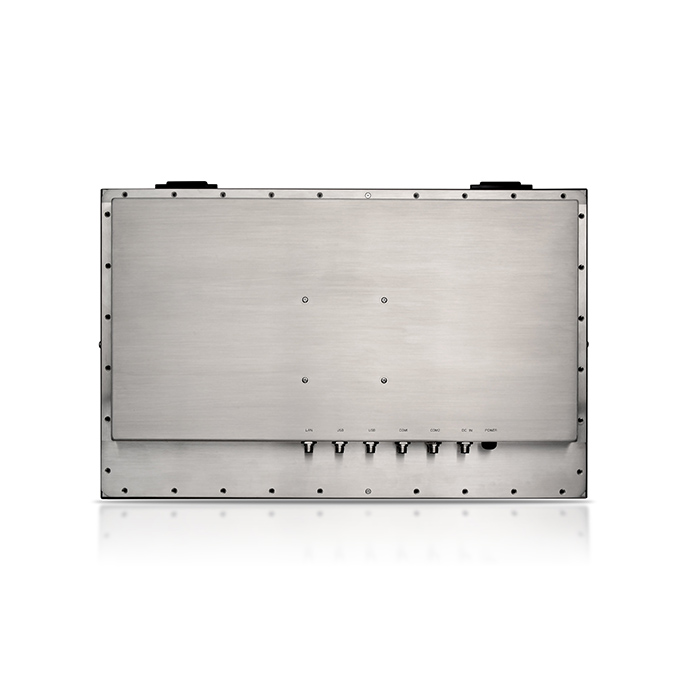

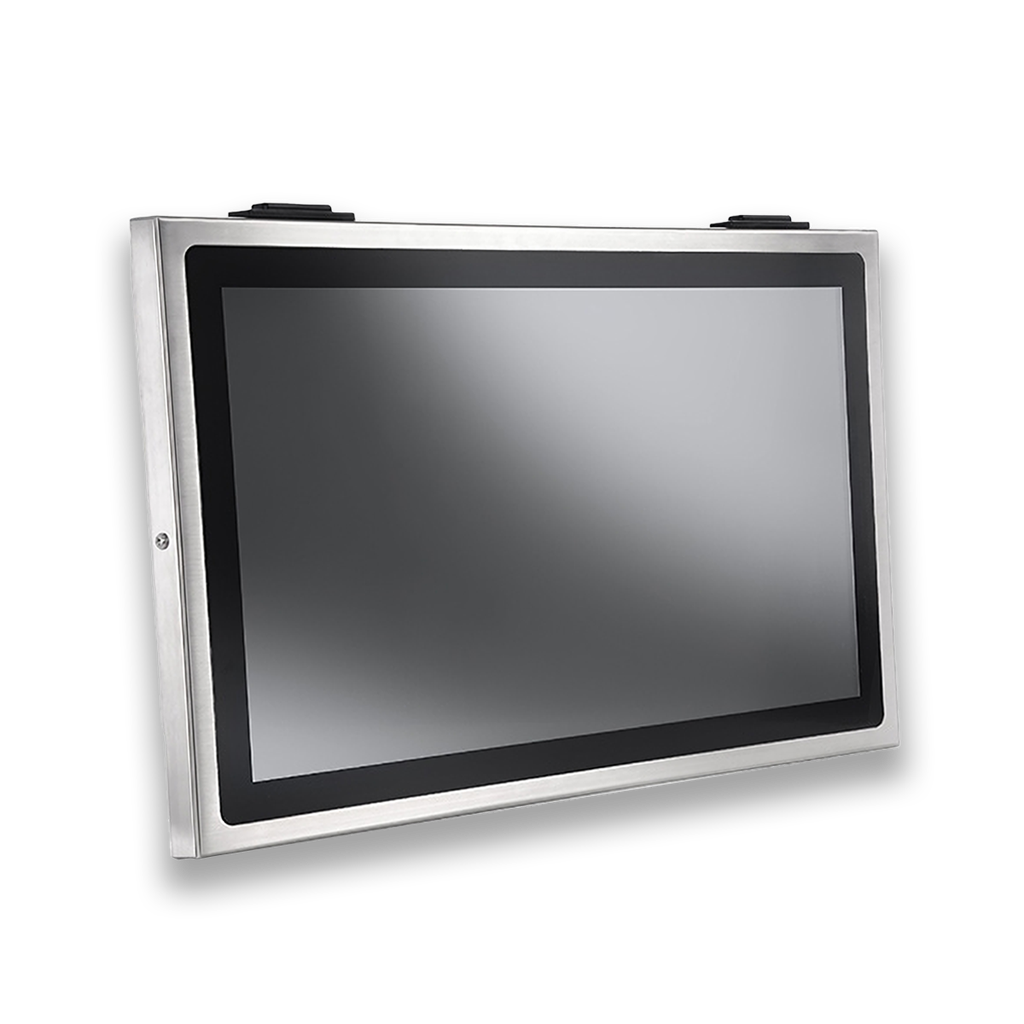

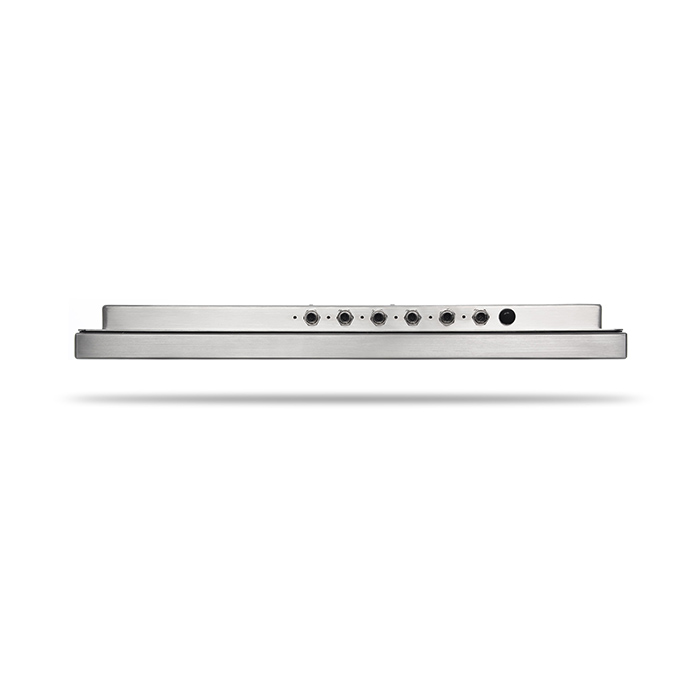

Whiskey Lake 24"
WTP-9G66-24
- 23.8" Intel® 8th Gen Fanless Stainless Panel PC
- IP66/69K Full Sealed with Anti-Corrosion Enclosure
- Support Intel® vPro technology by CPU
- Optional IP67 M12 Stainless Connectors
- Optional Cable Gland for External I.O.
- Special Inspection of 100% Waterproof Guarantee
- CE, FCC, VCCI Class B Certified
- Screen Touch Lock Function
Specification
Specifications
| Specification | |
|---|---|
| Model | WTP-9G66-24 (STD.) | WTP-9G66-24 (Cable Gland) |
| Main System | |
|---|---|
| CPU / Chipset | FCBGA1356 8th generation Intel® Core i7/i5 processor 15W max. / Soc |
| Graphic | Intel® integrated HD Graphics |
| RAM | Dual channel support 2666MHz DDR4 SODIMM socket x 2,up to 32GB |
| OS Support | Windows 10 (64 bit) / Win 11 (64bit) |
| Storage | 2.5” SATA drive bay x 1 |
| Expansion | Mini PCIe x 1, M.2 Type E x 1 |
| Display Size | 23.8” TFT-Color LCD (16:9) |
| Display | 1920 x 1080(SXGA), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ) |
| Touch Screen | Full flat projected capacitive touch / Light Transmission: 80 ± 5% / Hardness: ≧7H |
| Configuration | M12 Connector | Max. 5 external I/O by proper grommet |
| I.O. Ports | |
|---|---|
| USB |
USB 3.1 x 4
|
1 x M12 8pin for USB 1/2 (USB2.0), 1 x M12 8pin for USB 3/4 (USB2.0) |
| COM | 2 x M12 8pin for COM 1/COM2 / RS-232/422/485 | RS232/RS422/RS485 x 2 |
| LAN | RJ-45 x 2 (Gigabit Ethernet) | 1 x M12 8pin for LAN x 1 ( i219LM for Vpro ) |
| Audio | N.A. | 3.5mm phone jack connector x 2 ( Line-out, and Mic-in) |
| Control Key | Rear bottom: Power on /off |
| Video | N.A. | HDMI 2.0a x 1, DP1.2 x 1 |
| Mechanical and Environmental | |
|---|---|
| Cooling | Fanless |
| Power Adapter | AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68 |
| Temperature |
Operating Temperature 24V DC Input 0~40℃/ 0~50℃ (Change to SSD) Storage Temperature -20~60℃ |
| Humidity | Operating & Storage: 10 ~ 90%, non-condensing |
| IP Rating / Housing | IP66, NEMA4X , IP69K/ SUS304 stainless steel enclosure, chassis type |

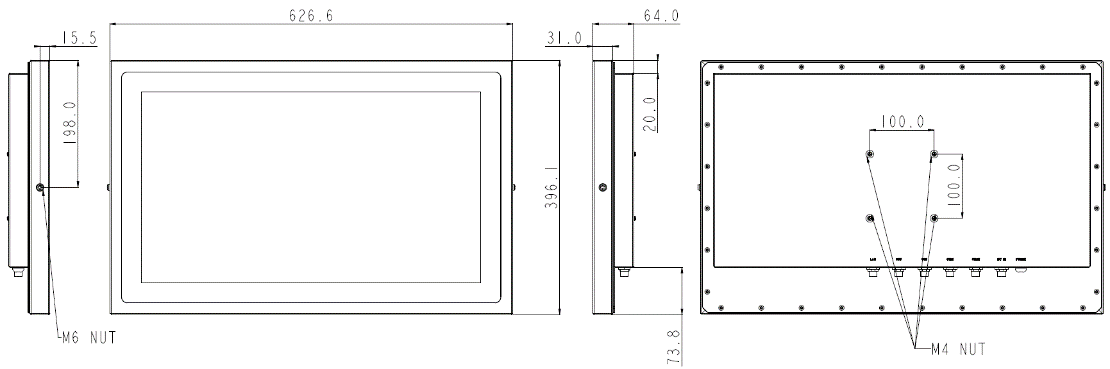

| Dimensions (Net) | 626.6 mm (H) x 396.1 mm (V) x 64.0 mm (T) |
| Weights (Net) | 14.8 kg (w/o power adapter/battery pack) |
| Mounting | VESA 100, Side mount (M6*2) |
| Power Input / Consumption | DC 19V~28V / 92.1W |
| Certification | CE (EMC) :EN61000-6-4 ; EN61000-6-2 / FCC/VCCI Class B, Canada ICES-003 |
