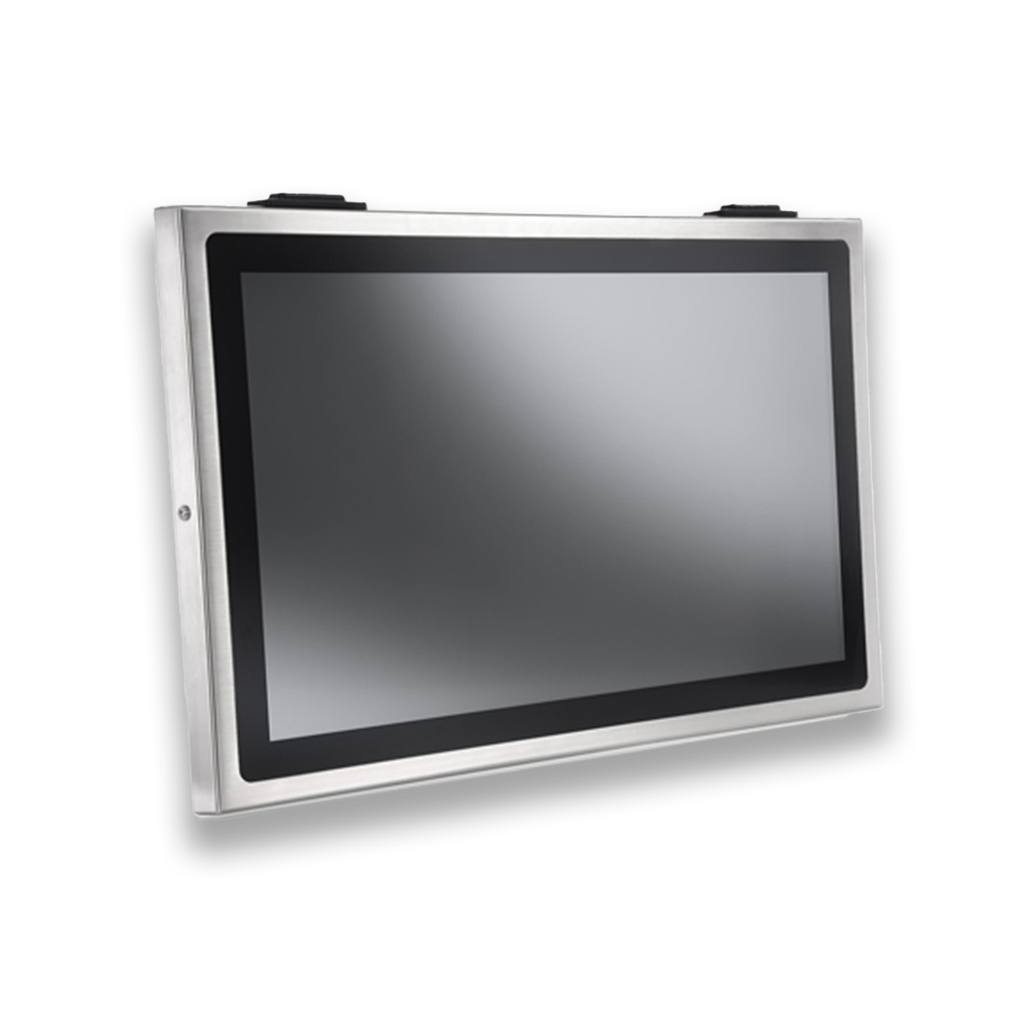

Alder Lake 24"

WTP-9H66-24
https://www.wincommusa.com/web/image/product.template/102/image_1920?unique=92ef8fb
  • 23.8" Intel® 12th Gen Fanless Stainless Panel PC
  • IP66/69K Full Sealed with Anti-Corrosion Enclosure
  • Support Intel® vPro Technology by CPU
  • Optional IP67 M12 Stainless Connectors
  • Optional Cable Gland for External I.O.
  • Special Inspection of 100% Waterproof Guarantee
  • CE, FCC, VCCI Class B Certified
  • Model
  • USB
  • COM
  • LAN
  • Audio
  • Configuration
  • Video

此組合不存在。

SpecificationOptions & Customized DownloadDrawingSolutionsNewsOthers will also look at

Specification

Options & Customized

Major Options

Options

1. Full flat PCT touch screen IP69K
2. IP67 (STD M12 type)
3. 2.5” SSD
4. M.2 SSD (128G)
5. Wireless or Wireless and BT kit (easy clean and Robust Antenna)
6. 2 External LAN (USBx2, LANx2, COMx1)
7. Cable Gland External IO
8. SUS316 Enclosure
9. M12 (female) to M12 (male) DC power extension cable (2 meters length)
10. M12 (female) to stripped and tinned wires DC extension cable (1.2 meters length)
11. Barcode Reader (can’t coexist with RFID)
12. RFID (can’t coexist with Barcode reader)
13. Supports floor stand solution
14. 3W speaker(IP66)

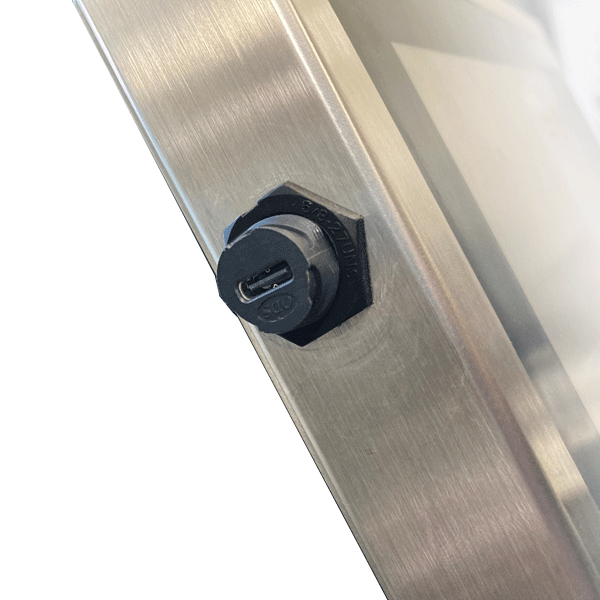

15. Waterproof type C cable, cable length is 1 meter
16. Wall mount
17. Table mount bracket (For TypeC / RFID)
18. 2nd 2.5” Storage for RAID 0,1

Accessory

1. Waterproof USB cable, cable length is 2 meters
2. Waterproof LAN cable, cable length is 2 meters
3. Waterproof COM cable, cable length is 2 meters
4. DC input cable

Customization

1. Sunlight readable optical bonding
2. Roof for UV protection and sunlight readable
3. 1000 nit high brightness LCD
4. COM + Power 5V or 12V
5. Intel i3-1215UE, DC, 3.3GHz
6. Intel i7-1265UE, DC, 3.5GHz
7. WDT AP/API
8. Stainless M12 connector

Download

Product Data Sheet

Product User Manual

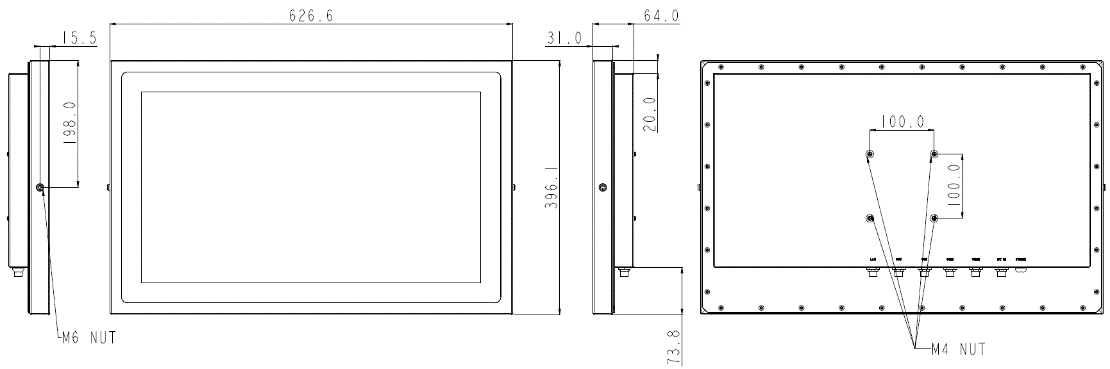

Drawing


Solutions

Smart Retail

Outdoor panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various smart retail applications

I

Outdoor Parking Automation

Outdoor panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various

Automated Postal Kiosk

Industrial panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various

Recycle Self-service Machine

Outdoor panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various

i-Environment Protection Solution

Outdoor panel PC suit for variety harsh environment applications. Wincomm designed every parts of industrial panel PC to support various smart retail applications

Smart Robotic Call Center

To pursuit intelligent communication era, most call centers are upgraded to online robotic service, leveraging higher computing power with suitable HMI service

News

Others will also look at

Specifications

Specification
Model WTP-9H66-24 (STD.) | WTP-9H66-24 (Cable Gland)
Main System
CPU / Chipset Intel® 12th Gen Alder Lake-P MCP Processors, 15 W / Soc
Graphic Intel® Gen 12 Graphics
RAM Dual Channel DDR4 3200 MHz ,2 x 260 SO-DIMM, up to 64GB
TPM TPM2.0
OS Support Optional Windows 10 (64 bit) / Windows 11 (64 bit)
Storage 1 x 2.5” SATA HDD drive bay (with anti-vibration mechanism)
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 (Gen4) for SSD
Expansion 1 x M.2 (Key B, 3042/3052) with PCIex1, USB3.2, USB2.0 and SIM for 4G/5G,
1 x SIM socket connected to M.2 key B
1 x M.2 (Key E, 2230) with PCIe, USB2.0 and CNVi for Wireless
Display Size 23.8” 19:6
Display 1920 x 1080(Full HD), 170(H) / 160(V)
250 nits (Typ. Center point), CR:3000 : 1 (Typ)
Touch Screen Full flat P-Cap touch / Light Transmission: ≧85% / Hardness:≧7H / Lifetime: 100M times / Touch Mode: Normal / Glove / Water mode

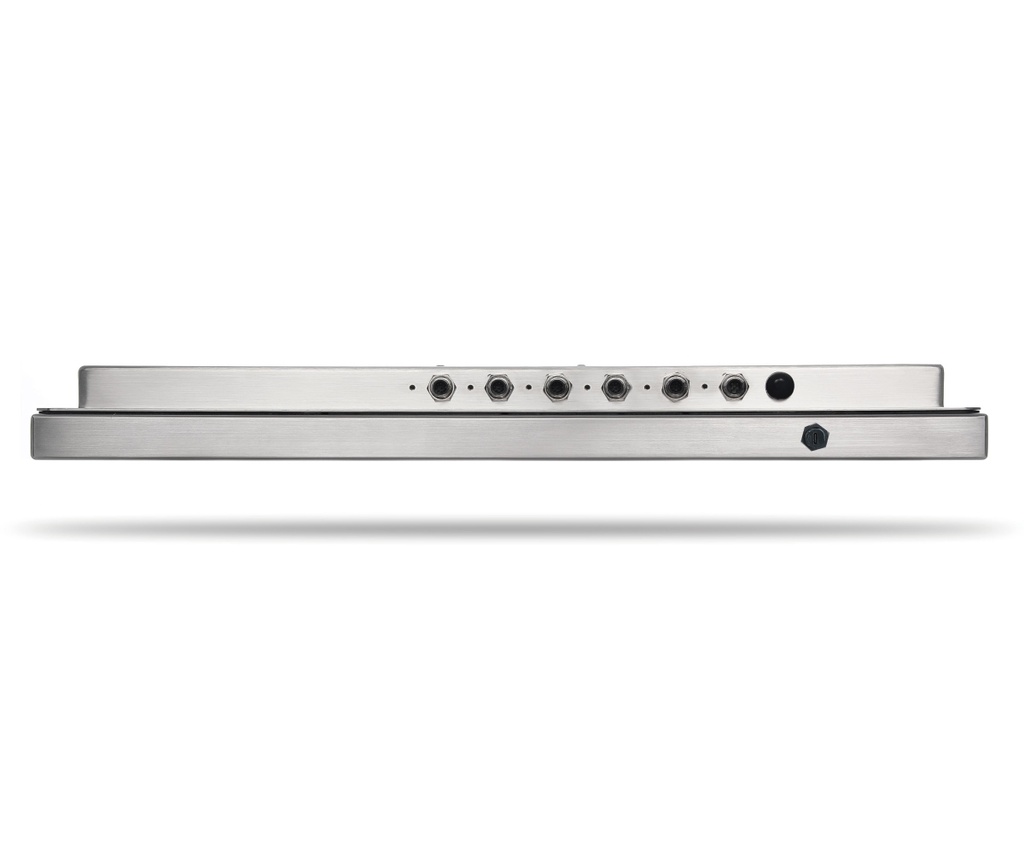

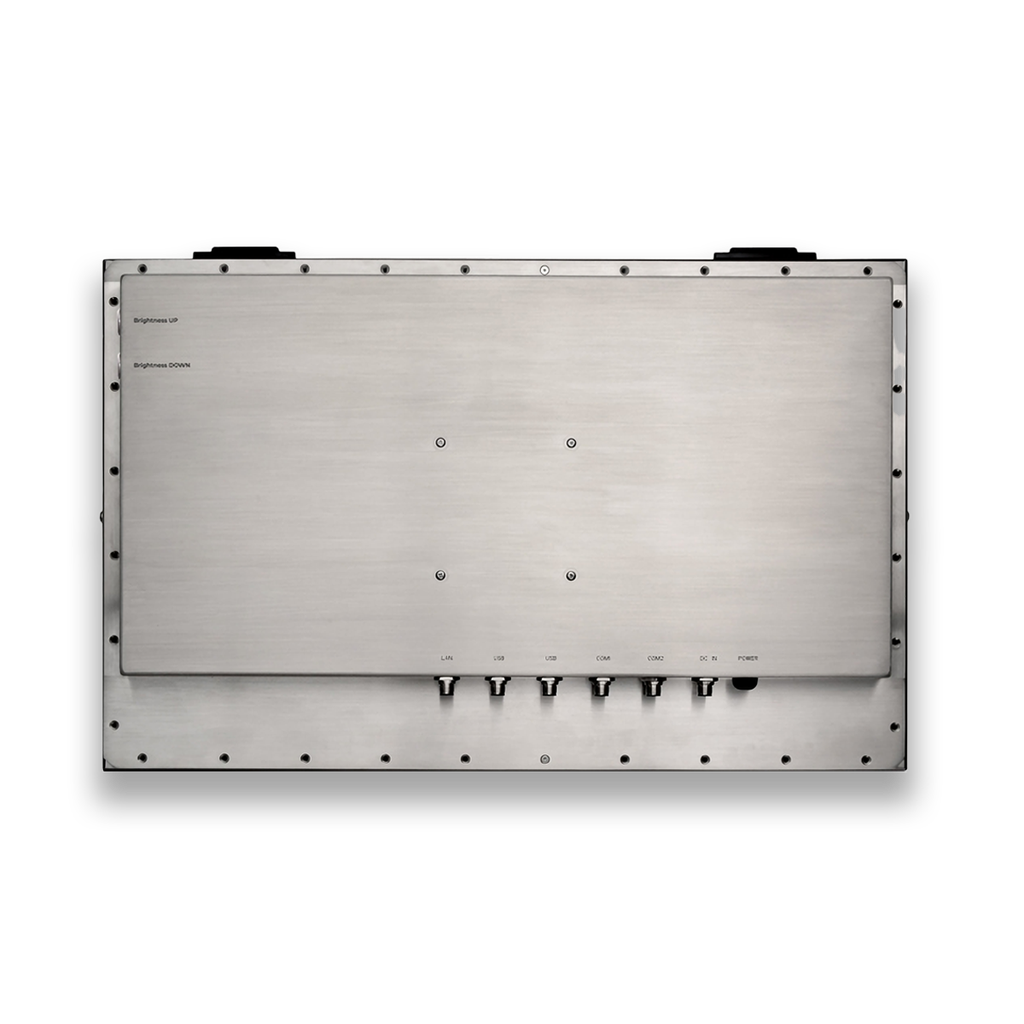

Configuration M12 Connector | Max. 5 external I/O by proper grommet
I.O. Ports
USB 1 x M12 8pin for USB 2.0 1/2
1 x M12 8pin for USB 2.0 3/4
1 x USB 3.2 Gen1 (Type-C, Support DP1.4a display output) | 2 x USB 2.0
2 x USB 3.2 Gen2
2 x USB 3.2 Gen2 (Type-C, Support DP1.4a display output)
COM 2 x M12 8pin for COM 1 & COM2 / RS-232/422/485 | 2x RS232/RS422/RS485
LAN 1 x M12 8pin for LAN 1 | 2 x RJ-45 (2.5Gigabit Ethernet)
Audio N.A. | 2 x 3.5mm phone jack connector (Line-out, and Mic-in)
Control Key Rear bottom: Power on /off; Side: Brightness Up / Down
Video N.A. | 2 x HDMI 2.0b
2 x Type-C (Support DP1.4a display output, Power output 5V/3A)
Mechanical and Environmental
Cooling Fanless
DC in 1 x DC-In connector, DC 12~28V
Power Adapter AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68
Temperature Operating Temperature
24V DC Input 0~40℃ (IEC60068-2-56, air flow cooling, HDD)
24V DC Input 0~50℃ (IEC60068-2-56, air flow cooling, SSD)
Storage Temperature -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X , IP69K/ SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 626.6 mm (H) x 396.1 mm (V) x 64.0 mm (T)
Weights (Net) 14.8 kg
Mounting VESA 100*100, side mount (M6*2)
Certification CE (EMC) / FCC-B / VCCI Class B, Canada ICES-003
