產品名稱 : WLP-7J20 Elkhart Lake 10.4"
產品描述
  • Intel® Elkhart Lake J6412 CPU
  • 10.4" 800 x 600 LCD 230nits
  • Support win10 & win11
  • Full Res or P-Cap Touch with Front IP66
  • Low Power Fanless Solution
  • Front Panel Mount Housing
  • Wide Range DC Input
  • CE, FCC, VCCI Class B Passed
  • Optional WLAN with External Antenna
  • Adjust Brightness Function
Specification
ModelWLP-7J20-10
Main System
CPU / Chipset Intel® Elkhart Lake SoC CPU J6412, QC, 2.60-2.0GHz, 10W
Graphic Intel® Gen 11 Graphics
Memory Dual channel support 3200MHz DDR4 SODIMM socketx2, up to 32GB
OS Support Windows 10 (64bit), Windows 11 (64bit)
Storage 1 x 2.5” SATA HDD drive bay (with anti-vibration mechanism)
1 x M.2 (KEY M, 2242/2260/2280) with SATA3 and PCIeX1 for SSD
Expansion 1 x PCIe x1(Gen 3)
1 x M.2 (Key E, 2230) with PCIe x1 and shared USB2.0 for Wireless
1 X M.2 (Key B, 3042/3052) with PCIEx1/USB2.0/USB3.2 and SIM for 4G/5G
1 x SIM socket connected to M.2 key B
Display Size 10.4”, 4:3
Display 800 x 600 (SVGA), 16.2M colors, 160(H) / 130(V), 230 nits, CR: 500 : 1 (Typ)
Touch Screen 5 Wire Full Flat Res. Touch / Light Transmission: 80 ± 5% / Hardness: >=3H pencil / Life: 35M times
Full Flat Projective Capacitive Touch Panel / Light Transmission: >=86% / Hardness: >=7H pencil / Life: 100M times

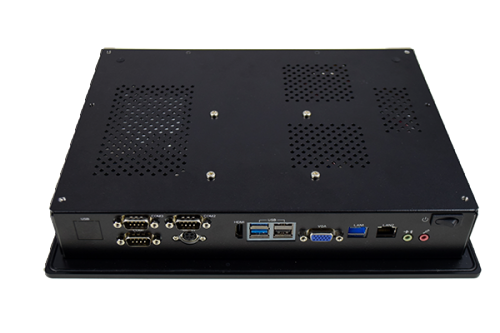

I.O. Ports
USB 2 x USB3.2(Gen 1), 2 x USB2.0
COM 1 x RS-232, 2 x RS-232/422/485
LAN 1 x RJ-45 1 Gbps, 1 x RJ45 2.5 Gbps
Audio 2 x 3.5mm phone jack connector(Line-out, Mic-in)
Video 1 x HDMI 2.0b, 1 x VGA
Control Keys  Rear bottom: Power on /off
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC12~28V input
Power Adapter External, 60 watts, 100 ~240V AC in, 19V DC out (PSU with PSE)
Temperature Operating Temperature: 0~50℃ by SSD (IEC60068-2-56) 0~45℃ by HDD (IEC60068-2-56)
Storage Temperature: -20~65℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66 at front / Front bezel is Aluminum, others are SECC with black coating
Dimensions (Net) TBD
Weights (Net) TBD kg
Mounting Panel mount, Optional Open frame / Chassis, VESA (75x75)
Certification CE/ FCC/ VCCI Class B
Options & Customized

Major Options

Add On Parts

1. Wireless and BT kit
2. 2.5” SSD
3. Stainless steel front bezel
4. Silver front bezel
5. USB 2.0 x 2
6. Windows 10 (64bit), Windows 11 (64bit)

Power Cable

1. DC input cable

Customization

1. Open frame housing or Chassis type housing
2. Sunlight Readable by 1000 nits LCD + Optical Bonding (Impact protection level: IK08)
3. M.2 SSD
4. Storage door Solution
5. 5G Module
6. TPM 2.0

proimages/products/WLP_BKPT_BKFT/WLP_10/WLP-7J20-10-Drawing.jpg
