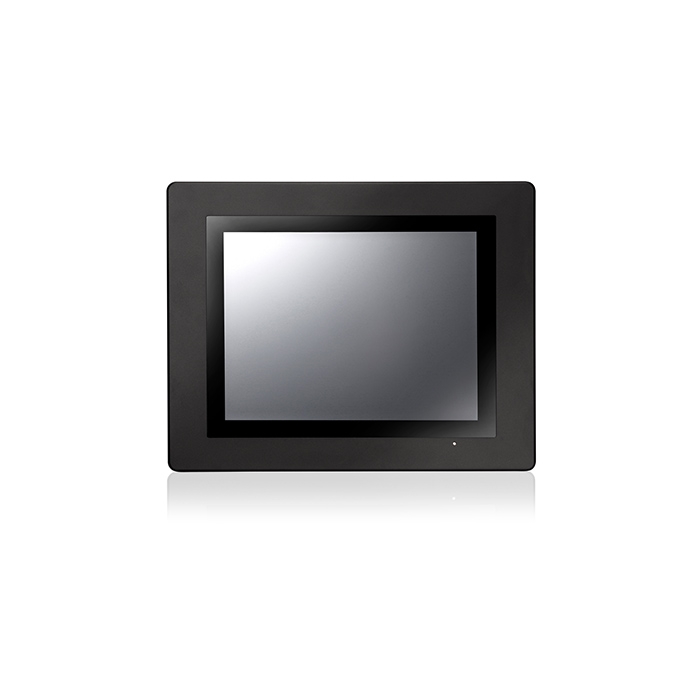

Product Name : WLP-7B20 Celeron J1900 12"
Product Description
  • Intel® Bay Trail Fanless & Slim Panel PC
  • 12" 800x600 (SVGA) LCD 450nits
  • Low power and true fanless thermal solution
  • Panel Mounted w/Full Flat Resis. or P-Cap Touch
  • CE, FCC, VCCI Class B Certified
  • Full Flat Design Easy Clean & IP66 Front
  • Wide Range DC Input
  • Optional Lock Screen Key Design
  • Optional WLAN with External Antenna
Specification
ModelWLP-7B20-12
Main System
CPU / Chipset Intel® Celeron J1900 2.0 GHz quad-core processor (10W max.) / SoC
Graphic Intel® integrated HD Graphics
RAM Two 1333 MHz DDR3L SODIMM socket support dual Channel, non-ECC, up to 8
OS Support Win 7 pro, Win 8, Win 8.1, Win10
Storage Optional 2.5” SATA HDD up to 500GB w/Anti-Vibration Kit
Expansion Mini PCIe x 2
Display Size 12” TFT-Color LCD
Display 800 x 600 (SVGA),  160(H) / 140(V), 450 nits (Typ. Center point), CR: 700 : 1 (Typ)
Touch Screen Full Flat Projective Capacitive Touch Panel / Light Transmission: 90% ± 3% / Hardness: 7H pencil / Life: 100M times
5 Wire Full Flat Res. Touch / Light Transmission: 80% ± 5% / Hardness: 4H pencil / Life: 35M times
I.O. Ports
USB USB 3.0 x 1, USB 2.0 x 3
COM RS232 x 2, RS232/RS422/RS485 x 1
LAN RJ-45 X 2
Audio 3.5mm phone jack connector x 2
Video DVI-I x 1
Control Keys  Rear bottom: Power on/off, Reset
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC In 7V~32V / 30.7 W
Power Adapter External, universal 100 ~240V AC in, 12V DC out, 1.2m DC Cable
Temperature Operating Temperature:
12V DC Input 0~50℃ (IEC60068-2-56, air flow cooling)
12V DC Input 0~40℃ (IEC60068-2-2, natural cooling)
28V DC Input 0~42℃ (IEC60068-2-56, air flow cooling)
28V DC Input 0~32℃ (IEC60068-2-2, natural cooling)
Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66 at front / Front bezel is Aluminum, others are SECC with black coating
Dimensions (Net) 369 mm (H) x 290 mm (V) x 55 mm (T)
Weights (Net) 4.5 kg (w/o power adapter/battery pack)
Mounting Panel mount (by clamp), VESA (75x75)
Certification FCC/CE/VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Add On Parts

1. Wireless or Wireless + BT kit
2. mSATA module
3.
Stainless front bezel
4.
Sliver fornt bezel
5. Chassis type housing
6. 2.5" SSD


Power Cable

1. DC input power plug (black, 1.22m length)
2. Maximum length is 5.2 meters by 2x2m DC cables

Customized

1. Open frame housing
2.
Sunlight readable optical bonding
3. LCD auto dimming
4. LCD super dimming (Low brightness)
5. Storage door Solution
6
. TPM 2.0,

Drawing
proimages/products/WLP_BKPT_BKFT/WLP_12/WLP-7B20-12-DW.jpg
