Product Name : WTP-8B66 Atom® 15" Outdoor
Product Description
  • Smart Fan OUTDOOR Panel PC
  • Intel® Quad Core E3845 Wide Temp. CPU
  • IP69K Full Sealed SECC Enclosure
  • 15" 1000nits Sunlight Readable LCD
  • Optical Bonding with Anti-UV Treatment
  • P-cap Touch with AR Glass Coating
  • Wide Temp. -20~60°C Operation Capability
  • M12 IP67 Connectors
  • CE, FCC, VCCI Class B Certified
Specification
ModelWTP-8B66-15O
Main System
CPU / Chipset Intel Atom E3845 processor 10W
Graphic Intel® integrated HD Graphics
RAM Two DDR3 SODIMM socket support up to 8GB
OS Support Win 7 pro, Win 7 embedded, Win 8 embedded, Win 8 industrial, Win10
Storage WT 128GB 2.5" SATA SSD x 1
Expansion Mini PCIe x 2
Display Size 15” TFT-Color LCD (4:3)
Display 1024 x 768(XGA),  160(H) / 140(V), 1000 nits (Typ. Center point), CR:700 : 1 (Typ)
Touch Screen Full Flat P-cap touch /  Light Transmission: 91%

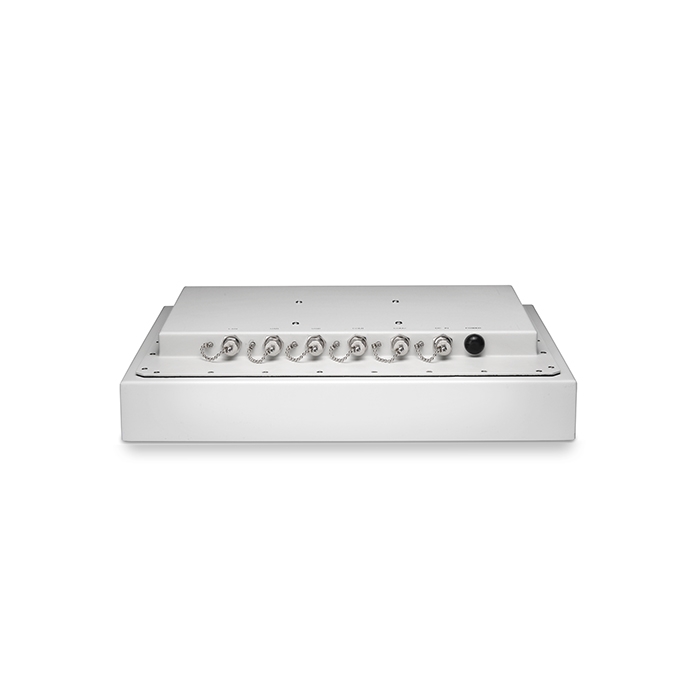

I.O. Ports
USB 1 x M12 8 pin USB1/2, 1 x M12 8 pin USB3/4
COM 1 x M12 8 pin COM RS232/422/485, 1 x M12 8 pin COM RS232
LAN 1 x M12 8 pin LAN
Control Hot Key (R to L) Rear bottom: Power on/off
Mechanical and Environmental
Cooling Smart Fan
Power Input / Consumption 1 x M12 5pin DC power connector, DC7V~32V / 40.9 W (Full loading without Power Adapter)
Power Adapter AC 100~277V / 47 ~ 63 Hz / DC output 24V / IP68
Temperature Operating Temperature: -20~60℃ (chamber) / Storage Temperature: -20~65℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP69K whole set, IP67 M12 metal connectors / SECC powder coating, light color, full flat chassis type
Dimensions (Net) 415 mm (H) x 329.5 mm (V) x 85 mm (T)
Weights (Net) 10.2 kg (w/o power adapter)
Mounting Optional Stand, VESA 100
Certification FCC/CE/VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Add On Parts

1. Wireless or Wireless + BT kit (Robust Antenna)
2.
LAN x 2 (COM x1, LAN x 2, USB x2)
3. TPM 2.0

Add On Cable

1. Waterproof M12 COM cable x 1, 2M
2. Waterproof M12 USB cable x 1, 2M
3. Waterproof M12 LAN cable x 1, 2M
4. Maximum length is 5.2 meters by 2x2m DC cables

Customized

1. COM + Power 5V / 12V,
2. Stainless Steel M12 Connector
3. Barcode Reader ,
4. 5W/2W Speaker,
5. USB3.0
Drawing
proimages/products/WTP/WTP_15O_/WTP_15O-DW.jpg
