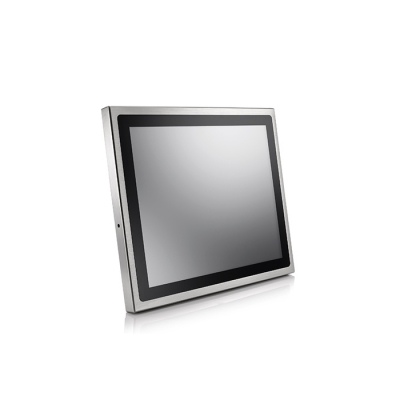

Product Name : WTP-8B66 Atom E3845 19" Wide Temp
Product Description
  • 19" Intel® Atom E3845 Fanless Stainless Panel PC
  • IP66/67/69K Full Fealed with Anti-Corrosion Enclosure
  • Optional IP67 M12 Stainless Connectors
  • Special Inspection of 100% Waterproof Guarantee
  • Wide Temp. -20~50°C Operation Capability
  • CE, FCC, VCCI Class B Certified
  • Screen Touch Lock Function
Specification
ModelWTP-8B66-19W
Main System
CPU / Chipset Intel® Atom E3845 2.0 GHz quad-core processor 10W / SoC
Graphic Intel® integrated HD Graphics
RAM Two DDR3 SODIMM socket support up to 8GB DDR3L-1333
OS Support Win7, Win7 pro, Win8.1, Win10
Storage WT 128GB 2.5” SATA SSD 3MG2-P x 1
Expansion Mini PCIe x 2 ( half/full size )
Display Size 19”  4:3
Display 1280 x 1024(SXGA),  170(H) / 160(V), 350 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen Full flat resistive touch  /  Light Transmission: 80 ± 5% / Hardness: 4H
I.O. Ports
USB 1 x M12 8pin for USB 1/2, 1 x M12 8pin for USB 3/4
COM 1 x M12 8pin/ RS-232, 1 x M12 8pin/ RS-232/ 422/ 485
LAN 1 x M12 8pin for LAN
Control Key  Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC 7V~32V / 38.2 W
Power Adapter AC 90~264V / 47 ~ 63 Hz / DC output 12V, IP67,  60W
Temperature Operating Temperature: -20~50℃ (12V DC)
Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X / IP69K SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 458 mm (H) x 386 mm (V) x 64 mm (T)
Weights (Net) 11.0 kg (w/o power adapter/battery pack)
Mounting VESA 100, Side mount (M6*2)
Certification FCC/CE/VCCI Class B
Options & Customized

Major Options

Add On Parts

1. Wireless LAN or Wireless and BT kit  (Easy Clean and Robust Antenna  or 2 ant)
2. SSD
3. Stainless M12 connector
4. External LAN x 2

Power Cable

1. Waterproof COM cable x 1
2.
Waterproof USB cable x 1
3.
Waterproof LAN cable x 1

Optional kits

1. Wall mount / Table mount bracket

Customized

1. Sunlight readable optical bonding
2. 1000 nit high brightness LCD
3. LCD Auto dimming
4. LCD Super dimming (Low brightness)
5. 5W/2WSpeaker
6. Second HD
7. Intel Core i7-6500U
8. COM + power 5V or 12V
9. Barcode reader
10. TPM
11. External LAN x 2
12. Waterproof USB 3.0
13. IP67
14. Full Flat PCT Touch Screen IP69K
15. SUS316 Enclosure

Drawing
proimages/products/WTP/WTP_19/WTP-9E66-19-DW.jpg
