Product Name : Full IP Stainless Steel Monitor 15"
Product Description
  • True Flat Front Bezel and Grade 304
  • Stainless Steel Enclosure (Grade 316 for Option).
  • IP69K/IP67 M12 Stainless Connectors.
  • Touch on/off on Bottom Side for Hygienic Cleaning.
  • 100% Water/ Dust Proof Guarantee
  • Downward I/O for Easy Installation and Space Saving
  • EMC Class B Applicable
Specification
ModelWTD-15
Main System
Display Size 15” wide TFT-Color LCD (4:3)
Display 1024 x 768 (XGA), 16.7M colors (RGB 8 bit ), 160(H) / 160(V), 450 nits, CR:600 : 1 (Typ)
Touch Screen 5-Wire Resistive Full Flat Touch Screen /  Light Transmission: 80 ± 5% / Hardness: 3H pencil / Life: 35M times
I.O. Ports
USB M12 8 pin USB x 1 for Touch Screen
Audio VGA input x 1
Video  HDMI 1.4a (input) x 1
Control Key  Menu: OSD on and enter
Down: move down for selecting
Up: move up for selecting
Auto: OSD off, and source change
Touch screen: on/off
Mechanical and Environmental
Power Input  DC12V
Power Adapter AC input 90 ~ 264V / 47 ~ 63 Hz / DC output 12V, IP67, 60W/5A
Temperature Operating Temperature: -10~55℃ / Storage Temperature: -30~70℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66 (NEMA4X) / IP69K (NEMA6), SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 395 mm (H) x 309.5 mm (V) x 64 mm (T)
Weights (Net) 7.5 kg (w/o power adapter/battery pack)
Mounting VESA 100 X 100, Side Mount (M6 x 2)
Certification FCC/CE/VCCI Class B (VGA port) ; Class A (HDMI port)
Options & Customization

Major Options

Options

   1.SUS316 enclosure
   2.IP 67 Whole System Solutions
   3.Full flat PCT touch screen
   4.DP to HDMI converter (for connecting WPC-766)

Customization

   1.Sunlight readable optical bonding
   2.1000 nits high brightness LCD
   3.HDMI connection between WTP panel PC as 2nd display

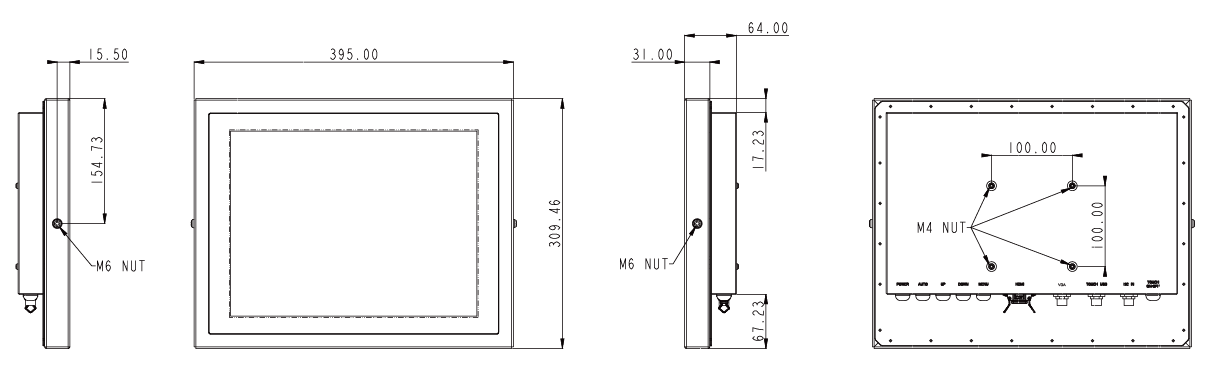

Drawing
proimages/products/WTD/WTD_15-DW.png
