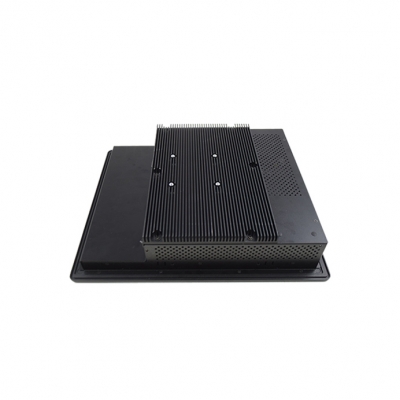

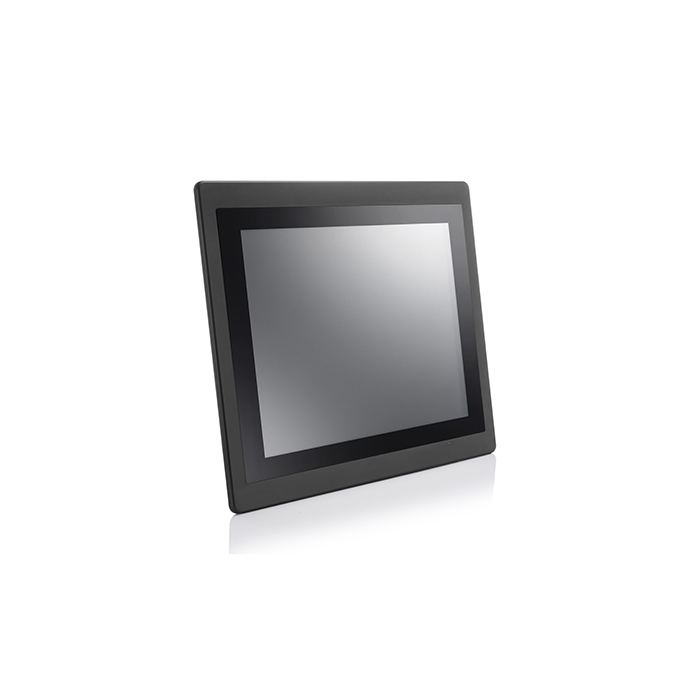

WLP-7G20 Whiskey Lake 15"
_01RE.jpg "WLP-7G20 Whiskey Lake 15\"")
_02.jpg "WLP-7G20 Whiskey Lake 15\"")
Product Introduction
Best Suit for Versatile Industrial Applications
Fanless Touch Panel PC Professionals
These industrial grade panel PC with CE/FCC/VCCI class B certified are designed to be used on versatile industrial automation, factory control, surveillance, smart kiosk, military and communication centers. Built with industrial grade components, it is designed for 24/7 use in extreme conditions, featuring on fanless designs with full line of anti-shock and anti-vibration proof, and all of our industrial panel pc are engineered to withstand extreme temperatures. All of our units can be customized with different ports and integrated features to fit your unique needs and applications.
- 24/7 operation under 0~50°C & high ambient light without limitation
- Water/dust proof guarantee
- No corrosion after long-term usage
Specification
| Model | WLP-7G20-15 | ||
|---|---|---|---|
| Main System | |||
| CPU / Chipset | Intel® 8th Gen Whiskey Lake-U Core™ i7/i5/i3 MCP Processor, 15W | ||
| Graphic | Intel® integrated HD 620 Graphics | ||
| RAM | Dual Channel Support 2400MHz DDR3L SODIMM X2, up to 32GB | ||
| OS Support | Win 10 (64 bit) / Win11 (64bit) | ||
| Storage | 2.5” SATA HDD drive bay x 1 (with anti-vibration mechanism), Optional M.2 (KEY M, 2242/2260) SSD X 1 | ||
| Expansion | M.2 (Key E, 2230) for Wireless x 1, M.2 (Key B, 3042) with USB2.0 and SIM for 4G x 1 | ||
| Display Size | 15” 4:3 | ||
| Display | 1024 x 768 (XGA), 160(H) / 160(V), 350 nits (Typ. Center point), CR: 800 : 1 (Typ) | ||
| Touch Screen | Full Flat Projective Capacitive Touch Panel / Light Transmission: >=86% / Hardness: 7H pencil / Life: 100M times 5 Wire Full Flat Res. Touch / Light Transmission: 80% ± 5% / Hardness: >=3H pencil / Life: 35M times |
||
| I.O. Ports | |||
| USB | USB 3.1 x4 | ||
| COM | RS232 x 1, RS232/RS422/RS485 x 2 | ||
| LAN | RJ-45 X 2 | ||
| Audio | 3.5mm phone jack connector x 2 (Line-out, Mic-in) | ||
| Video | HDMI 2.0a(output) x 1, DP x 1 | ||
| Control Keys | Rear bottom: Power on/off | ||
| Mechanical and Environmental | |||
| Cooling | Fanless | ||
| Power Input / Consumption | DC-in x 1 (Jack with locker), DC19V~28V / TBD W | ||
| Power Adapter | 100 Watts,100 ~240V AC in, 19V DC out, 5.26A (PSU with PSE) | ||
| Temperature | Operating Temperature: 19V DC Input 0~50℃ (air flow cooling) Storage Temperature: -20~65℃ |
||
| Humidity | Operating & Storage:10 ~ 90%, non-condensing | ||
| IP Rating / Housing | IP66 at front, IK05 / Front bezel is Aluminum, others are SECC with black coating | ||
| Dimensions (Net) | 398 mm (H) x 330 mm (V) x 86 mm (T) | ||
| Weights (Net) | 6.4 kg (w/o power adapter) | ||
| Mounting | Panel mount (by clamp), VESA (75x75) | ||
| Certification | FCC/CE/VCCI Class B, Canada ICES-003 | ||
