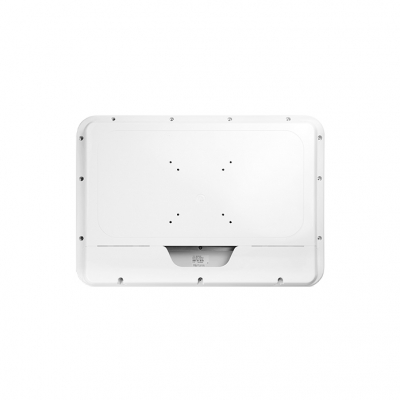

Product Name : WMP-155 Apollo Lake 15"
Product Description
  • Intel® J3455 Medical Panel PC
  • 15.6" 1366x768 LCD Panel
  • Highest Medical EMC 4.0/ Safety 3.1 Certification Ready
  • Anti-Bacteria (MRSA) Plastic Housing
  • Friendly Design of Front Function Hot-Keys
  • One M.2 E Key Support WLAN Solution
  • Optional PCI-E x1 Riser Card
  • Optional Full HD Panel
See: Medical Fanless All In One Touch Panel PC WMP-15C Intel® Core™

eNews: Light Interactive 15.6” Apollo Lake Medical Panel PC Ideal for Economical e-Healthcare Solutions
Specification
ModelWMP 155  CP0A (STD)WMP 155  CP0B (ISO)
Main System
CPU / Chipset Intel® Apollo Lake SoC Processor  J3455, 1.50 GHz, 10W/ SoC
Graphic Intel® integrated HD 500 Graphics
RAM Single channel support 1867MHz DDR3L SODIMM socket, up to 8GB
OS Support Windows 10 IoT Enterprise LTSC
Storage
M.2 Type SATA III SSD 2280 slot interface x 1
2.5” drive bay support SATA3 HDD/SSD
Expansion
1 x M.2 (E key, 2230), 1 x PCIe (x1), 1 x Mini-PCIe 52 pin card-edge type
Display Size 15.6" LCD
Display 1366x768 (HD), 16.7M colors, 170(H) / 160(V), 400 nits (Typ. Center point), CR:500 : 1 (Typ)
Customized 1920 x 1080 (FHD), 16.7M colors, 160 (H) /140(V), 400 nits (Typ. Center point), CR: 700:1 (Typ.)
Touch Screen Projected Capacitive Multi-Touch Panel / Light Transmission: ≧84% / Hardness: 7H pencil, pressure 765g/45° / Life: 50000
I.O. Ports
USB 2 x USB3.0, 2 x USB2.0 2 x USB3.0, 2 x USB2.0, 1 x ISO USB2.0
COM 1 x RS232/422/485, 1 x RS232 1 x RS-232, 1 x RS232/RS422/RS485, 1 x ISO RS-232, 1 x  ISO RS232/RS422/RS485
LAN 2 x RJ45 2 x RJ45, 1 x ISO LAN
Audio / Video 2 x 3.5mm phone jack connector (Line-out, Mic-In) 2 x DP
Control Hot Key (L to R) Power Button // Mute //  Audio adjustment+- // Brightness+- // LCD on/off // Clean me // Dis-webcam //  Function key
Mechanical and Environmental
Cooling Fanless
Power Adapter AC input 100~264V / 47 ~ 63 Hz / DC output 12V, 100W
Temperature Operating Temperature: 0~40℃ (Burn-In not Airtight) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing Front Side IP65, IPx1 for whole system  / Plastic White w/Anti-bacteria (MRSA) Housing
Dimensions (Net) 430 mm (H) x 300 mm (V) x 83 mm (T)
Weights (Net) 5.2 kg (w/o power adapter)
Mounting Optional Stand, VESA 75/100
Certification EMC: FCC Part 18 Class B, VCCI Class B (PSU w/PSE)
CE: EN60601 ~ 1-2: 2015(V4.0)
MDD: EN60601-1: 2006/A1:2013(V3.1)
CUL: CAN/CSA-C22.2 No.60601-1:2014(V3.1), ISO14971/ IEC62133
Options & Customization

Major Options

Add On Parts

1. WLAN + Bluetooth

2. 5M pixel auto focus webcam module (Can’t exist with light sensor)

3. Battery pack

4. PCI-E x1 riser card (Can’t exist with ISO module)

5. Capture card

6. 2.5” HDD/SSD kit

7. Equipotential terminal pin

8. RFID (13.56MHz)

9. AG film

10. TPM v2.0 module

11. 5V1A power jack

12. COM 3.4 / USB 5.6

13. Light sensor for LCD auto brightness(Can’t exist with webcam)

Add On Cable

1. Power adapter w/2m DC extension Cabale

Optional kits

1. Anti-bacteria Stand, VESA 75/100
2. Power Plug holder

Customized

1. Tempered Glass
2. 15.6"Full HD (1920 x 1080) Diagnostic Panel
