Specification

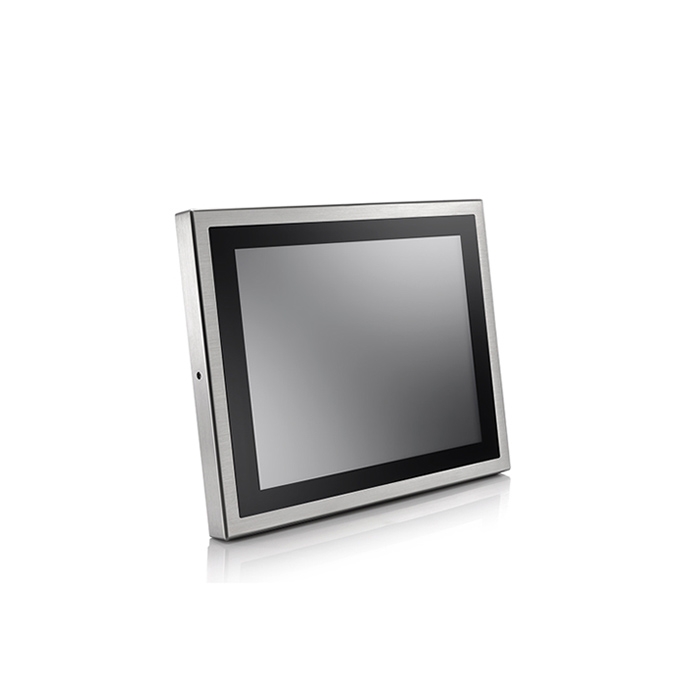

ModelWTP-8B66-15W
Main System
CPU / Chipset Intel Atom E3845 processor / SoC
Graphic Intel® integrated HD Graphics
RAM Two DDR3 SODIMM socket support up to 8GB DDR3L-1333
OS Support Win 7, Win 7 Pro, Win8.1,Win 10
Storage WT 128GB 2.5" SATA SSD 3MG2-P x 1
Expansion Mini PCIe x 2 ( half/full size )
Display Size 15”  4:3
Display 1024 x 768(XGA),  160(H) / 160(V), 400 nits (Typ. Center point), CR:600 : 1 (Typ)
Touch Screen Full flat resistive touch /  Light Transmission: 80 ± 5% / Hardness: 4H
I.O. Ports
USB 1 x M12 8pin for USB 1/2, 1 x M12 8pin for USB 3/4
COM
1 x M12 8pin for COM 1/RS-232/422/485 ,
1 x M12 8pin for COM 2/RS-232
LAN 1 x M12 8pin for LAN
Control Key  Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC 7V~32V / 36.1 W
Power Adapter AC 90~264V / 47 ~ 63 Hz / DC output 12V, IP67, 60W
Temperature Operating Temperature: -20~50℃ ( 12V DC)
Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X/ IP69K SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 395 mm (H) x 309.5 mm (V) x 58 mm (T)
Weights (Net) 7.6 kg (w/o power adapter/battery pack)
Mounting VESA 100, Side mount (M6*2)
Certification FCC/CE/VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Add On Parts

1. Wireless LAN or Wireless and BT kit  (Easy Clean and Robust Antenna  or 2 ant)
2. SSD
3. Stainless M12 connector
4. Cable Gland for External I.O.

Add On Cable

1. COM cable (2 meters) x 1
2. USB cable(2 meters) x 1
3. LAN cable(2 meters) x1

Optional kits

1. Wall mount/ Table mount bracket

Customized

1. Sunlight readable optical bonding
2. 1000 nit high brightness LCD
3. LCD Auto dimming
4. LCD Super dimming (Low brightness)
5. 5W/2WSpeaker
6. Second HD
7. Intel Core i7-6500U
8. COM + power 5V or 12V
9. Barcode reader
10. TPM
11. External LAN x 2
12. Waterproof USB 3.0
13. IP67
14. Full Flat PCT Touch Screen IP69K
15. SUS316 Enclosure

Drawing
proimages/products/WTP/WTP_15/WTP_15-DW.jpg
