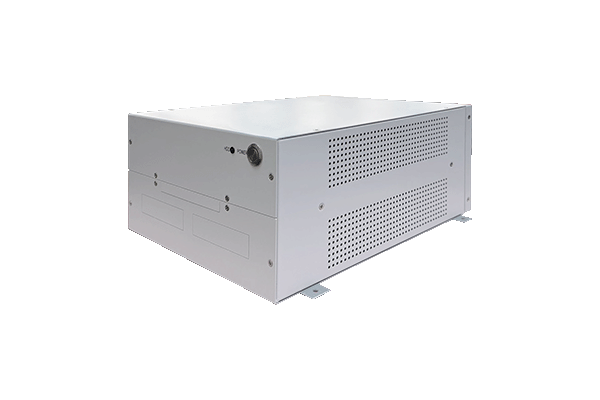

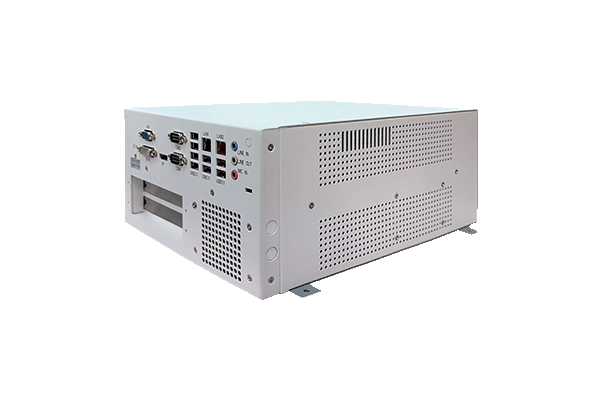

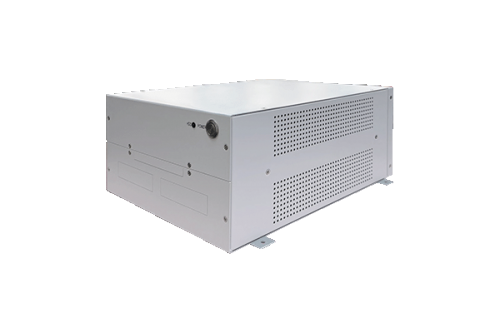

WPC-76BF Medical Edge AI Fanless
Specification
| Model | WPC-76BF | ||
|---|---|---|---|
| Main System | |||
| CPU / Chipset | Intel® 12th / 13th / 14th Generation Intel® Core i9/i7/i5/i3, Pentium and Celeron Processor, 45W max. /Intel® Q670E Express Chipset | ||
| Graphic | Intel® HD Graphics | ||
| RAM | Two 3200 MHz DDR4 SODIMM socket support dual Channel, up to 64GB | ||
| OS Support | Windows 10 (IoT LTSC), Windows 11 (IoT LTSC) | ||
| Storage |
1 x M.2 M.Key 2280 SSD (NVMe)
1 x 2.5” SATA SSD w/anti-vibration
|
||
| Expansion |
1 x M.2 (Key M, 2280),
1 x M.2 (Key E, 2230) for Wireless,
1 x mini-PCIe (Full Size)
1 x PCI-Ex16 (130W max), 1 x PCI-Ex4(10W max), Total max. 140W
|
||

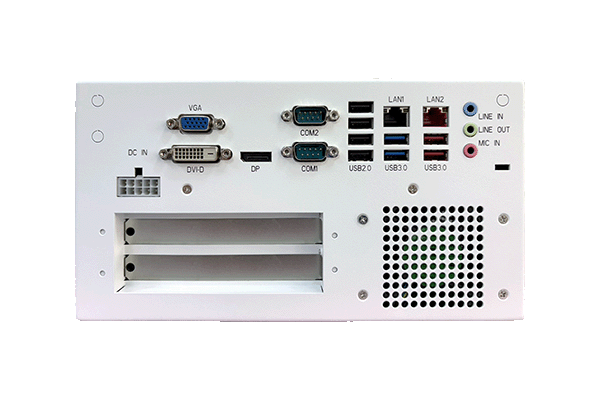

| I.O. Ports | |||
| USB | 4 x USB 3.2 (S5 support 5V1A output); 4 x USB 2.0 | ||
| COM | 2 x RS232/RS422/RS485 (RI/5V/12V) | ||
| LAN | RJ-45 x 2 (LAN 1 :1GB Intel® i219LM; LAN 2 : 2.5GB Intel® i226V) | ||
| Audio | 3.5mm phone jack (Line in, Line out, Mic in) | ||
| Video Out | 1 x DP1.2, 1 x DVI-D, 1 x VGA | ||
| Power Switch | Power on/ off at front site, reset button at back side | ||
| Mechanical and Environmental | |||
| Cooling | Smart Fan | ||
| Power Input / Consumption | DC 12~24V input | ||
| Power Adapter | AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 300W | ||
| Temperature | Operating Temperature:0~40℃(0~50℃ By Project) / Storage Temperature:-20~60℃ | ||
| Humidity | Operating & Storage:10 ~ 90%, non-condensing | ||
| Housing | Sliver Aluminum Heatsink and SECC w/ Hospital White Painting | ||

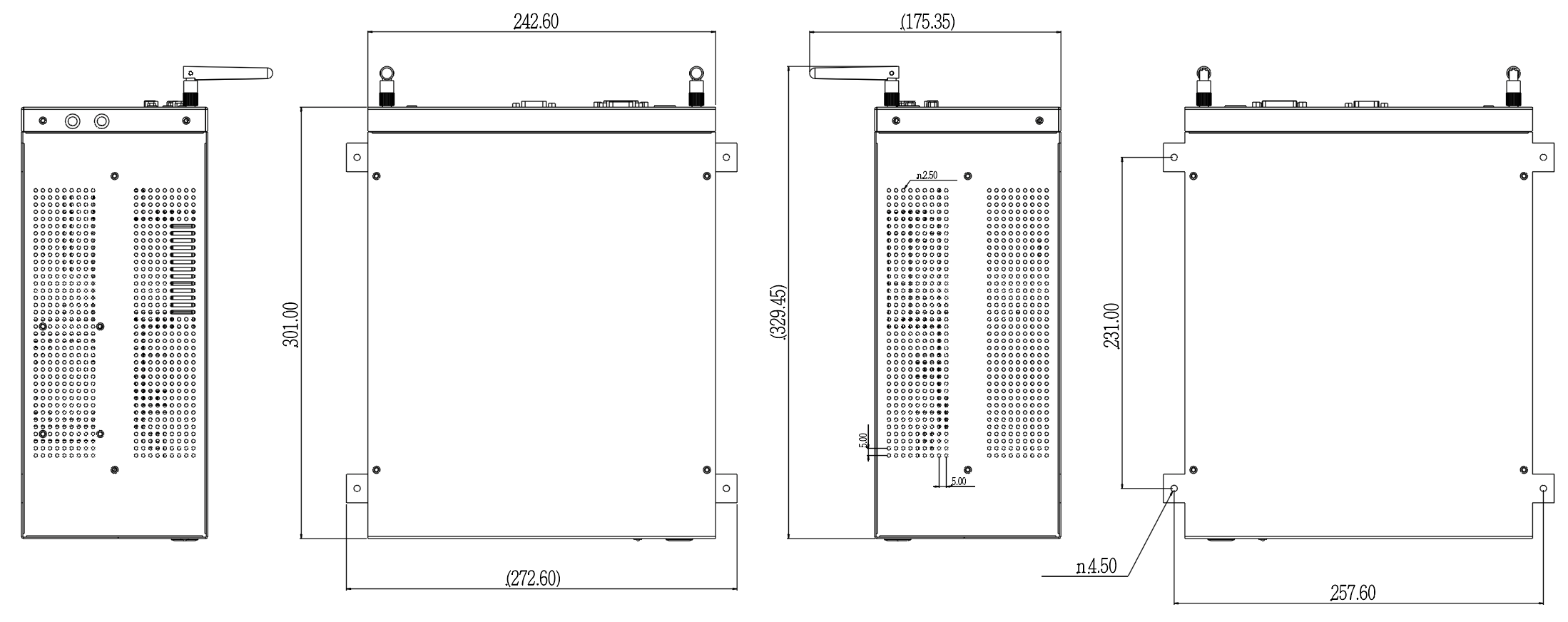

| Dimensions (Net) | 301 (L) x 242.6 (W) x 130 (D) mm | ||
| Weights (Net) | 5 kg | ||
| Certification |
CE: EN 60601-1-2:2015 (V4.1),
VCCI: 2016-11, Class B (Power adapter with PSE)
FCC: Part 18 Class B, Canada, ICES-003
UL: ANSI/AAMI ES60601-1:2012 (V3.2) by project
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.2) by project
ISO 14971 / EN-60601-1;2006/A1:2013 (V3.2) by project
|
||
