Product Name : WMP-19C Skylake / Kaby Lake 19"
Product Description
  • Intel® Skylake / Kaby Lake i7/i5/i3/Celeron Fanless Medical Panel PC
  • 19" 1280x1024 LCD panel
  • Highest Level EMC 4.0/ Safety 3.1 Certification Ready
  • Support Intel® vPro by Optional i7/i5 CPU
  • Anti-Bacteria (MRSA)Plastic Housing
  • Friendly Design of Front Function Hot-Keys
  • Optional Built-In Battery Pack
  • Optional PCI-E x 4 Expansion slot
  • Support RAID 0,1
See: Medical Fan All In One Touch Panel PC WMP-19F

eNews: An industry best, the highest performance medical grade panel PC is launched: Wincomm announces WMP-C Series
Product Introduction
Medical AIO Panel PC with Powerful Skylake / Kaby Lake CPU

Integrated with Built-in battery, Non-Stop Operation

These medical all in one panel pc are designed to fulfill versatile clinical applications, incouding EMR, anesthesia applications, operating room environments, and patient charting. One of our most powerful computers for hospitals that want the best in medical hardware.

  • Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and an IPX1 back cover making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 6th/7th  Gen Intel Core CPU
    Our medical panel pcs offer the Skylake 6th / Kaby Lake 7th generation Intel® Core i3/i5/i7/Celeron processor series.
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. Webcam & RFID antenna & TPM 2.0 & Display interface for up to 2

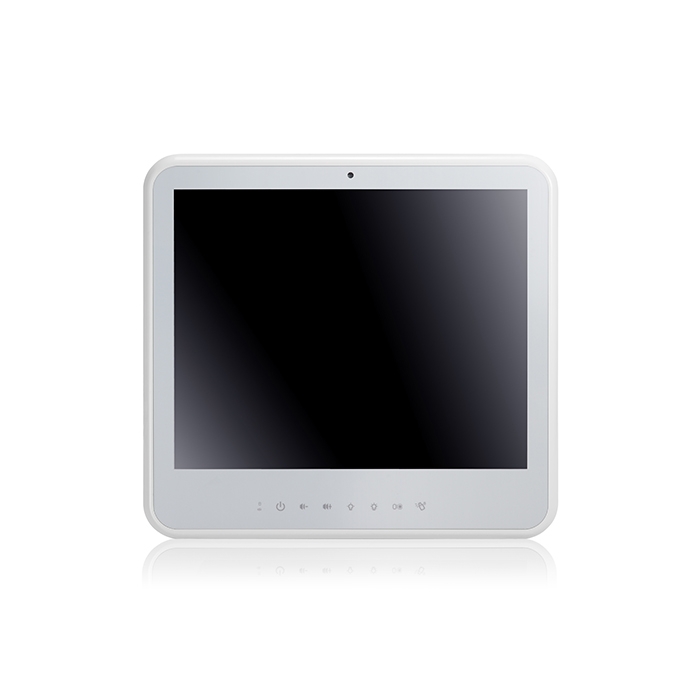

Product Outlook & Friendly Hot-Key Design

proimages/seefeature/pic-04.jpg

Operate your medical device computer application with more power under the hood

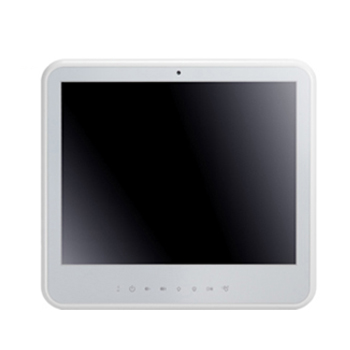

The WMP-19C is ideal for a range of different medical devices and machines in the hospital setting. This 19-inch all-in-one medical PC save space by either to be fixed on a wall or used on powered medical carts to move computing to patient rooms, operating rooms, or labs. Equipped with Intel® Core™ i3, i5, & i7 series Skylake CPUs and up to 32GB of DDR4 RAM has given this medical computer sufficient power to operate hardware.

proimages/1-1/WMP-19C.jpg
proimages/seefeature/pic-06.jpg

Optional ISO –COM/LAN/USB to avoid expensive equipment damage

4KV Isolated Interface:

  • Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.
Specification
ModelWMP 19C  IPOA (STD)WMP 19C  IPOB (ISO)
Main System
CPU / Chipset Intel® 6th/7th generation Core i7/i5/i3/Celeron processor (15W max.) / SoC
Graphic Intel® integrated HD Graphics
RAM DDR4 Dual-2133 SODIMMl, non-ECC, 4GB to 32GB
OS Support Windows 7 embedded, Windows 7 pro, Windows 8 embedded, Windows 8 industrial, Windows 10
Storage 2.5” SATA HDD drive bay x 1 ,mSATA via mini PCI-E x 1, Optional 2.5” SATA HDD up to 1TB
Expansion PCI-E x 4 expansion slot (loaded 25W max, can't co-exist with isolated module), Mini PCIe x 1, M.2 Type E, Optional Network Interface: 802.11 ac/a/b/g/n WLAN + Bluetooth module
Display Size 19” wide TFT-Color LCD
Display 1280 x 1024 (SXGA), 16.7M colors (RGB 6 bit, Hi FRC 2 bit), 170(H) / 160(V), 350 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel /  Light Transmission: 90% ± 3% / Hardness: 7H pencil, pressure 750g/45° / Life: 100M times

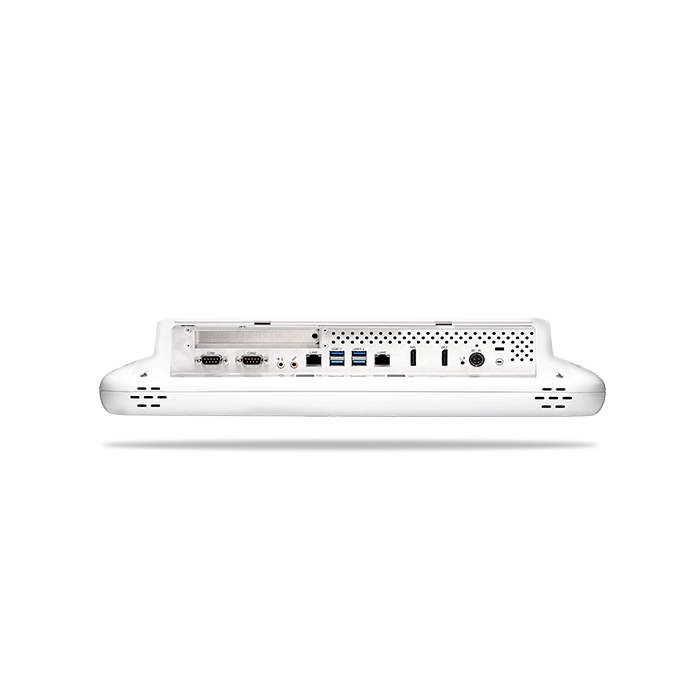

I.O. Ports
USB USB3.0 X 4 ISO USB2.0 X 1
COM RS232/RS422/RS485 X 1, RS-232 x 1 ISO RS232/RS422/RS485 X 1,  ISO RS-232 x 1
LAN RJ45 X 2 ISO LAN x 1
Audio Built-in Speaker 2W x 2 ; Built-in Microphone x 1; 3.5mm phone jack connector * 2 (Line-out, Mic-In);
Video Out DP x 2
Control Hot Key (R to L) Power Button// Audio adjustment // brightness // LCD on/off // Clean me
Mechanical and Environmental
Cooling Fanless
Power Input DC-In x 1, DC 9~32V input (12V~28V with battery pack)
Power Adapter AC input 90 ~ 264V/ 47~63 Hz/ DC output 12V/ 100W
Temperature Operating Temperature: 0~35℃ (chamber) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 whole system / Front: Full flat design/ Touch (standard)/ Glass( customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing
Dimensions (Net) 450 mm (H) x 420 mm (V) x 85.3 mm (T)
Weights (Net) 7.5 KG (approximate, w/o power adapter)

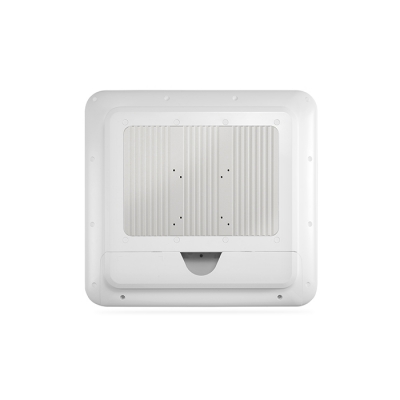

Mounting Optional Stand, VESA 75/100
Certification
CE: EN 60601-1-2:2015(V4.0)
EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance
VCCI: 2016-11, Class B (PSU with PSE), FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
ISO 14971 / IEC62133
Options & Customized

Major Options

Add On Parts

1. 3M Webcam(USB),
2. TPM 2.0 module,
3. Wireless or Wireless + BT kit,
4. RFID (13.56MHz),
5. AG Film (Can’t co-exist with DICOM)
6. PCI-E [x4] riser card,
7. Equipotential Terminal Pin,
8. Full HD Capture Card ,
9. Battery pack (100W max.),
10. mSATA module,
11. 2.5” SSD,
12. 4KV Isolation Card x 1 (Isolation COM x 2, Isolation LAN x 1, Isolation USB x 1)

Optional kits

1.Anti-bacteria Stand,
2.VESA Wall Mount
3.Microphone on I/O cover

Customized

1.USB 5,6 or COM 3,4,
2.Tempered glass

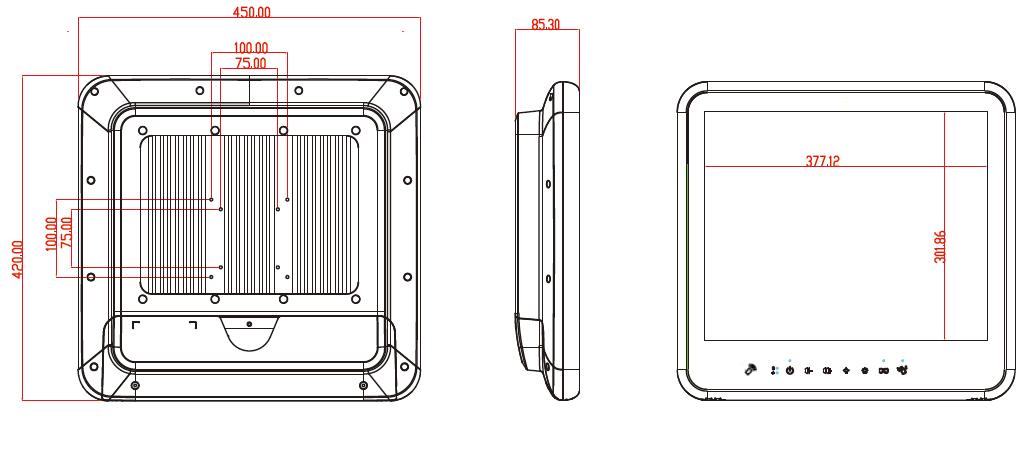

Drawing
proimages/products/WMP-19C/WMP-19C-DRAWING.jpg
