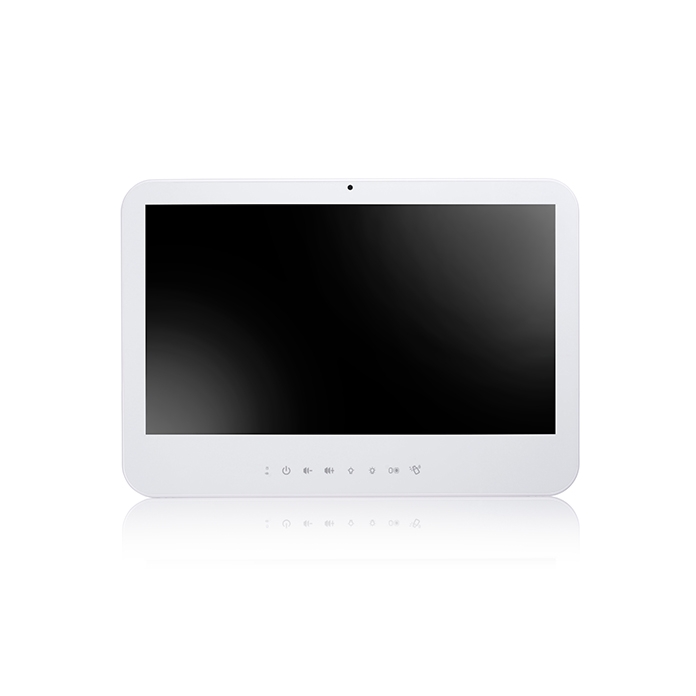

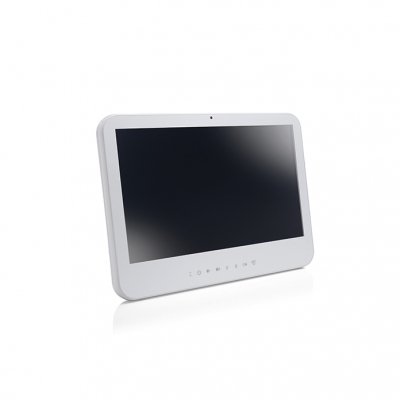

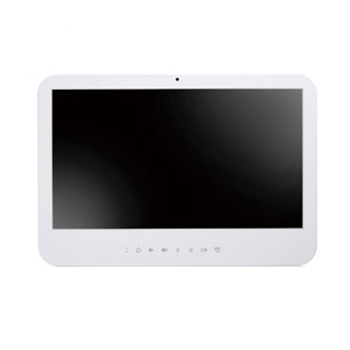

Product Name : WMP-22C Skylake / Kaby Lake 22"
Product Description
  • Intel® 6th/7th i7/i5/i3 Fanless Medical Panel PC
  • 21.5" FHD 1920x1080 LCD panel
  • Highest Level EMC 4.0/ Safety 3.1 Certification Ready
  • Support Intel® vPro by Optional i7/i5 CPU
  • Anti-Bacteria (MRSA) Plastic Housing
  • Friendly Design of Front Function Hot-Keys
  • Optional Built-In Battery Pack
  • Optional PCI-E x 4 Expansion slot
  • Support RAID 0,1
  • Optional DICOM Part 14 Compliance Module
See: Medical Fan All In One Touch Panel PC WMP-22F

eNews: An industry best, the highest performance medical grade panel PC is launched: Wincomm announces WMP-C Series
Product Introduction
Medical AIO Panel PC with Powerful CPU

Integrated with Built-in battery, Non-Stop Operation

These medical all in one panel pc are designed to fulfill versatile clinical applications, incouding EMR, anesthesia applications, operating room environments, and patient charting. One of our most powerful computers for hospitals that want the best in medical hardware.

  • Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and an IPX1 back cover making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 6th/7th Gen Intel Core CPU
    Our medical panel pcs offer the Skylake 6th and Kaby Lake 7th generation Intel® Core i3/i5/i7 processor series.
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. Webcam & RFID antenna & TPM 2.0 & Display interface for up to 2

Product Outlook & Friendly Hot-Key Design


Operate your medical device computer application with more power under the hood

The WMP-22C is ideal for a range of different medical devices and machines in the hospital setting. This 22-inch all-in-one medical PC save space by either to be fixed on a wall or used on powered medical carts to move computing to patient rooms, operating rooms, or labs. Equipped with Intel® Core™ i3, i5, & i7 series Skylake CPUs and up to 32GB of DDR4 RAM has given this medical computer sufficient power to operate hardware.


Optional ISO –COM/LAN/USB to avoid expensive equipment damage

4KV Isolated Interface:

  • Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.
ModelWMP 22C  IP0A (STD)WMP 22C  IP0B (ISO)
Main System
CPU / Chipset Intel® 6th/7th generation Core i7/i5/i3/Celeron processor (15W max.) / SoC
Graphic Intel® integrated HD Graphics
RAM DDR4 Dual-2133 SODIMMl, non-ECC, 4GB to 32GB
OS Support Windows 7 embedded, Windows 7 pro, Windows 8 embedded, Windows 8 industrial, Windows 10 IoT Enterprise LTSC
Storage 2.5” SATA HDD drive bay x 1 ,mSATA via mini PCI-E x 1, Optional 2.5” SATA HDD up to 1TB
Expansion PCI-E x 4 expansion slot (loaded 25W max, can't co-exist with isolated module), Mini PCIe x 1, M.2 Type E, Optional Network Interface: 802.11 ac/a/b/g/n WLAN + Bluetooth module
Display Size 21.5” wide TFT-Color LCD (16:9)
Display 1920 x 1080 (Full HD), 16.7M colors (RGB 8 bit, Hi FRC 2 bit), 170(H) / 160(V), 250 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel / Light Transmission: ≧84% / Hardness: ≧7H pencil, pressure 765g/45° / Life: 50000 hours

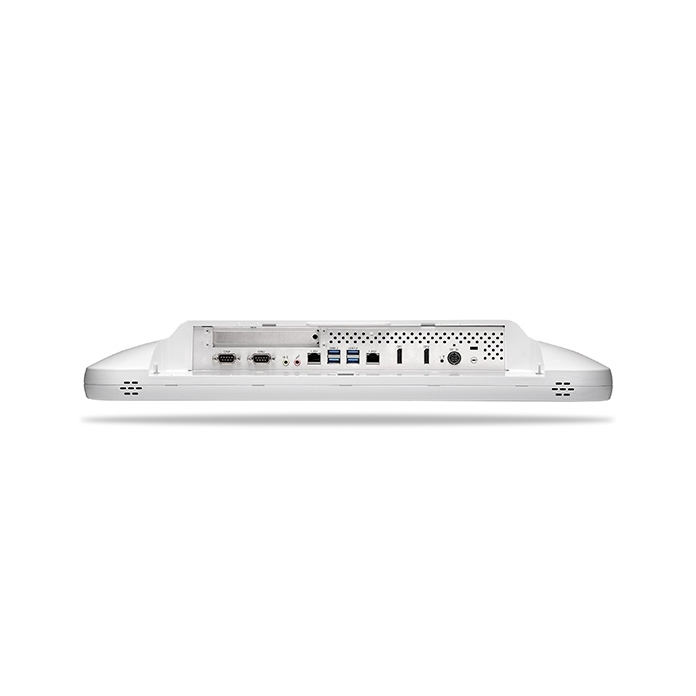

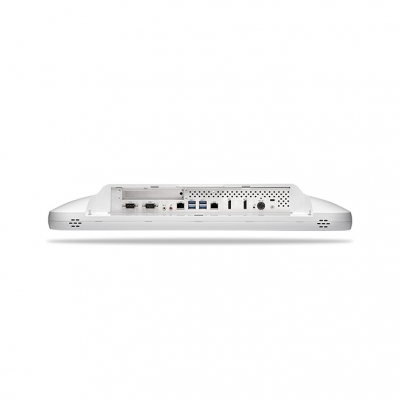

I.O. Ports
USB USB3.0 X 4 USB3.0 X 2, USB2.0 X 2, ISO USB2.0 X 1
COM RS232/RS422/RS485 X 1
RS-232 x 1
RS232/422/485 X 1,RS-232 X 1
ISO RS232/RS422/RS485 X 1, ISO RS-232 x 1
LAN RJ45 X 2 RJ45 X 2, ISO RJ45 x 1
Audio Built-in Speaker 1.5W x 2 ; Built-in Microphone x 1; 3.5mm phone jack connector * 2 (Line-out, Mic-In);
Video Out DP x 2
Control Hot Key (R to L) Power Button// Audio adjustment // brightness // LCD on/off // Clean me
Mechanical and Environmental
Cooling Fanless
Power Input DC-In x 1, DC 9~32V input (12V~28V with battery pack)
Power Adapter AC input 90 ~ 264V/ 47~63 Hz/ DC output 12V/ 100W
Temperature Operating Temperature: 0~35℃ (chamber) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side) / Front: Full flat design/ Touch (standard)/ Glass(customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing

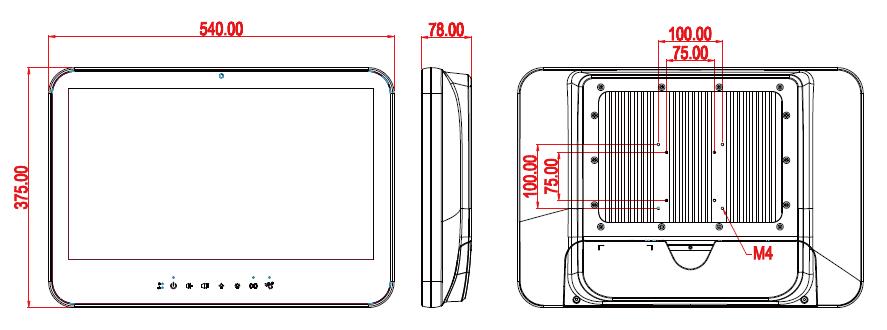

Dimensions (Net) 540 mm (H) x 375 mm (V) x 78 mm (T)
Weights (Net) 7.0 KG (approximate, w/o power adapter)

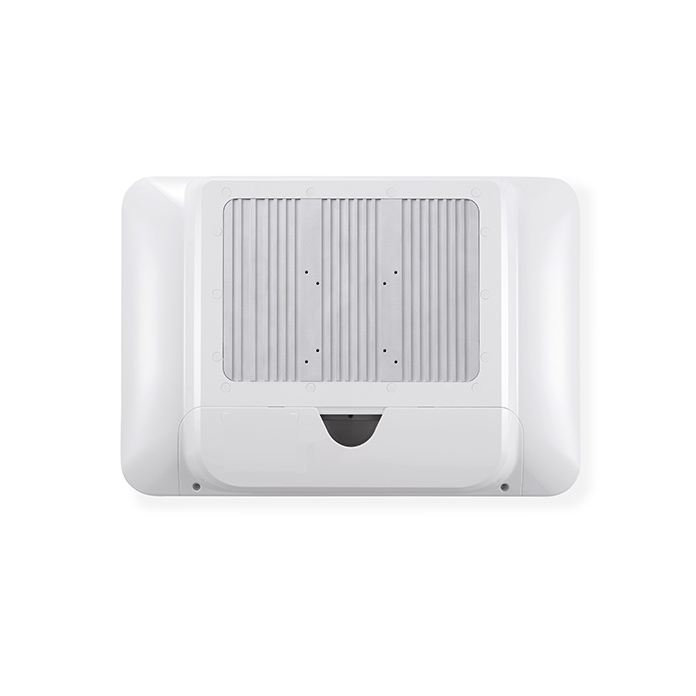

Mounting Optional Stand, VESA 75/100
CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance
VCCI: 2016-11, Class B (PSU with PSE), FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
ISO 14971 / IEC62133
Options & Customized

Major Options

Add On Parts

1. 3M Webcam(USB)
2. TPM 2.0 module
3. Wireless or Wireless + BT kit
4. RFID (13.56MHz)
5. AG Film
6. PCI-E [x4] riser card
7. Equipotential Terminal Pin
8. Full HD Capture Card
Battery pack (100W max.)
10. mSATA module
11. 2.5" SSD
12. 4KV Isolation Card x 1 (Isolation COM x 2, Isolation LAN x 1, Isolation USB x 1)

Power Cable

1. Power adaptor w/ 2m DC extension cable
2. Power plug holder
3. Microphone on I/O cover

Optional kits

1. Anti-bacteria Stand,
2. VESA Wall Mount


1. Temper Glass;
2. Extra USB x 2 or COM x 2,
DICOM Part 14 Compliance Module
