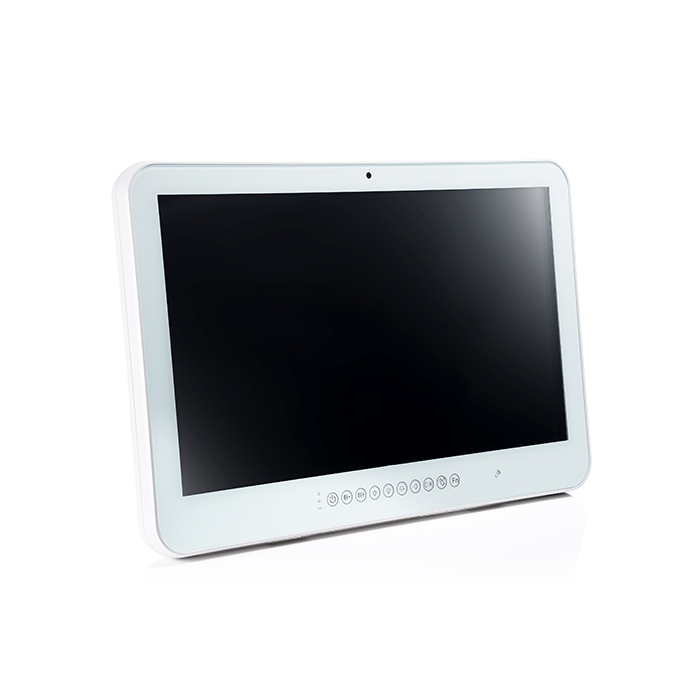

Product Name : WMP-24C Skylake / Kaby Lake 24"
Product Description
  • Intel® 6th / 7th Gen Core i Fanless Medical Panel PC
  • 23.8" FHD 1920x1080 MVA & Optional 4K2K LCD panel
  • Medical Certification MDR 2017/745 Ready
  • Support Intel® vPro by Optional i7/i5 CPU
  • Anti-Bacteria (MRSA) Plastic Housing
  • Friendly Design of Front Function Hot-Keys

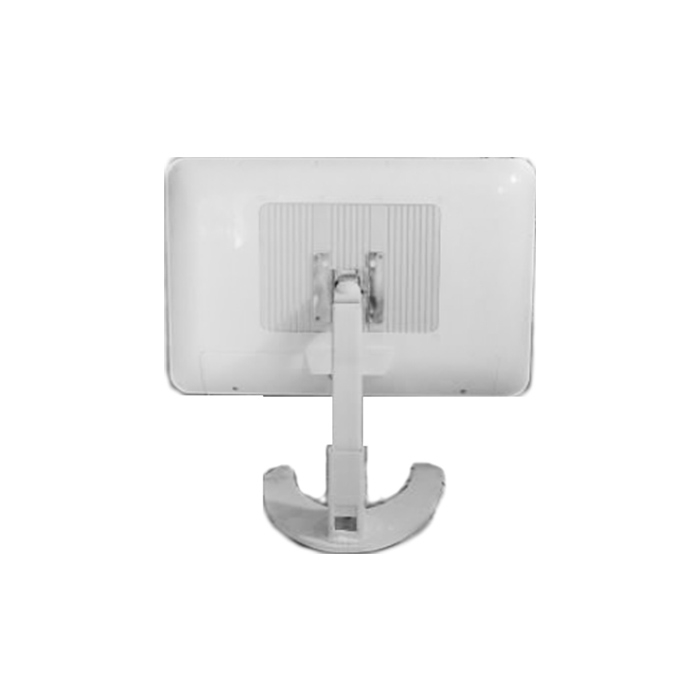

  • Support Rear IP54 Solution
  • Support RAID 0,1
  • Opional DICOM Part 14 Compliance Module
See: Medical Fan All In One Touch Panel PC WMP-24F

eNews: WMP-24C used in Euro hospital endoscopic system
eNews: An industry best, the highest performance medical grade panel PC is launched: Wincomm announces WMP-C Series
Product Introduction
Medical AIO Panel PC with Powerful Skylake / Kaby Lake CPU

Integrated with Built-in battery, Non-Stop Operation

These medical all in one panel pc are designed to fulfill versatile clinical applications, incouding EMR, anesthesia applications, operating room environments, and patient charting. One of our most powerful computers for hospitals that want the best in medical hardware.

  • Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and an IPX1 back cover making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 6th & 7th  Gen Intel Core CPU
    Our medical panel pcs offer the Skylake 6th and Kaby Lake 7th generation Intel® Core i3/i5/i7 processor series.
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. Webcam & RFID antenna & TPM 2.0 & Display interface for up to 2
proimages/1-1/WMP-24F.jpgproimages/seefeature/WMP-226奧地利醫院.png

FHD, MVA panel, True 8 bit-Visual Clearance to Secure Medical Image Safety

proimages/seefeature/pic-03.jpg

FHD MVA Panel Featured:

Consistently Clear and Precise Images

  • Wide view angle: 178(H)/178(V)
  • High CR, 3000:1
  • Up to 16.7M Colors w/RGB 8 bit
  • 16:9, LED Backlight

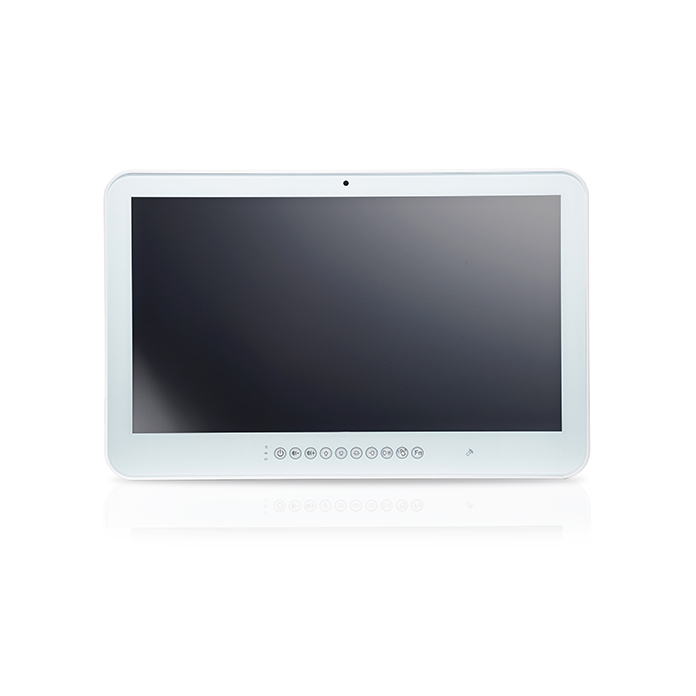

Product Outlook & Friendly Hot-Key Design

proimages/seefeature/pic-04.jpg

Optional USB3.1 gen II (USB5,6) for high speed device

proimages/seefeature/pic-05.jpg
proimages/seefeature/pic-06.jpg

Optional ISO –COM/LAN/USB to avoid expansive equipment damage

4KV Isolated Interface:

  • Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.
Specification
ModelWMP 24C  IPOA (STD)WMP 24C  IPOB (USB3.1)WMP 24C  IPOC (ISO)
Main System
CPU / Chipset Intel® 6th / 7th generation Core i7/i5/i3/Pentium processor (35W & LGA package)
Graphic Intel® integrated HD Graphics
RAM DDR4 Dual-2133 SODIMMl, non-ECC, 4GB to 32GB
OS Support Windows 7,  pro, Windows 8, Windows 8 industrial, Win 10
Storage 2.5” SATA HDD drive bay x 1, mSATA via mini PCI-E x 1, Optional 2nd 2.5” SATA HDD
Expansion PCI-E (x16) x 1, Mini PCIe x 1 (52 pin card-edge type), M.2 E x 1
Display Size 23.8” wide TFT-Color LCD (16:9)
Display 1920 x 1080 (Full HD), 16.7M colors (MVA, 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel /  Light Transmission: 90% ± 3% / Hardness: 7H pencil, pressure 750g/45° / Life: 100M times

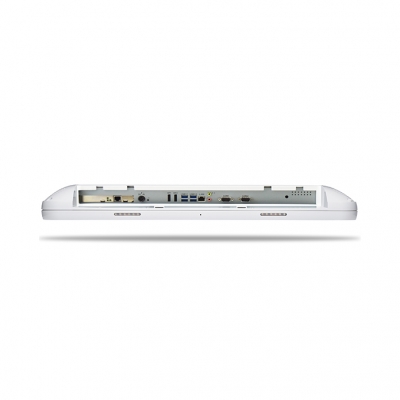

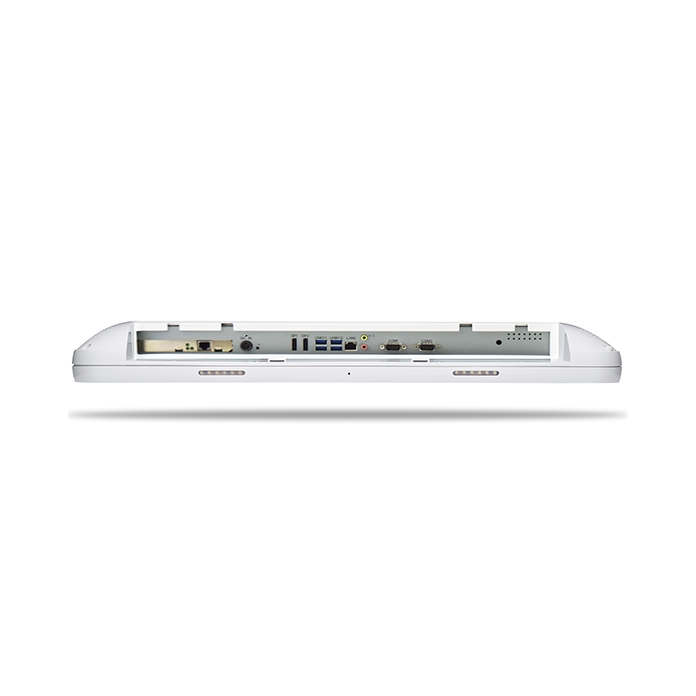

I.O. Ports
USB USB3.1 Gen II x 2, USB3.0 X 2  USB3.0 x 2, USB 3.1 Gen. II X 2, USB3.0 X 2  USB3.0 x 2, USB 3.1 Gen. II X 2,  ISO USB2.0 X 1
COM RS-232 x 2 RS-232 x 1, RS232/RS422/RS485 X 1 ISO RS-232 x 1, ISO RS232/RS422/RS485 X 1
LAN RJ45 X 1 RJ45 x 2 RJ45 x 2, ISO LAN x 1
Audio Built-in Speaker 2W x 2 (Realtek ALC262 A, 2+2 watts power amplifier); Built-in Microphone x 1; 13.5mm phone jack connector * 2 (Line-out, Mic-In);
Video  DP x 2, Opional Video-in
Reading light Light bar x 2
Control Hot Key (R to L) Power // Audio adjustment // brightness // Reading Light // Video input selection // LCD on/off // Clean me(auto release after 1 minute) // Fn
Mechanical and Environmental
Cooling Fanless
Power Input  DC-In x 1,  DC 9~32V input
Power Adapter AC input 100 ~ 240V /47 ~ 63 Hz /DC output 24V/ 180W
Temperature Operating Temperature: 0~40℃ (chamber) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing Front IP65 & rear IP54 (Option), IPx1 whole system / Front: Full flat design/ Touch (standard)/ Glass( customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing
Dimensions (Net) 606.0mm (H) x 398.mm (V) x 65.6mm (T)
Weights (Net) 9.7 KG (approximate, w/o power adapter)
Mounting Optional Stand, VESA 100
Certification FCC/CE/VCCI Class B, cULus/EN/UL/60601-1, 60601-1-2 4th Edition, MDR 2017/745, IEC62133
Options & Customized

Major Options

Add On Parts

1. 5M AF Webcam,
2. TPM 2.0 module,
3. Wireless or Wireless + BT kit,
4. RFID (13.56MHz),
5. AG Film (Can not co-exist with DICOM module),
6. PCIe(X16) Video grabber capture card by H/W compressed or PCIe Video grabber capture card by S/W compressed
7. Equipotential Terminal Pin
8. Embedded Battery pack  (100 max. PCI-e support, can’t use when booting/S3 wake up)
9. mSATA module
10. Smart card reader (USB) / or DVD drive / or 2nd HDD,
11. Up to 6 x USB,
12. Up to 6 x COM,
13. Video-in x 1
14. DICOM Part 14 Compliance Module
15. 2.5" SSD or 2nd 2.5" HDD
16. Rear IP54 Solution

Power Cable

1. Power adaptor w/ 2m DC Extension Cable,
2. Power plug holder

Optional kits

1. Anti-bacteria Stand,
2. VESA Wall Mount

Customized

1. PCI riser card  (BIOS change under Win 10),
2. Tempered Glass
3. 4K2K UHD Display

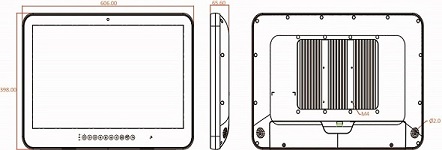

Drawing
proimages/products/WMP-24C/WMP-24C-DRAWING.jpg
