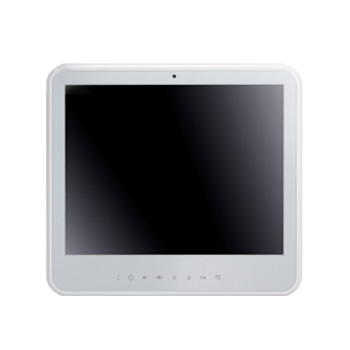

Product Name : WMP-19F Skylake/Kaby Lake 19"
Product Description
  • Intel® Skylake/Kaby Lake i7/i5 Medical Panel PC
  • 19" 1280x1024 LCD panel
  • Highest Level EMC 4.0/ Safety 3.1 Certification Ready
  • Support Intel® vPro by Optional i7/i5 CPU
  • Anti-Bacteria Plastic Housing
  • Friendly Design of Front Function Hot-Keys
  • Support RAID 0,1
  • Optional PCI-E x16 Expansion Slot
  • Optional Built-In Battery Pack
  • Optional 4KV LAN/COM/USB Isolated I/O
  • Optional DICOM Part 14 Solution
See: Medical Fanless All In One Touch Panel PC WMP-19C

eNews: 6th generation Skylake platform Medical grade touch Panel PC WMP-24F/22F/19F
Product Introduction
Medical AIO Panel PC with Powerful Skylake / Kaby Lake CPU

Integrated with Built-in battery, Non-Stop Operation

These medical all in one panel pc are designed to fulfill versatile clinical applications, incouding EMR, anesthesia applications, operating room environments, and patient charting. One of our most powerful computers for hospitals that want the best in medical hardware.

  • Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and an IPX1 back cover making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 6th/7th Gen Intel Core CPU
    Our medical panel pcs offer the Skylake 6th / Kaby Lake 7th generation Intel® Core i3/i5/i7 processor series.
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. Webcam & RFID antenna & TPM 2.0 & Display interface for up to 2

Product Outlook & Friendly Hot-Key Design


Operate your medical device computer application with more power under the hood

The WMP-22F is ideal for a range of different medical devices and machines in the hospital setting. This 22-inch all-in-one medical PC save space by either to be fixed on a wall or used on powered medical carts to move computing to patient rooms, operating rooms, or labs. Equipped with Intel® Core™ i3, i5, & i7 series Skylake CPUs and up to 32GB of DDR4 RAM has given this medical computer sufficient power to operate hardware.


Optional ISO –COM/LAN/USB to avoid expensive equipment damage

4KV Isolated Interface:

  • Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.
ModelWMP 19F  IP0A (STD)WMP 19F  IP0B (ISO)
Main System
CPU / Chipset LGA1151 package 6th/7th generation Intel® Core i7/i5/i3/Celeron processor (35W max.)
Graphic Intel® integrated HD Graphics
RAM DDR4 Dual-2133 SODIMMl, non-ECC, 4GB to 32GB
OS Support Windows 7 embedded, Windows 7 pro, Windows 8 embedded, Windows 8 industrial, Windows 10 IoT Enterprise LTSC
Storage 2.5” SATA HDD drive bay x 1, mSATA via mini PCI-E x 1, Optional 2.5” SATA HDD up to 500GB
Expansion PCI-E x 16 expansion slot (loaded 25W max, can't co-exist with isolated module), Mini PCIe x 2
Display Size 19” wide TFT-Color LCD (16:9)
Display 1280 x 1024 (SXGA ), 16.7M colors (RGB 6 bit, Hi FRC 2 bit), 170(H) / 160(V), 350 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel /  Light Transmission: 90% ± 3% / Hardness: 7H pencil, pressure 750g/45° / Life: 100M times

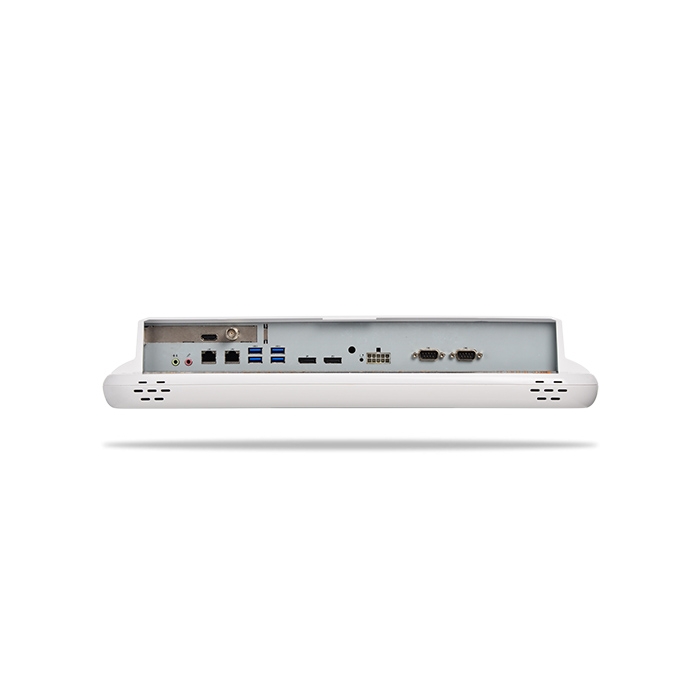

I.O. Ports
USB USB3.0 X 4 USB3.0 X 4,  ISO USB2.0 X 1
COM RS-232 x 1, RS232/RS422/RS485 X 1 RS232/RS422/RS485 X 1, RS-232 x 1
ISO RS232/RS422/RS485 X 1, ISO RS-232 x 1
LAN RJ45 X 2 RJ45 x 2, ISO RJ45 x 1
Audio Built-in Speaker 2W x 2 ; 3.5mm phone jack connector * 2 (Line-out, Mic-In)
Video Out DP x 1, DVI x 1

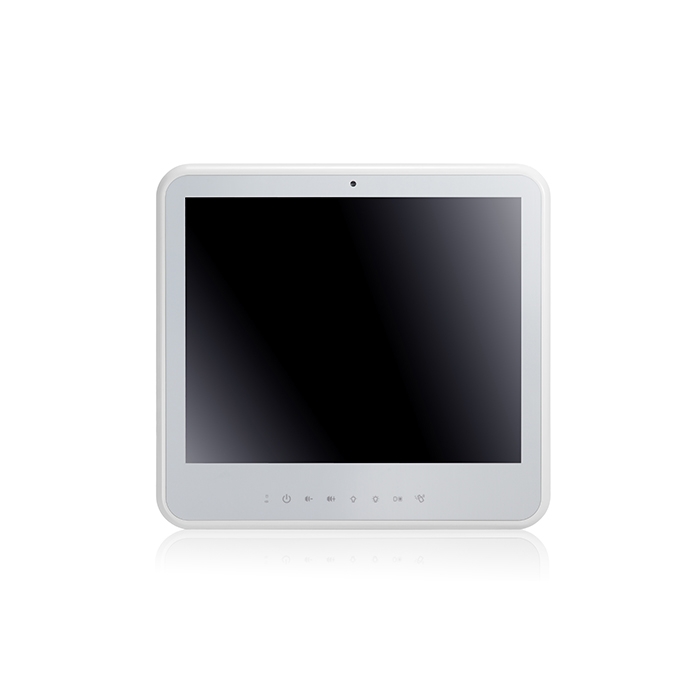

Control Hot Key (R to L) Power Button// Audio adjustment // brightness // LCD on/off // Clean me
Mechanical and Environmental
Cooling Fan
Power Input  DC-In x 1, DC 7~32V input (9V~28V with battery pack)
Power Adapter AC input 100 ~ 240V/ 47~63 Hz/ DC output 24V, 180W
Temperature Operating Temperature: 0~40℃ (chamber) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 whole system / Front: Full flat design/ Touch (standard)/ Glass( customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing

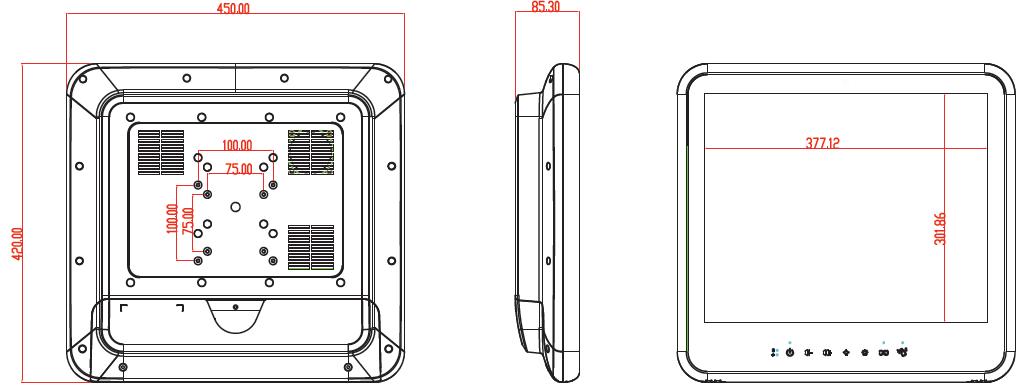

Dimensions (Net) 450 mm (H) x 420 mm (V) x 85.3 mm (T)
Weights (Net) 7.5 KG (approximate, w/o power adapter)

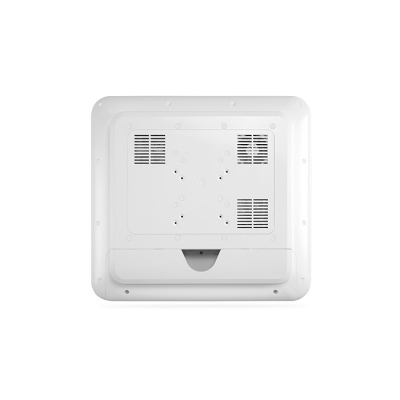

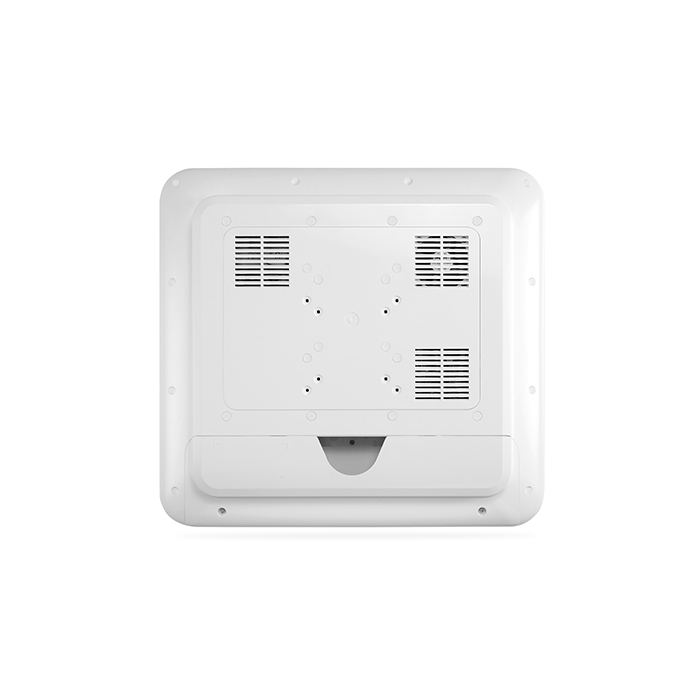

Mounting Optional Stand, VESA 75/100
CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance
VCCI: 2016-11, Class B (PSU with PSE), FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
ISO 14971 / IEC62133
Options & Customized

Major Options

Add On Parts

1. 3M Webcam(USB),
2. TPM 2.0 module,
3. Wireless or Wireless + BT kit,
4. RFID (13.56MHz),
5. AG Film (Not suggest under DICOM condition),
6. PCI-E [x16] riser card,
7. Equipotential Terminal Pin,
8. 2.5" SSD,
Battery pack (100W max.) Support add-on card 18W max
10. mSATA module
11. Full HD Capture Card
12. 4KV Isolation Card x 1 (Isolation COM x 2, Isolation LAN x 1, Isolation USB x 1),
13. DICOM Part 14 Compliance Module

Power Cable

1.Power adaptor w/ 2m extension cable
2.Power plug holder

Optional kits

1.Anti-bacteria Stand,
2.VESA Wall Mount


1.Temper Glass;
2. Extra USB x 2 or COM x 2
