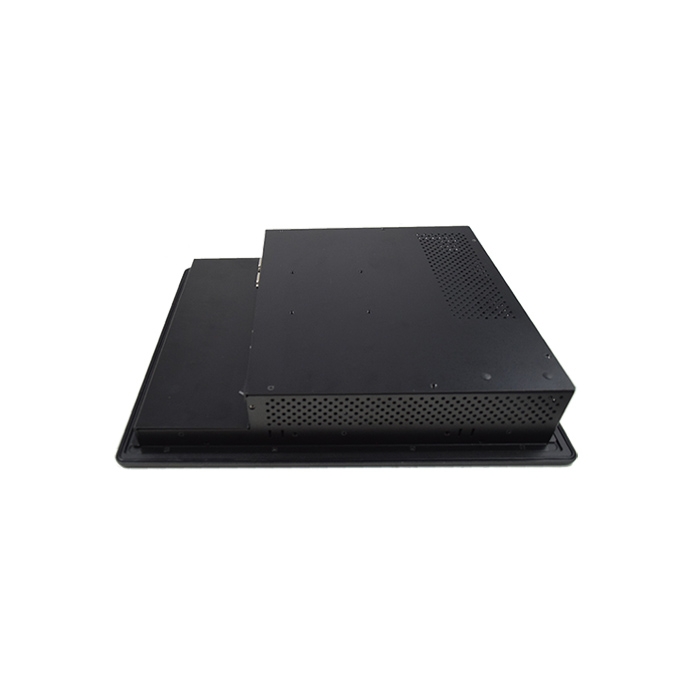

Product Name : WLP-7E20 Apollo Lake 15"
Product Description
  • Intel® Apollo Lake J3455 1.5 Ghz
  • 15" 1024x768 LCD
  • Low Power Fanless Thermal Solution
  • Panel Mounted w/ Full Flat Resistive or P-Cap Touch
  • CE, FCC, VCCI Class B Certified
  • Full Flat Design Easy Clean & IP66 Front
  • Wide Range DC Input
  • Optional WLAN with External Antenna
eNews: Wincomm White Paper : How to Bring Differentiated AIoT Solutions to Rugged Industries
Product Introduction

Fanless Touch Panel PC Professionals

  • 24/7 operation under 0~50°C & high ambient light without limitation
  • Water/dust proof guarantee
  • No corrosion after long-term usage
Specification
ModelWLP-7E20-15
Main System
CPU / Chipset Intel® Apollo Lake Celeron J3455 Processor, 1.5 Ghz, 10W
Graphic Intel® integrated HD 500 Graphics
RAM Dual Channel Support 1867MHz DDR3L SODIMM X2, up to 8GB
OS Support Win 10 (64bit)
Storage 2.5” SATA HDD up to 500GB w/Anti-Vibration Kit, Optional M.2 (KEY M, 2242/2260) SSD X 1
Expansion M.2 (KEY E, 2230) PCIe x 1 (Shared USB 2.0  x 1), Mini PCIe x 1(Shared USB 2.0  x 1)
Display Size 15” 4:3
Display 1024 x 768 (XGA),  160(H) / 160(V), 350 nits (Typ. Center point), CR: 800 : 1 (Typ)
Touch Screen Full Flat Projective Capacitive Touch Panel / Light Transmission: >=86% / Hardness: 7H pencil / Life: 100M times
5 Wire Full Flat Res. Touch / Light Transmission: 80% ± 5% / Hardness: >=3H pencil / Life: 35M times
I.O. Ports
USB USB 3.0 x4
COM RS232 x 2, RS232/RS422/RS485 x 1
LAN RJ-45 X 2
Audio 3.5mm phone jack connector x 2 (Line-out,  Mic-in)
Video HDMI 1.4b (output) x 1, VGA x 1
Control Keys  Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC-in x 1 (Jack with locker),  DC19 ~ 24V / TBD W
Power Adapter 60 Watts,100 ~240V AC in, 19V DC out, 3.15A (PSU with PSE)
Temperature Operating Temperature: 19V DC Input 0~50℃ (air flow cooling)
Storage Temperature: -20~65℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66 at front, IK05 / Front bezel is Aluminum, others are SECC with black coating
Dimensions (Net) 398 mm (H) x 330 mm (V) x 58 mm (T)
Weights (Net) 6.4 kg (w/o power adapter/battery pack)
Mounting Panel mount (by clamp), VESA (75x75)
Certification FCC/CE/VCCI Class B, Canada ICES-003
Options & Customization

Major Options

Add On Parts

1. Wireless and BT kit (2 ant),
2. Stainless front bezel,
3. Silver front bezel,
4. USB 2.0 x 2,
5. 2.5" SSD
6.  TPM 2.0

Add On Cable

1. Maximum length is 7.2 meters by 3x2m DC cables

Customization

1. Storage door Solution
2. Chassis type housing
3. Open frame housing
4. Sunlight readable by 1000 nit LCD + optical bonding (Impact protection level: IK08)
5. M.2 SSD
6. 2nd HDD for RAID 0,1

proimages/products/WLP_BKPT_BKFT/WLP_15/DW_WLP-7E20-15.JPG
