Product Introduction
Best Suit for Non-Powered Medical Carts
Up to Three Hot Swappable Batteries
These medical cart panel PC with hot swappable batteries are designed to be used with non-powered carts. Hot swap batteries provide up to 8-10 hours of up time on a single charge. Wincomm innovated i-Control intelligent management SW to optimize CPU, Thermal, and Power performance to utilize computing performance to secure medical professionals using safty in any condition while under mobile medical cart applications.

  • Anti-MRSA Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing, including touch panel, to battle surface contamination (MRSA), an IP65 rated sealed front bezel making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 7th  Gen Intel Core CPU
    Our medical cart computers offer the Kaby Lake 7th generation Intel Core i3/i5/i7 processor series.
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. 5M Webcam & RFID antenna & TPM 2.0 & DP display interface for up to 2

Hot Swappable Batteries x 3 – normal operation time over 8-10 hours for nursing cart usage

Hot Swappable Batteries Designed by Wincomm Featured:

  • Compatible with all WMP G/H series
  • Battery Indicator LED light
  • Medical Grade Certification with WMP G/H series
  • Non-stop Swappable Battery architecture
  • High Electricity Current Battery to fulfill High Medical Image Process
proimages/products/WMP-22G/WMP-22G_Battery.jpg
proimages/seefeature/WMP_GH/WMP2.jpg

FHD, MVA panel, True 8 bit-Visual Clearance to Secure Medical Image Safety

proimages/seefeature/pic-03.jpg

FHD MVA Panel Featured:

Consistently Clear and Precise Images

  • Wide view angle: 178(H)/178(V)
  • High CR, 3000:1
  • Up to 16.7M Colors w/RGB 8 bit
  • 16:9, LED Backlight

Product Outlook & Friendly Hot-Key Design

proimages/seefeature/pic-04.jpg

Optional USB3.1 gen II (USB5,6) for high speed device

proimages/seefeature/pic-05.jpg
proimages/seefeature/pic-06.jpg

Optional ISO –COM/LAN/USB to avoid expensive equipment damage

4KV Isolated Interface:

  • Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.

Smaller and light power M.2 interface SSD

Higher Speed Quick Start 2260 M.2 type SATA SSD to Suit for Rich Medical Imaging Processing, such as DICOM® (Digital Imaging and Communications in Medicine) Part 14.

proimages/seefeature/WMP_GH/DICOM.PNG

30 Watt Power Output for External Device

proimages/products/WMP-24J/WMP-22J_30W_Power_Output_Card_4.png
Specification
ModelWMP 24G  IP0A (STD)WMP 24G  IP0A (USB3.1)WMP 24G  IP0A (ISO)
Main System
CPU / Chipset FCBGA1356 Kabylake 7th generation Intel® Core i7/i5 processor, Optional Vpro by Core i7/i5 CPU
Graphic Intel® integrated HD Graphics 620
RAM DDR4 Dual-2133 SODIMMl, non-ECC, 4GB to 32GB
OS Support Win 10 IoT Enterprise LTSC
Storage 2.5” SSD, 128 to 512 GB,  Optional Second Storage M.2  SATA SSD 2260 up to 512GB
Expansion PCI-E (x4) x1, Mini PCIe x1, M.2 Type E x1
Display Size 23.8” wide TFT-Color LCD (16:9)
Display Option 1: 1920 x 1080 (Full HD), 16.7M colors (MVA, 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel /  Light Transmission: ≥ 87% / Hardness: ≥7H pencil, pressure 765g/45° / Life: 50000

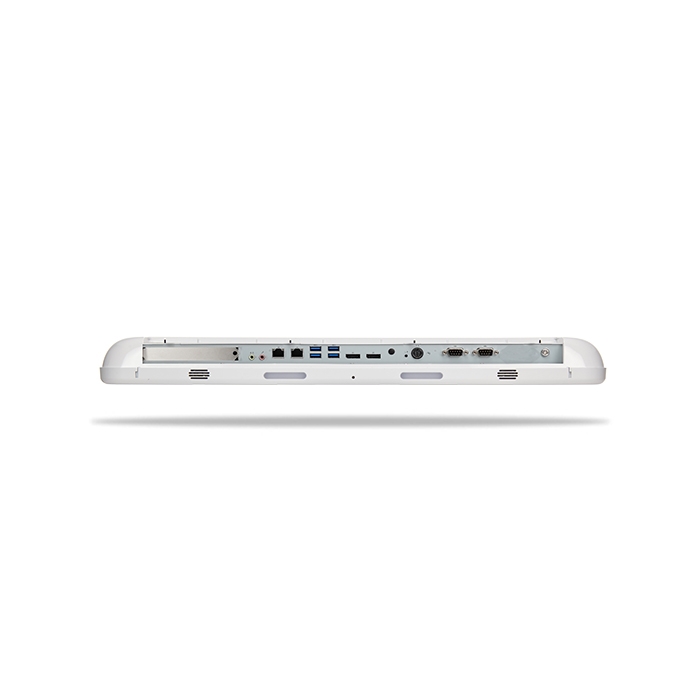

I.O. Ports
USB USB3.0 x 4, Optional Side
USB3.0 X 2 (via Mini PCIe)
USB3.0 x 4, USB 3.1 Gen. II X 2, Optional Side USB3.0 X 2 (via Mini PCIe) USB3.0 x 4,  ISO USB2.0 X 1, Optional Side USB3.0 X 2 (via Mini PCIe)
COM RS232/RS422/RS485 X 1
RS-232 x 1
RS232/RS422/RS485 X 1
RS-232 x 1
ISO RS232/RS422/RS485 X 1
ISO RS-232 x 1
LAN RJ45 X 2 RJ45 x 2 RJ45 x 2, ISO LAN x 1
Audio 3.5mm phone jack connector * 2 (Line-out, Mic-In)
Video Out DP x 2
Reading light Light bar x 2
Control Hot Key (R to L) Battery LED Indicator; Power; Audio Volume; Brightness; Reading Light; LCD Light On/Off; Clean Me; Programmable Function
Mechanical and Environmental
Cooling Fanless
Battery Pack Optional DR-202 Series, Li-ion Battery x 3
Power Input DC-In x 1, DC 14~28V input
Power Adapter AC input 100~240V / 47 ~ 63 Hz / DC output 24V, 180W
Temperature Operating Temperature: 0~40℃ (Burn-in, not airtight, W/ Battery 0~35℃) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 for Whole System/ Front: Full flat design/ Touch (standard)/ Glass (customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing
Dimensions (Net) 594.0mm (H) x 397.0mm (V) x 56mm (T)
Weights (Net) 9.0 kg (w/o power adapter/battery pack)
Mounting Optional Stand, VESA 100 x 100
Certification CE: EN 60601-1-2:2015(V4.0)
EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance
VCCI: 2016-11, Class B (PSU/Battery with PSE)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
ISO 14971 / IEC62133
Options & Customization

Major Options

Battery & Charger

 1. Battery Pack: 3 x DR-202 Series, Li-ion Battery 10.8V
 2. Charger Bank: JW202W2

Add On Parts

 1. 5M AF Webcam
 2. TPM 2.0 module
 3. Smart card reader
 4. RFID (13.56MHz)
 5. AG Film
 6. 802.11 ac/a/b/g/n WLAN + Bluetooth 4.1 module
 7. Equipotential Terminal Pin
 8. Full HD capture card
 9. USB 3.0 x 2 at side (Type A) via miniPCIe module
 10. USB 3.1 gen2 (USB 5,6) (optional order configuration)
 11. 2.5” HDD module
 12. 5V1A Power Jack (for Standard & USB 3.1 gen2 Type)
 13. Isolated 4KV module (optional order configuration)

Power Cable

 1. Power adaptor w/ 2m DC Extension Cable
 2. Power plug holder
 3. Microphone on I/O cover

Optional kits

 1. Anti-bacteria Stand
 2. VESA Wall Mount

Customized

 1. Temper Glass
 2. COM Port support 5V1A
 3. 4K2K UHD Display
 4. AG Coating
 5. M.2 SATA SSD 2260 module

proimages/products/WMP-24G/WMP-24G_DW-01-01.JPG
