Model | WPC-766E | ||
---|---|---|---|
Main System | |||
CPU / Chipset | LGA1151 package 6th/7th generation Intel® Core i7/i5/i3/Pentium processor (35W max.) / Intel® Q170 Chipset (Intel GL82Q170 PCH) | ||
Graphic | Intel® integrated HD Graphics 530 | ||
RAM | Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB | ||
OS Support | Win 7 pro, Win 7 embedded, Win 8 embedded, Win 8 industrial, Win10 | ||
Storage |
2.5”SATA SSD drive bay x 1, Optional 2nd 2.5” SSD drive bay
Optional mSATA Co-share space with mini-PCIe
|
||
Expansion |
PCI-E [x16] expansion slot x 1,
Mini-PCIe x 2 (Half support mini-PCIe, Full support mini-PCIe/mSATA)
|
||

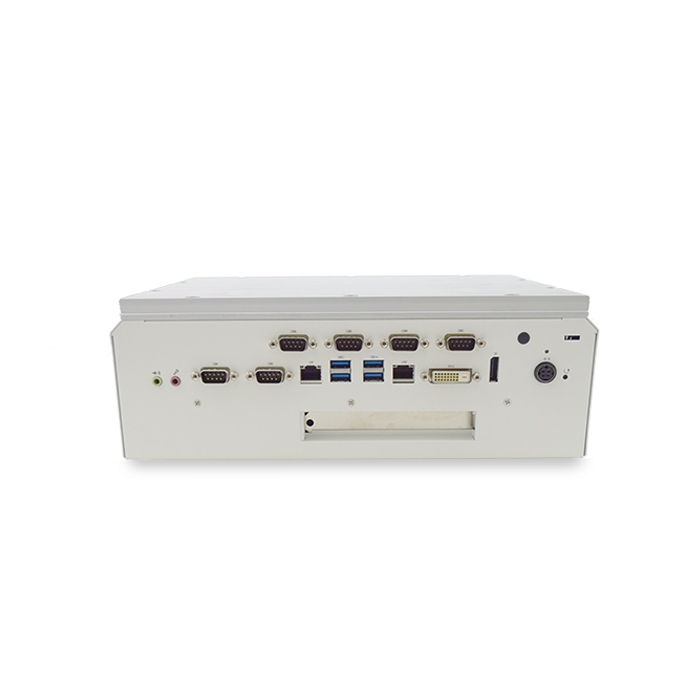

I.O. Ports | |||
USB | USB3.0 x 4 | ||
COM | RS232 x 5, RS232/422/485 x 1 | ||
LAN | RJ-45 x 2 ,Gigabit | ||
Audio | Line-out, Microphone-in | ||
Video Out | DVI-D x 1 + DP x 1 | ||

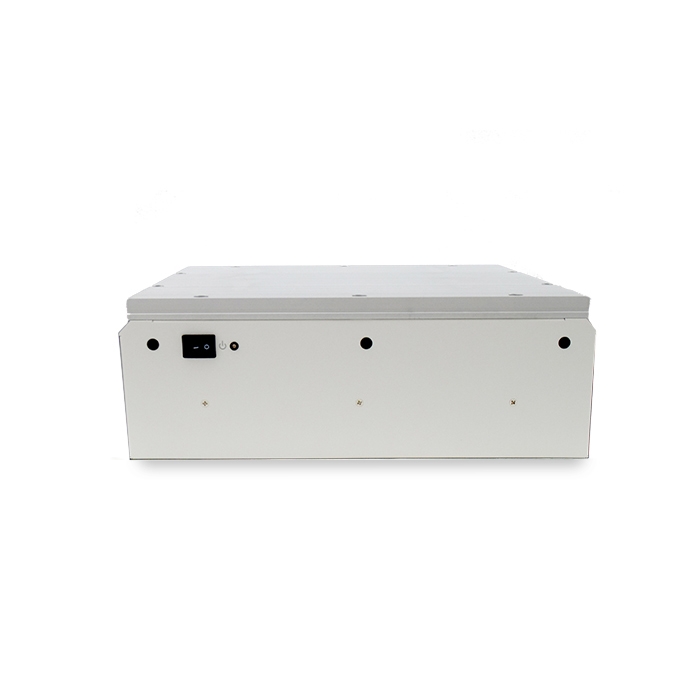

Control Hot Key (R to L) | Power on/off, reset | ||
Mechanical and Environmental | |||
Cooling | Fanless | ||
Power Input / Consumption | DC-in x 1, 9V~28V / 79.8 W (Full loading without Power Adapter) | ||
Power Adapter | AC input 100 ~ 240V / 47 ~ 63 Hz / DC output 12V, 100W,1.2m DC cable (Medical Grade) | ||
Temperature | Operating Temperature: 0~35℃ (Standard) / Storage Temperature: -20~60℃ | ||
Humidity | Operating & Storage:10 ~ 90%, non-condensing | ||
Housing | Silver aluminum heatsink and white coating housing (Optional Black heatsink/ housing | ||

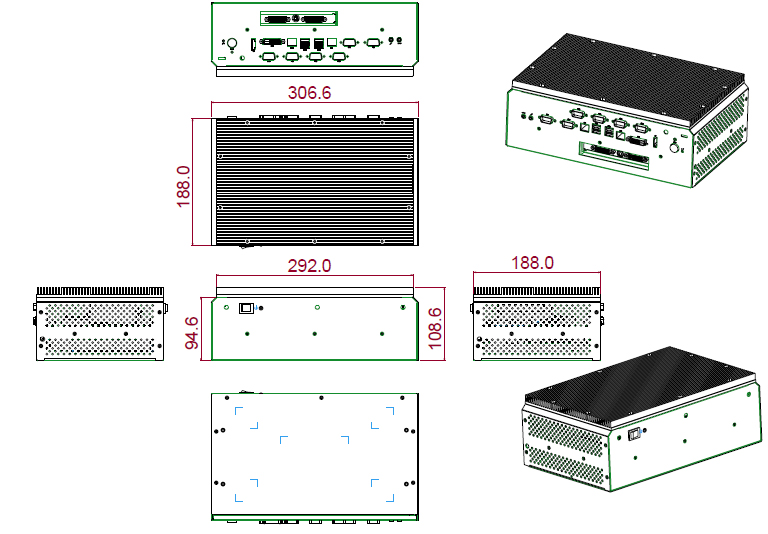

Dimensions (Net) | 306.6 mm (H) x 188 mm (V) x 108.6 mm (T) | ||
Weights (Net) | 4.0 kg (w/o power adapter/battery pack) | ||
Certification |
CE: EN 60601-1-2:2015(V4.0),
MDD: EN 60601-1:2006/A1:2013(V3.1)
VCCI: 2016-11, Class B (PSU/Battery with PSE)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
ISO 14971 / IEC62133
|
Major Options | |
---|---|
Add On Parts |
1 802.11 ac/a/b/g/n WLAN + BT4.1 module (M.2 via Mini PCIe adapter with two antenna)
2 Equipotential terminal pin
3 TPM 2.0 module
4 mSATA module
5 PCI-E x 16 riser card (Support 35W max.)
6 2nd 2.5” SSD
7 Battery pack
8 Full HD capture card
9 Isolated 4KV module
4KV Isolated USB 2.0 connector x 1
4KV Isolated Giga LAN connector x 1
4KV Isolated COM connector x 2 (one is RS-232, one is RS-232/422/485 by jump setting)
|
Power Cable |
1. Power adaptor w/ 2m DC Extension Cable
|
Customized |
1. Black heatsink/ housing, |
