Specification
ModelWTP-9G66-15
Main System
CPU / Chipset FCBGA1356 8th generation Intel® Core i7/i5 processor 15W max. / Soc
Graphic Intel® integrated HD Graphics
RAM
Dual channel support 2666MHz DDR4 SODIMM socket x 2,up to 32GB
OS Support Windows 10 (64 bit) / Windows 11 (64 bit)
Storage 2.5” SATA  drive bay x 1
Expansion Mini PCIe x 1, M.2 Type E x 1
Display Size 15” TFT-Color LCD (4:3)
Display 1024 x 768(XGA),  160(H) / 160(V), 350 nits (Typ. Center point), CR:800 : 1 (Typ)
Touch Screen Full Flat Resistive touch /  Light Transmission: 80 ± 5% / Hardness: 4H
I.O. Ports
ConfigurationSTD. (M12 Connector)Cable Gland (Max. 5 external I/O by proper grommet)
USB 1 x M12 8pin for USB 2.0 1/2, 1 x M12 8pin for USB 2.0 3/4 USB 3.1 x 4
COM
1 X M12 8pin for COM 1/RS-232,
1 X M12 8pin for COM 2/RS-232/422/485
RS232/RS422/RS485 x 2
LAN 1 x M12 8pin for LAN x 1 ( i219LM for Vpro ) RJ-45 x 2 (Gigabit Ethernet)
Audio N.A. 3.5mm phone jack connector * 2 (Line-out, and Mic-in)
Video N.A. HDMI 2.0a x 1, DP1.2 x 1
Control Key  Rear bottom: Power on/off
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC 19V~28V / 83.9 W
Power Adapter AC 100 ~ 277V / 47 ~ 63 Hz / DC output 12V, IP68
Temperature
Operating Temperature
24V DC Input 0~40℃/ 0~50℃ (Change to SSD)
Storage Temperature -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X , IP69K/ SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 395 mm (H) x 309.5 mm (V) x 58 mm (T)
Weights (Net) 8.4 kg (w/o power adapter/battery pack)
Mounting VESA 100, side mount (M6*2)
Certification CE (EMC) :EN61000-6-4 ; EN61000-6-2 / FCC/VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Options

1. Wireless LAN or Wireless and BT kit  (Easy Clean and Robust Antenna  or 2 ant)
2. 2.5" SSD
3. External LAN x 2 (USBx2,LANx2,COMx1)
4. Windows 10 (64bit)/ Windows 11 (64 bit)
5. Stainless M12 connector
6. DC power extension cable (2m)
7. IP67
8. Full Flat PCT Touch Screen IP69K
9. SUS316 Enclosure
10. Cable Gland for External I.O.

Accessory

1. Waterproof USB cable, cable length is 2 meters
2. Waterproof LAN cable, cable length is 2 meters
3. Waterproof COM cable, cable length is 2 meters
4. Wall mount / table mount bracket
5. DC input cable

Customization

1.Sunlight readable optical bonding
2.Roof for UV protection and sunlight readable
3.1000 nit high brightness LCD
4.5W/2W Speaker
5.Barcode reader
6.COM + Power 5V or 12V
7.2nd HDD for RAID 0,1
8.M.2 SSD
9.TPM 2.0 or FTPM
10.M.2 (Key B, 3042) with USB2.0 and SIM for 4G x 1
11.Waterproof USB3.0
12.Intel i3-8145UE, DC, 2.2GHz
13. WDT AP/API

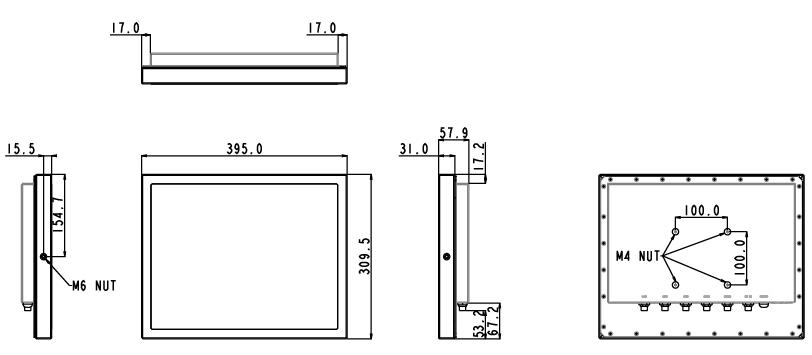

Drawing
proimages/products/WTP/WTP_15/WTP_15-DW.jpg
