Product Name : WMP-24M-PIS Comet Lake 24" Fanless Power Inside
Product Description
  • Intel® Comet Lake Core i CPU
  • Power Adapter Inside
  • Anti-bacteria Aluminum Housing
  • 23.8" FHD AHVA (IPS) Diagnostic Panel
  • Optional Optical Bonding/AG Film
  • Optional Full HD Capture Card
  • LAN/COM 4KV Isolated Module
  • Optional DICOM Part 14
  • Support Video-In with Color Adjustment
  • Support DP x 1, HDMI x 1 for Extended Display Output
  • Support Windows 11 & fTPM
See: Medical OR Panel PC WMP-24M

eNews: Wincomm New 24 Medical OR Panel PC Wins Taiwan Excellent 2022
eNews: An industry best, the highest performance medical grade panel PC is launched: Wincomm announces WMP-C Series
Product Introduction
Medical OR All In One PC

Integrated with Built-in Power Supply, Secure Operation Procedure

Medical OR All In One PC series is designed for operating room applications, such as endoscopic surgery, robotic surgery, and so on.  With anti-bacteria elegant aluminum housing, it supports full sealed waterproof for IP65 whole system, and two display port output, one unique video-input function to receive medical capture devices for all types of minimally invasive surgery.  The special power adapter inside design is featuring at clean and easy installation to secure operating safety.

  • Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and six side IP65 with I.O. cover making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 (MDR) and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 10th Gen Intel Core CPU
    Our medical panel pcs offer the Comet Lake 10th generation Intel® Core i3/i5/i7 processor series. Other features listed below:
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. 23.8" FHD MVA/AHVA Diagnostic Panel
    4. Optional Full HD Capture Card & HDMI Video-In
    5. LAN/COM 4KV Isolated Module
    6. Power Adapter Inside for WMP-24M-PIS
    7. Optional DICOM Part 14 Compliance Solution
    8. Support Windows 11 & fTPM
    9. Optional Internal UPS Battery pack (WMP-24M)
Main System
CPU / Chipset
LGA1200 package 10th gen Intel® Core i7/i5/i3/Pentium/Celeron processor (35W max.) Intel® Q470E Chipset (Intel® PCH)
Graphic Intel® integrated UHD Graphics by CPU
RAM 2 x 260-pin SO-DIMM, Dual Channel DDR4 2933 / 2666 / 2400 MHz, up to 64GB
OS Support Optional Win 10 IoT Enterprise LTSC 64 bit, Windows 11 IoT Enterprise GAC 64 bit
1 x M.2 (M Key, 2280) with NVMe PCIe x4 & SATA3 for SSD, 1 x 2.5” SATA3 HDD/SSD
1 x PCI-E x16(20W Max.), 1x M.2 E key 2230,
1x M.2 (B/M Key, 2242/2260/2280) with PCIex1
Display Size 23.8” 16:9
Display 1920 x 1080 (Full HD), 16.7M colors,178(H) / 178(V), 400 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel / Light Transmission: 85% ± 3% / Hardness: 6H pencil, pressure 750g/45° / Life: 100M times
I.O. Ports
USB 4 x USB 3.2 gen 2 4 x USB 3.2 gen 2
1 x RS232, 1 x RS232/RS422/RS485
1 x ISO RS232/RS422/RS485
LAN 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro)
1 x RJ45 2.5Gbps Intel® I225V
1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro)
1 x RJ45 2.5Gbps Intel® I225V
1 x ISO RJ45 1Gbps
Audio 3.5mm phone jack connector * 2 (Line-out, Mic-In)
Video Out 1 x DP 1.2 / DP++,1 x HDMI 1.4a
Video In 1 x HDMI-in
Control Hot Key (L to R)
Battery LED Indicator; Power; Menu/Exit; Brightness; Video-In LCD On/Off; Clean Me; Programmable Function
Mechanical and Environmental
Cooling Fanless
Power Adapter 100-240VAC,47~63HZ, DC Output 24V, 250W (Internal Medical Grade PSU)
Temperature Operating Temperature: 0~35℃ / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating Front: IP65, Rear: IP54 when I/O cover attached

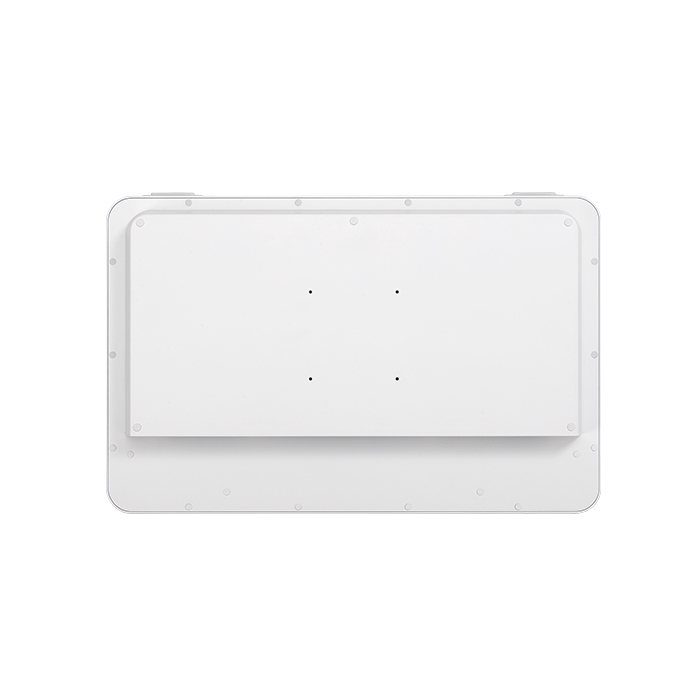

Housing Rear: Aluminum Alloy Body / White (Touch)
Dimensions (Net) 580mm (H) x 350mm (V) x 59mm (T)
Weights (Net) 11.2 kg (w/ power supply)
Mounting VESA 100 x 100
FCC (part 18 Class B) / CE (EN 60601-1-2 :2015 ver. 4.0) / VCCI (2016-11, class B)
UL(ES60601-1:2012 (V3.1) / cUL (C22.2 No. 60601-1:2014 V3.1)
MDR (2017/745), ISO 14971/ IEC 62133
Options & Customized

Major Options


1. Cable clean I.O. cover (w/ 3x sealed grommet ; w/ 3-4mm *1, 4-5mm*1, 5-6mm*1, 6-7mm*1, 7-8mm*1 grommet)
2. WMP series stand, VESA 100


1. 802.11 ac/a/b/g/n WLAN + Bluetooth module (optional order configuration)
2. 802.11 ax/a/b/g/n WLAN + Bluetooth module (Wifi-6) (optional order configuration)
3. 2.5” SSD module
4. M.2 type 2280 module
5. RFID (13.56MHz)
6. TPM 2.0 module or fTPM
7. Full HD capture card or 4K SC710N1 12G SDI capture card
8. Equipotential terminal pin
9. AG film (Can’t exist with DICOM)
10. DICOM part 14 compliance (max. error ratio less than 20%, optional order configuration)


1. Tempered glass
2. Touch with AG coating
- anti-reflective,
- anti-microbial,
- anti-glare,
- anti-fingerprint
3. Auto focus 5M pixel webcam module
