Product Name : WMP-24F Skylake / Kaby Lake 24"
Product Description
  • Intel® 6th & 7th Gen Core i Medical Panel PC
  • 23.8" FHD MVA LCD panel
  • Medical Certification MDR 2017/745 Ready
  • Support Intel® vPro by Optional i7/i5 CPU
  • Anti-Bacteria Plastic Housing
  • Friendly Design of Front Function Hot-Keys
  • Support RAID 0,1
  • Optional DICOM Part 14 Compliance Module
See: Medical Fanless All In One Touch Panel PC WMP-24C

eNews: 6th generation Skylake platform Medical grade touch Panel PC WMP-24F/22F/19F

Product Introduction
Medical AIO Panel PC with Powerful Skylake / Kaby Lake CPU

Integrated with Built-in battery, Non-Stop Operation

These medical all in one panel pc are designed to fulfill versatile clinical applications, incouding EMR, anesthesia applications, operating room environments, and patient charting. One of our most powerful computers for hospitals that want the best in medical hardware.

  • Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and an IPX1 back cover making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 6th & 7th  Gen Intel Core CPU
    Our medical panel pcs offer the Skylake 6th and Kaby Lake 7th generation Intel® Core i3/i5/i7 processor series.
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. Webcam & RFID antenna & TPM 2.0 & Display interface for up to 2

FHD, MVA panel, True 8 bit-Visual Clearance to Secure Medical Image Safety


FHD MVA Panel Featured:

Consistently Clear and Precise Images

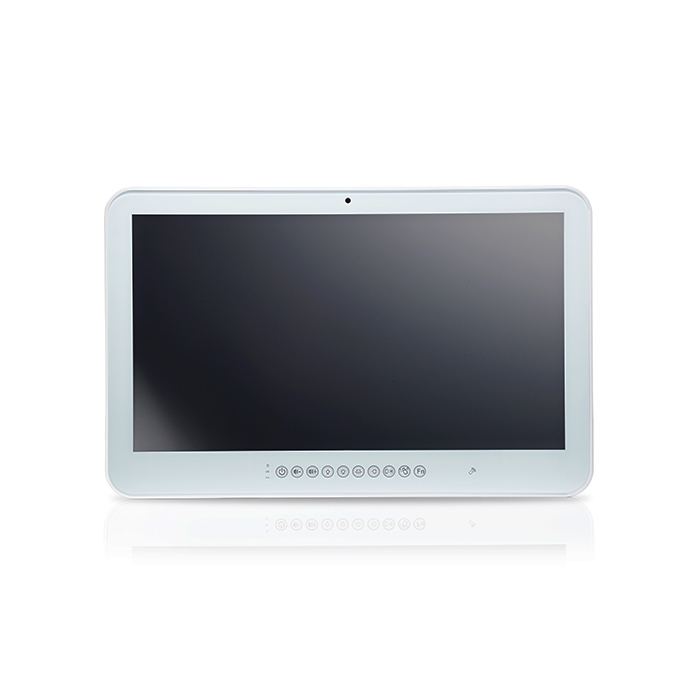

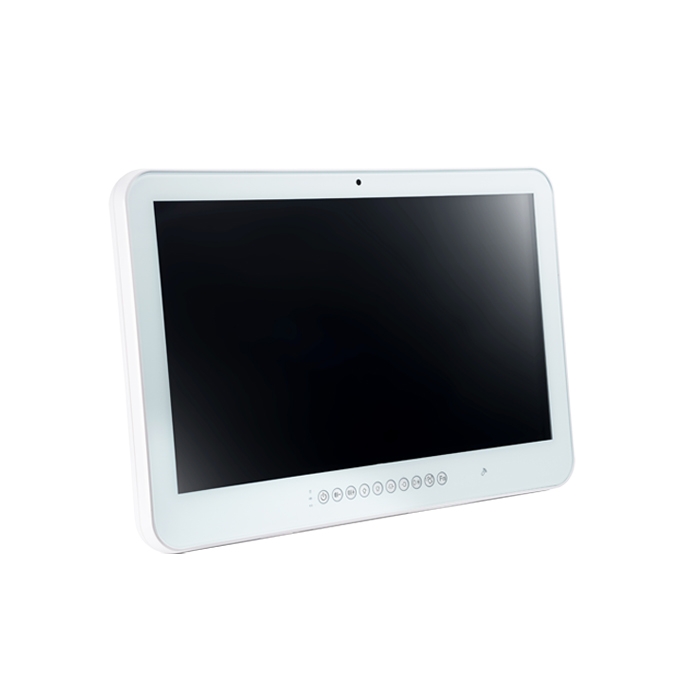

Product Outlook & Friendly Hot-Key Design


Optional USB3.1 gen II (USB5,6) for high speed device


Optional ISO –COM/LAN/USB to avoid expansive equipment damage

4KV Isolated Interface:

  • Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.
ModelWMP 24F  IP0A (STD)WMP 24F  IP0B (ISO)WMP 24F  IP0C (USB3.1)
Main System
CPU / Chipset LGA1151 package 6th /7th generation Intel® Core i7/i5/i3/Celeron processor
Graphic Intel® integrated HD Graphics
RAM DDR4 Dual-2133 SODIMMl, non-ECC, 4GB to 32GB
OS Support Windows 7,  pro, Windows 8, Windows 8 industrial, Win 10
Storage 2.5” SATA HDD drive bay x 1, mSATA via mini PCI-E x 1, Optional 2nd 2.5” HDD
Expansion PCI-E (x16) x 1, Mini PCIe x 1 (52 pin card-edge type), M.2 E x 1, Optional Network Interface: 802.11 ac/a/b/g/n WLAN + Bluetooth 4.1 module
Display Size 23.8” wide TFT-Color LCD (16:9)
Display 1920 x 1080 (Full HD), 16.7M colors (MVA, 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel /  Light Transmission: 90% ± 3% / Hardness: 7H pencil, pressure 750g/45° / Life: 100M times

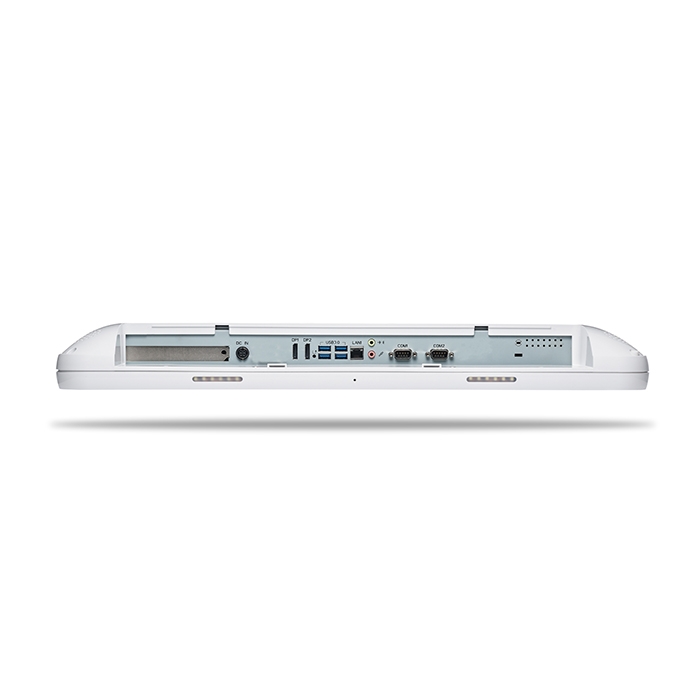

I.O. Ports
USB USB3.1 Gen II x 2, USB3.0 X 2  USB3.0 x 2, USB 3.1 Gen. II X 2,  ISO USB2.0 X 1  USB3.0 x 2, USB 3.1 Gen. II X 2, USB3.0 X 2
COM RS-232 x 2 ISO RS-232 x 1, ISO RS232/RS422/RS485 X 1  RS-232 x 1, RS232/RS422/RS485 X 1
LAN RJ45 X 1 RJ45 x 2, ISO LAN x 1  RJ45 x 2
Audio 13.5mm phone jack connector * 2 (Line-out, Mic-In)
Video  DP x 2, Optional Video-in
Reading light Light bar x 2
Control Hot Key (R to L) Power // Audio adjustment // brightness // Reading Light // Video input selection // LCD on/off // Clean me(auto release after 1 minute) // Fn
Mechanical and Environmental
Cooling Fan
Power Input DC-In x 1,  DC 9~32V input
Power Adapter AC input 100 ~ 240V /47 ~ 63 Hz /DC output 24V/ 180W
Temperature Operating Temperature: 0~35℃ (chamber) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 whole system / Front: Full flat design/ Touch (standard)/ Glass( customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing

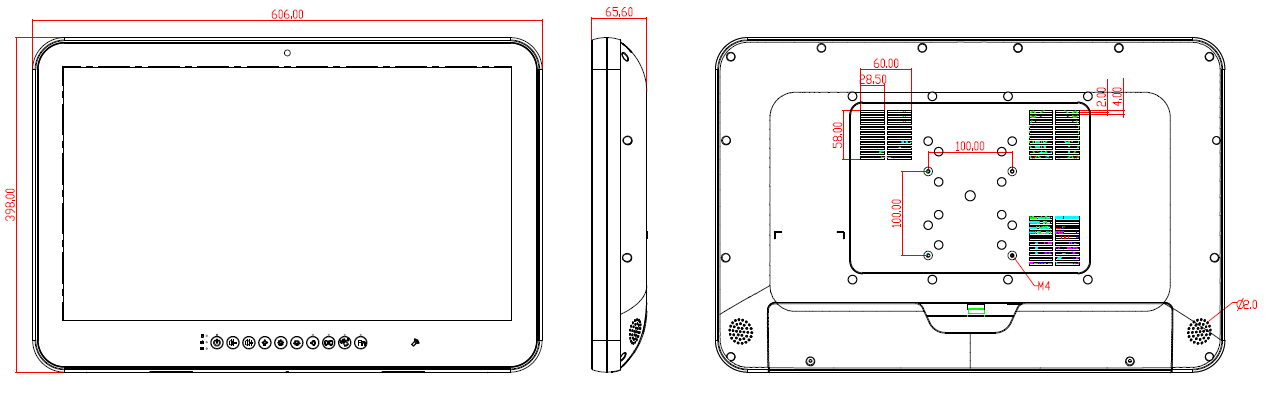

Dimensions (Net) 606.0mm (H) x (V) x 65.6mm (T)
Weights (Net) 9.7 KG (approximate, w/o power adapter)

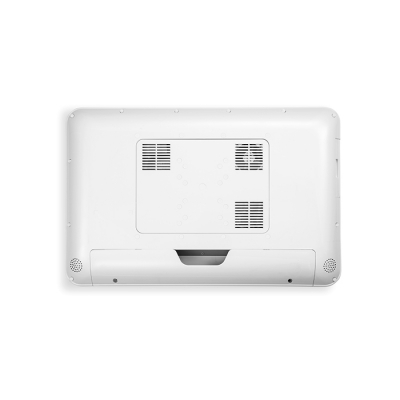

Mounting Optional Stand, VESA 100
Certification CE:  EN IEC 60601-1-2:2015/A1:2021(Ed 4.1)
EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance
VCCI: 2016-11, Class B (PSU with PSE) / FCC: Part 18 Class B + Part 15 Subpart B:2021
ICES-003 Issue 7:2020, Class B/ UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) / ISO 14971 / IEC62133
Options & Customized

Major Options

Add On Parts

1. Video-in x 1
2. WLAN + Bluetooth module
3. Auto focus 5M pixel webcam module
4. mSATA module
5. RFID reader (13.56Hz)
6. TPM 2.0 module
7. PCI-E x 16
8. Full HD capture card
9. Smart card reader / or DVD drive / or 2nd HDD
10. Build-in battery (100W max)
11. Equipotential terminal pin
12. AG film (Can not co-exist with DICOM module)
13. DICOM part 14 compliance module (Configure of order service)
14. 6 COM solution
15. 6 USB solution

Power Cable

1. Power adaptor w/ 2m DC extension cable
2. Power plug holder

Optional kits

1. Anti-bacteria Stand,
2. VESA Wall Mount


1. PCI riser card  (BIOS change under Win 10),
2. Tempered Glass
3. 4K2K UHD display by different configuration / MB with eDP.(no video-in)
