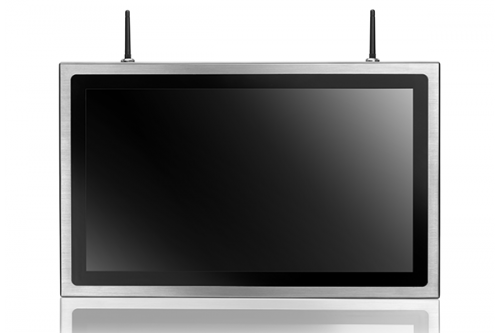

WTP-8J66 Elkhart Lake J6412 22"
Specification
| Model | WTP-8J66-22 | ||
|---|---|---|---|
| Main System | |||
| CPU / Chipset | Intel® Elkhart Lake SoC Processors J6412, QC, 2.0~2.60 GHz, 10W | ||
| Graphic | Intel® Gen 11 UHD Graphics | ||
| RAM | Dual channel support 3200MHz DDR4 SODIMM socketx2, up to 32GB | ||
| OS Support | Win 10 / Win 11 (Option) | ||
| Storage | 1 x 2.5” SATA HDD drive bay 1 x M.2 (M Key 2242/2260/2280) SATA3 & PCIe for SSD |
||
| Expansion | 1 x PCIex1 Gen3 1 x M.2 (E key 2230) w/PCIe x1 and shared USB2.0 for wireless 1 x M.2 (B key,3042/3052) with PCIe x1/USB 3.2/USB2.0 SIM for 4G/5G 1 x SIM socket connected to M.2 key B |
||
| Display Size | 21.5” 16:9 | ||
| Display | 1920 x 1080(FHD), 170(H) / 160(V), 250 nits, CR:1000 : 1 (Typ) | ||
| Touch Screen | Full flat resistive touch / Light Transmission: 80 ± 5% / Hardness: ≧3H / Lifetime: 35M hours Full flat p-cap touch / Light Transmission: ≧86% / Hardness: ≧7H / Lifetime: 100M times |
||
| I.O. Ports | |||
| Configuration | STD. (M12 Connector) | Cable Gland (Max. 5 external I/O by proper grommet) | |
| USB | 1 x M12 8pin for USB 1/2 (USB2.0) 1 x M12 8pin for USB 3/4 (USB2.0) |
2 x USB 3.2 (Gen1) 2 x USB2.0 |
|
| COM |
2 x M12 8pin/ RS232
|
RS232/RS422/RS485 x 2 | |
| LAN | 1 x M12 8pin for LAN (2.5 Gigabit) | 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN |
|
| Audio | N.A. | 2 x 3.5mm phone jack connector (Line-out, Mic-in) | |
| Video | N.A. | 1 x HDMI 2.0b, 1 x VGA | |
| DC in | 1 x M12 5pin DC power connector | ||
| Control Key | Rear bottom: Power on /off | ||
| Mechanical and Environmental | |||
| Cooling | Fanless | ||
| Power input | DC 12V~28V | ||
| Power Adapter | AC 100~277V / 47 ~ 63 Hz / DC output 24V, 120W (IP68 PSU w/ PSE) | ||
| Power Consumption | TBD W | ||
| Temperature | Operating Temperature 0~40℃ (24V DC, IEC60068-2-56, HDD) 0~50℃ (24V DC, IEC60068-2-56, SSD) Storage Temperature -20~60℃ |
||
| Humidity | Operating & Storage:10 ~ 90%, non-condensing | ||
| IP Rating / Housing | IP66 / NEMA4X / IP69K whole set / IK05 / stainless steel (SUS304), chassis type | ||
| Dimensions (Net) | 557 mm (H) x 348.5 mm (V) x 58.5 mm (T) | ||
| Weights (Net) | 12 kg | ||
| Mounting | VESA 100/100, side mount (M6*2) | ||
| Certification | CE (EMC) FCC Class B, Canada ICES-003 VCCI Class B | ||
Options & Customized
Floor Stand
