Product Name : WMP-24T Alder Lake 24" Fanless
Product Description
  • Intel 12th generation Core i CPU (H series)
  • Anti-bacteria Aluminum Housing
  • 23.8" FHD MVA Diagnostic Panel
  • IP65 at front, Rear IP54 protection with cable cover attached
  • Optional 4K capture card
  • LAN/COM 4KV Isolated Module
  • Optional DICOM Part 14 Solution
  • Supports Dual Channel DDR5 SODIMM
  • Fast booting with M.2 M Key 2280 PCIe X 4 SSD (Support NVMe SSD) as drive disk
  • Fanless solution
  • Watch Dog Timer (WDT)
  • Defaulted OS Recovery
See: Comet Lake 24" Fanless Power Inside WMP-24M-PIS

eNews: Wincomm Launched 22”-24” Alder Lake Medical OR Panel PC WMP-22/24T-PIS Series - 1st Demo at Computex Taipei 2023
eNews: Wincomm New 24 Medical OR Panel PC Wins Taiwan Excellent 2022
Product Introduction
Medical OR All In One PC

Integrated with Built-in Power Supply, Secure Operation Procedure

Medical OR All In One PC series is designed for operating room applications, such as endoscopic surgery, robotic surgery, and so on.  With anti-bacteria elegant aluminum housing, it supports full sealed waterproof for IP65 whole system, and two display port output, one unique video-input function to receive medical capture devices for all types of minimally invasive surgery.  The special power adapter inside design is featuring at clean and easy installation to secure operating safety.
.

  • Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and six side IP65 with I.O. cover making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 (MDR) and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 12th Gen Intel Core CPU
    Our medical panel pcs offer the Alder Lake 12th generation Intel® Core i3/i5/i7 processor series. Other features listed below:
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. 23.8" FHD MVA/AHVA Diagnostic Panel
    4. Optional Full HD Capture Card & HDMI Video-In
    5. LAN/COM 4KV Isolated Module
    6. Power Adapter Inside for WMP-24M-PIS
    7. Optional DICOM Part 14 Compliance Solution
    8. Support Windows 11 & fTPM
    9. Optional Internal UPS Battery pack (WMP-24M)

Specification
ModelWMP-24T  IP0A (STD)WMP-24T  IP0B (ISO)
Main System
CPU / Chipset
FCBGA1744 12th generation Intel® Core i7/i5/i3 and Celeron processor (35W max.)/ Soc
Graphic Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU)
RAM Two 4800 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 64GB
OS Support Optional Win 10 IoT Enterprise LTSC 64 bit, Windows 11 IoT Enterprise GAC 64 bit
Storage
1 x M.2 (M Key, 2280) with PCIe x4 for SSD
1 x 2.5” SATA3 HDD/SSD drive bay
Expansion
1 x PCI-E x8 expansion slot (PCI-E x4 Signal)
1x M.2 E key 2230
Display Size 23.8” 16:9
Display 1920 x 1080 (Full HD), 16.7M colors
178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel / Light Transmission: 85% ± 3% / Hardness: 6H pencil, pressure 750g/45° / Life: 100M times

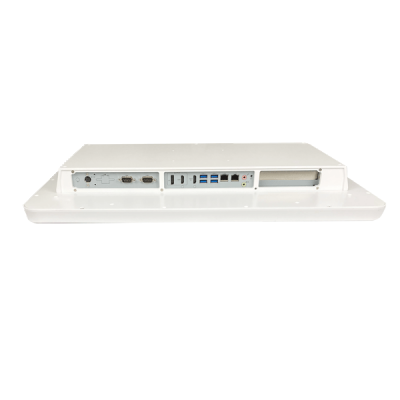

I.O. Ports
USB 4 x USB 3.2 gen 2 4 x USB 3.2 gen 2
COM
1 x RS232, 1 x RS232/RS422/RS485
1 x ISO RS232/RS422/RS485
LAN 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro)
1 x RJ45 2.5Gbps Intel® I226V
1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro)
1 x RJ45 2.5Gbps Intel® I226V
1 x ISO RJ45 1Gbps
Audio 3.5mm phone jack connector * 2 (Line-out, Mic-In)
Video Out 1 x DP 1.4a / DP++,1 x HDMI 2.0b
Video In 1 x HDMI-in (without audio);Support in S5 mode
Control Hot Key (L to R)
Battery LED Indicator; Power; Menu/Exit; Brightness; Video-In LCD On/Off; Clean Me; Programmable Function
Mechanical and Environmental
Cooling Fanless
Power Adapter AC input 100 ~240V / 47 ~ 63 Hz, External power adapter, 180W
Temperature Operating Temperature: 0~35℃ (IEC60068-2-78) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating Front: IP65, Rear: IP54 with cable cover attached
Housing Rear: Aluminum Alloy Body / White (Touch)
Dimensions (Net) 580mm (H) x 350mm (V) x 68mm (T)
Weights (Net) 10.1 kgs
Mounting VESA 100 x 100
Certification
CE: EN 60601-1-2:2015(V4.1) (Declaration of Conformity)
EN 60601-1: 2006/A2:2021;IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 (By project)
VCCI: 2016-11, Class B (Declaration of Conformity)
FCC: Part 18 Class B (Declaration of Conformity)
UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021) (By project)
cUL: CAN/CSA-C22.2 No. 60601-1:14) (By project)
ISO 14971 / IEC62133 (By project)
Options & Customized

Major Options

Accessory

1. Cable clean I.O. cover (w/ 3x sealed grommet; w/ 3-4mm *1, 4-5mm*1, 5-6mm*1, 6-7mm*1, 7-8mm*1 grommet)
2. WMP series stand, VESA 100
3. 2M Extension Power DC Cable

Options

1. 802.11 ac/a/b/g/n WLAN + Bluetooth module (optional order configuration)
2. 802.11 ax/a/b/g/n WLAN + Bluetooth module (Wifi-6) (optional order configuration)
3. 802.11 be WLAN + Bluetooth module (Wifi-7) (optional order configuration)
4. M.2 type 2280 module
5. RFID (13.56MHz)
6. TPM 2.0 module (SPI Interface)
7. Full HD capture card or 4K SC710N1 12G SDI capture card
8. Equipotential terminal pin
9. AG film (Can’t exist with DICOM)
10. DICOM part 14 compliance (max. error ratio less than 20%, optional order configuration)
11. Integrated battery x 1 (output 100W max.)
12. Optical bonding ; USB 5,6 (USB 2.0)
13. 4KV ISO USB2.0 x 2 card (High speed - optional order configuration)
14. Auto focus 5M pixel webcam module (optional order configuration)
15. 2.5” SSD module

Customized

1. Tempered glass
2. Touch with AG coating
- anti-reflective
- anti-microbial
- anti-glare
- anti-fingerprint
proimages/products/WMP-24T/M01-00000277_WMP-24T_Outline-Drawing_V1.0.png
