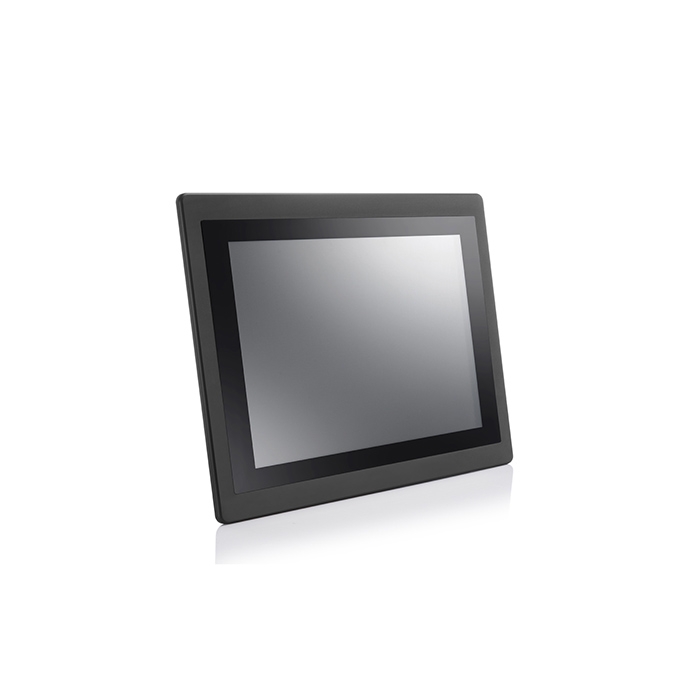

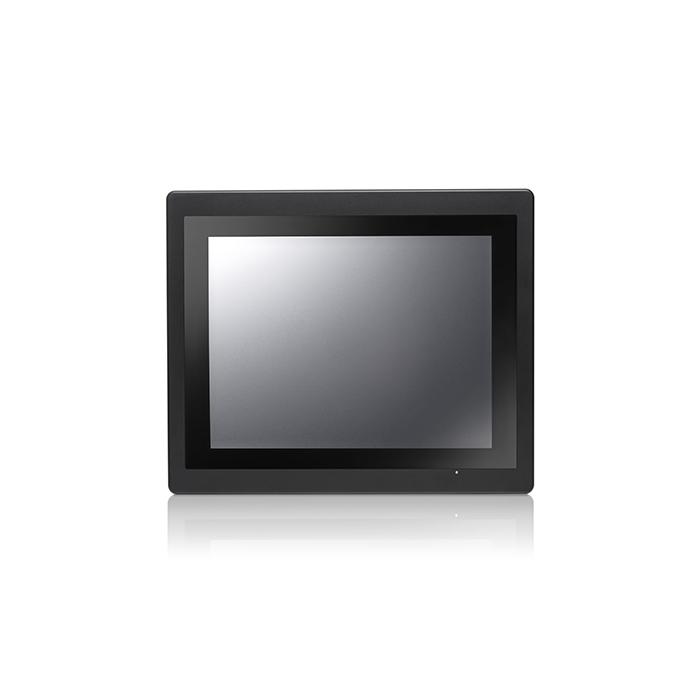

Product Name : WLP-7F21 Skylake 17"
Product Description
  • Intel® Skylake i7/i5/i3 CPU
  • 17" 1280x1024 LCD Panel
  • Panel Mounted w/Full Flat Resis. Touch
  • CE, FCC, VCCI Class B Certified
  • Support Intel® vPro by Optional i7/i5 CPU
  • Full Flat Design Easy Clean & IP66 Front
  • Low power and Fanless Solution
  • Optional WLAN with External Antenna
eNews: Wincomm Announced Intel 6th gen. Core i Skylake CPU Platform WLP-7F20 Fanless Industrial Panel PC Series
eNews: Wincomm White Paper : How to Bring Differentiated AIoT Solutions to Rugged Industries
Product Introduction

Fanless Touch Panel PC Professionals

  • 24/7 operation under 0~50°C & high ambient light without limitation
  • Water/dust proof guarantee
  • No corrosion after long-term usage
Specification
ModelWLP-7F21-17
Main System
CPU / Chipset Intel®  Core i5-6500TE, Core i5-6500T Processor(6M Cache, up to 3.30 GHz) / Intel® Q170 Chipset
Graphic Intel® integrated HD Graphics 530
RAM DDR4 Dual-2133 SODIMMl, non-ECC, 4GB to 32GB
OS Support Win 7 pro, Win 7, Win 8 Embedded, Win 8 Industrial, Win10
Storage Optional 2.5” SATA HDD up to 500GB w/Anti-Vibration Kit
Display Size 17” TFT-Color LCD
Display 1280 x 1024(SXGA),  170(H) / 160(V), 350 nits (Typ. Center point), CR:1000 : 1 (Typ)
Touch Screen (USB)  Full Flat Res. Touch / Light Transmission: 81% ± 3% / Hardness: 3H pencil / Life: 35M times

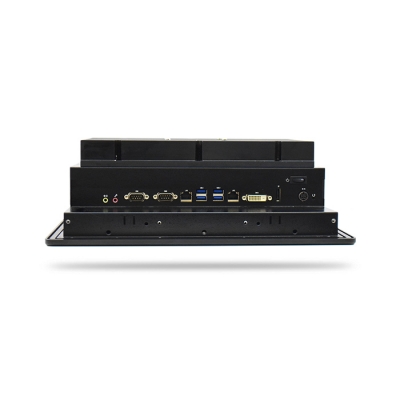

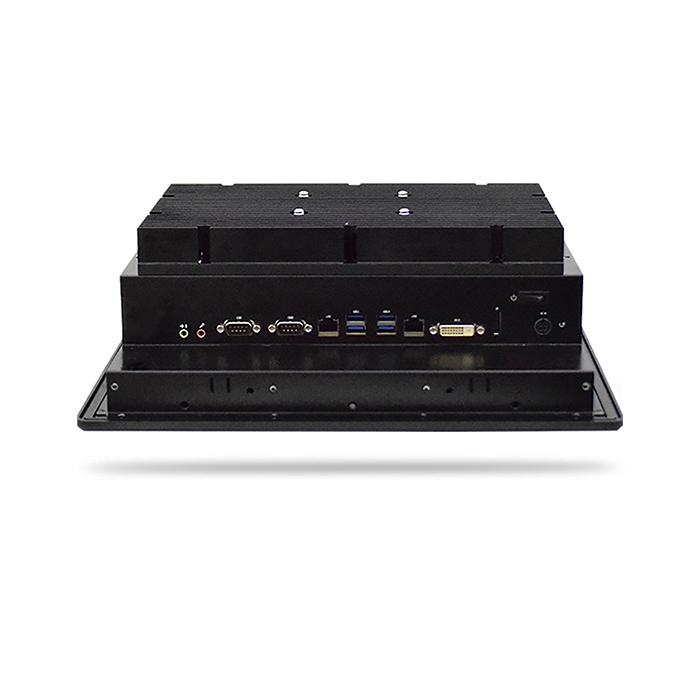

I.O. Ports
USB USB 3.0 x 4, USB 2.0 x 2
COM RS232 x 1, RS232/RS422/RS485 x 1
LAN RJ-45 X 1
Audio 3.5mm phone jack connector x 2 ( Line-out, and Mic-in)
Video DP x 1, DVI x 1
Control Keys  Rear bottom: Power on/off, Reset
Mechanical and Environmental

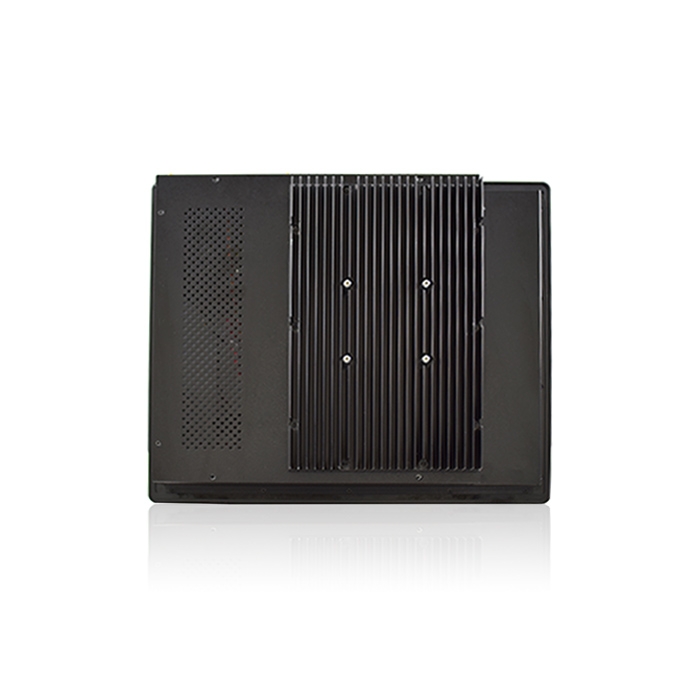

Cooling Fanless
Power Input  DC-in x 1 12V
Power Adapter External, 100 watts, universal 100 ~240V AC in, 12V DC out, 8.33A
Temperature Operating Temperature:
12V DC Input 0~35℃
Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP66 at front / Front bezel is Aluminum, others are SECC with black coating
Dimensions (Net) 426.2 mm (H) x 358.6 mm (V) x 117.8 mm (T)
Weights (Net) 8.6 kg (w/o power adapter/battery pack)
Mounting Panel mount, Optional Open frame / Chassis, VESA (75x75)
Certification FCC/CE/VCCI Class B, Canada ICES-003
Options & Customized

Major Options

Add On Parts

1.Wireless or Wireless + BT kit ,
2. mSATA module,
3.
Stainless front bezel,
4.
Sliver fornt bezel,
5. 2.5" SSD,
6.Change resistive touch to P-cap touch,
7. Swappable HDD Cassette x 2,
8.Anodized aluminum front bezel

Customization

1.Open frame housing,
2.
Sunlight readable optical bonding,
3.LCD auto dimming,
4.LCD super dimming (Low brightness),
5.Chassis type housing

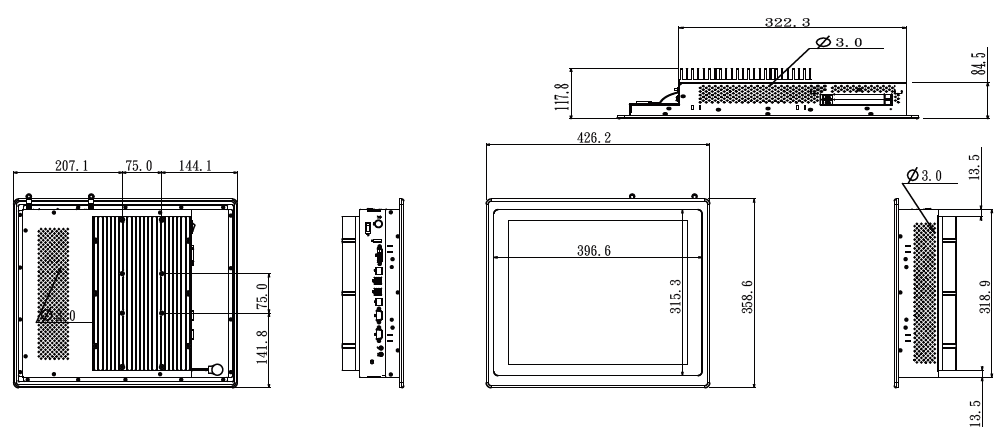

Drawing
proimages/products/WLP_BKPT_BKFT/WLP_17/WLP-7F21-17-DW.png
